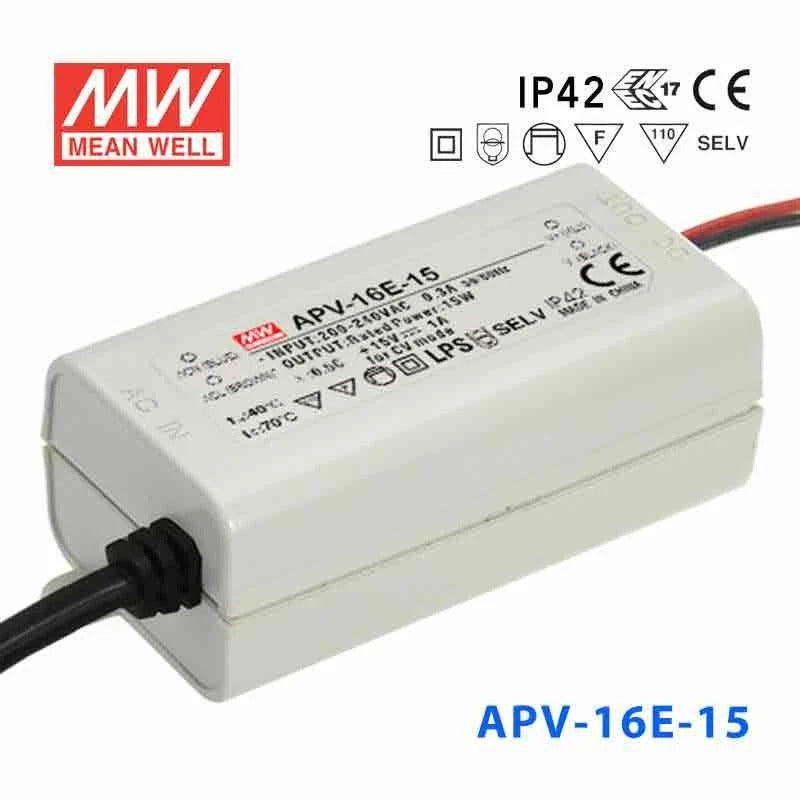

Mean Well APV-16E-15 Power Supply 15W 15V 1A

4.6 (11 reviews)

Class II designlow costsmall and compactIP42

SKU APV-16E-15

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by APV-16-15

Available to order

Overview

APV-16E-15 is the 15V output model of this series: rated current 1A, rated power 15W, typical efficiency 80%.

APV-16E series is one 16W AC/DC constant voltage mode single output LED power supply. It accepts input 180~264VAC and provides four models with different output voltage, 5V, 12V, 15V, 24V, respectively, that the small wattage LED applications employ the most frequently. Exploiting Class II design (without FG pin) and adopting the 94V-0 flame retardant plastic enclosure, APV-16E ideally fits the entry-level LED applications.

Features

Constant voltage design
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
Class Ⅱ power unit, no FG
No load power consumption <0.5W
IP42 design
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 years warranty

Specifications

APV-16E-15Specifications from the official datasheet (2024-01-08 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 1A
CURRENT RANGE: 0 ~ 1A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE TOLERANCE^Note.3: ±5.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 30ms / 230VAC at full load
HOLD UP TIME (Typ.): 20ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 180 ~ 264VAC 254 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.5/230VAC at full load
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.3A/230VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=185μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: 0.25mA / 240VAC

PROTECTION

OVER LOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.5 ~ 21V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004, IP42 , BS EN/EN 62368-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020

OTHERS

MTBF: 6876.1K hrs min. Telcordia SR-332 (Bellcore) ; 1055.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 77*40*29mm (L*W*H)
PACKING: 0.1Kg; 120pcs/14Kg/1.06CUFT

Certifications & ratings

IP level: IP42

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. This product is not intended for LED lighting luminaire applications in the EU.(In the EU the LPF/NPF/XLG series are recommended.)
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

APV-16E-15 Mechanical Specification — Mechanical Specification

APV-16E-15 Block Diagram — Block Diagram

Typical applications

Suitable for LED relate fixture or applianc e (such as LED Decoration or Advertisement devices)(Note.8)

Downloads

Certificates1

EMC Certificate(APV-16E)(EN) PDF Download

Test reports1

Test Report(APV-16E-15)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What is the APV-16E-15's input range, and what regions is it designed for?

The APV-16E-15 accepts 180–264VAC (or 254–370VDC), covering European (230V) and similar high-mains regions. It does not support 100–120V mains, so it is not suited to 120V North American supplies.

What LED applications can the APV-16E-15 support in Europe?

Its datasheet states the APV-16E-15 is not intended for LED lighting luminaire applications in the EU; MEAN WELL recommends the LPF/NPF/XLG series there. Electrically it outputs 15V at 1A for 15W maximum from 230V mains, so any 15V load must stay at or below 15W.

Is the APV-16E-15 appropriate for partially damp indoor locations?

The APV-16E-15 carries an IP42 rating, covering protection against solid objects larger than 1 mm and dripping water. Its working humidity is 20–90% RH non-condensing, so it suits dry to lightly damp indoor spaces but not splash or outdoor exposure. Wet locations need a unit with a higher IP rating.
