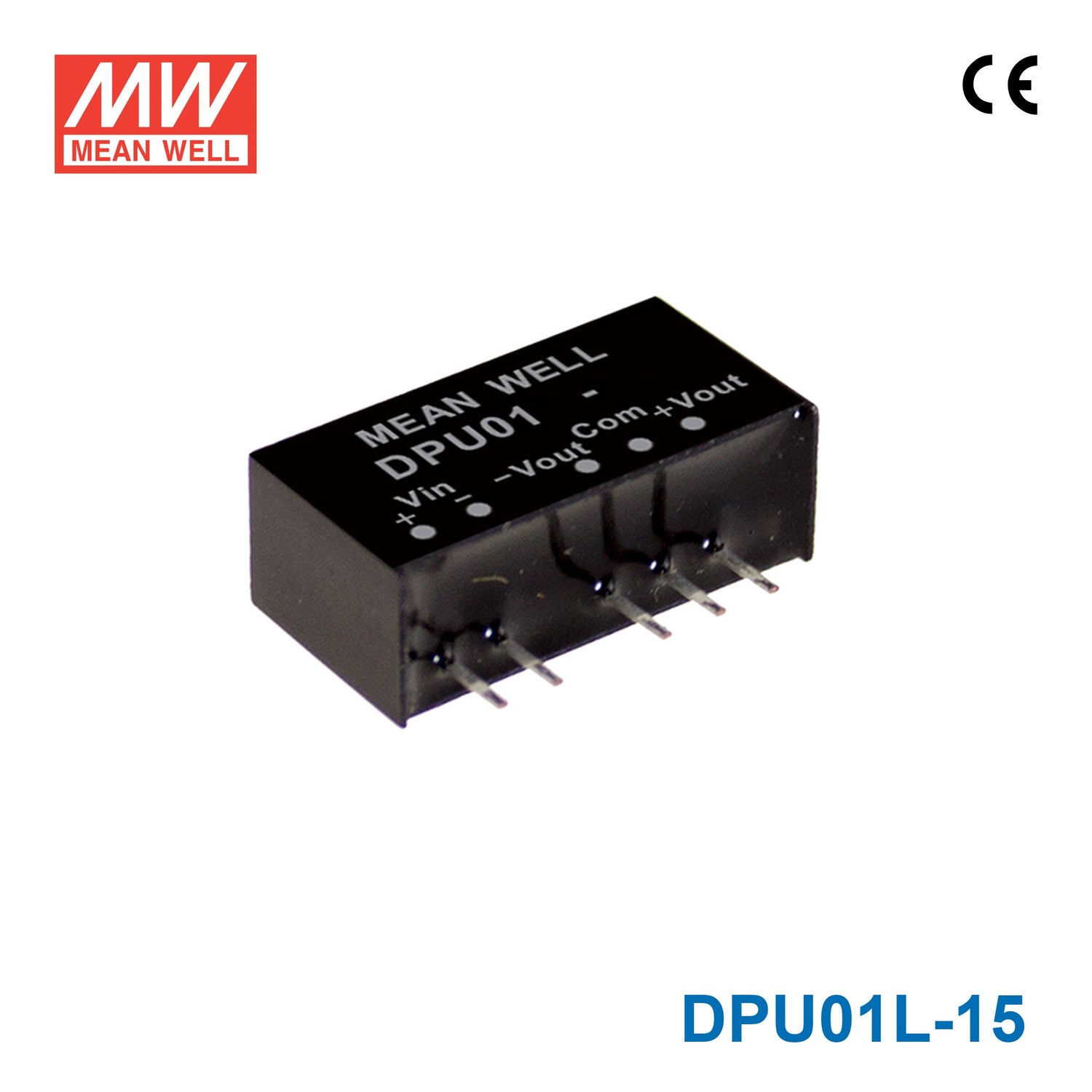

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in ±15V out

SKU:

DPU01L-15

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

DPU Series
Power Rating

1 Watt
Output Voltage

15 Volt
Rated Current

0.03 Ampere
Input Voltage

4.4V~5.5V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPU01L-15 for low-power industrial instrumentation that needs a 15V rail?

Yes, this model is intended for low-power converter duties, with a 1W rating and 15V constant-voltage output. Its listed output current is 0.03A, so it is best suited to light-load instrumentation and interface circuits.

Is the DPU01L-15 a fit for embedded control electronics with limited board space?

It is well suited to compact designs because its dimensions are 19.6 × 10.2 × 7.1 mm and its weight is 0.0027 kg. That makes it practical for dense embedded assemblies where only low power is needed.

Can the DPU01L-15 be used in high-temperature or very cold electronic assemblies?

Yes, the converter is rated for operation from -55°C to +125°C. That wide range makes it relevant for industrial and embedded systems operating in severe thermal conditions.

Would this converter work for auxiliary power inside compact automation or monitoring devices?

It can, provided the load fits a 1W converter with 15V constant-voltage output. The very small package size is useful in monitoring and automation devices where internal space is restricted.

How does DPU01L-15 compare with DPU01L-05 and DPU01L-12?

All three share a 1W rating and the same 19.6 × 10.2 × 7.1 mm dimensions. The DPU01L-15 is 15V and 0.03A, while the DPU01L-12 is 12V and 0.04A and the DPU01L-05 is 5V and 100A.

Is the DPU01L-15 specified for indoor or outdoor environments?

The listed operating temperature range is -55°C to +125°C, so it supports use across very wide temperature conditions. No IP rating is provided, which means the specs do not establish suitability for exposed outdoor environments.

Model	Power	Voltage	Current	IP Rating
Mean Well DPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out	1W	15V	0.03A	Indoor	View
Mean Well DPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in ±5V out	1W	5V	0.1A	Indoor	View
Mean Well DPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in ±15V out	1W	15V	0.03A	Indoor	View
Mean Well DPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in ±5V out	1W	5V	0.1A	Indoor	View
Mean Well DPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in ±5V out	1W	5V	0.1A	Indoor	View
