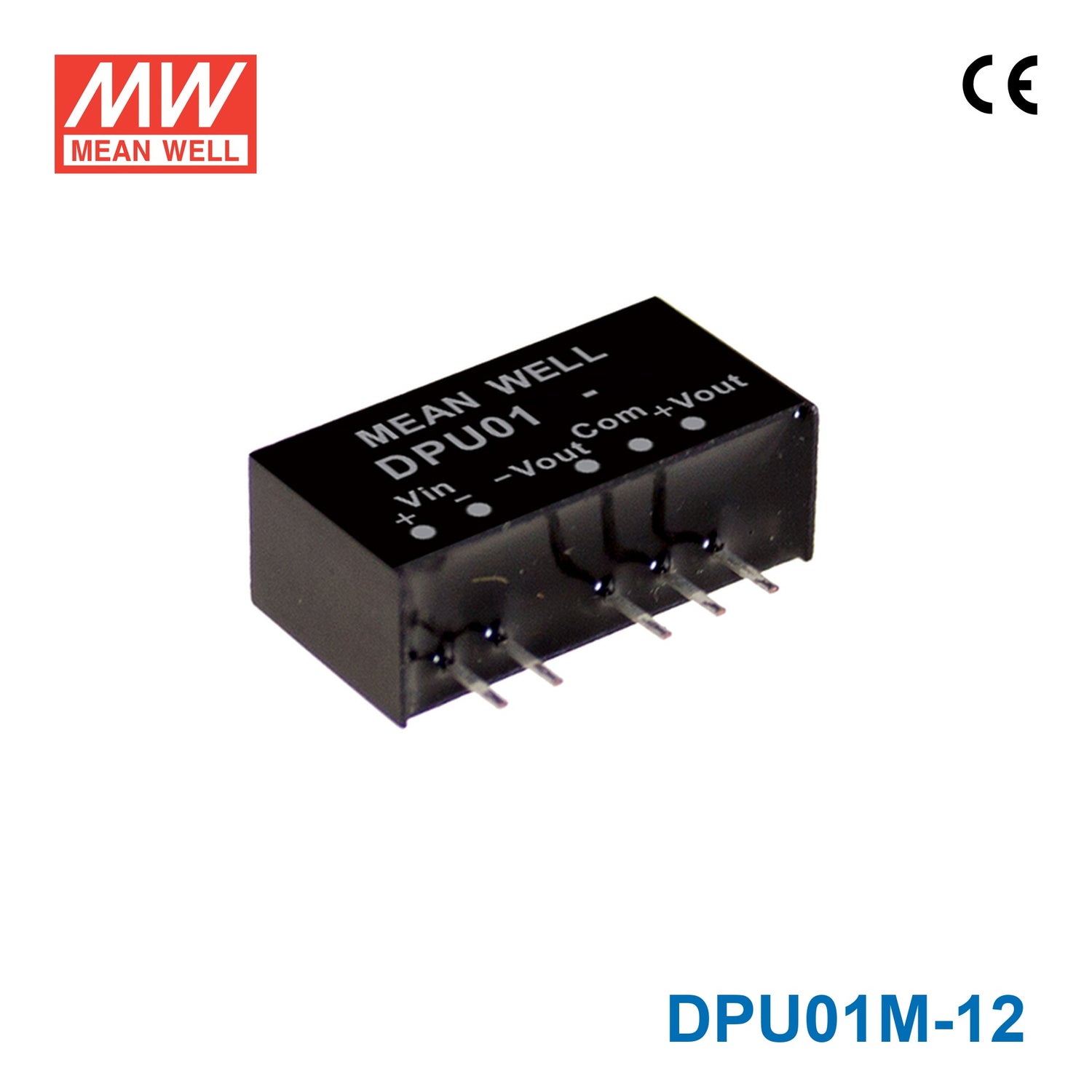

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out

SKU:

DPU01M-12

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

DPU Series
Power Rating

1 Watt
Output Voltage

12 Volt
Rated Current

0.04 Ampere
Input Voltage

10.8V~13.2V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPU01M-12 for a low-power analog or sensor circuit that needs 12V output?

This converter provides constant-voltage 12V output from a 10.8~13.2V input range and is rated for 1W. That makes it suitable for low-power analog, sensing, and embedded support circuits that need a regulated 12V rail within that power envelope.

Is the DPU01M-12 a good fit for compact automation electronics in a 12V-class system?

Yes, it is built for 10.8~13.2V input systems and keeps a small 19.6 × 10.2 × 7.1 mm footprint. In automation electronics where space is tight and the load stays within 1W, it fits better than larger board-level converters.

Can this model be used in embedded test or measurement equipment that needs a small 12V rail?

The DPU01M-12 is appropriate for embedded test and measurement sections that need 12V constant-voltage output and only require 1W. Its 0.0027 kg weight and compact dimensions also suit dense PCB layouts.

Is the DPU01M-12 suitable for indoor enclosures with wide temperature swings?

The specified operating range is -55°C to +125°C, so the temperature capability is broad. However, no IP rating is listed, so the published specs support temperature performance but do not confirm outdoor or washdown exposure.

What is the difference between DPU01M-12 and the other DPU01M versions?

All three DPU01M units share 1W power, 10.8~13.2V input, 19.6 × 10.2 × 7.1 mm dimensions, -55°C to +125°C operation, CE certification, and a 3-year warranty. The outputs differ: DPU01M-05 is 5V with listed output current 100A, DPU01M-12 is 12V at 0.04A, and DPU01M-15 is 15V at 0.03A.
