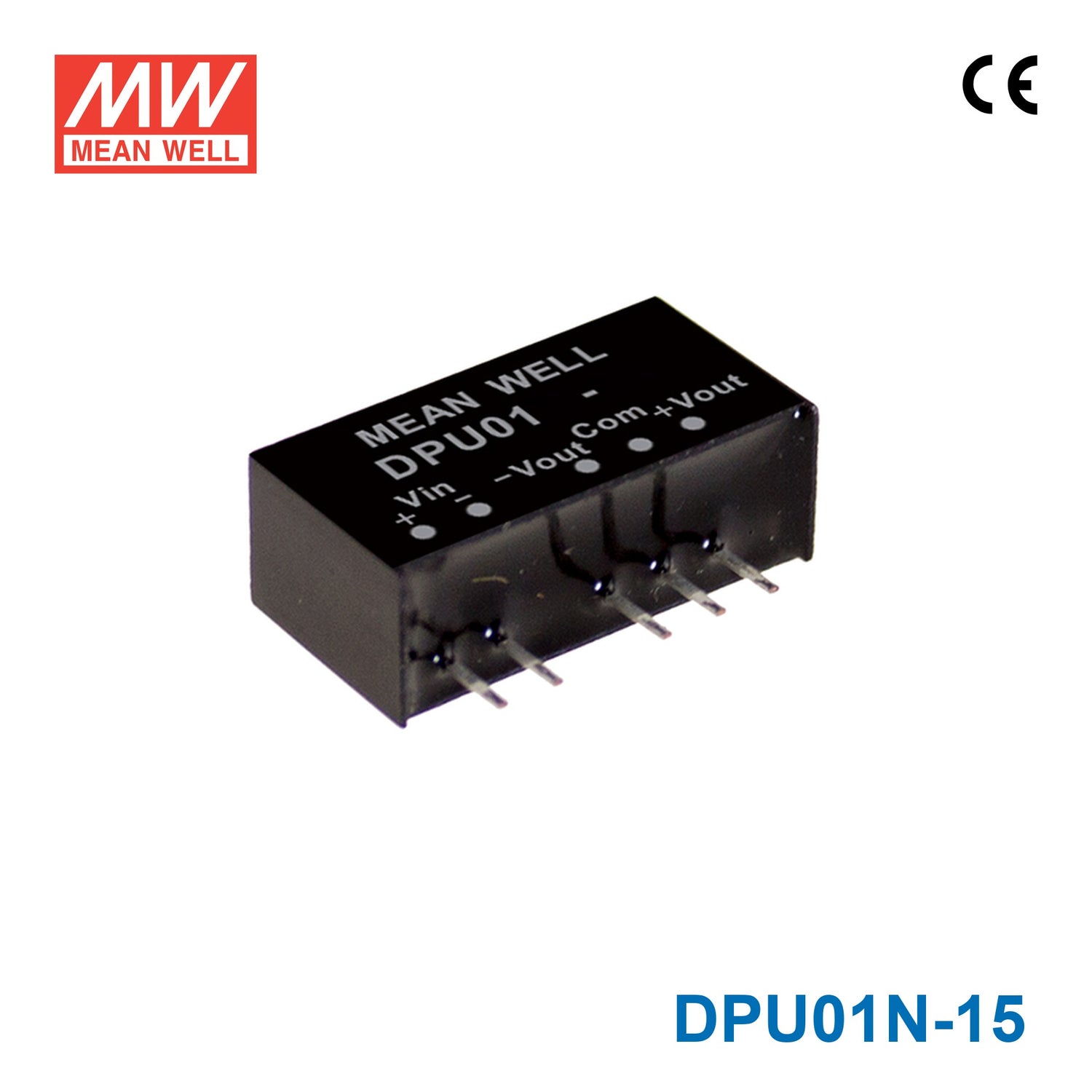

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out 33mA

SKU DPU01N-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DPU01N-15 is the ±15V output model of this series: rated power 1W, typical efficiency 78%.

SP U01 and DP U01 series are 1 W isolated and unregulated module type DC-DC converter with SIP 6 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/ 24V±10% , and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP6 package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

Specifications

DPU01N-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (21.6 ~ 26.4V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 55mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 500mA Slow-Blow Type for all models
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 33mA
EFFICIENCY (TYP.): 78%
CAPACITOR LOAD (MAX.)^{* For each output}: *100μF
VOLTAGE ACCURACY: ±3.0%
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: 10%
SWITCHING FREQUENCY (Typ.): 24Vin: 75KHz, other: 100KHz

PROTECTION

SHORT CIRCUIT: 1 second max.

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 10pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 1500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton 24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPU01N-15 Plug Assignment — Plug Assignment

DPU01N-15 Standard Tube Packing — Standard Tube Packing

DPU01N-15 Installation Manual — Installation Manual

Typical applications

Downloads

Certificates2

Certificate (SPU01-DPU01-CE-dec)(EN) PDF Download

Certificate (SPU-DPU01-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPU01N-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPU01N-15 for low-power analog rails in an industrial control board?

Yes. This converter is rated for 1W and provides a ±15V output from a 21.6~26.4VDC input range, which fits low-power analog sections that need constant-voltage rails. Its small 19.5 × 7.2 × 10.2 mm package also suits dense control-board layouts.

Is the DPU01N-15 suitable for an embedded sensor interface that needs +/-15V power?

It can fit embedded sensor or signal-conditioning sections that require ±15V and stay within the unit's 1W rating. The published output current is 0.03A, so it is intended for low-current loads rather than higher-power analog stages. The output mode is constant voltage.

Can this converter be used inside automation equipment with a 24VAC-class input?

The listed input range is 21.6~26.4VDC, so it aligns with equipment designed around that DC range. It converts that input to a ±15V constant-voltage output at 1W. That makes it a fit for low-power automation subcircuits rather than larger power loads.

Is the DPU01N-15 appropriate for harsh indoor temperature conditions?

The operating temperature range is -40°C to +90°C, which is wide for indoor industrial or embedded equipment. No IP rating is listed in the provided specs. That means the temperature capability is defined, but outdoor or wet-exposure suitability is not confirmed here.

How does the DPU01N-15 compare with the other DPU01N models?

All three listed DPU01N models are 1W parts. The DPU01N-05 is listed as ±5V output with ±100mA, the DPU01N-12 is ±12V output with ±42mA, and the DPU01N-15 is ±15V output with ±33mA. This model is the highest-output-voltage option among the three siblings shown.
