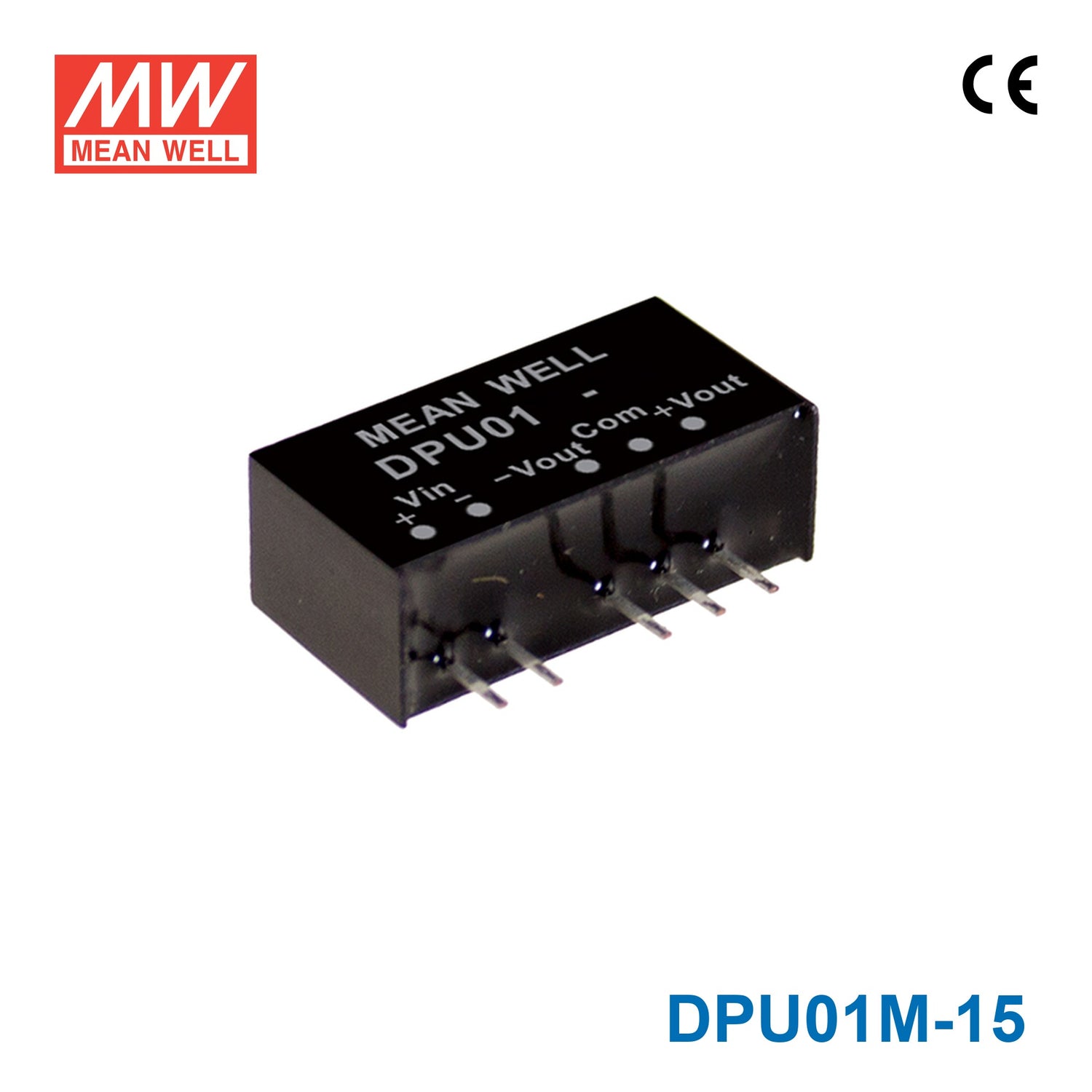

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in ±15V out

SKU:

DPU01M-15

Please for Pricing

Notify me when it's back in stock

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

DPU Series
Power Rating

1 Watt
Output Voltage

15 Volt
Rated Current

0.03 Ampere
Input Voltage

10.8V~13.2V
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

1.96 cm
Width

1.02 cm
Height

0.71 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPU01M-15 for low-power industrial electronics that need 15V output?

This model delivers constant-voltage 15V output from a 10.8~13.2V input range and is rated for 1W. It fits low-power industrial electronics where a small regulated 15V rail is needed rather than a higher-power supply stage.

Is the DPU01M-15 suitable for embedded control or interface circuits with limited available space?

The package size is 19.6 × 10.2 × 7.1 mm, so it is well suited to compact embedded assemblies. With a 1W rating and 0.03A output current, it is better aligned with light auxiliary loads than with power-hungry devices.

Can this converter work in compact instrumentation that runs from a 12V-class source and needs 15V output?

It is designed for 10.8~13.2V input and provides a 15V constant-voltage output. That makes it relevant for instrumentation or automation subcircuits that need a small 15V rail and stay within the 1W rating.

Is the DPU01M-15 intended for harsh temperature environments or outdoor mounting?

The operating temperature range is -55°C to +125°C, which supports demanding temperature conditions. No IP rating is specified, so the available specs do not establish outdoor suitability or resistance to exposed environmental conditions.

How does the DPU01M-15 compare with DPU01M-05 and DPU01M-12?

These three DPU01M models all have 1W power, 10.8~13.2V input, the same 19.6 × 10.2 × 7.1 mm dimensions, -55°C to +125°C operation, CE certification, and a 3-year warranty. Their outputs are different: DPU01M-05 is 5V with listed output current 100A, DPU01M-12 is 12V at 0.04A, and DPU01M-15 is 15V at 0.03A.

Model	Power	Voltage	Current	IP Rating
Mean Well DPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out	1W	15V	0.03A	Indoor	View
Mean Well DPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in ±5V out	1W	5V	0.1A	Indoor	View
Mean Well DPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in ±5V out	1W	5V	0.1A	Indoor	View
Mean Well DPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in ±15V out	1W	15V	0.03A	Indoor	View
Mean Well DPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in ±12V out	1W	12V	0.04A	Indoor	View
Mean Well DPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in ±5V out	1W	5V	0.1A	Indoor	View
