Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

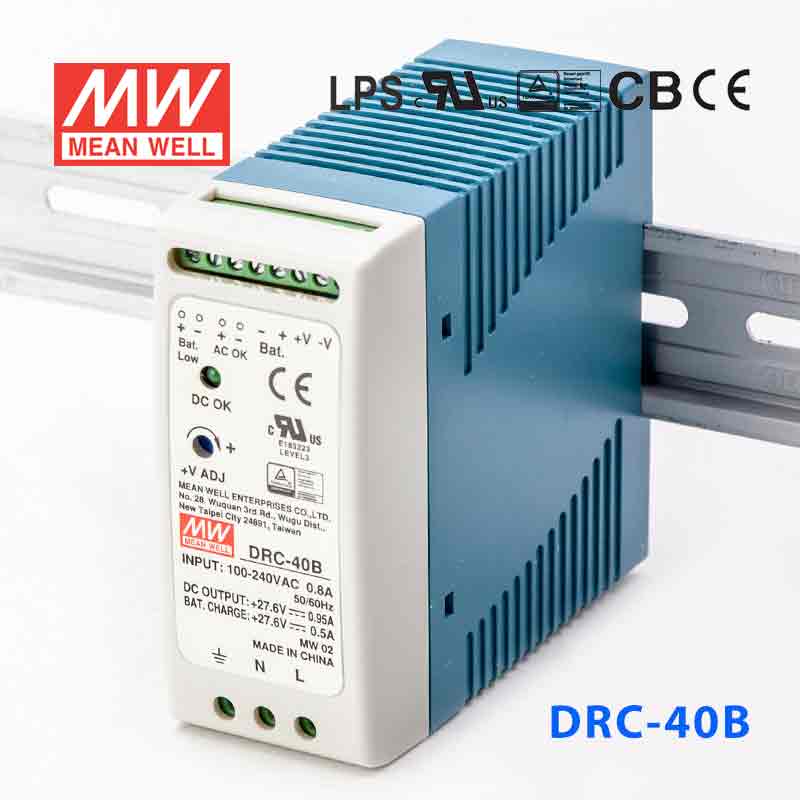

Mean Well DRC-40B Power Supply 40.02W 27.6V 950mA

with UPS functionpass LPS

SKU DRC-40B

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

DRC-40B

DRC-100B 100W 27.6V In stock

DRC-180B 180W 27.6V Low stock

DRC-40B 40W 27.6V Low stock

DRC-60B 60W 27.6V Low stock

Product variants

Notify me when it's back in stock

LED indicator for power on

100% full load burn-in test

Key Features

✓Universal AC input / Full range
✓Protections: Short circuit / Overload / Over voltage
✓Battery low protection/ Battery reverse polarity protection by fuse
✓Can be installed on DIN rail TS-35/7.5 or 15
✓Alarm signal for AC OK and Battery low(via TTL open collector, optional via relay)
✓Cooling by free air convection
✓Pass LPS
✓LED indicator for power on100% full load burn-in test
✓3 years warranty

Frequently Asked Questions

What is the Mean Well DRC-40B designed for?

The Mean Well DRC-40B is a 40.02W DIN rail power supply intended for security and other control-panel applications that need a 27.6V DC output. Its UPS-oriented feature set, including battery low protection and AC OK or battery low alarm signaling, makes it suited to systems where power status monitoring matters.

What output does the DRC-40B provide?

This model provides a rated 27.6V DC output with a rated current of 0.95A, for a total power rating of 40.02W. The output voltage is adjustable within ±8.6% of the rated value.

What protection features are included on the DRC-40B?

The DRC-40B includes protection for short circuit, overload, and over-voltage conditions. It also includes battery low protection and battery reverse polarity protection by fuse, which helps distinguish it from a basic DIN rail power supply.

What input range does the Mean Well DRC-40B support?

The unit accepts a universal input range of 90 to 264VAC, and it also supports 127 to 370VDC input. This wide range makes it practical for use across varied mains power environments without needing a region-specific version.

Is the DRC-40B suitable for demanding industrial or enclosure environments?

The DRC-40B is rated for operation from -30°C to +70°C and uses free air convection cooling. It is also designed for DIN rail TS-35/7.5 or 15 mounting, which fits typical panel and enclosure environments where compact DIN rail hardware is preferred.

What certifications and compliance standards does the DRC-40B meet?

This model is approved to UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, and AS/NZS 60950.1 safety standards. For EMC, it meets EN55032 Class B and related EN61000 immunity and harmonic standards listed in the specification.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	Battery Voltage
Mean Well DRC-100A Power Supply 96.6W 13.8V 4.5A	96.6W	13.8V	4.5A	13.8V	View
Mean Well DRC-60A Power Supply 59.34W 13.8V 2.8A	59.34W	13.8V	2.8A	13.8V	View
Mean Well DRC-60B Power Supply 59.34W 27.6V 1.4A	59.34W	27.6V	1.4A	27.6V	View
Mean Well DRC-40A Power Supply 40.02W 13.8V 1.9A	40.02W	13.8V	1.9A	13.8V	View
Mean Well DRC-180B 179.4W 27.6V Power Supply With UPS 4.5A	179.4W	27.6V	4.5A	27.6V	View
Mean Well DRC-100B Power Supply 96.6W 27.6V 2.25A	96.6W	27.6V	2.25A	27.6V	View
Mean Well DRC-180A 179.4W 13.8V Power Supply With UPS 9A	179.4W	13.8V	9A	13.8V	View
