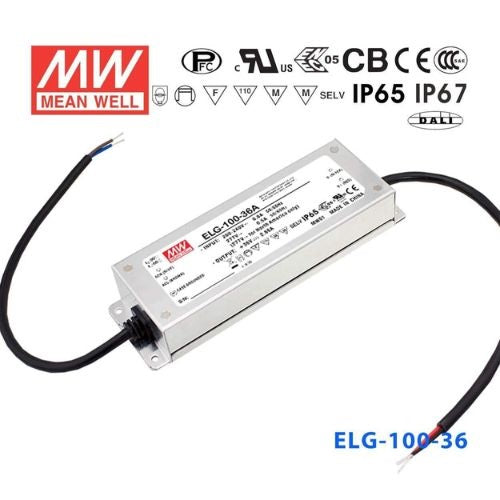

Mean Well ELG-100-36DA Power Supply 95.76W 36V - DALI | ELG Series NZ Distributor

The ELG-100 is a 95.76W Mean Well AC-DC LED driver (input: 100~305VAC, output: 36V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 100~305VAC
✓ Output voltage: 36V
✓ Rated output current: 2.66A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, RCM, UL
✓ 5 year warranty

Frequently Asked Questions

Can I integrate the ELG-100-36DA into a DALI-based building lighting control system?

Yes. The DA suffix confirms this unit includes a DALI interface, allowing it to be addressed and dimmed by any DALI-compatible lighting controller or BMS. It outputs 95.76W at 36V and 2.66A, and its IP67 rating supports installations in indoor or sheltered outdoor locations.

Is the ELG-100-36DA suitable for outdoor 36V LED installations with centralized DALI control?

Yes. With an IP67 waterproof rating and DALI dimming capability, the ELG-100-36DA can be deployed in outdoor 36V LED lighting systems — such as facade strips or architectural feature lighting — where DALI-based scene control or scheduled dimming is required.

Can the ELG-100-36DA power 36V LED strip in a commercial office or hospitality space controlled by DALI?

Yes. DALI allows each driver to be individually addressed, making the ELG-100-36DA suitable for zone-controlled office, hotel, or restaurant LED lighting where individual circuit dimming is needed. It provides 95.76W at 36V, sufficient for a meaningful LED strip zone or luminaire group.

How many meters of 36V LED strip can the ELG-100-36DA power?

The ELG-100-36DA delivers up to 95.76W. Divide 95.76 by your strip's rated power per meter to find the maximum run length. For a 36V strip at 11W/m, that is approximately 8.7 meters (95.76W / 11W per meter). Always confirm your strip's rated power per meter and load totals before sizing.

Is the ELG-100-36DA suitable for a damp or outdoor installation environment?

Yes. The ELG-100-36DA is IP67 rated, meaning it is protected against temporary water immersion up to 1 meter. It operates across -40°C to +90°C, making it appropriate for outdoor sheltered locations, parking structures, or damp indoor environments alongside DALI control infrastructure.

What is the difference between the ELG-100-36DA and the ELG-100-36DA-3Y?

The ELG-100-36DA is rated at 95.76W and accepts 100-305VAC input with a CC voltage range of 18-36V. The ELG-100-36DA-3Y is rated at 100W, has a wider input acceptance and CC voltage range of 100-305V, and holds BSMI, CB, CE, EAC, and UL certifications. Both are IP67 and carry a 5-year warranty.
