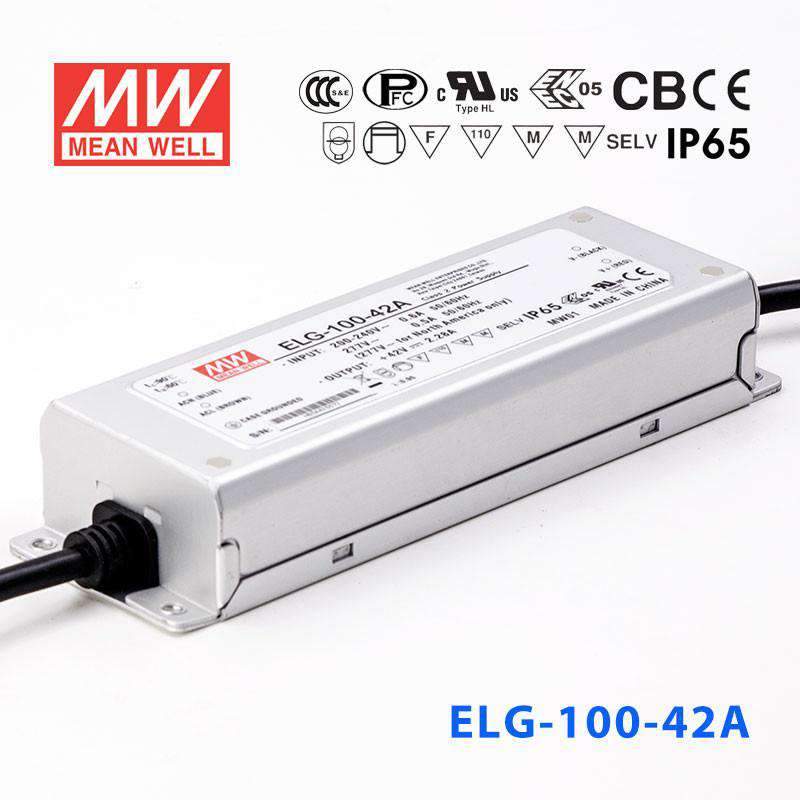

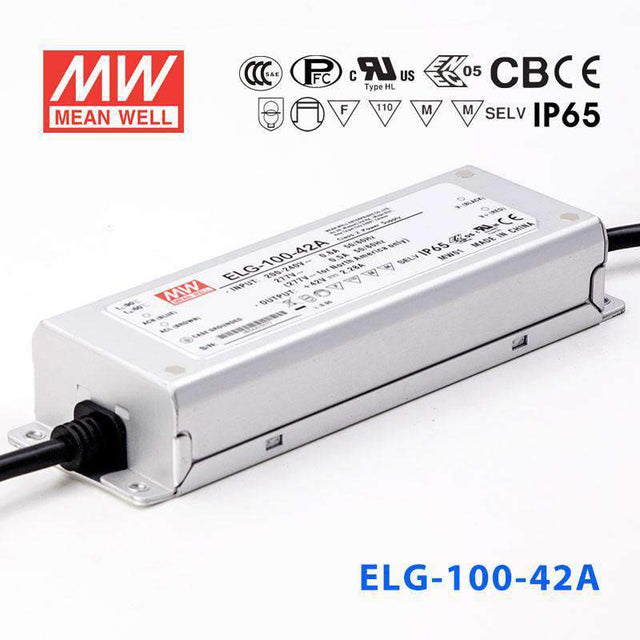

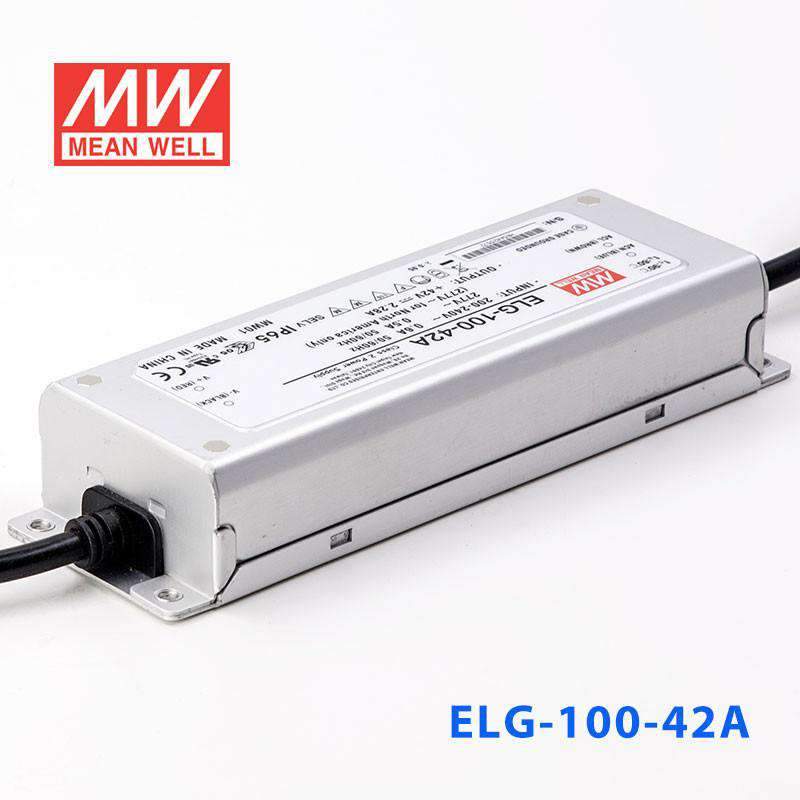

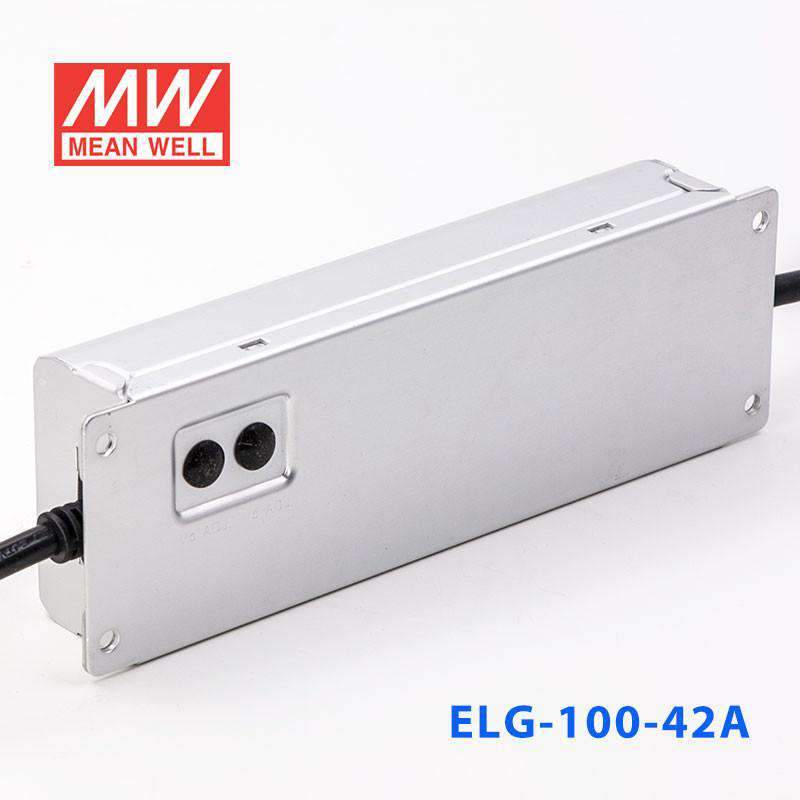

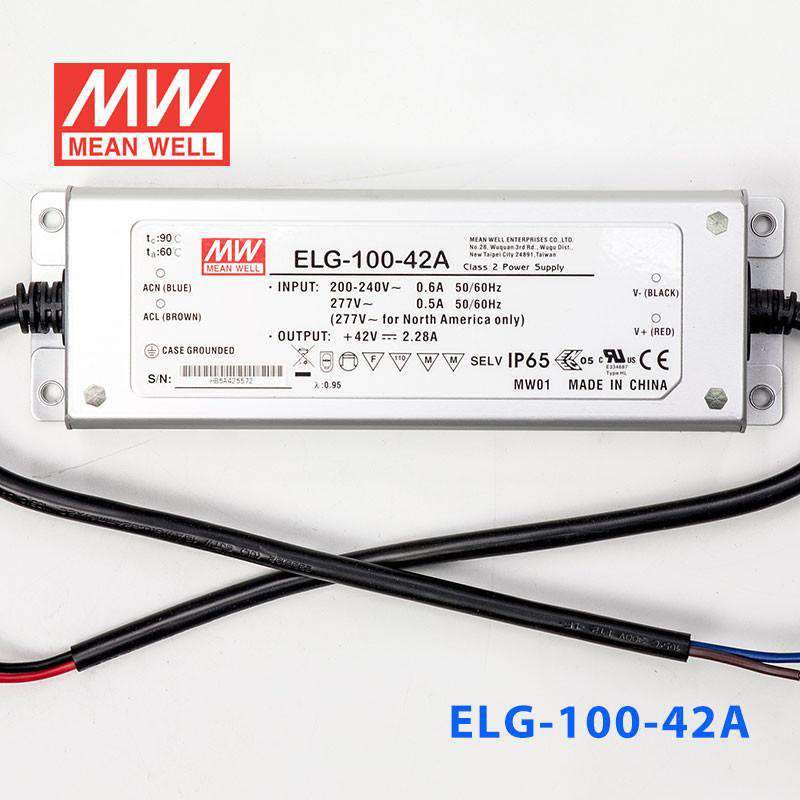

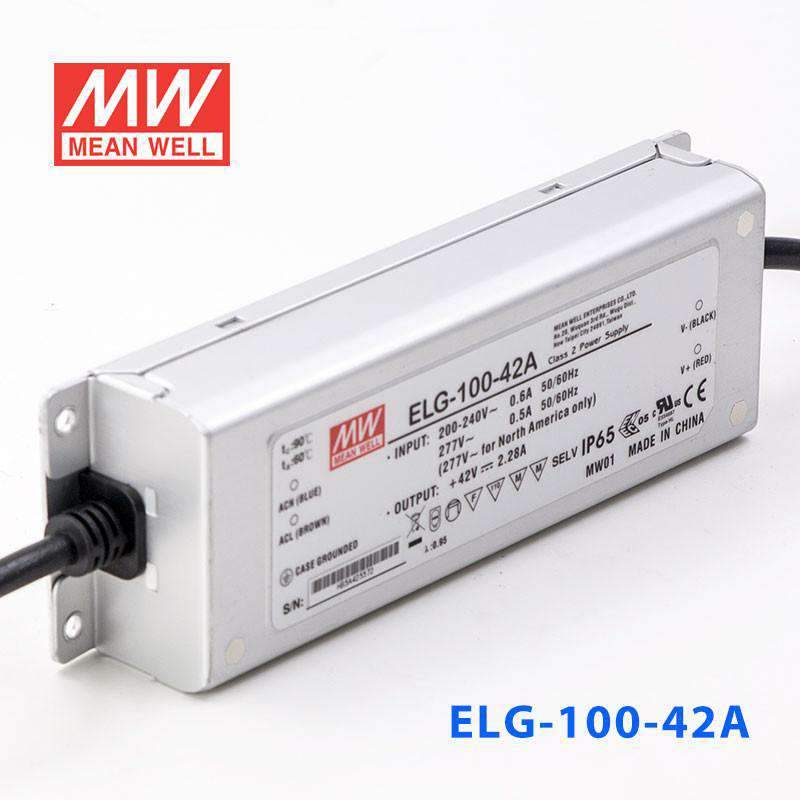

Mean Well ELG-100-42A Power Supply | 95.76W 42V - Adjustable

Description

The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

95.76 Watt
Output Voltage

42 Volt
Rated Current

2.28 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

19.9 cm
Width

6.3 cm
Height

3.55 cm
Weight

0.85 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the ELG-100-42A power an adjustable LED lighting system where I need to fine-tune brightness?

Yes. The ‘A’ suffix means the ELG-100-42A includes an output-adjustment potentiometer that lets you trim the output voltage within the 21–42V CC range. This is useful when a fixture requires a slightly lower drive voltage to reach a specific lumen level without adding an external controller.

Is the ELG-100-42A suitable for outdoor LED strip runs in covered but exposed areas?

Yes. The ELG-100-42A is rated IP65, meaning it is fully dust-tight and protected against low-pressure water jets from any direction. It is appropriate for covered outdoor areas such as canopies, soffits, and car parks where direct rain splash is possible but water immersion is not expected.

How many meters of 42V LED strip can the ELG-100-42A support?

The driver delivers a maximum of 95.76W at 42V. For a 42V strip rated at 10W per meter, that allows approximately 9.5 meters at full load. Check your strip’s rated power per meter before finalising the run, and include a 20% derating margin for long-term reliability.

Can I use the ELG-100-42A with a 42V architectural LED cove or linear fixture?

Yes. The driver’s 95.76W / 42V / 2.28A output suits medium-power linear architectural fixtures rated at 42V DC. The adjustable output lets you match the exact voltage required by the fixture within the 21–42V range.

Will the ELG-100-42A work in very cold environments like outdoor winter installations?

Yes. The operating temperature range is -40°C to +90°C, so the driver is fully rated for cold-climate outdoor use. The metal case also acts as a heatsink to handle the upper end of that temperature range during high-ambient operation.

Can I use the ELG-100-42A to drive 42V LED modules in a retail display or illuminated sign?

Yes. The constant-current output with adjustable voltage trimming makes the ELG-100-42A well-suited for indoor or semi-outdoor illuminated signage using 42V LED modules. The IP65 rating also protects the driver from cleaning agents used in retail environments.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-100-24 Power Supply 96W 24V with AU/NZ plug	96W	24V	4A	IP67	View
Mean Well ELG-100-24DA-3Y Power Supply 100W 24V - DALI	96W	24V	4A	IP67	View
Mean Well ELG-100-24B-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	100W	24V	4A	IP67	View
Mean Well ELG-100-24AB Power Supply 100W 24V - Adjustable and Dimmable	96W	24V	4A	IP65	View
Mean Well ELG-100-48DA Power Supply 96W 48V 3-wire Input - DALI	96W	48V	2A	IP67	View
