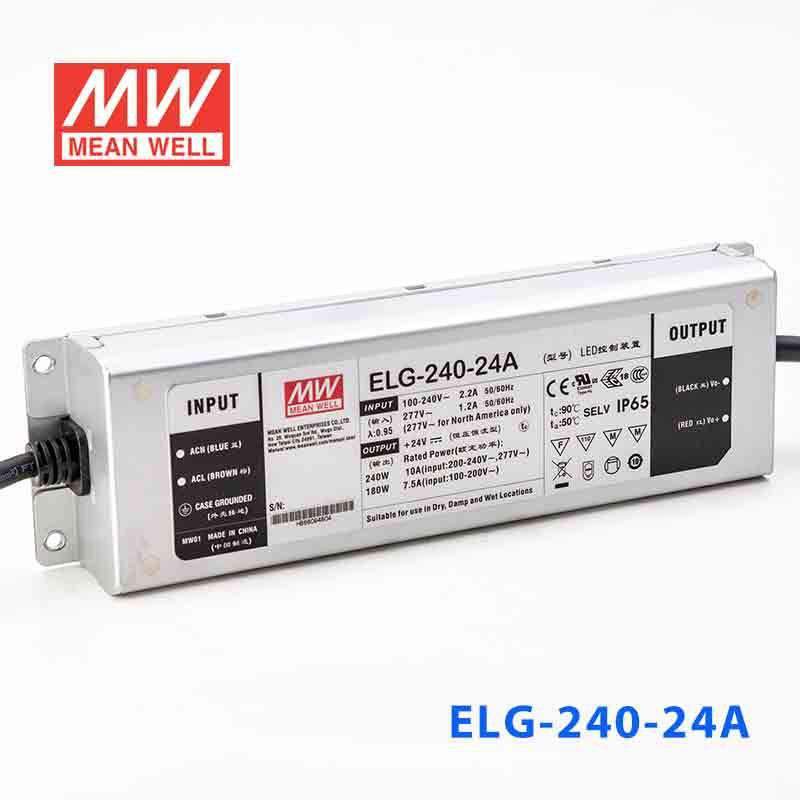

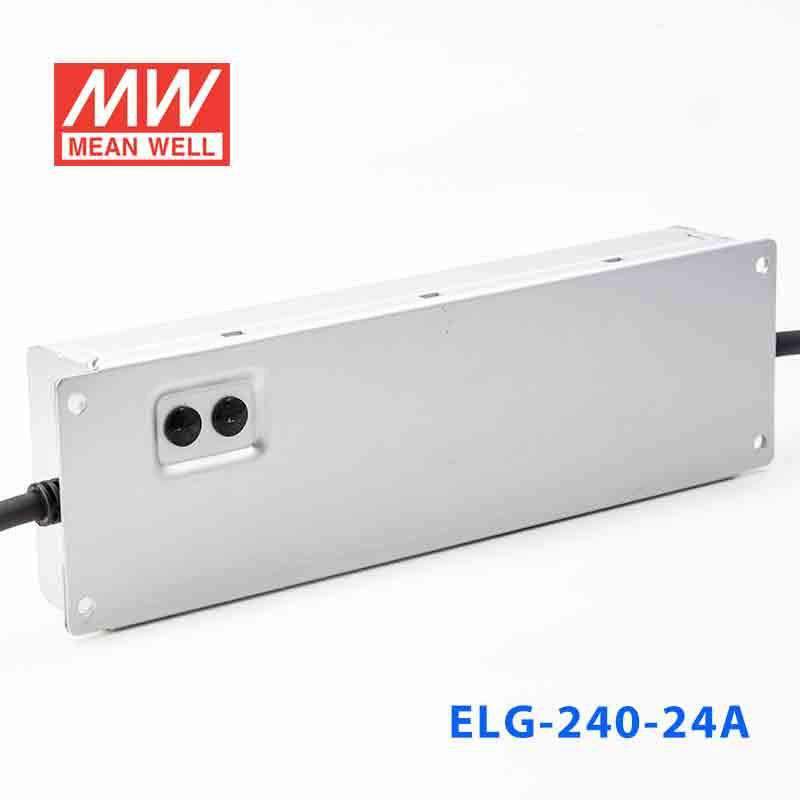

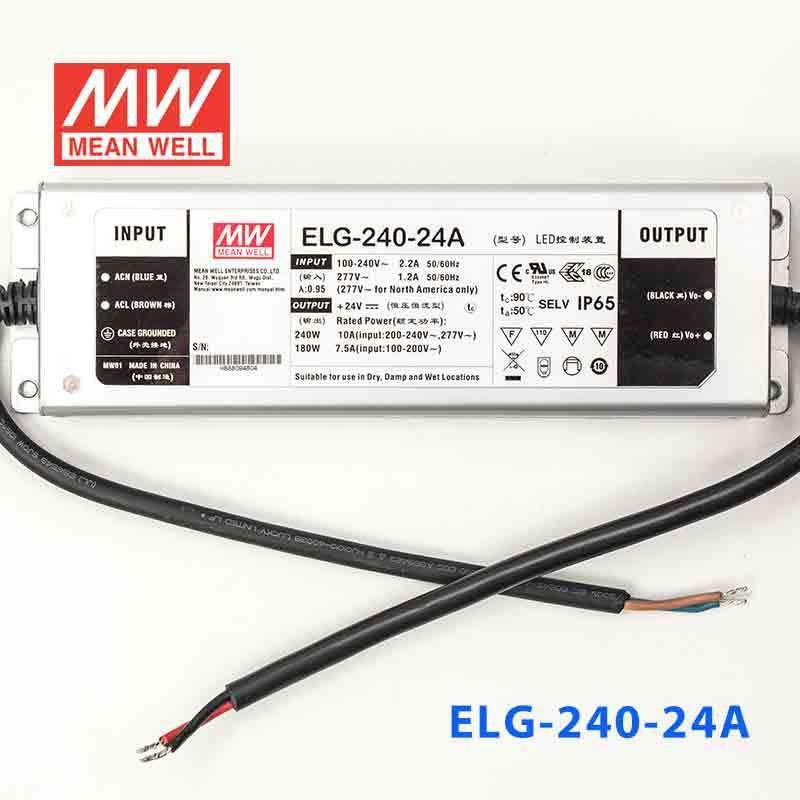

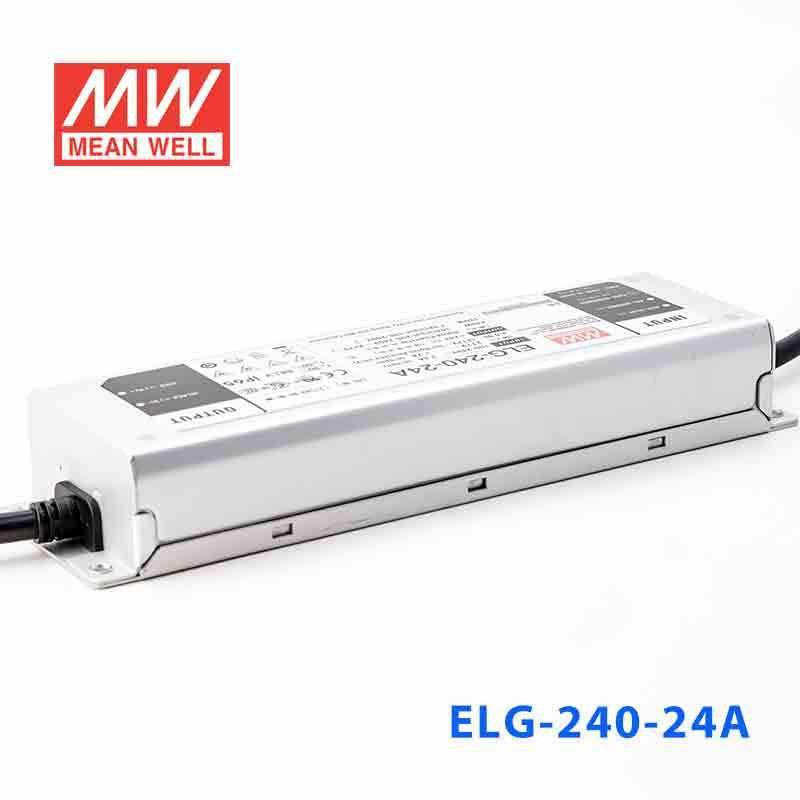

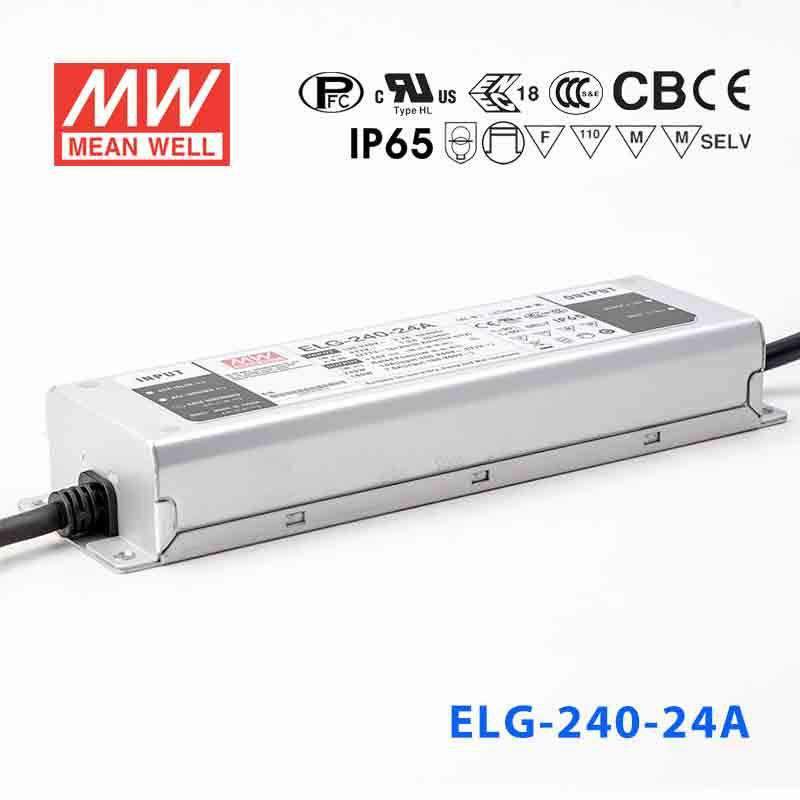

Mean Well ELG-240-24A Power Supply 240W 24V - Adjustable | Auckland Distributor

Description

The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

ELG Series
Power Rating

240 Watt
Output Voltage

24 Volt
Rated Current

10 Ampere
Input Voltage

100V~305V
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

24.4 cm
Width

7.1 cm
Height

3.75 cm
Weight

1.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What does the 'A' suffix mean on the ELG-240-24A, and how does it affect use?

The 'A' suffix indicates the output voltage and current are adjustable via an external trimmer or resistor, allowing fine-tuning of the 24V output within the CC voltage range (12–24V) and current up to 10A. This is useful when commissioning multi-zone 24V LED systems where LED forward voltages vary across fixtures.

Can the ELG-240-24A drive 24V LED strips in a hospitality cove lighting project?

Yes. At 240W and 24V with adjustable output, the ELG-240-24A suits large cove, pelmet, or under-shelf LED strip installations in hotels and restaurants. The IP65 water-resistant rating provides protection against cleaning spray and condensation common in hospitality environments.

How many meters of 24V LED strip can the ELG-240-24A power?

The driver outputs 240W at 24V. For 24V strip rated at 10W per meter: 240W ÷ 10W/m = 24m at full load. Apply an 80% continuous-use derating for a practical maximum of approximately 19 meters. Check your strip's rated power per meter and apply the same calculation.

Is the ELG-240-24A suitable for powering 24V LED soffit or canopy lighting outdoors?

Yes. With IP65 water-resistant rating the driver tolerates rain splash and dust in outdoor covered locations such as building soffits, canopies, and awnings. The -40°C to +90°C operating temperature range ensures reliable performance in both winter and summer extremes.

Can the ELG-240-24A be used to supply multiple 24V LED fixtures on a single power feed?

Yes. The 240W output at 24V allows parallel connection of multiple 24V LED fixtures as long as total load stays within 240W (10A). The adjustable output is useful for compensating for voltage drop over long cable runs by slightly increasing the set voltage at the driver.

What certifications does the ELG-240-24A hold for international projects?

The ELG-240-24A carries c_BSI, CB, CCC, CE, EAC, ENEC, KC, c_RCM, and UL certifications with a 5-year warranty. This broad certification portfolio covers North American, European, Australian, Chinese, and Korean markets, making it suitable for multinational commercial lighting projects.

Model	Power	Voltage	Current	IP Rating
Mean Well S-ELG-240-24 Power Supply 240W 24V with AU/NZ plug	240W	24V	10A	IP67	View
Mean Well ELG-240-24 Power Supply 240W 24V	240W	24V	10A	IP67	View
Mean Well ELG-240-48 Power Supply 240W 48V	240W	48V	5A	—	View
Mean Well ELG-240-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC	240W	24V	10A	IP67	View
Mean Well ELG-240-48DA Power Supply 240W 48V 3-wire Input - DALI	240W	48V	5A	IP67	View
