Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

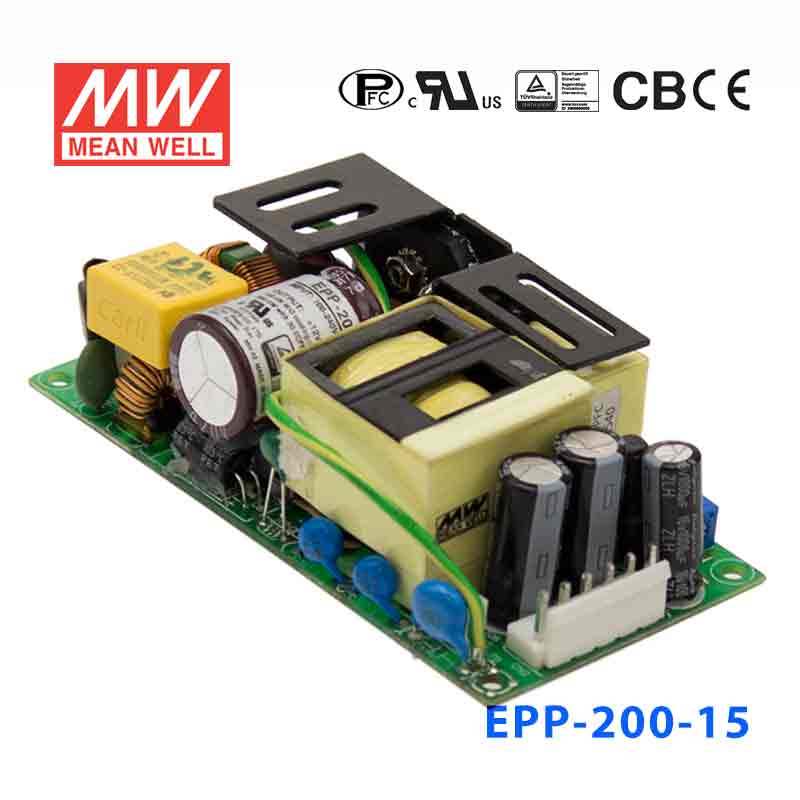

Mean Well EPP-200-15 Power Supply 141W 15V

Q: Can I use the EPP-200-15 for 15V industrial electronics?

Yes, if the equipment is designed for constant 15V DC input and the total demand does not exceed 9.4A or 141W. This supply is rated for constant voltage operation at 15V.

Q: Is this power supply suitable for a 15V embedded controller assembly?

It can be suitable for embedded assemblies that require a fixed 15V rail and stay within the 141W maximum output. Its compact 101.6 x 50.8 x 29.0 mm dimensions are useful where board and enclosure space is limited.

Q: Can the EPP-200-15 support 15V automation devices in one enclosure?

Yes, for multiple 15V automation devices when the combined load remains at or below 9.4A. The key match points are the constant 15V output and the 141W power ceiling.

Q: Is the EPP-200-15 meant for outdoor use?

The unit is specified for operation from -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided, so the listed specs do not establish suitability for outdoor, wet, or washdown environments.

Q: What should I compare if I am choosing among EPP 15V models?

The listed 15V siblings are EPP-100-15 at 75W and 5A, EPP-120S-15 at 114W and 7.6A, EPP-150-15 at 100.5W and 6.7A, EPP-200-15 at 141W and 9.4A, EPP-300-15 at 200W and 13.33A, EPP-400-15 at 250.5W and 16.7A, and EPP-500-15 at 319.5W and 21.3A. The main selection difference is how much current and total wattage you need at 15V.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-200-15

End of Life, Succeeded by LOP-200-15

Please for Pricing

Notify me when it's back in stock

Description

Features

4"x2" compact size

Universal AC input / Full range

Built-in active PFC function

EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)
No load power consumption<0.5W
High efficiency up to 94%

Protections: Short circuit/Overload/Over voltage/Over temperature

Cooling by free air convection for 140W and 200W with 10CFM forced air

Built-in 12V /0.5A FAN supply

LED indicator for power on

Operating altitude up to 5000 meters

3 years warranty

General Specification

AC input voltage range	80~264VAC; 113~370VDC
AC inrush current	COLD START 30A/115VAC
Leakage current	<0.75mA / 240VAC
Overload protection	110 ~ 140% rated output power
Over-voltage protection	110%~130% rated output voltage
Setup, rise, hold up time	500ms, 30ms, 12ms
Withstand voltage	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature	-30~+70°C
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
EMC standards	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection	I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH)	101.6x50.8x29
Packing	72pcs / 14.7kg

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

141 Watt
Output Voltage

15 Volt
Rated Current

9.4 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

10.16 cm
Width

5.08 cm
Height

2.9 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-200-15 for 15V industrial electronics?

Yes, if the equipment is designed for constant 15V DC input and the total demand does not exceed 9.4A or 141W. This supply is rated for constant voltage operation at 15V.

Is this power supply suitable for a 15V embedded controller assembly?

It can be suitable for embedded assemblies that require a fixed 15V rail and stay within the 141W maximum output. Its compact 101.6 x 50.8 x 29.0 mm dimensions are useful where board and enclosure space is limited.

Can the EPP-200-15 support 15V automation devices in one enclosure?

Yes, for multiple 15V automation devices when the combined load remains at or below 9.4A. The key match points are the constant 15V output and the 141W power ceiling.

Is the EPP-200-15 meant for outdoor use?

The unit is specified for operation from -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided, so the listed specs do not establish suitability for outdoor, wet, or washdown environments.

What should I compare if I am choosing among EPP 15V models?

The listed 15V siblings are EPP-100-15 at 75W and 5A, EPP-120S-15 at 114W and 7.6A, EPP-150-15 at 100.5W and 6.7A, EPP-200-15 at 141W and 9.4A, EPP-300-15 at 200W and 13.33A, EPP-400-15 at 250.5W and 16.7A, and EPP-500-15 at 319.5W and 21.3A. The main selection difference is how much current and total wattage you need at 15V.

Model	Power	Voltage	Current
Mean Well EPP-200-48 Power Supply 144W 48V	144W	48V	3A	View
Mean Well EPP-200-27 Power Supply 143W 27V	143.1W	27V	5.3A	View
Mean Well EPP-200-24 Power Supply 141W 24V	141.6W	24V	5.9A	View
Mean Well EPP-200-12 Power Supply 140W 12V	140.4W	12V	11.7A	View
