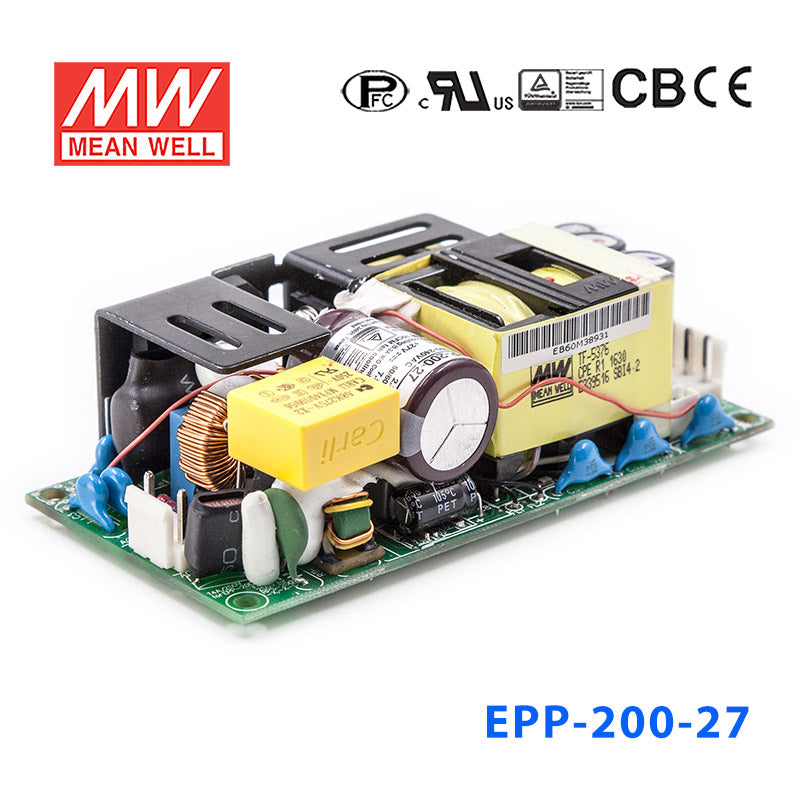

Mean Well EPP-200-27 Power Supply 143W 27V

Q: Can I use the EPP-200-27 for 27V industrial equipment?

Yes, if the equipment is built for constant 27V DC input and draws no more than 5.3A or 143.1W. This model provides a fixed 27V output in constant voltage mode.

Q: Is the EPP-200-27 appropriate for embedded systems that need a 27V rail?

It can be used for embedded systems with a 27V DC requirement, provided the total load stays within 143.1W. Its 101.6 x 50.8 x 29.0 mm size is useful in compact equipment designs.

Q: Can this power a 27V automation subsystem inside a machine?

Yes, for 27V automation subsystems whose combined demand does not exceed 5.3A. The key fit is the constant 27V output and the 143.1W maximum power rating.

Q: Is the EPP-200-27 suitable for outdoor or exposed environments?

The unit is rated for operation from -30°C to +70°C, so the temperature specification is wide. However, the provided specs do not include an IP rating, so outdoor or moisture-exposed suitability is not confirmed here.

Q: What are the differences between the 27V EPP models?

The listed 27V siblings are EPP-100-27 at 75.6W and 2.8A, EPP-120S-27 at 119.9W and 4.44A, EPP-150-27 at 100.17W and 3.71A, EPP-200-27 at 143.1W and 5.3A, EPP-300-27 at 199.8W and 7.4A, EPP-400-27 at 251.1W and 9.3A, and EPP-500-27 at 321.3W and 11.9A. The practical difference across these siblings is how much current and power they can supply at 27V.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-200-27

End of Life, Succeeded by LOP-200-27

Please for Pricing

Notify me when it's back in stock

Description

Built-in 12V /0.5A FAN supply

<0.75mA / 240VAC

Key Features

✓✓4"x2" compact size
✓✓Universal AC input / Full range
✓✓Built-in active PFC function
✓✓EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)No load power consumption<0.5WHigh efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓Cooling by free air convection for 140W and 200W with 10CFM forced air
✓✓Built-in 12V /0.5A FAN supply
✓✓LED indicator for power on
✓✓Operating altitude up to 5000 meters
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

143.1 Watt
Output Voltage

27 Volt
Rated Current

5.3 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

10.16 cm
Width

5.08 cm
Height

2.9 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-200-27 for 27V industrial equipment?

Yes, if the equipment is built for constant 27V DC input and draws no more than 5.3A or 143.1W. This model provides a fixed 27V output in constant voltage mode.

Is the EPP-200-27 appropriate for embedded systems that need a 27V rail?

It can be used for embedded systems with a 27V DC requirement, provided the total load stays within 143.1W. Its 101.6 x 50.8 x 29.0 mm size is useful in compact equipment designs.

Can this power a 27V automation subsystem inside a machine?

Yes, for 27V automation subsystems whose combined demand does not exceed 5.3A. The key fit is the constant 27V output and the 143.1W maximum power rating.

Is the EPP-200-27 suitable for outdoor or exposed environments?

The unit is rated for operation from -30°C to +70°C, so the temperature specification is wide. However, the provided specs do not include an IP rating, so outdoor or moisture-exposed suitability is not confirmed here.

What are the differences between the 27V EPP models?

The listed 27V siblings are EPP-100-27 at 75.6W and 2.8A, EPP-120S-27 at 119.9W and 4.44A, EPP-150-27 at 100.17W and 3.71A, EPP-200-27 at 143.1W and 5.3A, EPP-300-27 at 199.8W and 7.4A, EPP-400-27 at 251.1W and 9.3A, and EPP-500-27 at 321.3W and 11.9A. The practical difference across these siblings is how much current and power they can supply at 27V.

Model	Power	Voltage	Current
Mean Well EPP-200-48 Power Supply 144W 48V	144W	48V	3A	View
Mean Well EPP-200-24 Power Supply 141W 24V	141.6W	24V	5.9A	View
Mean Well EPP-200-15 Power Supply 141W 15V	141W	15V	9.4A	View
Mean Well EPP-200-12 Power Supply 140W 12V	140.4W	12V	11.7A	View
