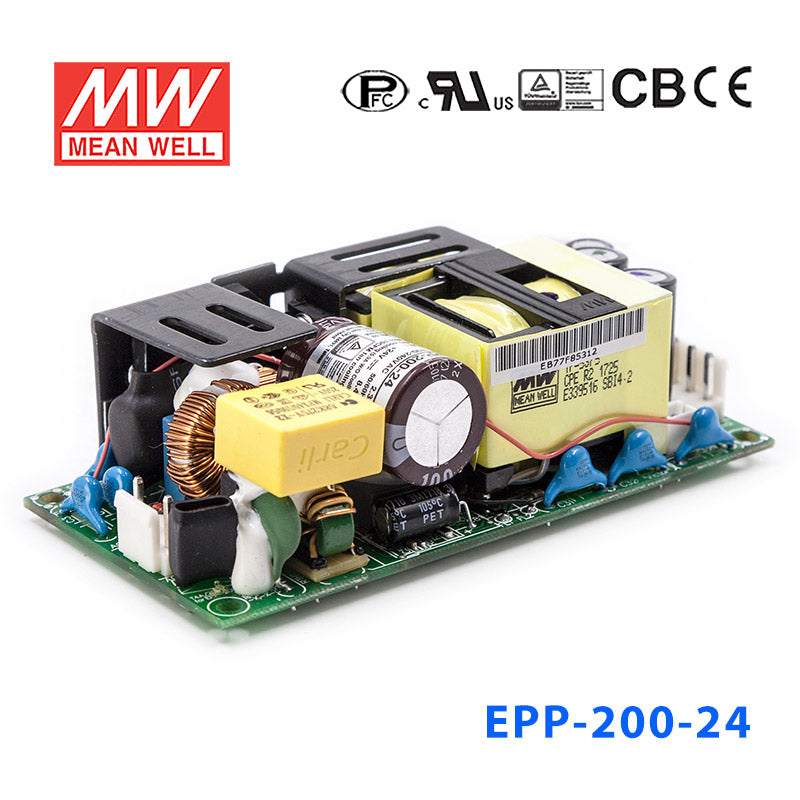

Mean Well EPP-200-24 Power Supply 141W 24V

Q: Can I use the EPP-200-24 for a 24V industrial control system?

Yes, if the control system needs constant 24V DC and the total load is no more than 5.9A or 141.6W. This is a constant voltage 24V power supply.

Q: Is the EPP-200-24 suitable for 24V automation components in a compact machine?

It can be a fit for 24V automation components when the combined demand stays within 141.6W. The 101.6 x 50.8 x 29.0 mm package is relatively compact for equipment with limited internal space.

Q: Can this model power 24V embedded or industrial I/O hardware?

Yes, for embedded or I/O hardware designed for a fixed 24V DC input and drawing up to 5.9A total. Buyers should confirm their load fits both the 24V output and the 141.6W maximum power.

Q: Will the EPP-200-24 handle cold or hot indoor operating conditions?

The specified operating range is -30°C to +70°C, which supports use in demanding temperature conditions. The provided specs do not include an IP rating, so they do not confirm outdoor exposure resistance.

Q: How does the EPP-200-24 compare to other 24V members of the series?

The listed 24V models are EPP-100-24 at 76.8W and 3.2A, EPP-120S-24 at 120W and 5A, EPP-150-24 at 100.8W and 4.2A, EPP-200-24 at 141.6W and 5.9A, EPP-300-24 at 199.9W and 8.33A, EPP-400-24 at 252W and 10.5A, and EPP-500-24 at 321W and 13.4A. They differ by available output current and total wattage while sharing a 24V nominal output.

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption

SKU:

EPP-200-24

End of Life, Succeeded by LOP-200-24

Please for Pricing

Notify me when it's back in stock

Description

Built-in 12V /0.5A FAN supply

<0.75mA / 240VAC

Key Features

✓✓4"x2" compact size
✓✓Universal AC input / Full range
✓✓Built-in active PFC function
✓✓EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)No load power consumption<0.5WHigh efficiency up to 94%
✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
✓✓Cooling by free air convection for 140W and 200W with 10CFM forced air
✓✓Built-in 12V /0.5A FAN supply
✓✓LED indicator for power on
✓✓Operating altitude up to 5000 meters
✓✓3 years warranty

Specifications

Brand

Mean Well
Series

EPP Series
Power Rating

141.6 Watt
Output Voltage

24 Volt
Rated Current

5.9 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

10.16 cm
Width

5.08 cm
Height

2.9 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-200-24 for a 24V industrial control system?

Yes, if the control system needs constant 24V DC and the total load is no more than 5.9A or 141.6W. This is a constant voltage 24V power supply.

Is the EPP-200-24 suitable for 24V automation components in a compact machine?

It can be a fit for 24V automation components when the combined demand stays within 141.6W. The 101.6 x 50.8 x 29.0 mm package is relatively compact for equipment with limited internal space.

Can this model power 24V embedded or industrial I/O hardware?

Yes, for embedded or I/O hardware designed for a fixed 24V DC input and drawing up to 5.9A total. Buyers should confirm their load fits both the 24V output and the 141.6W maximum power.

Will the EPP-200-24 handle cold or hot indoor operating conditions?

The specified operating range is -30°C to +70°C, which supports use in demanding temperature conditions. The provided specs do not include an IP rating, so they do not confirm outdoor exposure resistance.

How does the EPP-200-24 compare to other 24V members of the series?

The listed 24V models are EPP-100-24 at 76.8W and 3.2A, EPP-120S-24 at 120W and 5A, EPP-150-24 at 100.8W and 4.2A, EPP-200-24 at 141.6W and 5.9A, EPP-300-24 at 199.9W and 8.33A, EPP-400-24 at 252W and 10.5A, and EPP-500-24 at 321W and 13.4A. They differ by available output current and total wattage while sharing a 24V nominal output.

Model	Power	Voltage	Current
Mean Well EPP-200-48 Power Supply 144W 48V	144W	48V	3A	View
Mean Well EPP-200-27 Power Supply 143W 27V	143.1W	27V	5.3A	View
Mean Well EPP-200-15 Power Supply 141W 15V	141W	15V	9.4A	View
Mean Well EPP-200-12 Power Supply 140W 12V	140.4W	12V	11.7A	View
