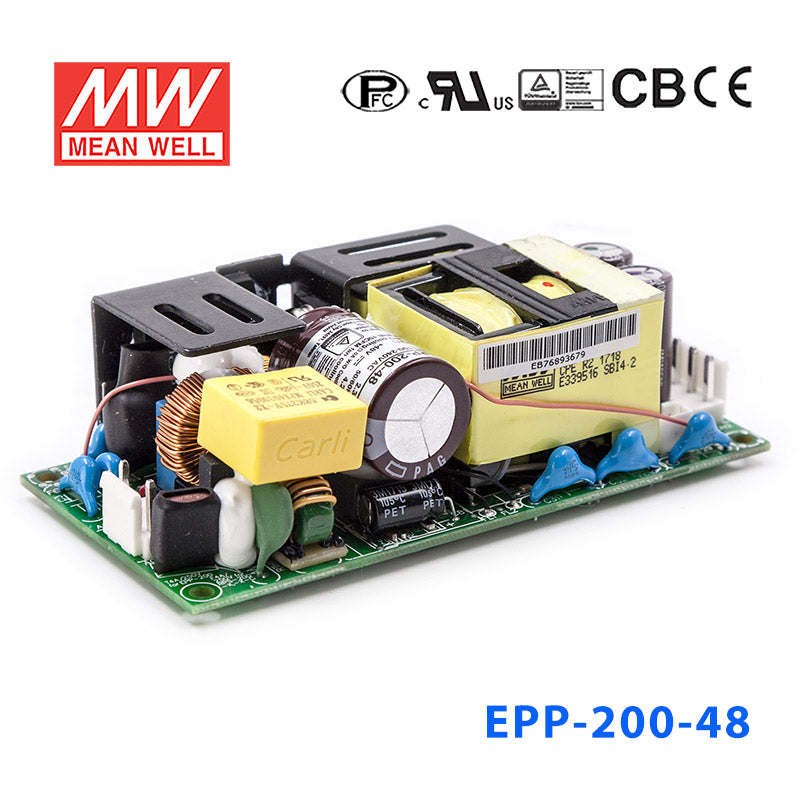

Mean Well EPP-200-48 Power Supply 144W 48V
Please Login for Pricing
Description
Description
Built-in 12V /0.5A FAN supply
<0.75mA / 240VAC
Key Features
- ✓✓4"x2" compact size
- ✓✓Universal AC input / Full range
- ✓✓Built-in active PFC function
- ✓✓EMI Conduction for Class B Radiation for Class B with FG(Class I ) and ( Class A without FG(Class II)No load power consumption<0.5WHigh efficiency up to 94%
- ✓✓Protections: Short circuit/Overload/Over voltage/Over temperature
- ✓✓Cooling by free air convection for 140W and 200W with 10CFM forced air
- ✓✓Built-in 12V /0.5A FAN supply
- ✓✓LED indicator for power on
- ✓✓Operating altitude up to 5000 meters
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesEPP Series
-
Power Rating144 Watt
-
Output Voltage48 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length10.16 cm
-
Width5.08 cm
-
Height2.9 cm
-
Weight0.19 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EPP-200-48 for a 48V industrial control panel or automation subsystem?
Yes, this model is a constant-voltage 48V supply rated for 144W and 3A, which fits 48Vdc control or automation loads that stay within that output range. Its wide 80-264VAC input also supports deployment in facilities with varied AC mains.
Is the EPP-200-48 suitable for powering a 48V embedded computer or industrial networking device?
It can be, provided the equipment requires a regulated 48V constant-voltage input and draws no more than 3A or 144W. The compact 101.6 x 50.8 x 29.0 mm size can also matter where board-level space is limited.
Can this power supply run a 48V telecom or access-control load?
It is appropriate for 48Vdc loads that need up to 144W total output and do not exceed 3A. Buyers should match the device's required DC voltage to the unit's fixed 48V constant-voltage output.
Is the EPP-200-48 rated for outdoor or harsh-environment use?
The provided specs show an operating temperature range of -30 degrees C to +70 degrees C, so temperature tolerance is broad. However, no IP rating is listed, so the provided data does not establish suitability for exposed outdoor, washdown, or wet locations.
How does the EPP-200-48 compare with other EPP series options?
Within the listed family, 48V siblings are EPP-100-48 at 76.8W and 1.6A, EPP-120S-48 at 120W and 2.5A, EPP-150-48 at 100.8W and 2.1A, this EPP-200-48 at 144W and 3A, EPP-300-48 at 200.2W and 4.17A, EPP-400-48 at 254.4W and 5.3A, and EPP-500-48 at 321.6W and 6.7A. The broader series also spans EPP-100, EPP-120S, EPP-150, EPP-200, EPP-300, EPP-400, and EPP-500 models across 12V, 15V, 18V, 24V, 27V, 36V, 48V, and 54V outputs, with power ratings from 75W up to 321.6W depending on model.
Other EPP-200 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well EPP-200-27 Power Supply 143W 27V | 143.1W | 27V | 5.3A | View |
| Mean Well EPP-200-24 Power Supply 141W 24V | 141.6W | 24V | 5.9A | View |
| Mean Well EPP-200-15 Power Supply 141W 15V | 141W | 15V | 9.4A | View |
| Mean Well EPP-200-12 Power Supply 140W 12V | 140.4W | 12V | 11.7A | View |
