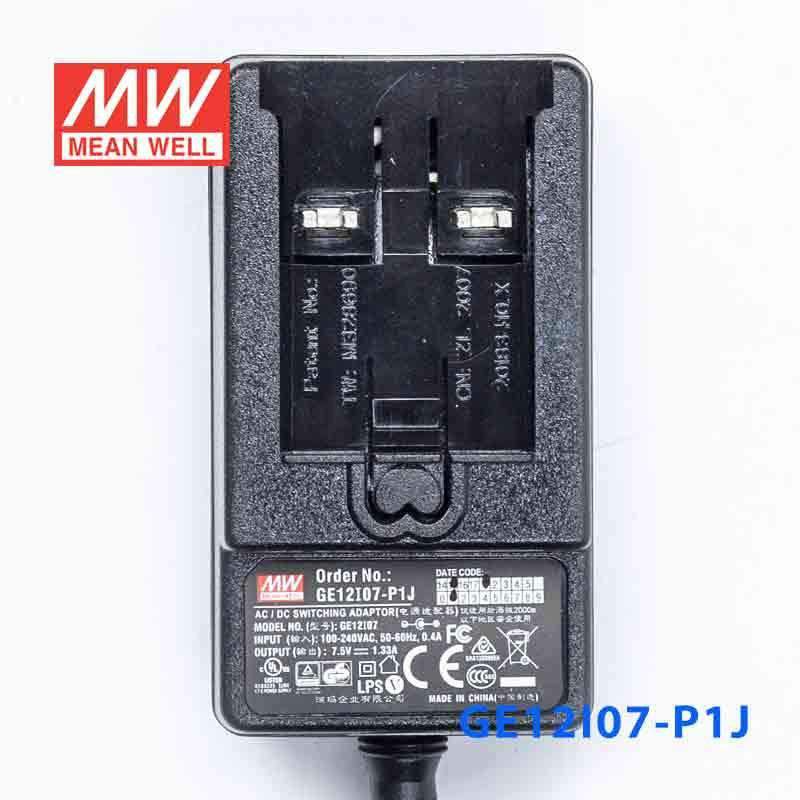

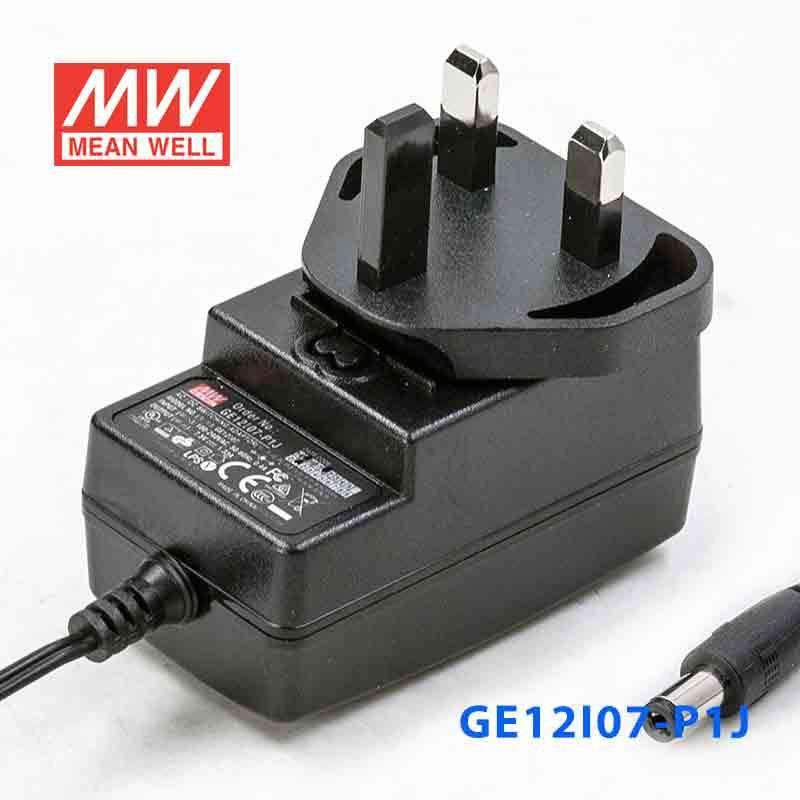

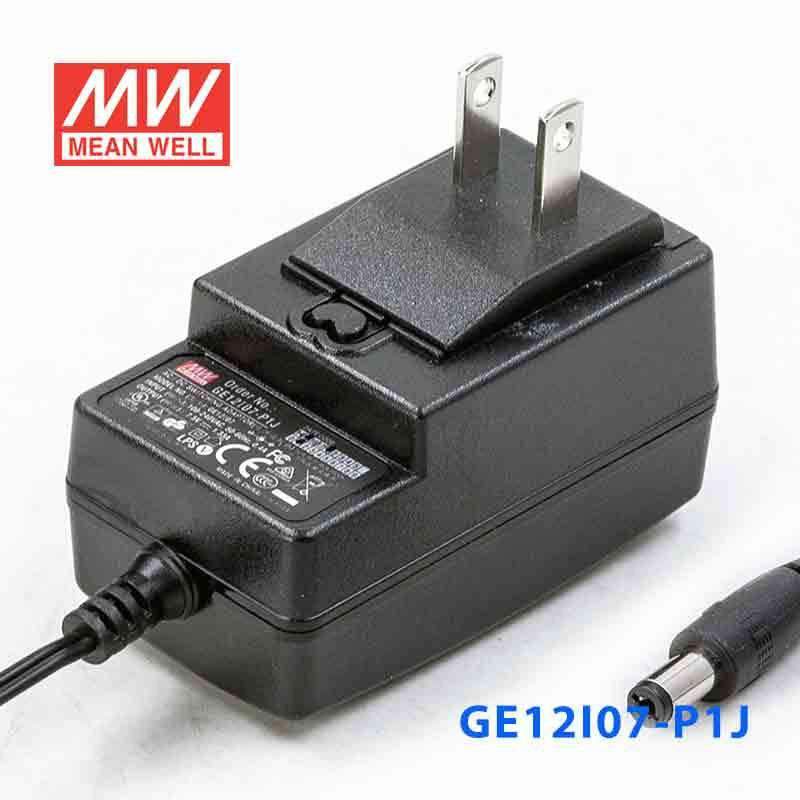

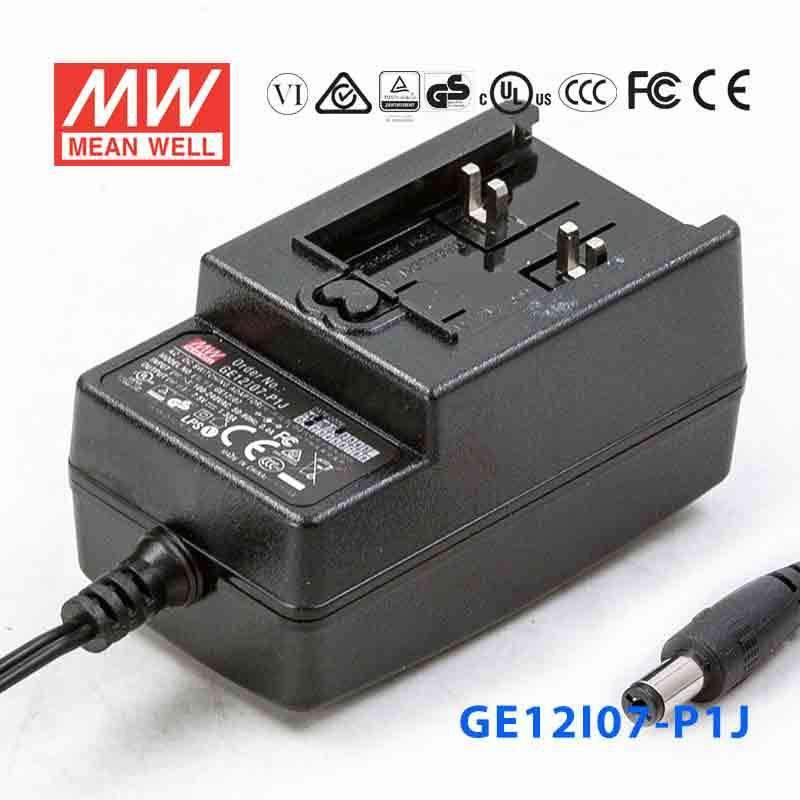

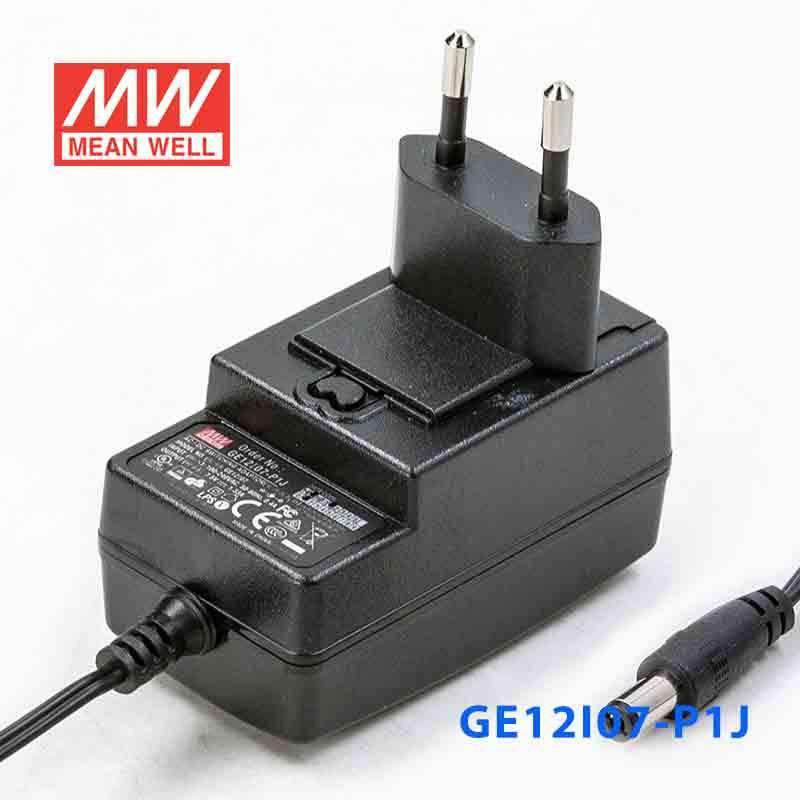

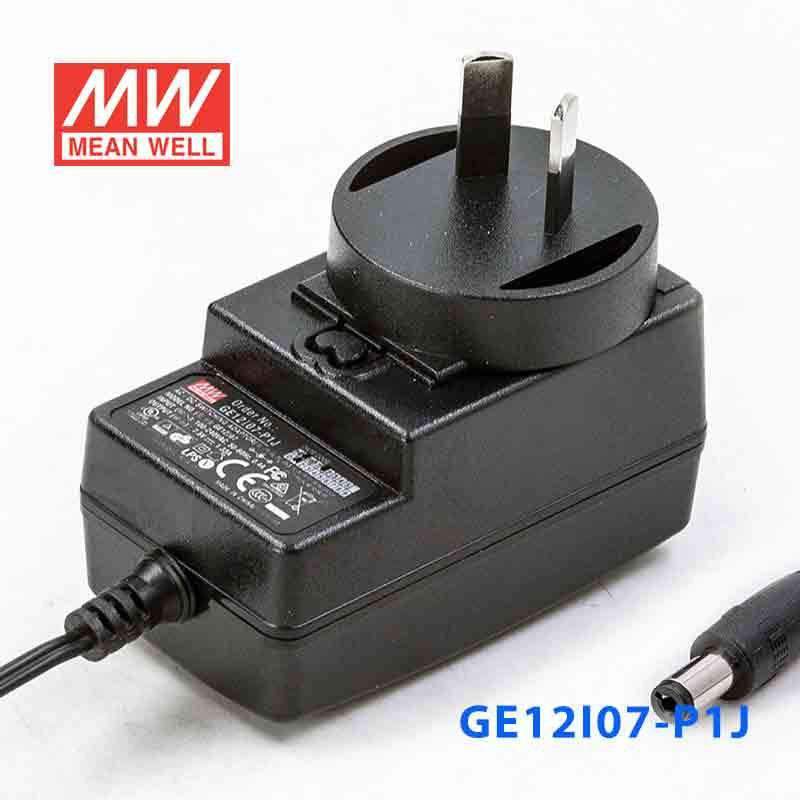

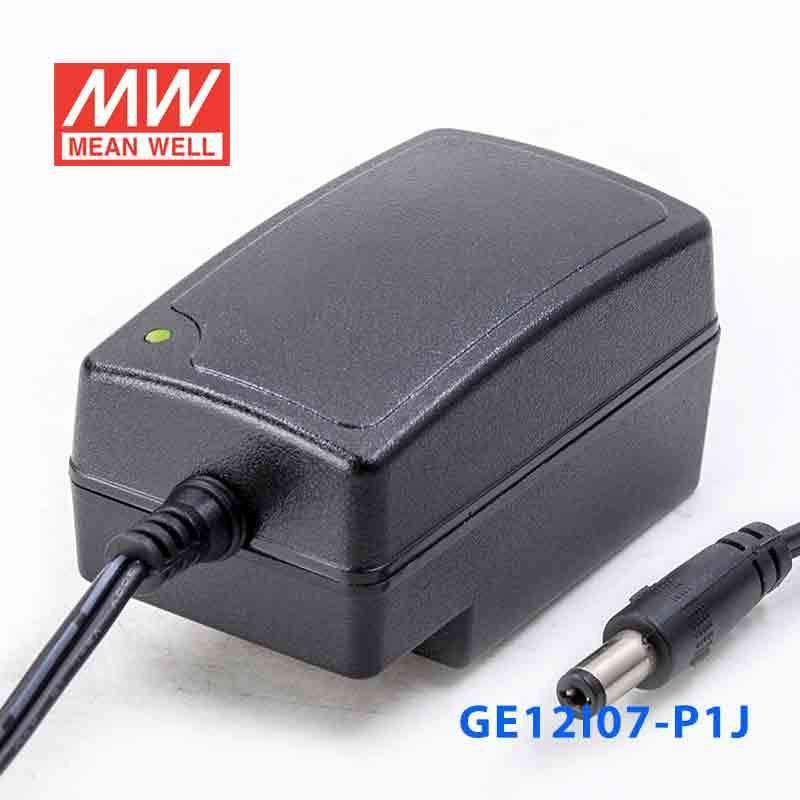

Mean Well GE12I07-P1J Power Supply 10W 7.5V
Please Login for Pricing
Description
Description
The GE12I07 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating10 Watt
-
Output Voltage7.5 Volt
-
Rated Current1.33 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length7.07 cm
-
Width4 cm
-
Height3.88 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE12I07-P1J for 7.5V industrial electronics or legacy control equipment?
It is designed as a constant voltage 7.5V power supply with up to 1.33A output current. That makes it suitable for 7.5V industrial or control devices that stay within the 10W power limit.
Is this a good choice for a 7.5V embedded device or evaluation board?
This model delivers a regulated 7.5V output and supports loads up to 1.33A. It can be used for embedded hardware that specifically requires 7.5V constant voltage and does not exceed 10W.
Can the GE12I07-P1J power a small automation accessory that needs 7.5V DC?
Yes, if the accessory requires 7.5V constant voltage and draws no more than 1.33A. The input range of 90-264VAC also supports use across a wide AC input range.
Is this 7.5V adapter appropriate for indoor control cabinets or protected equipment spaces?
The operating temperature range is -10°C to +50°C, which suits protected environments that remain within that range. No IP rating is listed, so the specs do not identify it as an outdoor-rated power supply.
What are the sibling options for the GE12I07-P1J series?
The listed sibling variants are GE12I07-P1J-欧套, GE12I07-P1J-混套, GE12I07-P1J-澳套, GE12I07-P1J-美套, and GE12I07-P1J-英套. The published specs for this model are 10W output power, 7.5V output voltage, 1.33A output current, 90-264VAC input, and 70.7 x 40.0 x 38.8 mm dimensions.
