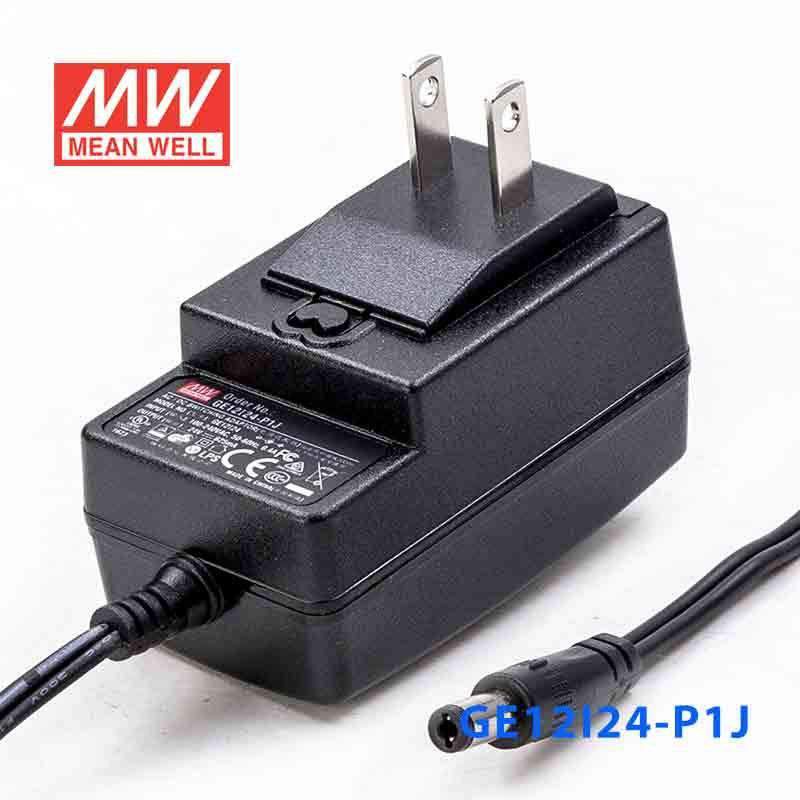

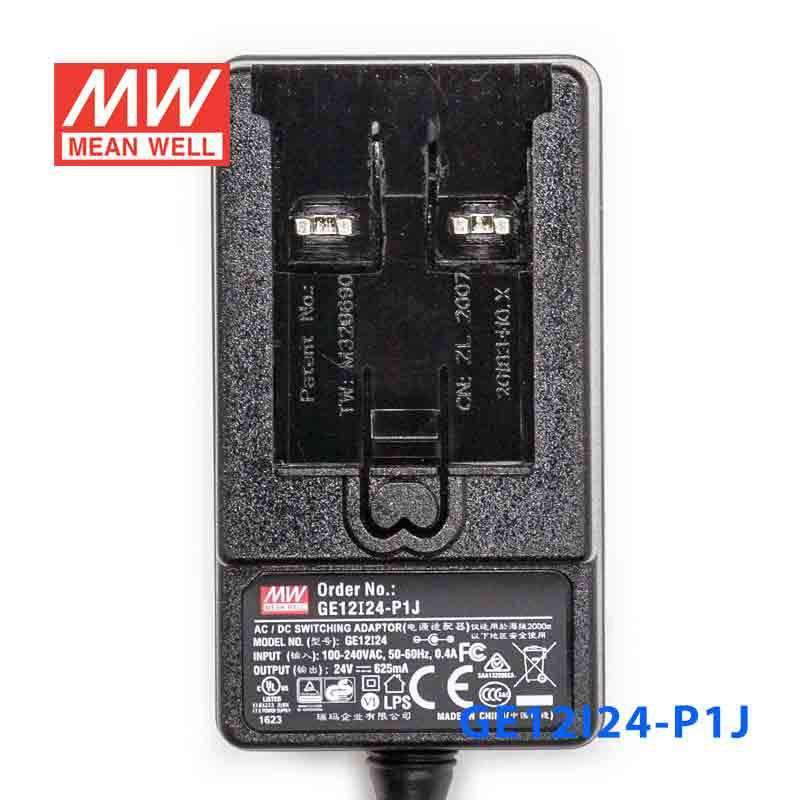

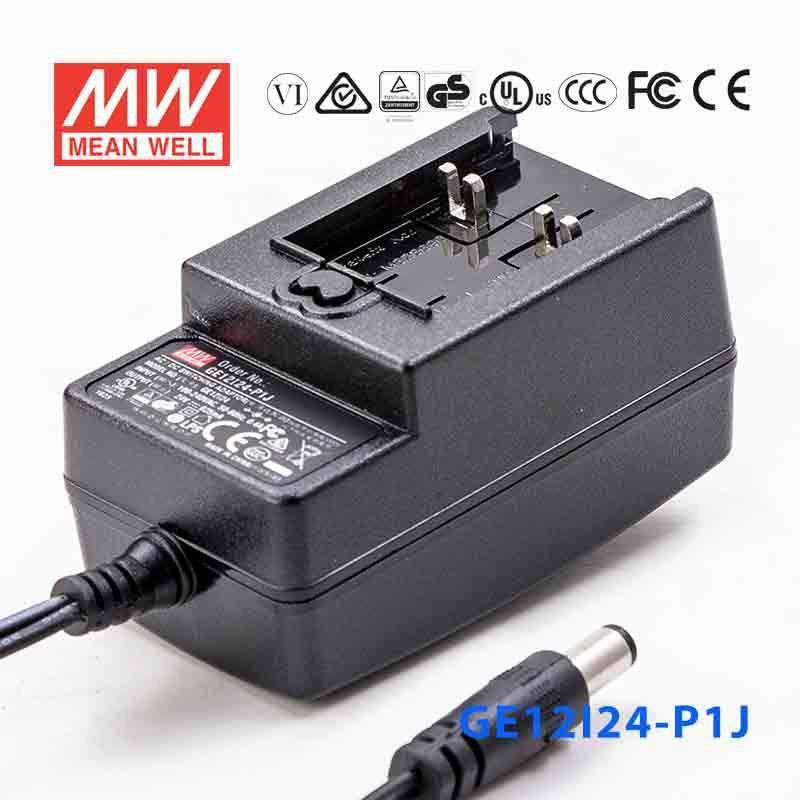

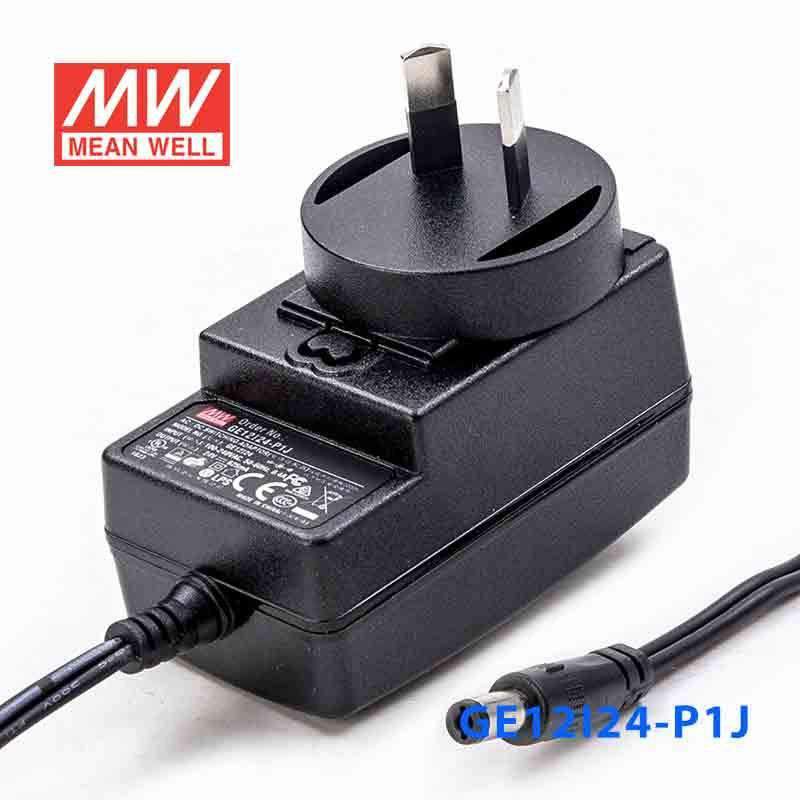

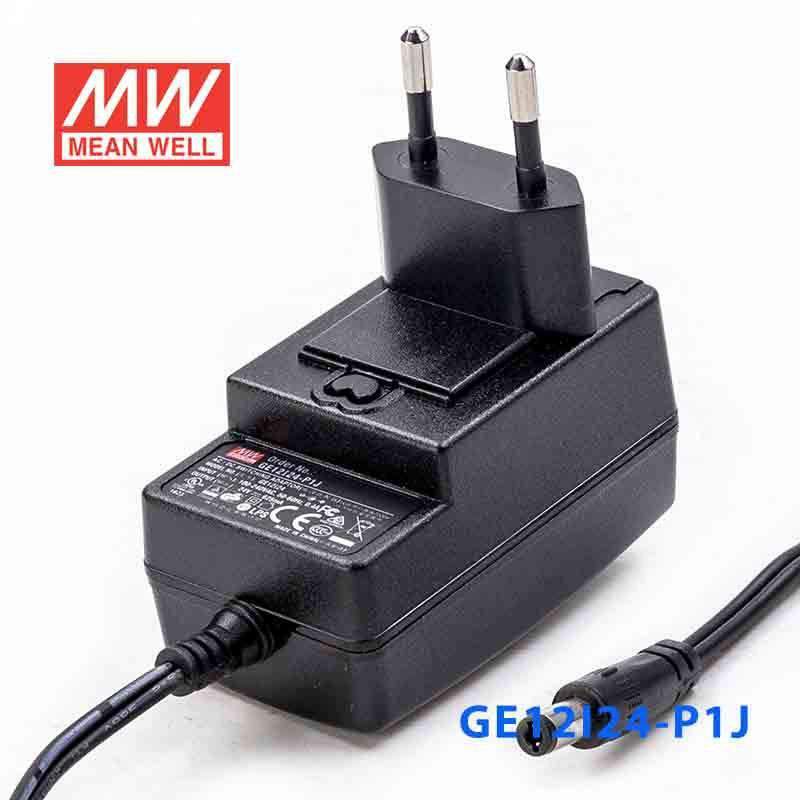

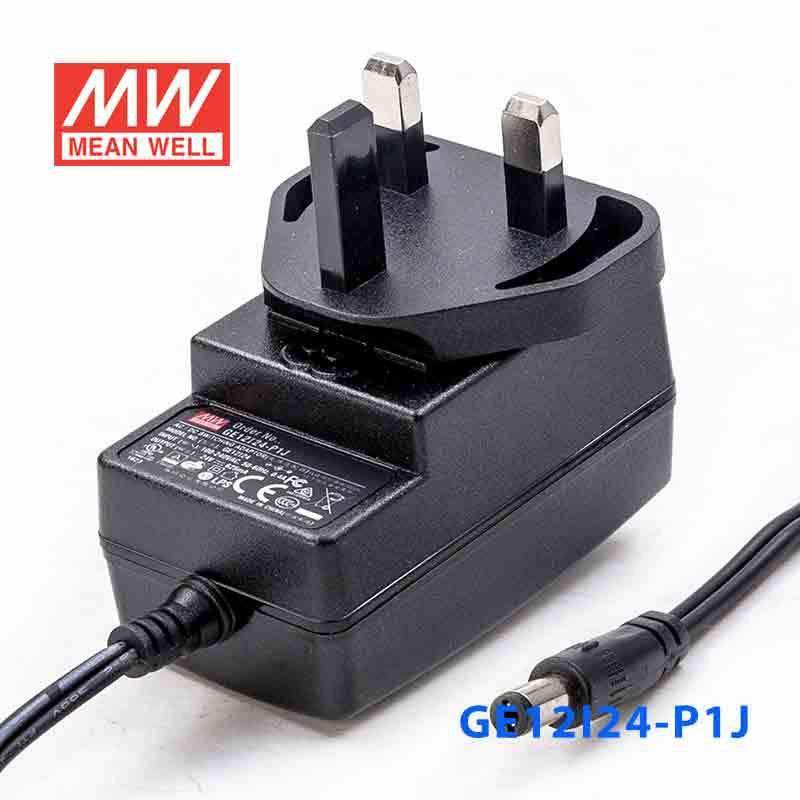

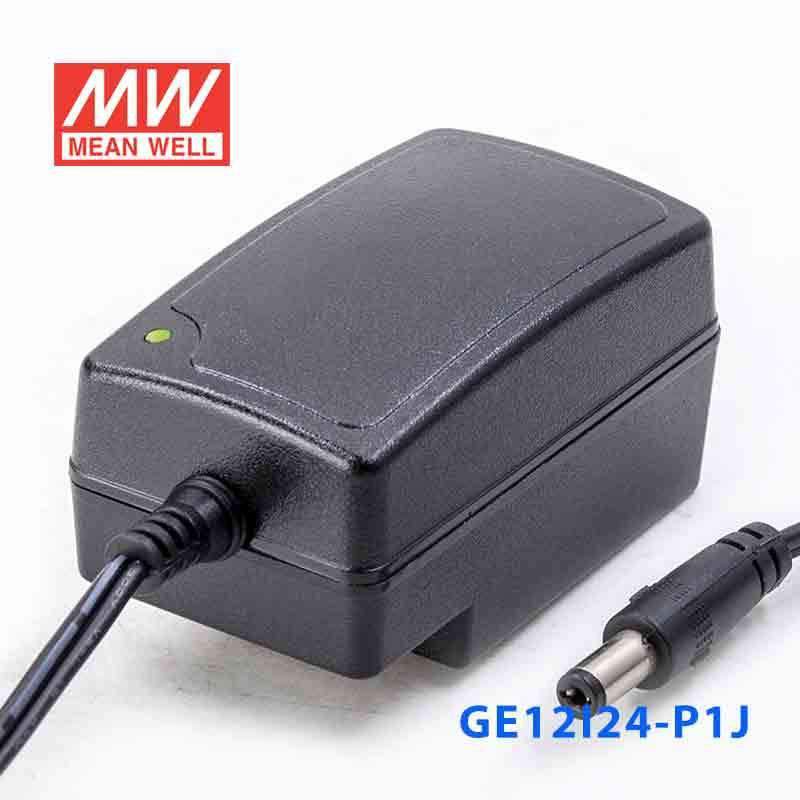

Mean Well GE12I24-P1J Power Supply 15W 24V
Please Login for Pricing
Description
Description
The GE12I24 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length7.07 cm
-
Width4 cm
-
Height3.88 cm
-
Weight0.1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE12I24-P1J to power a 24V sensor, relay module, or compact automation device?
Yes, as long as the device needs constant 24V input and draws no more than 0.62A. This model is rated for 15W, so it fits lighter 24V loads such as small sensors, relay modules, or compact automation electronics within that range.
Will this work for a 24V industrial communication or interface module?
It can work for 24V interface or communication modules that are designed for constant voltage input. The output limit is 0.62A, so it is intended for lower-power 24V equipment rather than heavier loads.
Is this 24V adapter suitable for a small embedded or control system?
Yes, for small embedded or control systems that specifically require 24V constant voltage and stay within 15W. Its 90-264VAC input range also supports use across a wide range of AC sources.
How do I check if this 24V supply is the right size for my application?
Confirm that the equipment requires constant 24V input and that total load stays at or below 15W and 0.62A. If the current demand is higher than 0.62A, you need a higher-capacity 24V supply.
Can the GE12I24-P1J be used where temperature and exposure are concerns?
The specified operating range is -10°C to +50°C, so it should be used within those ambient conditions. No IP rating is listed, which means the provided data supports indoor or sheltered use rather than direct outdoor exposure.
