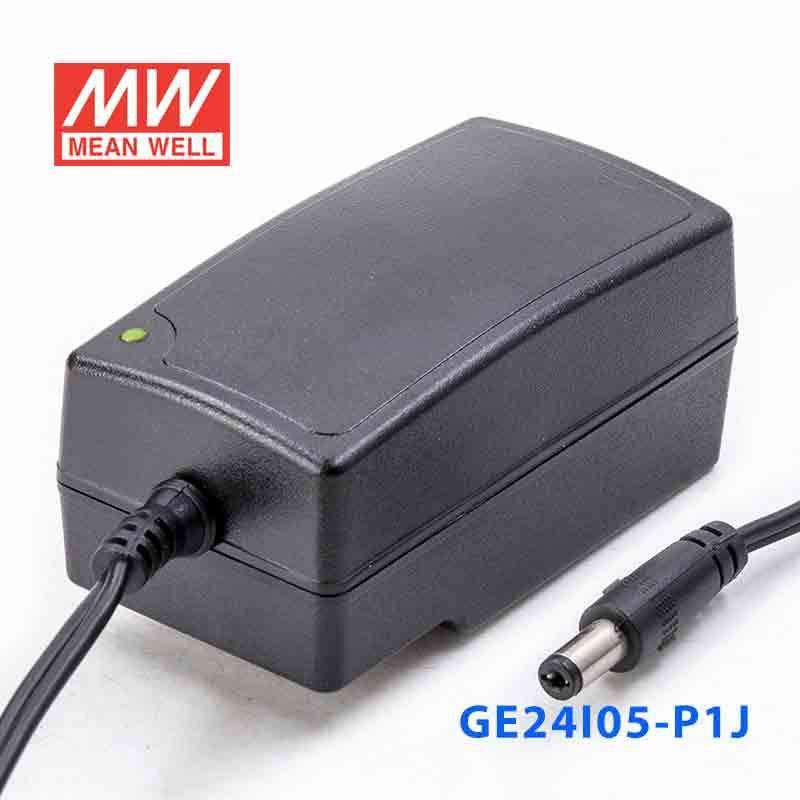

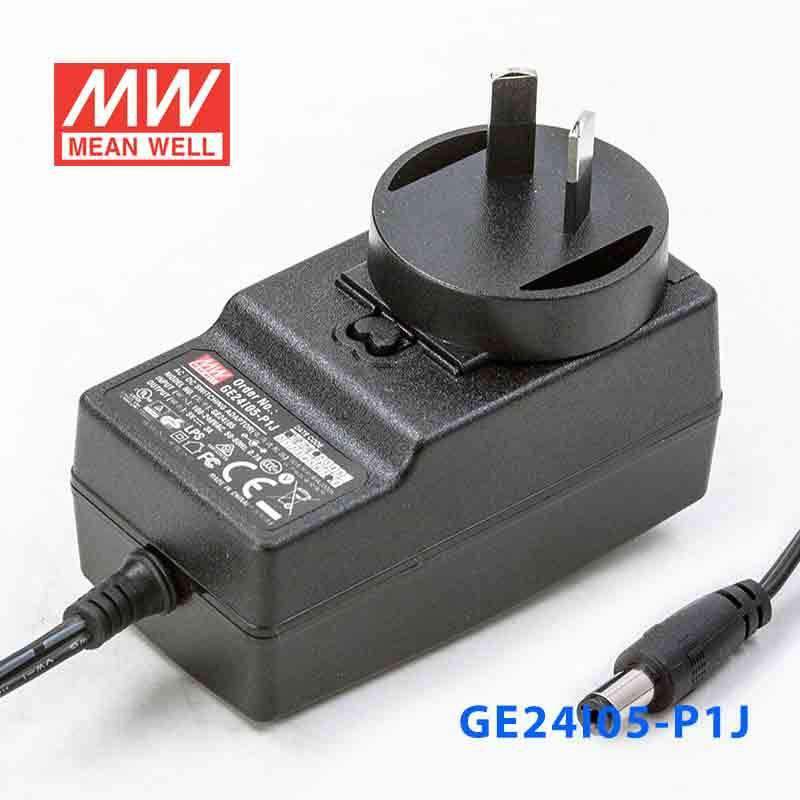

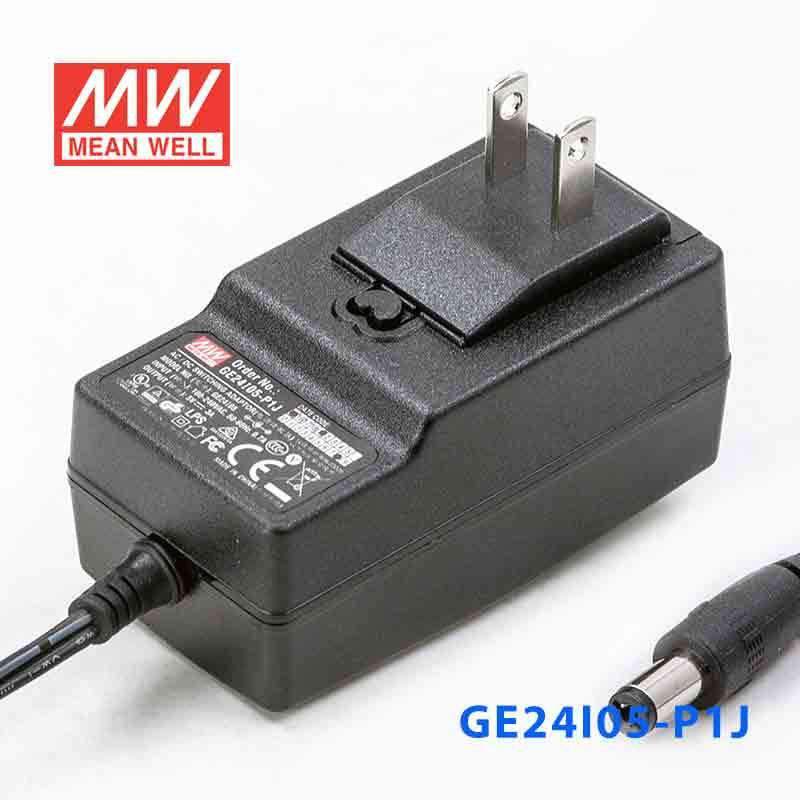

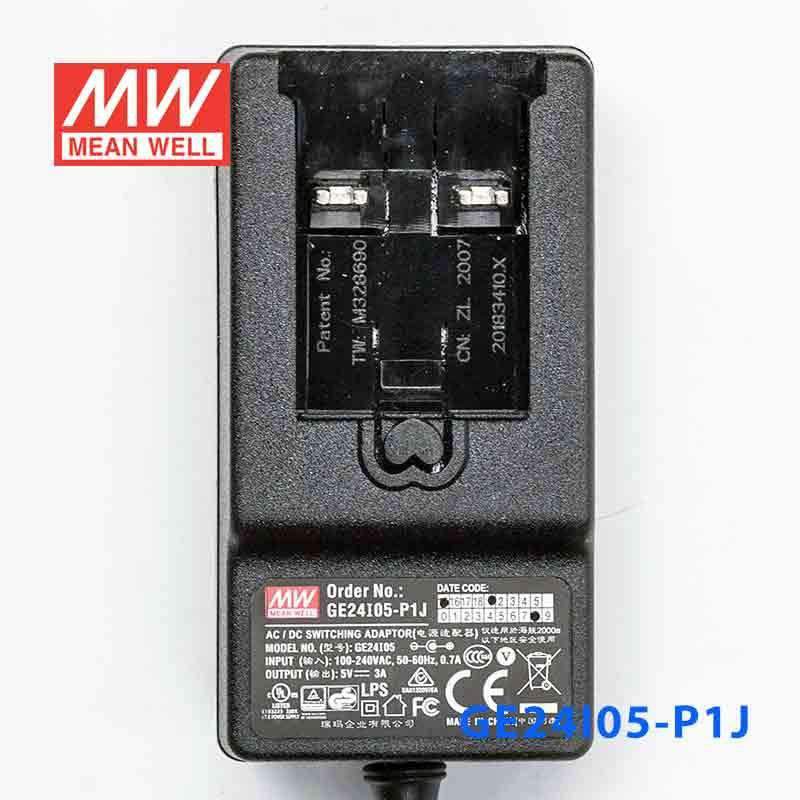

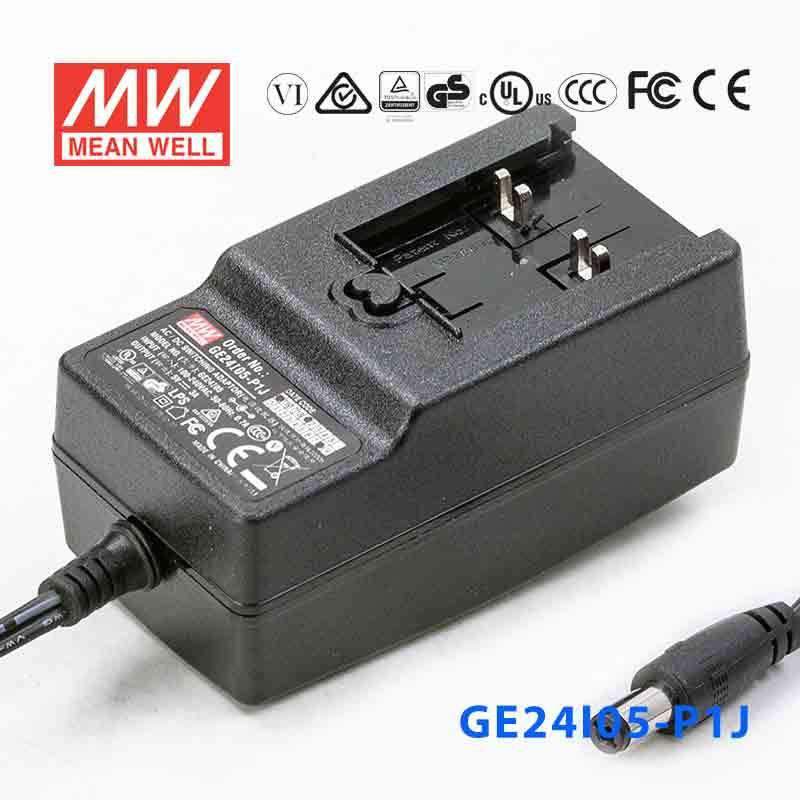

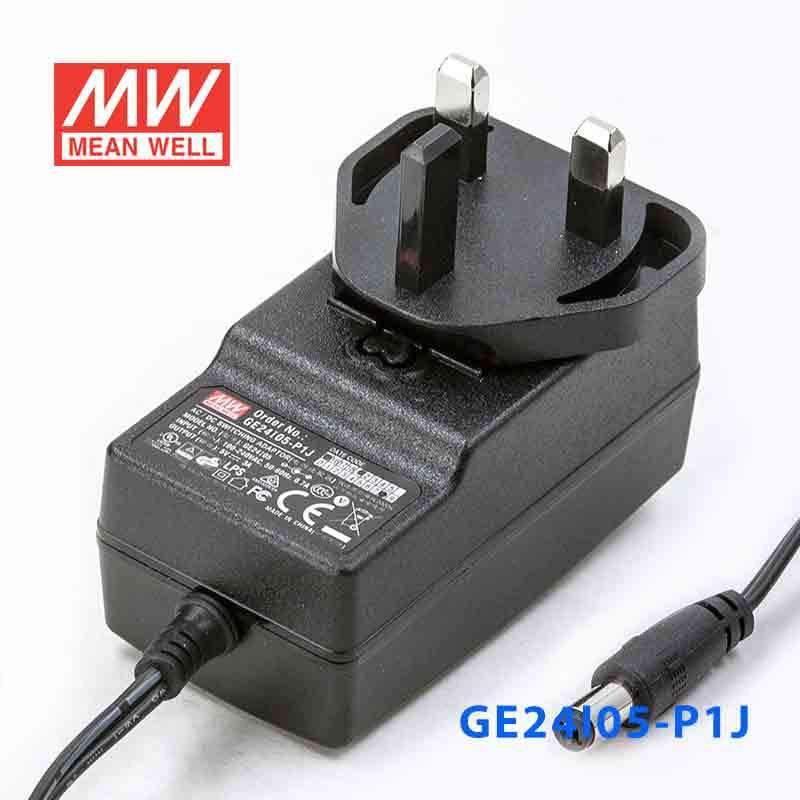

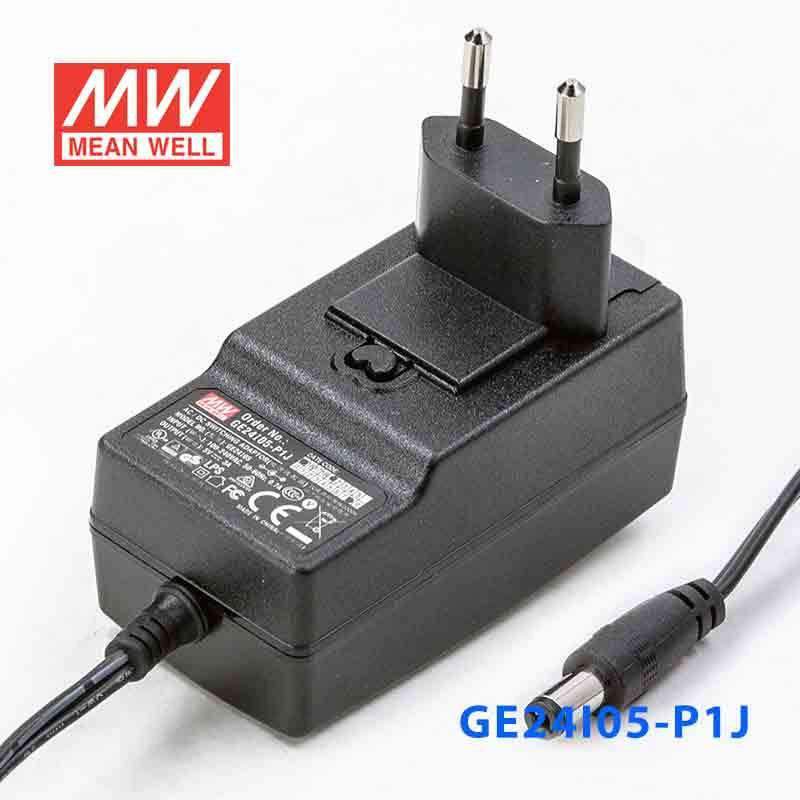

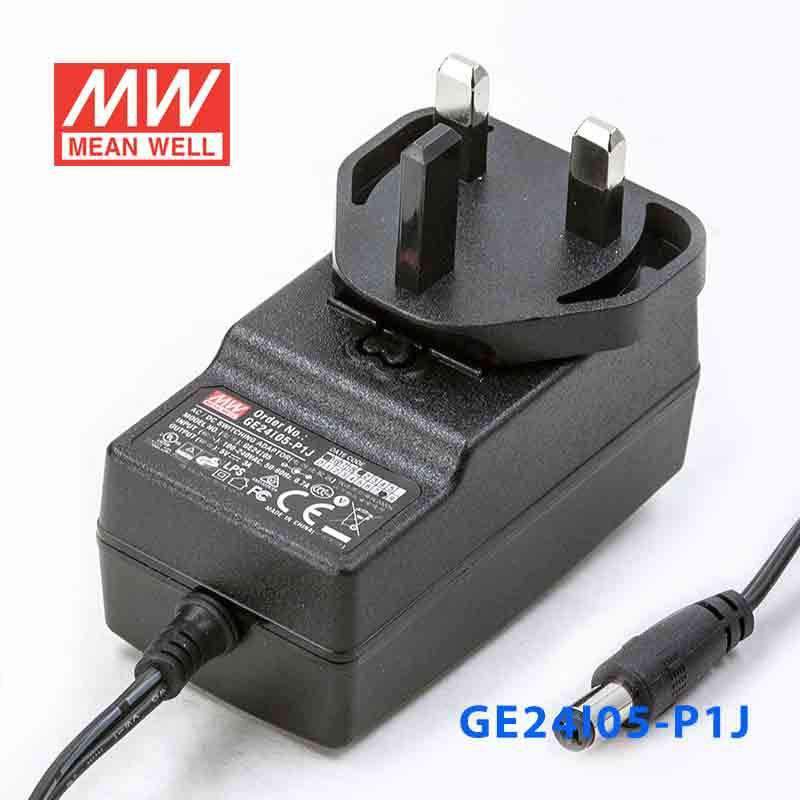

Mean Well GE24I05-P1J Power Supply 15W 5V

SKU:

GE24I05-P1J

End of Life, Succeeded by NGE30I05-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE24I05 is a 24W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

15 Watt
Output Voltage

5 Volt
Rated Current

3 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE24I05-P1J for a 5V single-board computer, embedded controller, or USB-class device?

Yes, if the equipment needs constant 5V DC and draws no more than 3A. With a 15W output rating, it fits many low-power embedded and IT devices that run from a regulated 5V source.

Is this 5V power supply suitable for industrial sensors, gateways, or logic devices that run on 5V?

It is suitable for 5V electronics as long as the total load stays within 15W and 3A. That makes it appropriate for lower-power industrial or automation devices designed around a constant 5V rail.

Can the GE24I05-P1J power a compact HMI, microcontroller platform, or test instrument that requires 5V DC?

It can, provided the device is specified for constant 5V input and does not exceed 3A. The supply is sized for light 5V control and embedded equipment rather than higher-current 5V systems.

Is the GE24I05-P1J meant for indoor or outdoor use?

The specified operating range is -10°C to +50°C. No IP rating is shown in the provided data, so it is best treated as an indoor supply for protected environments instead of exposed outdoor conditions.

What are the related versions of the GE24I05-P1J in the same series?

The listed sibling variants are GE24I05-P1J-OB, GE24I05-P1J-欧套, GE24I05-P1J-混套, GE24I05-P1J-澳套, GE24I05-P1J-美套, and GE24I05-P1J-英套. For this model page, the stated electrical rating is 15W, 5V, 3A constant voltage, so confirm the exact suffix when comparing versions.

Model	Power	Voltage	Current
Mean Well GE24I24-P1J Power Supply 24W 24V	24W	24V	1A	View
Mean Well GE24I12-P1J Power Supply 24W 12V	24W	12V	2A	View
Mean Well GE24I07-P1J Power Supply 15W 7.5V	15W	7.5V	2A	View
Mean Well GE24I48-P1J Power Supply 24W 48V	24W	48V	0.5A	View
Mean Well GE24I18-P1J Power Supply 24W 18V	24W	18V	1.33A	View
Mean Well GE24I15-P1J Power Supply 24W 15V	24W	15V	1.6A	View
Mean Well GE24I09-P1J Power Supply 20W 9V	20W	9V	2.22A	View
