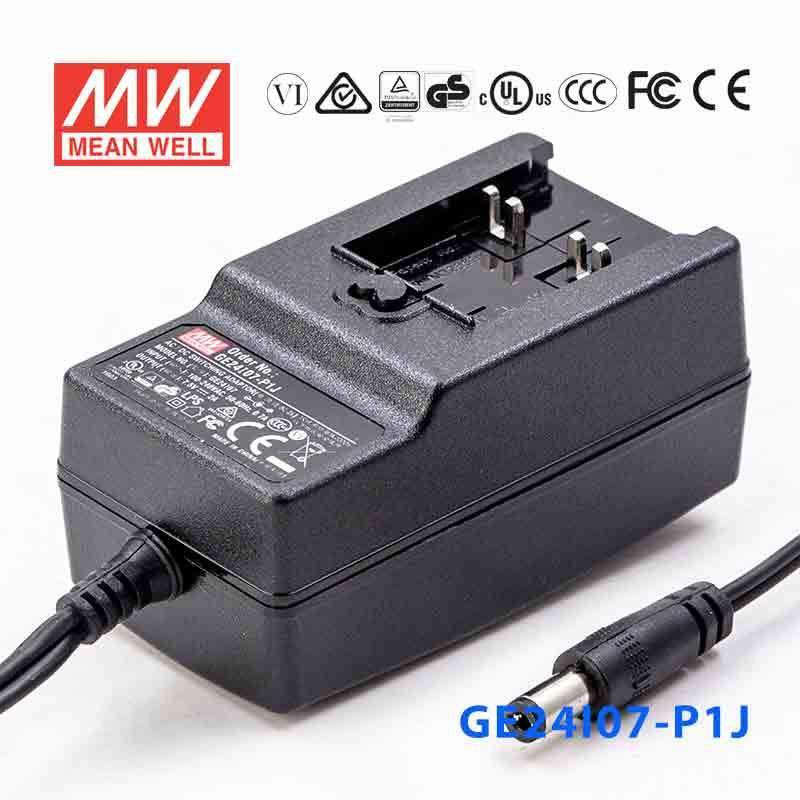

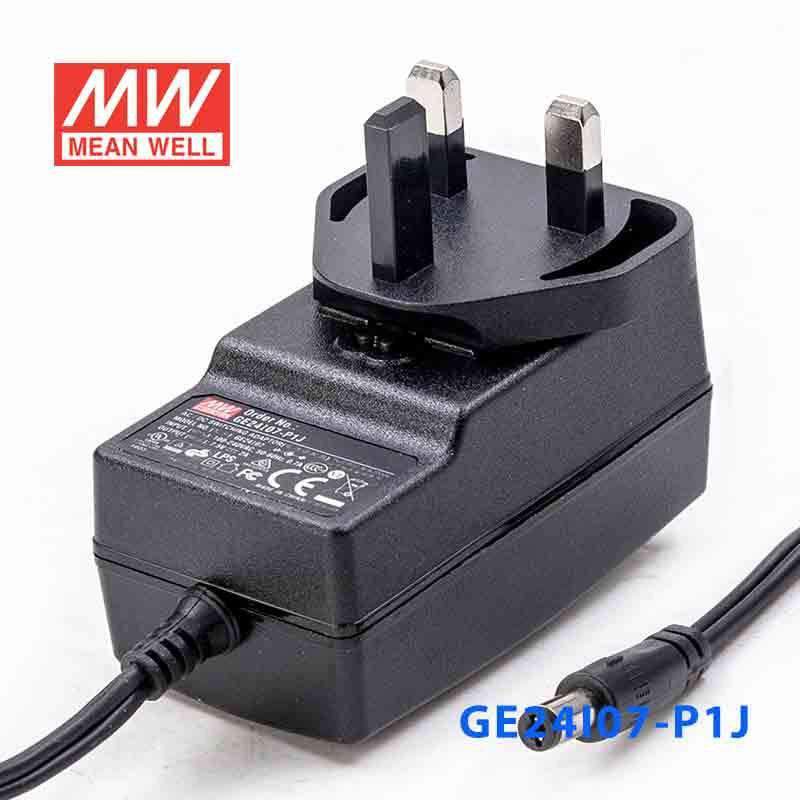

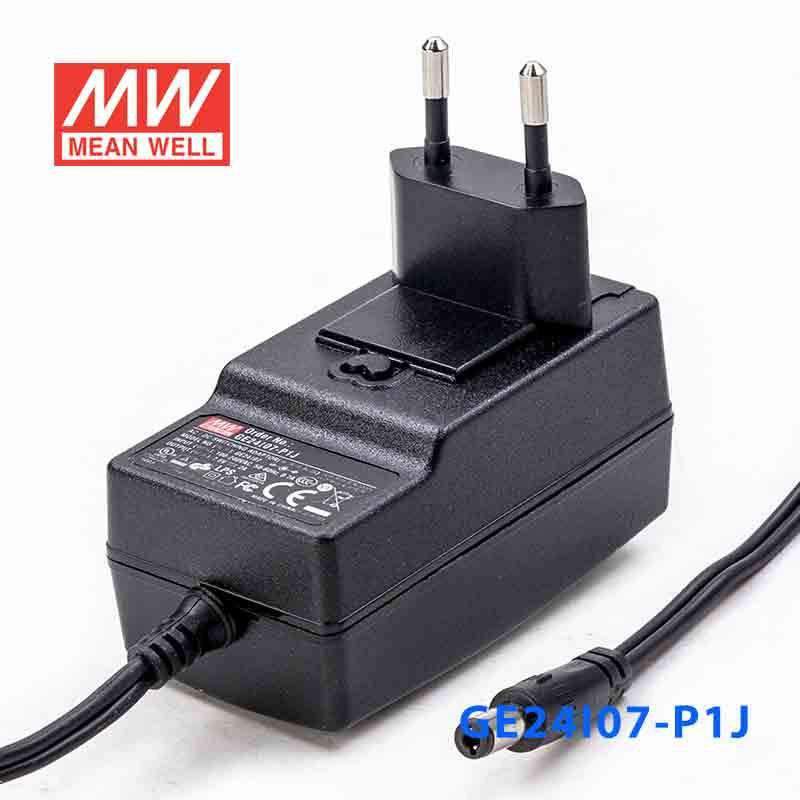

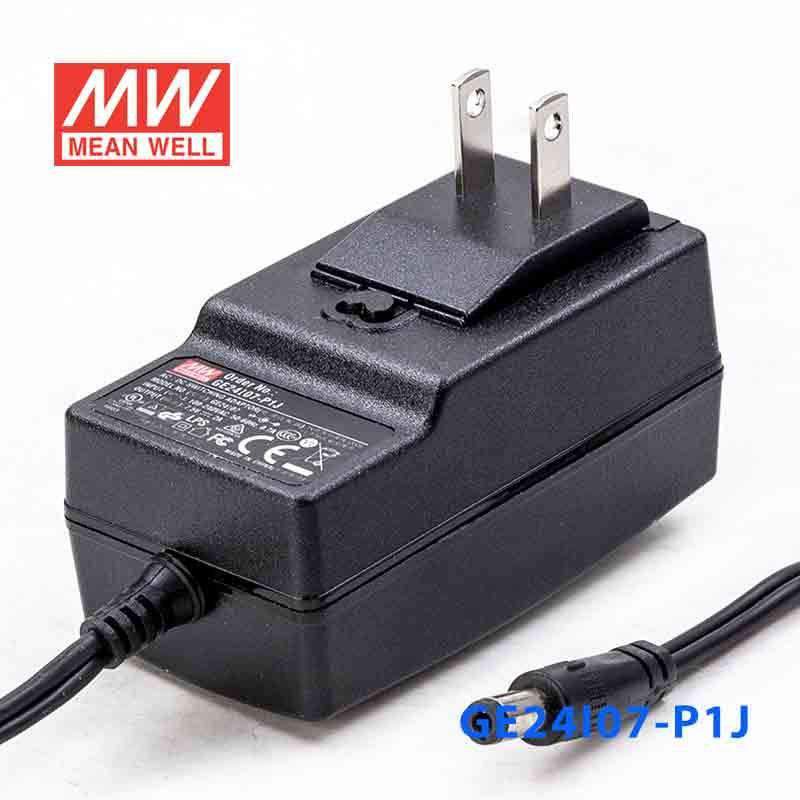

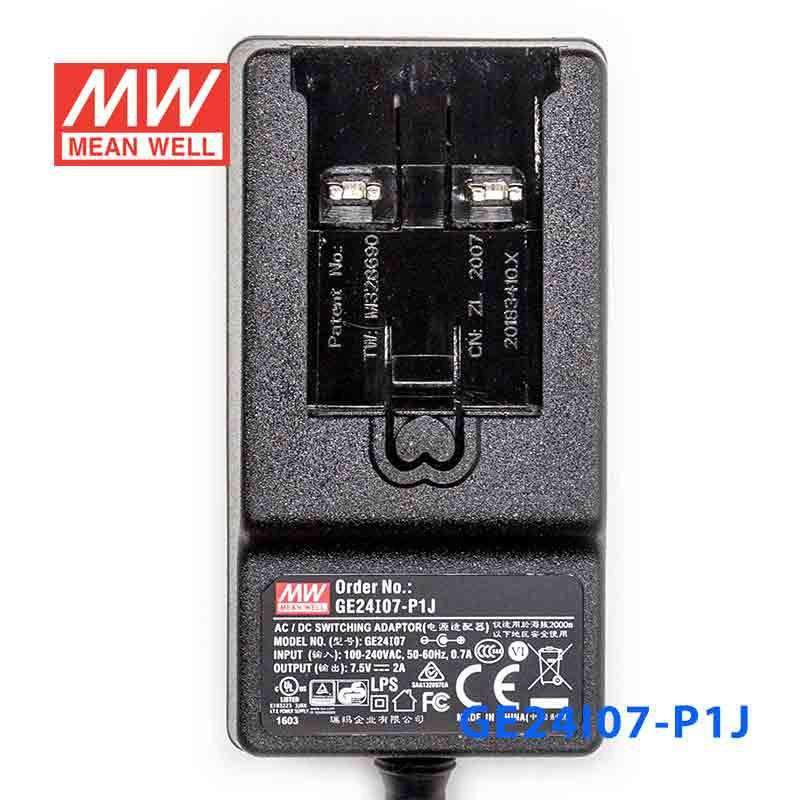

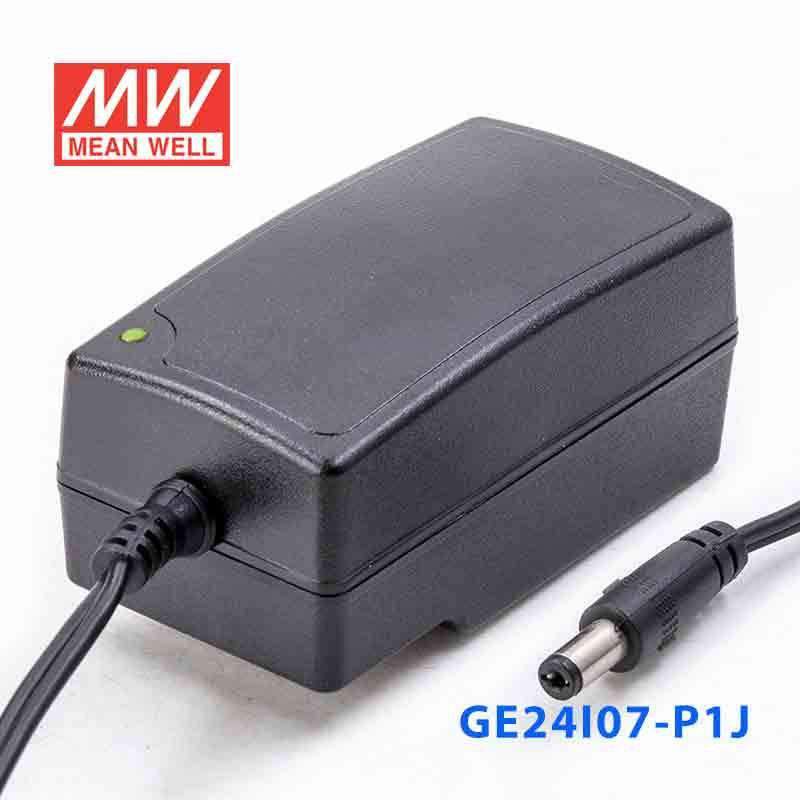

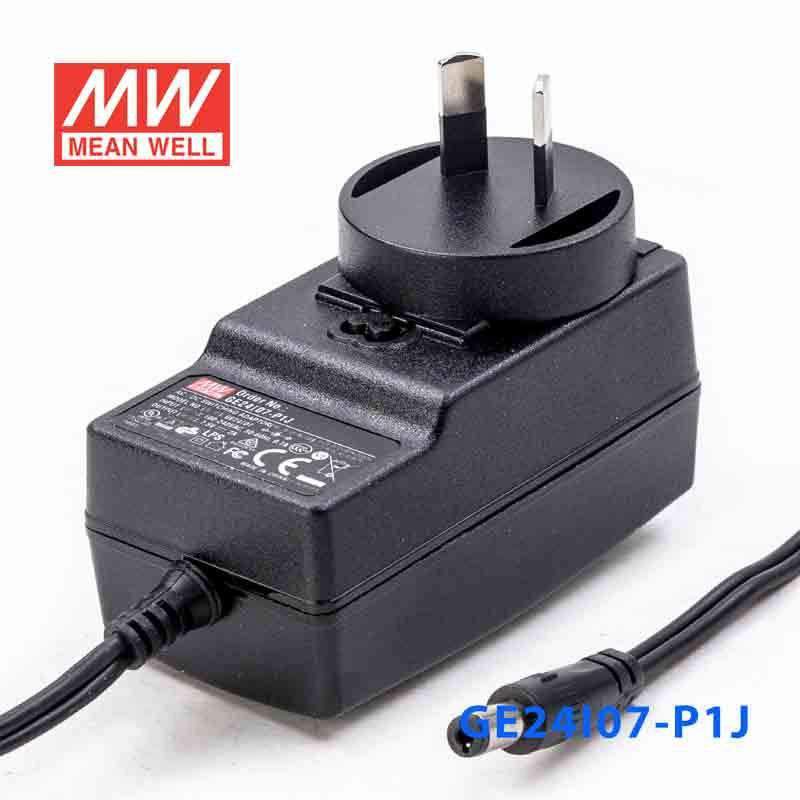

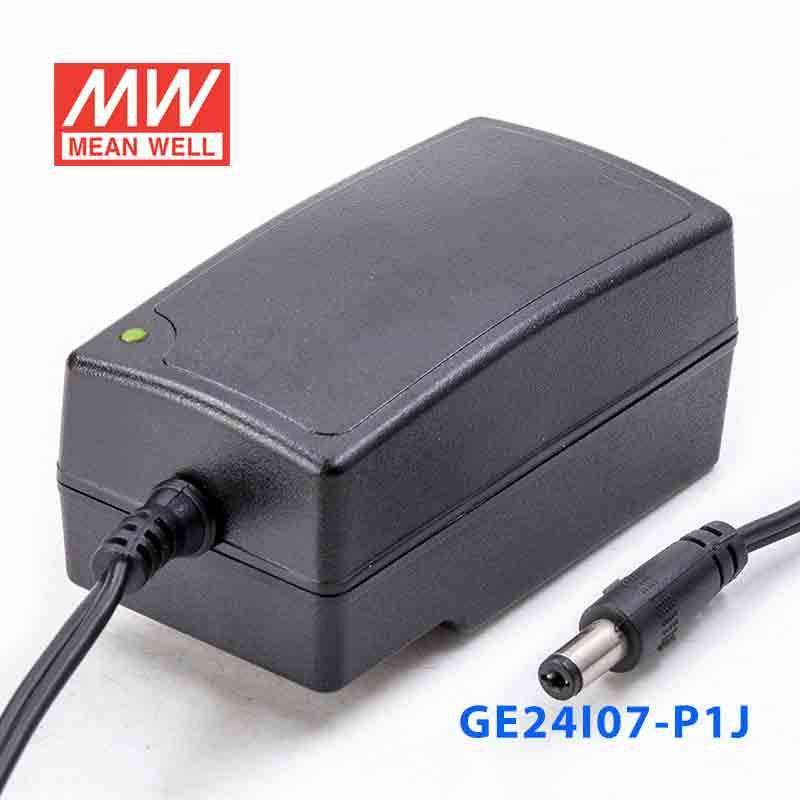

Mean Well GE24I07-P1J Power Supply 15W 7.5V

SKU:

GE24I07-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE24I07 is a 24W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

15 Watt
Output Voltage

7.5 Volt
Rated Current

2 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE24I07-P1J for a 7.5V embedded device or legacy control product?

Yes, if the equipment requires constant 7.5V DC and the load does not exceed 2A. Its 15W rating makes it suitable for lower-power 7.5V electronics in embedded or control applications.

Is this a fit for a 7.5V industrial handheld, test instrument, or small automation interface?

It can be used for those types of devices when they are specified for 7.5V constant-voltage input and stay within 15W. The maximum output current is 2A, which is the key limit to check against the load.

Can the GE24I07-P1J power a compact 7.5V controller, decoder, or communication accessory?

Yes, for low-power 7.5V equipment that draws up to 2A. Because this is a constant-voltage model, it should be matched only with hardware designed for a regulated 7.5V supply.

Is this 7.5V adapter appropriate for outdoor or dusty environments?

The operating temperature is rated at -10°C to +50°C. Since no IP rating is provided in the supplied specs, the conservative interpretation is indoor use in sheltered conditions rather than direct outdoor exposure.

How does the GE24I07-P1J differ from the other versions listed in the series?

The related variants shown are GE24I07-P1J-欧套, GE24I07-P1J-混套, GE24I07-P1J-澳套, GE24I07-P1J-美套, and GE24I07-P1J-英套. On this page, the published output specification is 15W, 7.5V, 2A constant voltage, so check the exact sibling code when choosing among versions.

Model	Power	Voltage	Current
Mean Well GE24I24-P1J Power Supply 24W 24V	24W	24V	1A	View
Mean Well GE24I12-P1J Power Supply 24W 12V	24W	12V	2A	View
Mean Well GE24I05-P1J Power Supply 15W 5V	15W	5V	3A	View
Mean Well GE24I48-P1J Power Supply 24W 48V	24W	48V	0.5A	View
Mean Well GE24I18-P1J Power Supply 24W 18V	24W	18V	1.33A	View
Mean Well GE24I15-P1J Power Supply 24W 15V	24W	15V	1.6A	View
Mean Well GE24I09-P1J Power Supply 20W 9V	20W	9V	2.22A	View
