Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

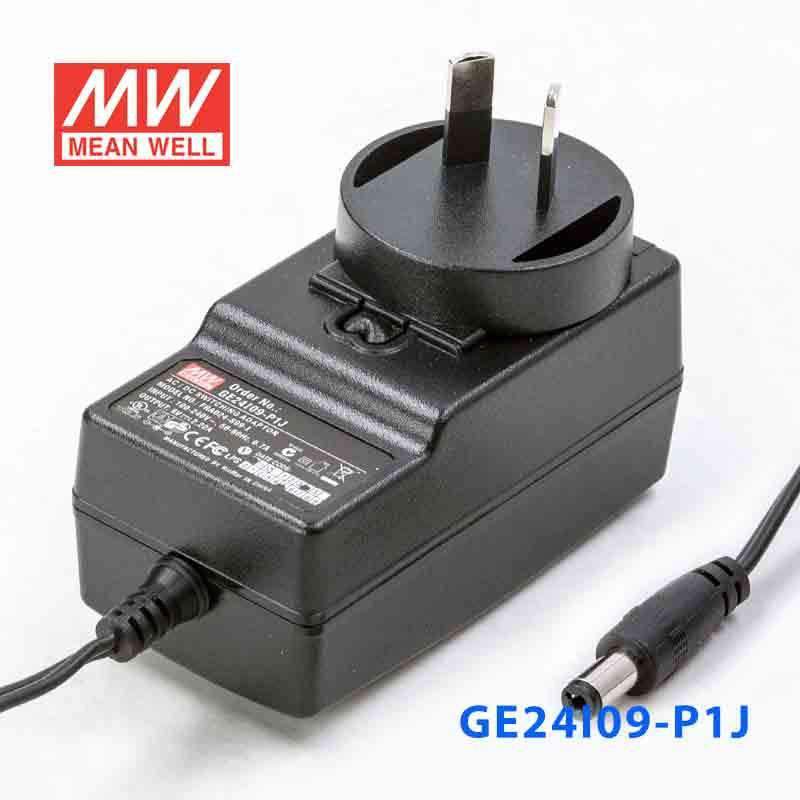

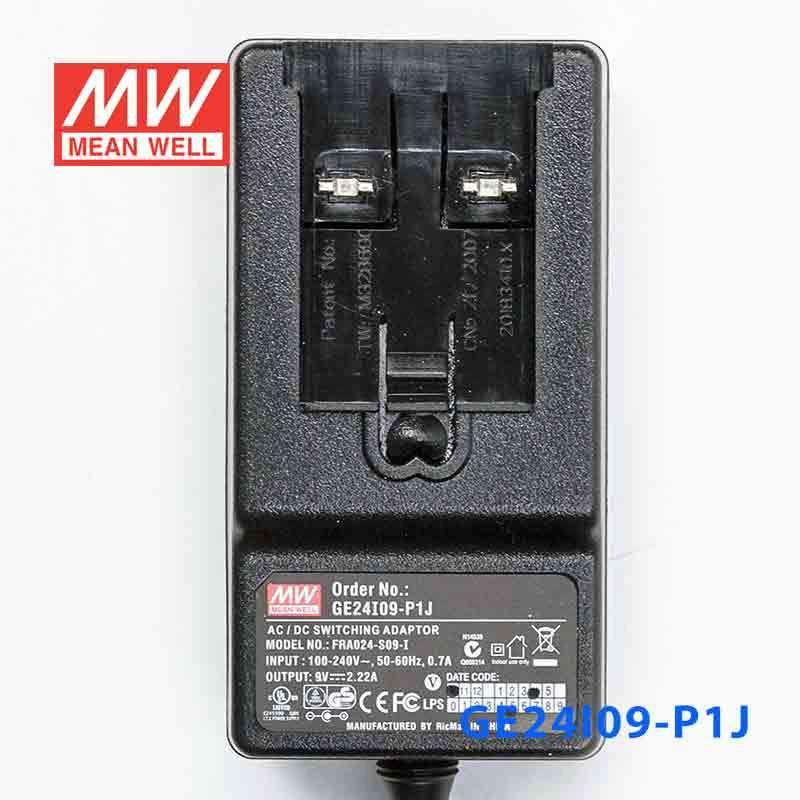

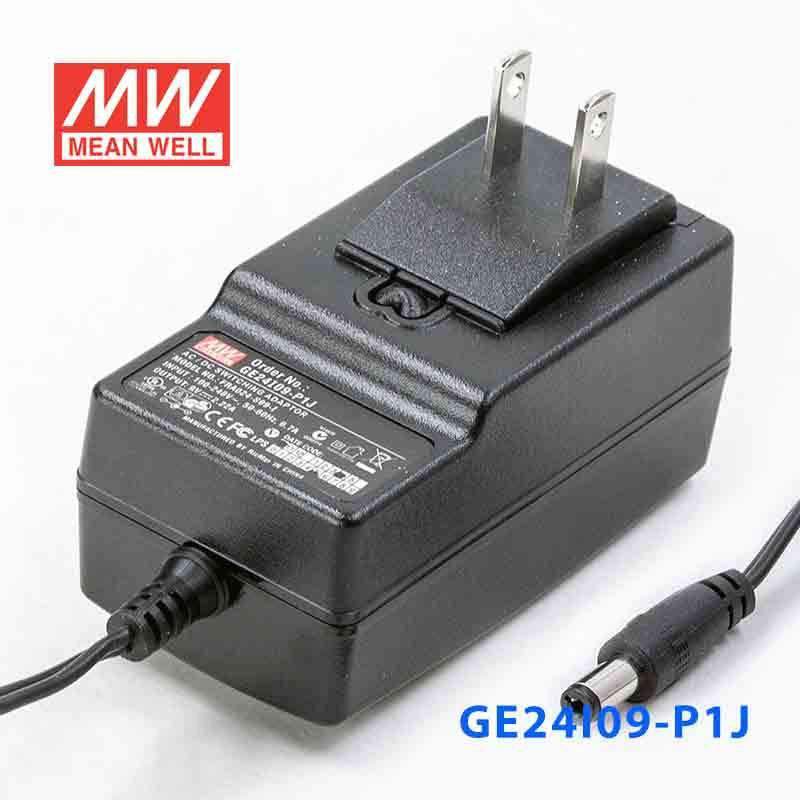

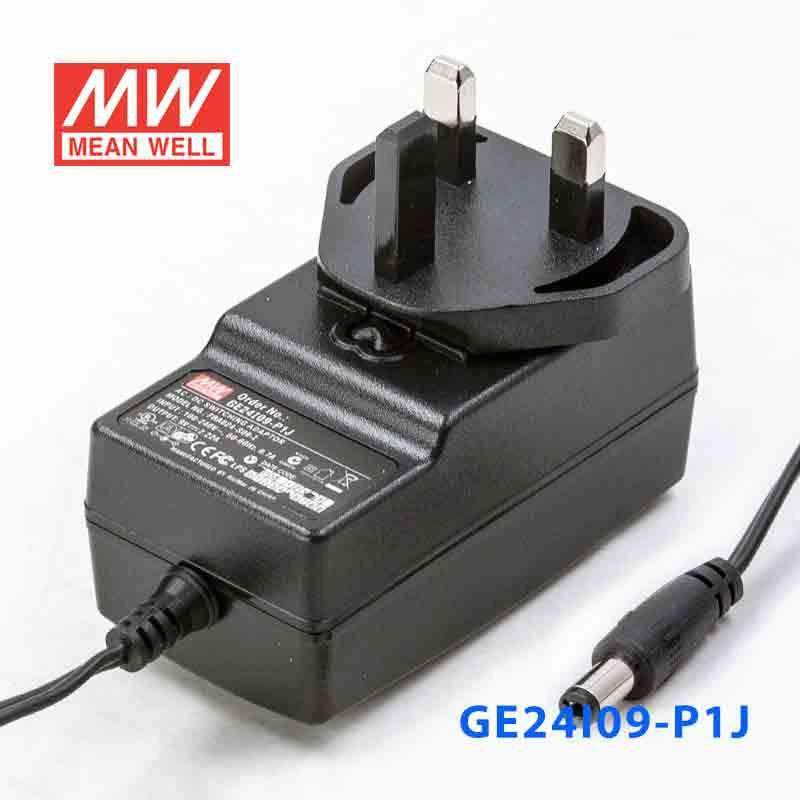

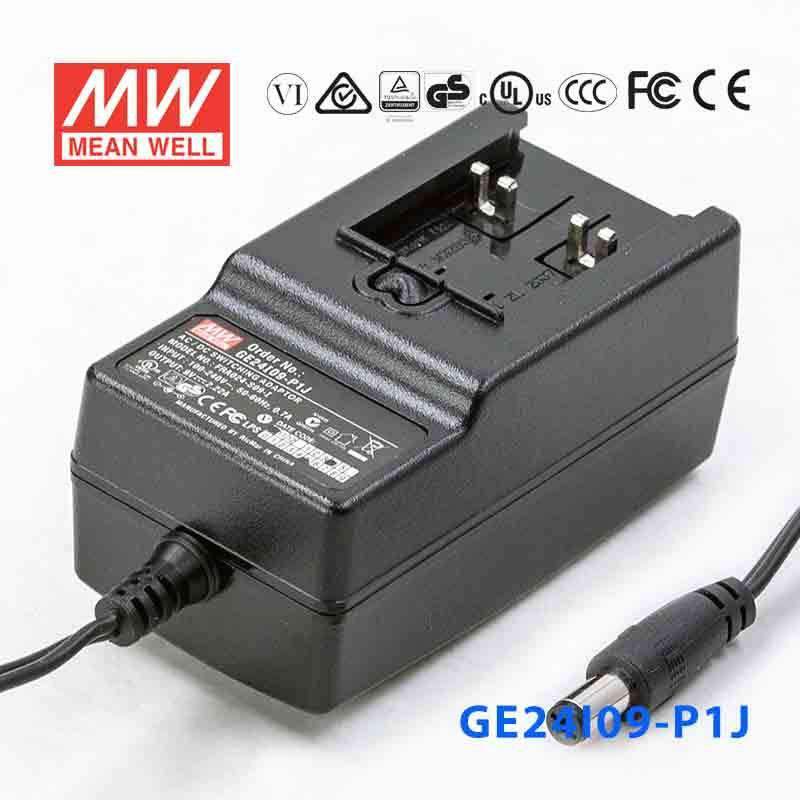

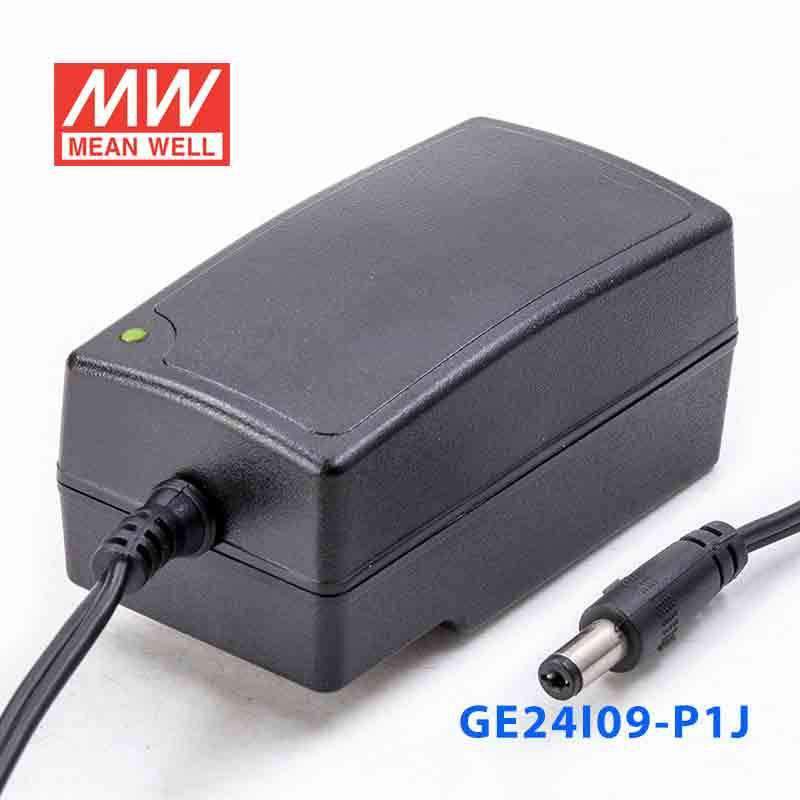

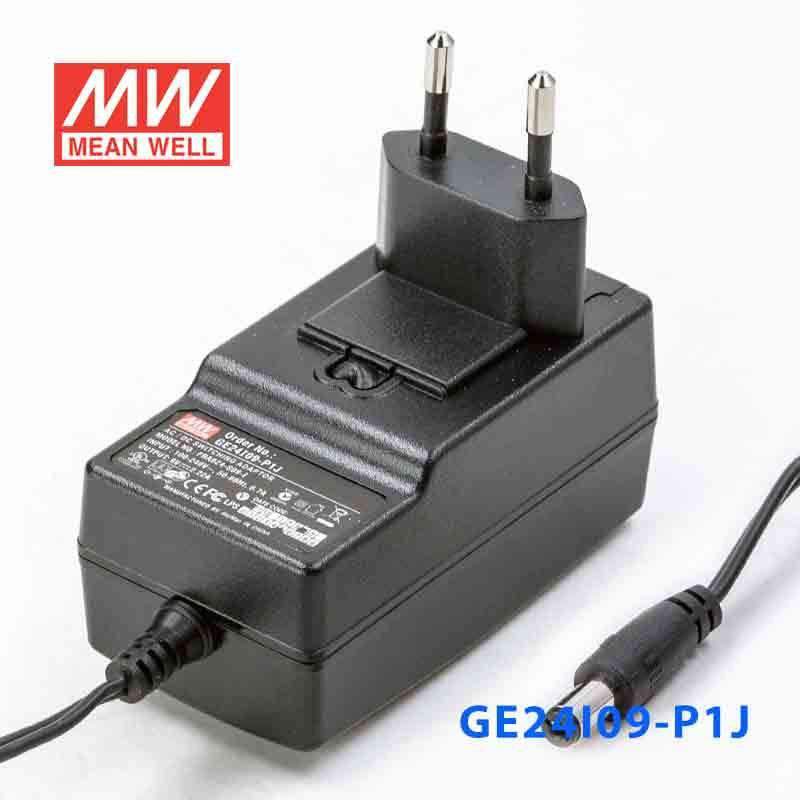

Mean Well GE24I09-P1J Power Supply 20W 9V

SKU:

GE24I09-P1J

End of Life, Succeeded by NGE30I09-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE24I09 is a 24W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

20 Watt
Output Voltage

9 Volt
Rated Current

2.22 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE24I09-P1J for a 9V router, embedded controller, or small IT device?

Yes, if the equipment requires constant 9V DC and draws no more than 2.22A. The output is rated at 20W, which suits lower-power 9V electronics in IT and embedded applications.

Is this 9V power supply suitable for a barcode base, compact instrument, or control accessory that runs on 9V?

It is suitable when the device is designed for a regulated 9V input and stays within 20W total load. The maximum output current is 2.22A, so that current limit should be checked against the device requirement.

Can the GE24I09-P1J power a small automation or communications module that needs 9V DC?

Yes, for 9V modules that operate from a constant-voltage source and do not exceed 2.22A. This model is intended for lower-power 9V equipment rather than loads that need more than 20W.

Is the GE24I09-P1J suitable for outdoor use or only indoor environments?

The stated operating temperature range is -10°C to +50°C. No IP rating is listed in the product data, so it should be considered a supply for protected indoor locations instead of exposed outdoor conditions.

What other versions are available alongside the GE24I09-P1J?

The series siblings listed are GE24I09-P1J-欧套, GE24I09-P1J-混套, GE24I09-P1J-澳套, GE24I09-P1J-美套, and GE24I09-P1J-英套. For this model page, the stated electrical spec is 20W, 9V, 2.22A constant voltage, so compare the exact suffix when selecting between related versions.

Model	Power	Voltage	Current
Mean Well GE24I24-P1J Power Supply 24W 24V	24W	24V	1A	View
Mean Well GE24I12-P1J Power Supply 24W 12V	24W	12V	2A	View
Mean Well GE24I07-P1J Power Supply 15W 7.5V	15W	7.5V	2A	View
Mean Well GE24I05-P1J Power Supply 15W 5V	15W	5V	3A	View
Mean Well GE24I48-P1J Power Supply 24W 48V	24W	48V	0.5A	View
Mean Well GE24I18-P1J Power Supply 24W 18V	24W	18V	1.33A	View
Mean Well GE24I15-P1J Power Supply 24W 15V	24W	15V	1.6A	View
