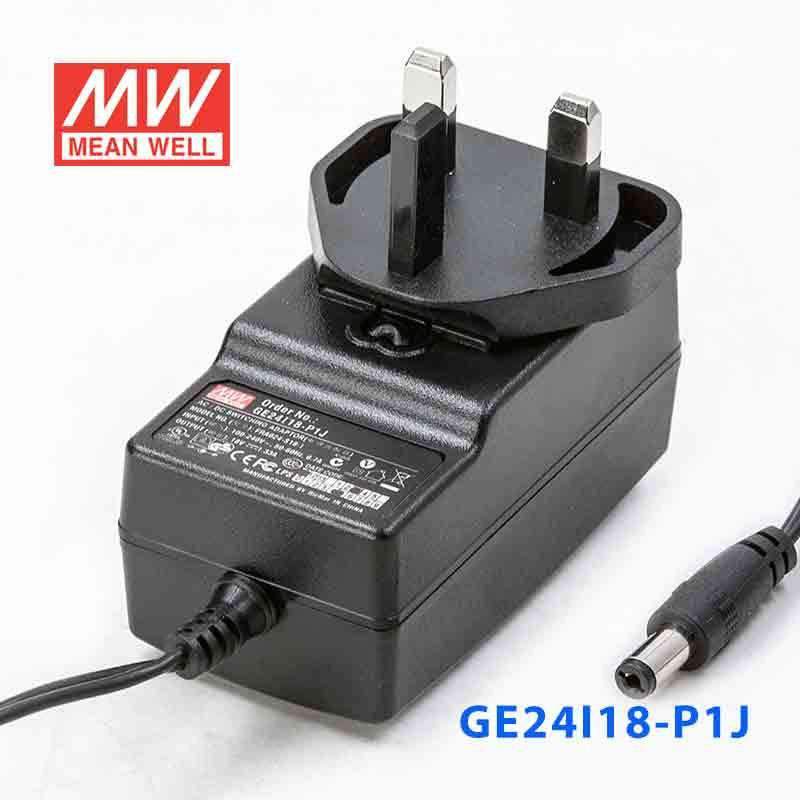

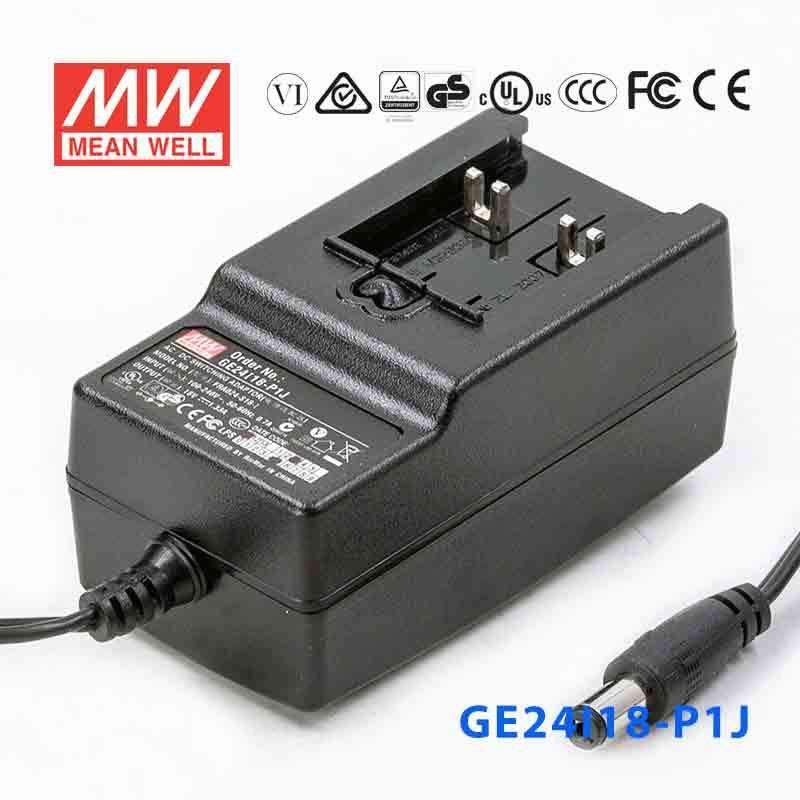

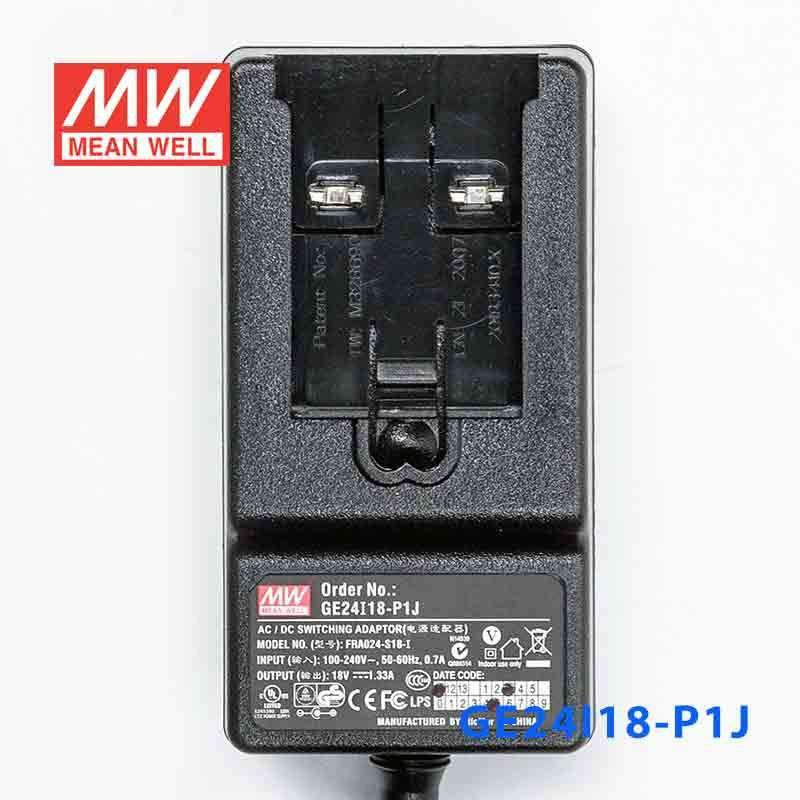

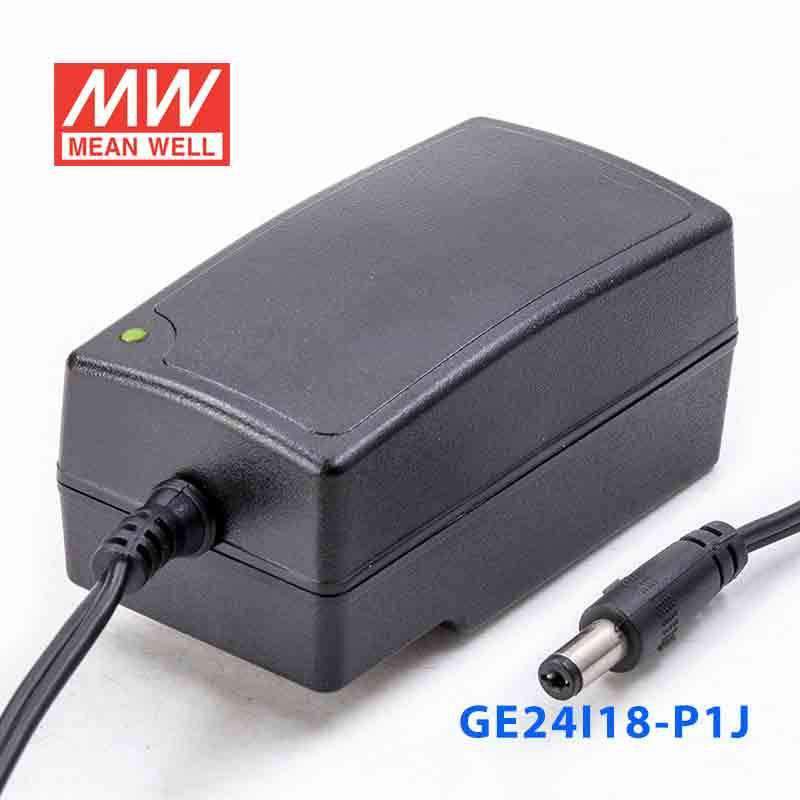

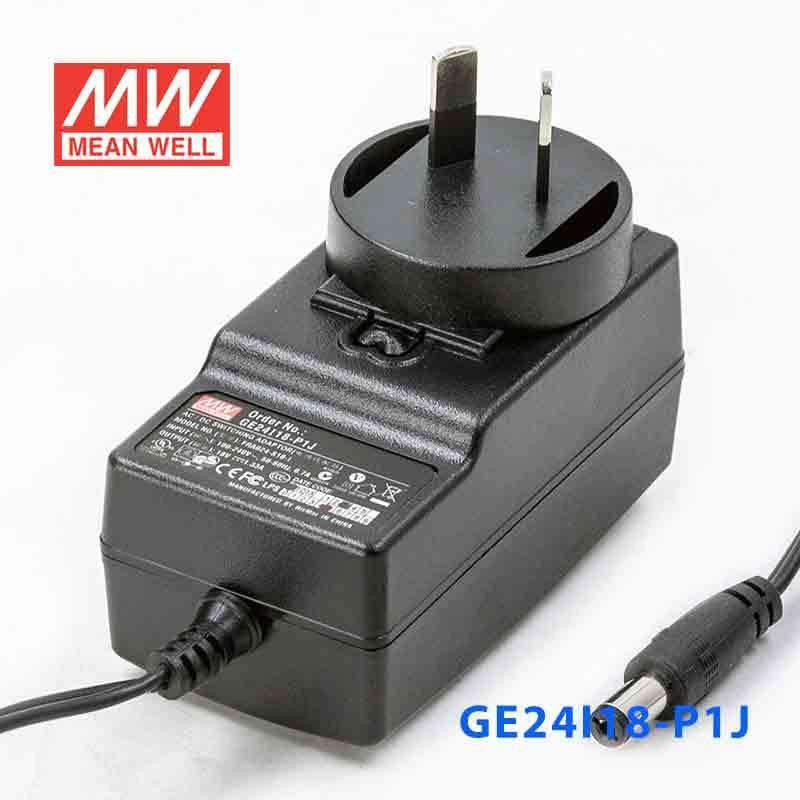

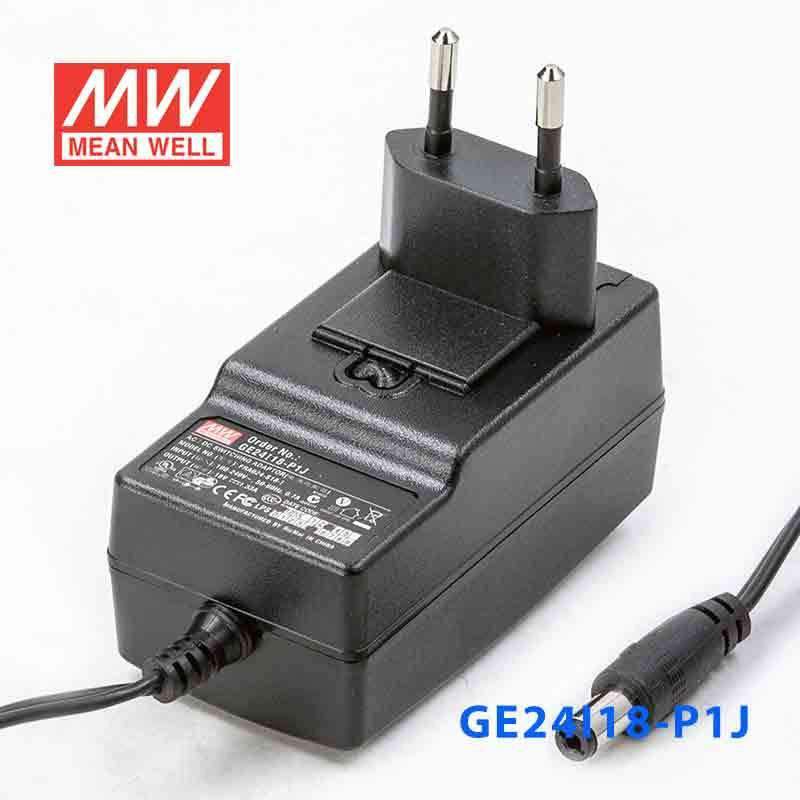

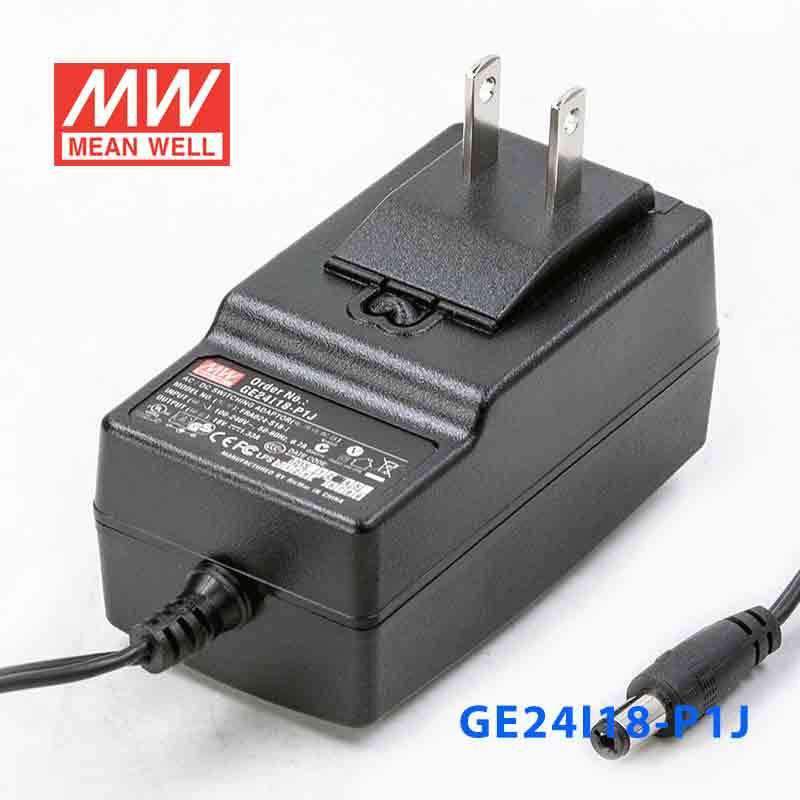

Mean Well GE24I18-P1J Power Supply 24W 18V

SKU:

GE24I18-P1J

End of Life, Succeeded by NGE30I18-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE24I18 is a 24W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

24 Watt
Output Voltage

18 Volt
Rated Current

1.33 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE24I18-P1J for an 18V industrial control board or module?

Yes, if the equipment is designed for 18V constant-voltage input and draws no more than 24W or 1.33A. This model fits lower-power 18V control electronics rather than higher-current 18V systems.

Is this suitable for a compact 18V embedded device or OEM electronics assembly?

It is suitable for embedded or OEM hardware that requires a stable 18V DC source within a 24W, 1.33A limit. The 81.0 × 43.0 × 40.5 mm size also supports use where space is constrained.

Can the GE24I18-P1J power a small automation display or interface that uses 18V DC?

It can, as long as the display or interface is specified for 18V constant-voltage operation and does not exceed 1.33A. This is a 24W supply, so load sizing matters for 18V devices with peak demand near that limit.

How does this model compare with the other GE24I18-P1J variants?

The listed related versions are GE24I18-P1J-欧套, GE24I18-P1J-混套, GE24I18-P1J-澳套, GE24I18-P1J-美套, and GE24I18-P1J-英套. For the GE24I18-P1J shown here, the provided specs are 24W output power, 18V output voltage, 1.33A output current, 90-264VAC input, and constant-voltage operation.

Is the GE24I18-P1J appropriate for indoor-only use?

Based on the provided data, yes. No IP rating is listed, and the stated operating temperature range is -10°C to +50°C, so it should be used in protected indoor conditions rather than exposed outdoor locations.

Model	Power	Voltage	Current
Mean Well GE24I24-P1J Power Supply 24W 24V	24W	24V	1A	View
Mean Well GE24I12-P1J Power Supply 24W 12V	24W	12V	2A	View
Mean Well GE24I07-P1J Power Supply 15W 7.5V	15W	7.5V	2A	View
Mean Well GE24I05-P1J Power Supply 15W 5V	15W	5V	3A	View
Mean Well GE24I48-P1J Power Supply 24W 48V	24W	48V	0.5A	View
Mean Well GE24I15-P1J Power Supply 24W 15V	24W	15V	1.6A	View
Mean Well GE24I09-P1J Power Supply 20W 9V	20W	9V	2.22A	View
