Can I use the HBGC-300-H-AB for dimmable LED downlights?

Yes, when the downlight system uses a constant current driver and its LED load stays within the 29-58V constant current range. This version also supports 0-10Vdc, 10V PWM, and resistance dimming, which can be useful in dimmable lighting systems.

Is the HBGC-300-H-AB a fit for dimmable signage LED modules?

It can be a fit for signage modules that are designed for constant current operation within 29-58V and where dimming control is needed. It is not a constant voltage supply for 12V or 24V signage products.

Can this model power a small LED array in a wet or exposed location?

Yes, if the LED array is a constant current load within the 29-58V CC range. The IP67 waterproof rating and -40°C to +80°C operating temperature range support use in harsh indoor or outdoor environments.

What should I check before pairing the HBGC-300-H-AB with an LED load?

Check that the LED assembly is built for constant current, not constant voltage, and that its total forward voltage falls within 29-58V. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.

When should I choose the HBGC-300-H-AB instead of the other HBGC-300 models?

Within the 301.6W HBGC-300 family, H models use 5.6mA with a 29-58V CC range, M models use 2.8mA with a 58-116V CC range, and L models use 1.4mA with a 116-232V CC range. Compared with the H-A version, the H-AB adds 0-10Vdc, 10V PWM, and resistance dimming, while the H-ADA version uses DALI dimming.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

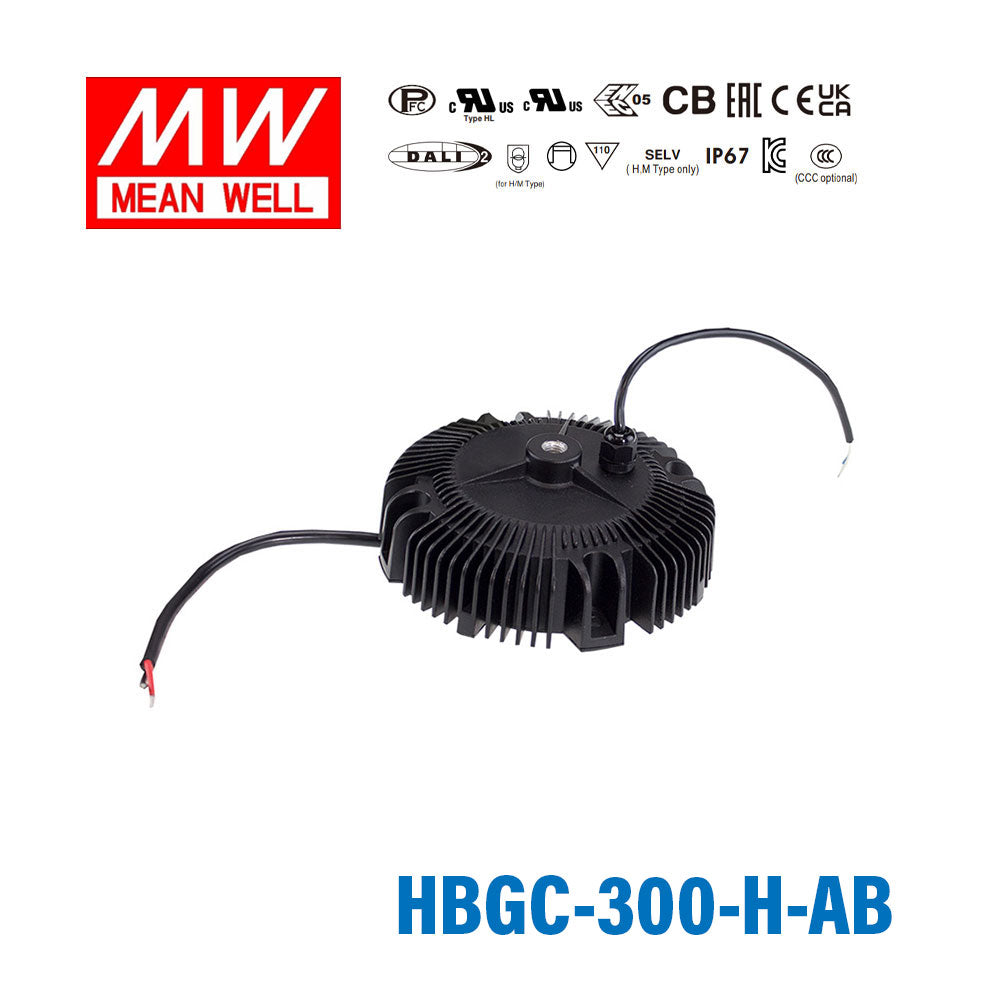

Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable

SKU HBGC-300-H-AB

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

HBGC-300-H-AB

HBGC-300-H-A 5600mA Adjustable Backorder

HBGC-300-H-AB 5600mA Adjustable and Dimmable Backorder

HBGC-300-H-ADA 5600mA Adjustable and DALI Backorder

Product variants

Notify me when it's back in stock

The HBGC-300-H is a 301.6W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 62V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage (max): 62V
✓ Rated output current: 5.6A
✓ 0/1–10V dimming control
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Active PFC — meets international energy efficiency standards
✓ Safety certifications: CB, CCC, CE, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI	301.6W	120V	2.8A	IP67	View
Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable	301.6W	120V	2.8A	IP67	View
Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable	301.6W	120V	2.8A	IP67	View
Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI	301.6W	240V	1.4A	IP67	View
Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and Dimmable	301.6W	240V	1.4A	IP67	View
Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable	301.6W	240V	1.4A	IP67	View
Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and DALI	301.6W	62V	5.6A	IP67	View
Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable	301.6W	62V	5.6A	IP67	View
