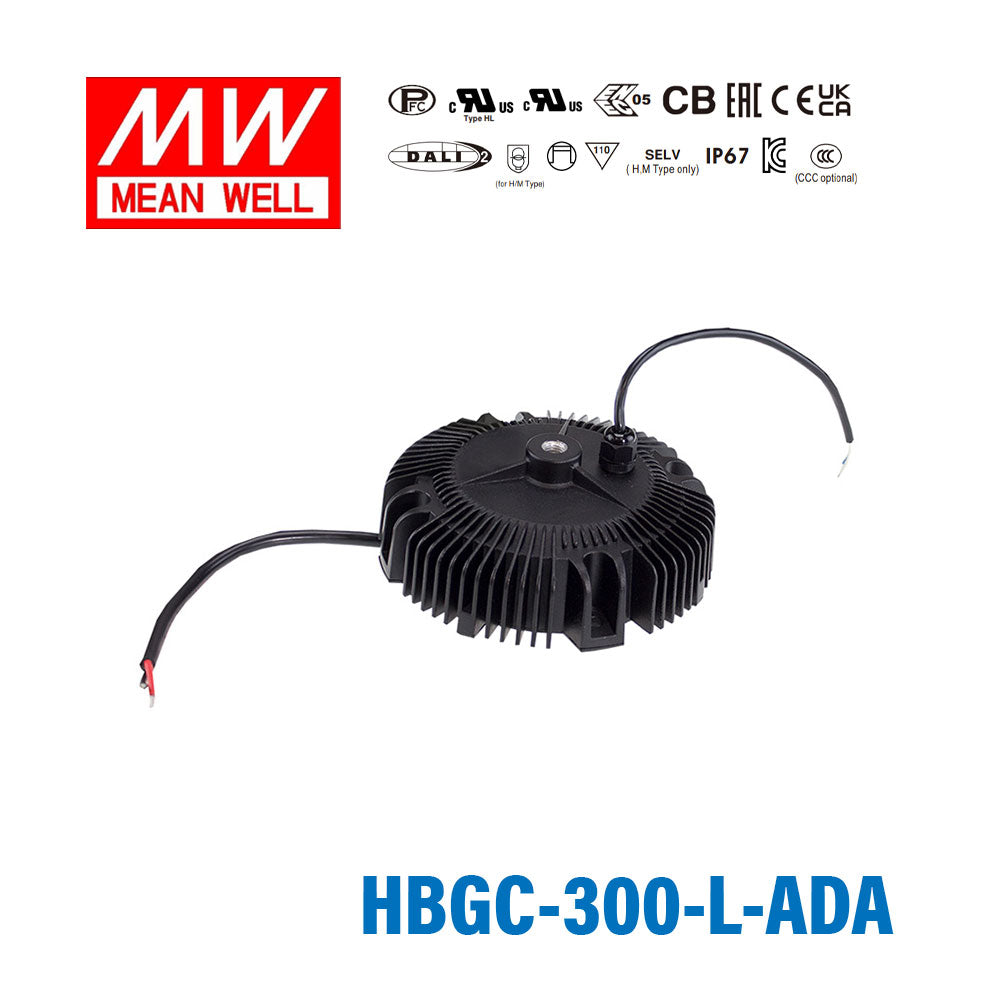

Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and ...
Please Login for Pricing
Description
Description
The HBGC-300-L is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage240 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length19.15 cm
-
Width19.15 cm
-
Height6.9 cm
-
Weight2.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBGC-300-L-ADA for high-forward-voltage LED downlights?
Yes, this constant-current driver is intended for higher-voltage LED loads that operate within its 116-232V constant-current range. It is a better fit for LED downlight arrays designed for constant current than for constant-voltage 12V or 24V lighting products. Total load still needs to stay within the driver's 301.6W rating.
Is the HBGC-300-L-ADA suitable for signage modules arranged in long series strings?
It can be suitable when the signage module string is a constant-current load and the combined forward voltage falls within 116-232V. The exact number of modules depends on each module's forward voltage, so there is no fixed LED count. This model is not intended for constant-voltage signage modules that expect a fixed DC voltage output.
Can this driver power a small LED array for an architectural lighting fixture?
Yes, if the LED array is a constant-current design and its operating voltage lands inside the 116-232V CC range. With a 301.6W rating, it is meant for substantial LED loads rather than low-power constant-voltage strips. The ADA version also supports DALI dimming for fixtures that use that control method.
How do I know whether my LED load is compatible with the HBGC-300-L-ADA?
Check that the fixture is designed for constant current, not constant voltage, and that its operating range fits within 116-232V under this driver's constant-current output. The exact number of LEDs depends on the forward voltage of each LED or module, so compatibility is based on total forward voltage rather than a fixed count. The load also needs to remain within 301.6W.
Can the HBGC-300-L-ADA be used outdoors or in harsh environments?
Yes. It has an IP67 waterproof rating and an operating temperature range of -40°C to +80°C, so it is built for demanding indoor or outdoor conditions. That makes it more suitable for exposed or enclosed lighting equipment than drivers intended only for dry indoor spaces.
