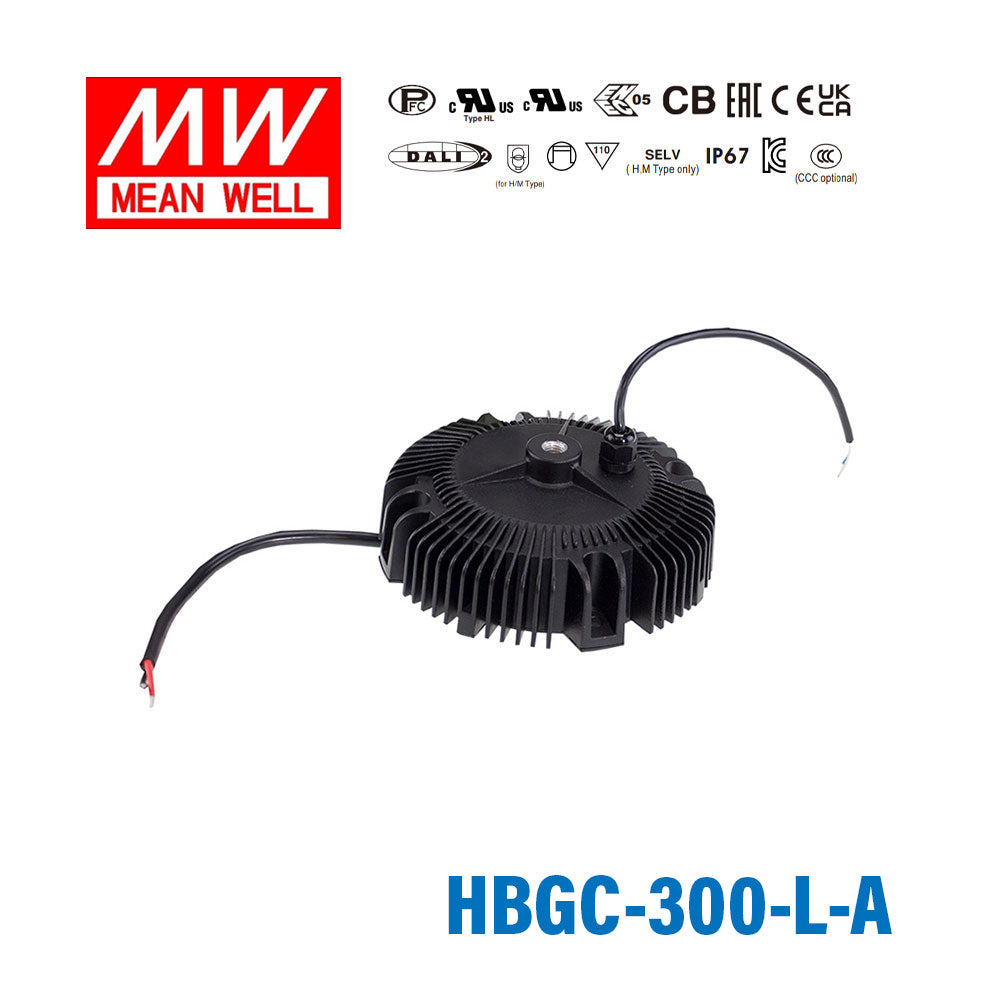

Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable
Please Login for Pricing
Description
Description
The HBGC-300-L is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage240 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length19.15 cm
-
Width19.15 cm
-
Height6.9 cm
-
Weight2.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBGC-300-L-A for high-forward-voltage LED downlight arrays?
Yes, if the downlight array is built for constant current operation and its total forward voltage falls within the 116-232V constant current range. This is a 301.6W constant current driver, not a constant voltage supply for low-voltage LED products.
Is the HBGC-300-L-A suitable for long-series signage LED modules?
It can be suitable for signage module assemblies that are designed as constant current loads and operate within the 116-232V CC range. It is not intended for standard constant voltage signage systems.
Can this model power a small LED array in a demanding environment?
Yes, when the array is a constant current load within 116-232V. The IP67 waterproof rating and -40°C to +80°C operating temperature range support use in harsh indoor or outdoor conditions.
What makes an LED load compatible with the HBGC-300-L-A?
The LED load must require constant current drive, and the total forward voltage must stay within the 116-232V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single LED count that applies to every load.
Is the HBGC-300-L-A a better choice for high-voltage LED strings than the H or M versions?
For higher forward voltage LED strings, the L version is the highest-voltage option in this 301.6W family because it operates across 116-232V CC. By comparison, M models are 58-116V CC at 2.8mA and H models are 29-58V CC at 5.6mA; within the L group, A is adjustable, AB adds 0-10Vdc, 10V PWM, and resistance dimming, and ADA adds DALI dimming.
Other HBGC-300 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI | 301.6W | 240V | 1.4A | IP67 | View |
| Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and Dimmable | 301.6W | 240V | 1.4A | IP67 | View |
| Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and DALI | 301.6W | 62V | 5.6A | IP67 | View |
| Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable | 301.6W | 62V | 5.6A | IP67 | View |
| Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable | 301.6W | 62V | 5.6A | IP67 | View |
