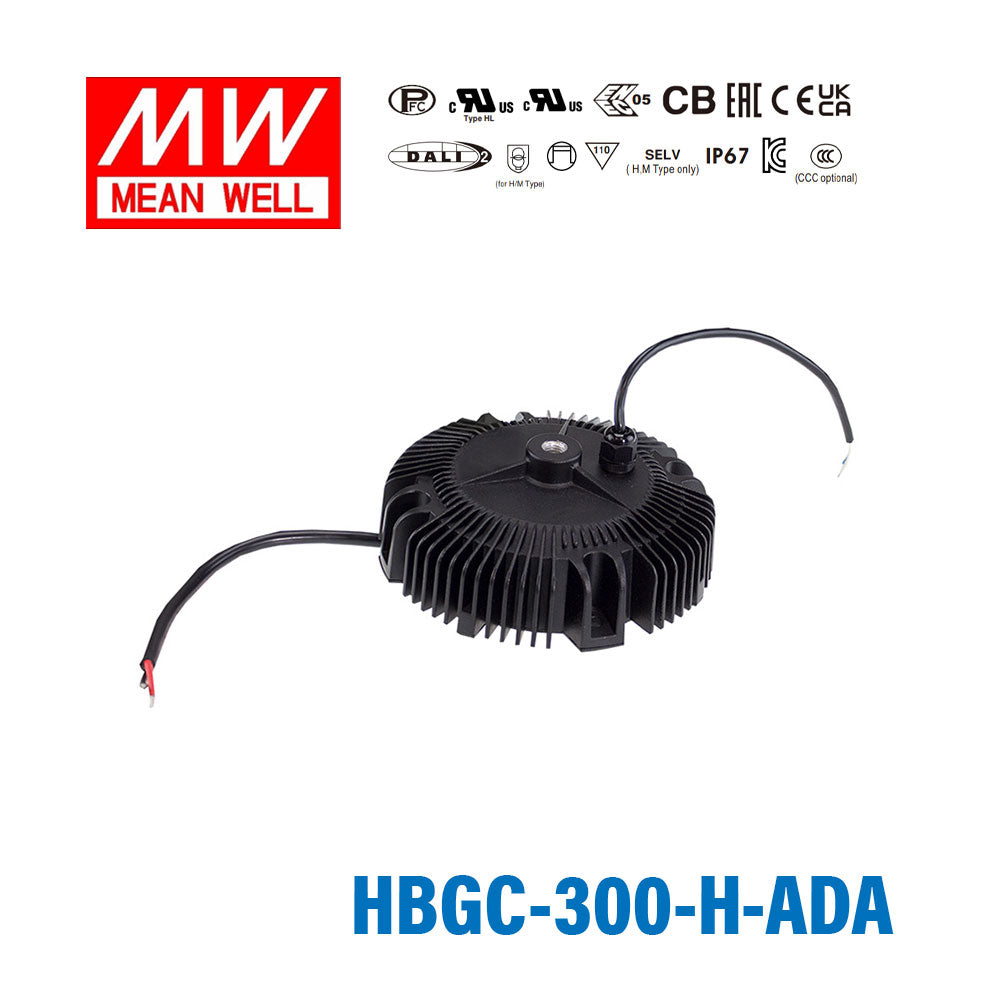

Mean Well HBGC-300-H-ADA Power Supply 300W 5600mA - Adjustable and ...
Please Login for Pricing
Description
Description
The HBGC-300-H is a 300W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage62 Volt
-
Rated Current5.6 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length19.15 cm
-
Width19.15 cm
-
Height6.9 cm
-
Weight2.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBGC-300-H-ADA for DALI-controlled LED downlights?
Yes, if the downlight system uses constant current LEDs and the total LED forward voltage is within the 29-58V constant current range. This model adds DALI dimming, so it is suited to applications where that control method is required.
Is this driver suitable for signage modules in a DALI lighting system?
It can be suitable when the signage module assembly is a constant current load within 29-58V and the project uses DALI control. It is not intended for constant voltage signage modules that expect a fixed 12V or 24V supply.
Can the HBGC-300-H-ADA run a small LED array in outdoor conditions?
Yes, for a constant current LED array that operates within the 29-58V CC range. The IP67 waterproof rating and -40°C to +80°C operating temperature range make it appropriate for exposed environments when the full fixture is designed for them.
How do I confirm LED compatibility for the HBGC-300-H-ADA?
The LED load must be designed for constant current operation, and its total forward voltage must remain within 29-58V. The number of LEDs depends on each LED's forward voltage, so compatibility is determined by the complete load voltage rather than a stated LED quantity.
How does the HBGC-300-H-ADA compare with the other HBGC-300 versions?
All listed HBGC-300 versions are 301.6W, but the electrical classes are different: H is 5.6mA with 29-58V CC, M is 2.8mA with 58-116V CC, and L is 1.4mA with 116-232V CC. Within the H versions, A is adjustable, AB adds 0-10Vdc, 10V PWM, and resistance dimming, and ADA adds DALI dimming.
Other HBGC-300 Models
8 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well HBGC-300-M-ADA Power Supply 300W 2800mA - Adjustable and DALI | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable | 301.6W | 120V | 2.8A | IP67 | View |
| Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and DALI | 301.6W | 240V | 1.4A | IP67 | View |
| Mean Well HBGC-300-L-AB Power Supply 300W 1400mA - Adjustable and Dimmable | 301.6W | 240V | 1.4A | IP67 | View |
| Mean Well HBGC-300-L-A Power Supply 300W 1400mA - Adjustable | 301.6W | 240V | 1.4A | IP67 | View |
| Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable | 301.6W | 62V | 5.6A | IP67 | View |
| Mean Well HBGC-300-H-A Power Supply 300W 5600mA - Adjustable | 301.6W | 62V | 5.6A | IP67 | View |
