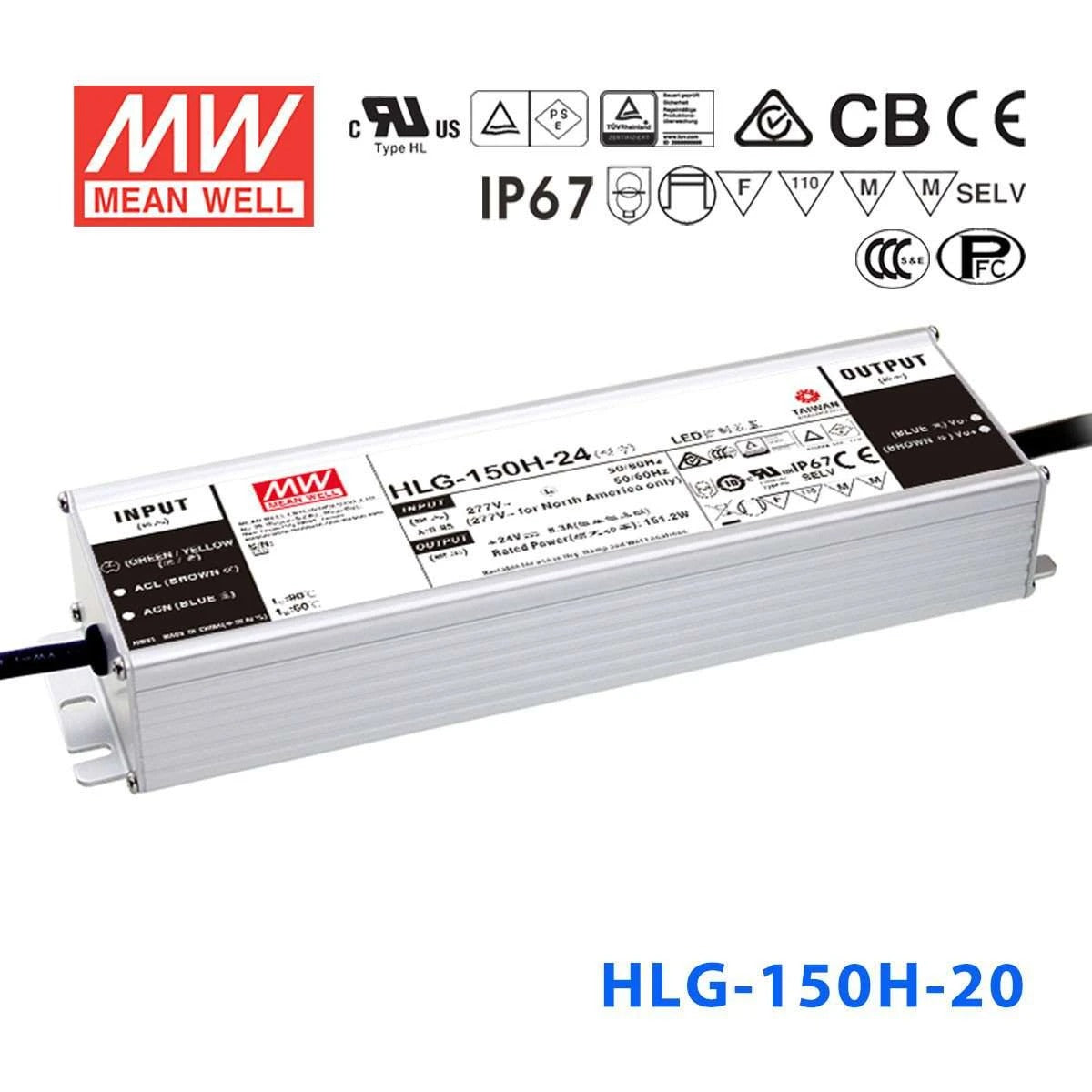

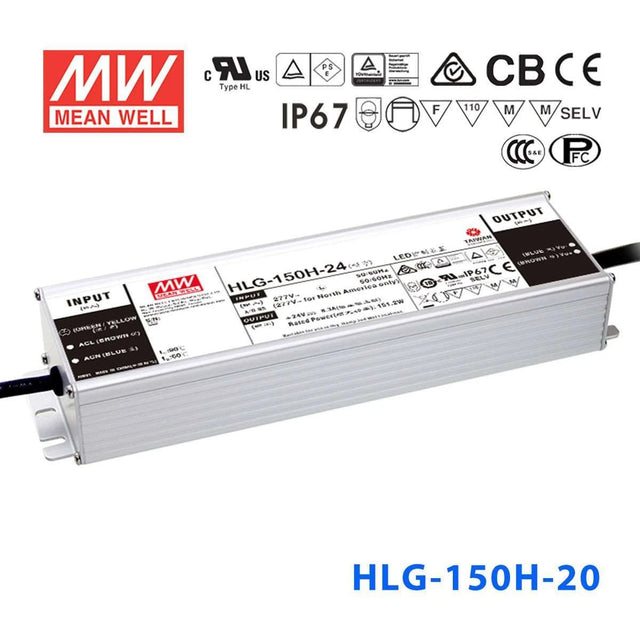

Mean Well HLG-150H-20 Power Supply 150W 20V | HLG Series

The HLG-150H is a 150W Mean Well AC-DC LED driver (input: 90~305VAC, output: 20V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 20V
✓ Rated output current: 7.5A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-150H-20 to power 20V LED strip lighting outdoors?

Yes. The HLG-150H-20 outputs 20V at up to 7.5A (150W) and carries an IP67 waterproof rating, so it can be installed in fully exposed outdoor locations including rain, snow, and high-humidity environments. Its aluminium casing and -40°C to +90°C operating range handle extreme weather conditions.

Is the HLG-150H-20 a good choice for powering 20V LED channel letter signs?

Yes. With 150W at 20V, the HLG-150H-20 can drive a substantial run of 20V LED sign modules. The IP67 waterproof rating makes it suitable for outdoor signage installations, and the wide 90-305VAC input accommodates varying mains voltages found in commercial signage deployments.

Can the HLG-150H-20 power 20V LED panel lights in a warehouse or industrial space?

Yes, as long as the panels operate at 20V and their combined wattage stays within 150W. The constant-current mode with a CC voltage range of 10-20V accommodates panels that may draw slightly less than 20V during startup. The robust aluminium housing suits industrial environments.

How many meters of 20V LED strip can the HLG-150H-20 power?

Divide 150W by your strip's rated power per meter. For example, a strip rated at 10W/m allows up to 15 meters (150W / 10W per meter = 15m). A strip rated at 14W/m allows about 10.7 meters. Always check your strip's rated power per meter and keep total load at or below 150W.

Can the HLG-150H-20 handle full rain exposure or temporary flooding?

Yes. Its IP67 rating means the enclosure is dust-tight and protected against temporary immersion in water up to 1 meter. It can be mounted outdoors without any additional weatherproof enclosure, even in locations subject to heavy rain or occasional standing water.

What are the differences between the HLG-150H-20, 20A, 20AB, and 20B models?

All four share the same 150W / 20V / 7.5A core specs. The base HLG-150H-20 has fixed output and IP67 waterproof rating. The -20A adds output voltage/current adjustment via built-in potentiometer (IP65). The -20AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -20B adds dimming input only and retains IP67.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-150H-48 Power Supply 150W 48V 3.2A	150W	48V	3.2A	IP67	View
Mean Well HLG-150H-48B Power Supply 150W 48V- Dimmable 3.2A	150W	48V	3.2A	IP67	View
Mean Well HLG-150H-24 Power Supply 150W 24V 6.3A	150W	24V	6.3A	IP67	View
Mean Well HLG-150H-15A Power Supply 150W 15V - Adjustable 10A	150W	15V	10A	IP65	View
Mean Well HLG-150H-12 Power Supply 150W 12V 12.5A	150W	12V	12.5A	IP67	View
Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable 3.2A	150W	48V	3.2A	IP65	View
Mean Well HLG-150H-24A Power Supply 150W 24V - Adjustable 6.3A	150W	24V	6.3A	IP65	View
Mean Well HLG-150H-12A Power Supply 150W 12V - Adjustable 12.5A	150W	12V	12.5A	IP65	View
Mean Well S-HLG-150H-24 Power Supply 150W 24V with AU/NZ plug 6.3A	150W	24V	6.3A	IP67	View
