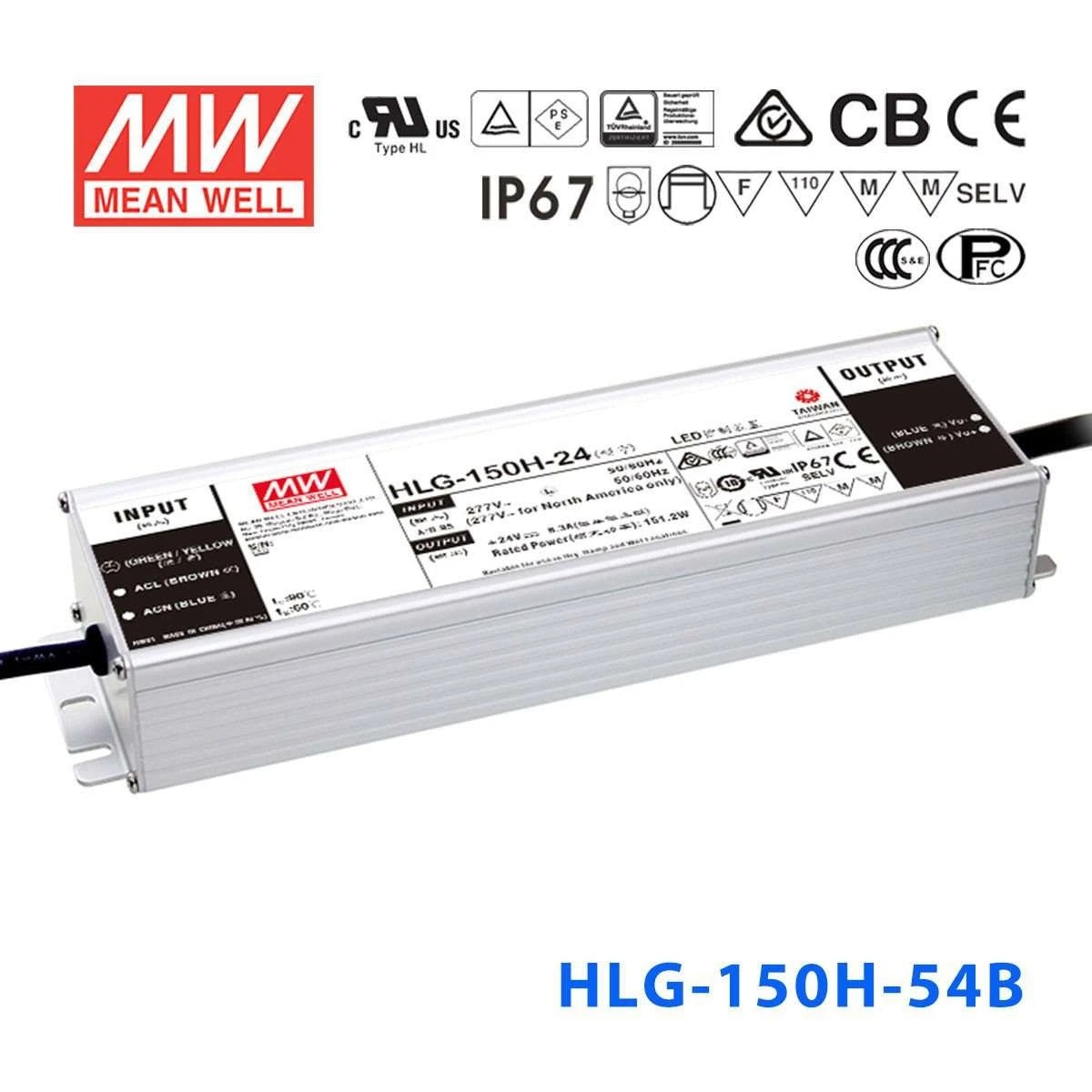

Mean Well HLG-150H-54B Power Supply - 150W 54V - Dimmable | Auckland, NZ Distributor

The HLG-150H is a 150W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ 3 years warranty

Frequently Asked Questions

Can I use the HLG-150H-54B with a 1-10V dimmer for outdoor 54V LED landscape lighting?

Yes. The HLG-150H-54B accepts 1-10V and PWM dimming signals, and its IP67 waterproof rating allows fully exposed outdoor installation. This makes it a strong choice for 54V landscape LED fixtures where dimming is needed and the driver will be exposed to rain, irrigation spray, or ground moisture.

Is the HLG-150H-54B suitable for dimmable 54V LED facade or architectural lighting?

Yes. With 150W at 54V, dimming input, and IP67 waterproof protection, the HLG-150H-54B is well suited for exterior facade illumination where brightness needs to change between daytime accent and nighttime showcase modes. The -40°C to +90°C operating range handles seasonal extremes.

Can the HLG-150H-54B power dimmable 54V LED flood lights in a wet location?

Yes. The IP67 rating protects against temporary submersion and continuous outdoor exposure, while the dimming input allows brightness control via a 1-10V or PWM signal. At 150W and 2.8A, it can drive 54V flood lights up to its rated capacity.

How does the HLG-150H-54B compare to the HLG-150H-54AB for outdoor dimmable projects?

Both offer 150W at 54V with dimming input. The key difference is the -54B is IP67 waterproof but has no output adjustment potentiometer, while the -54AB has both dimming and a potentiometer but is IP65 (water-resistant only). Choose the -54B for fully exposed outdoor installations and the -54AB when you need manual output trimming in a sheltered location.

Can the HLG-150H-54B withstand freezing winter temperatures outdoors?

Yes. It is rated for operation from -40°C to +90°C, so it will function reliably through harsh winters. The IP67 waterproof aluminium casing also resists condensation, ice formation, and snow contact without requiring additional enclosure protection.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-150H-48B Power Supply 150W 48V- Dimmable 3.2A	150W	48V	3.2A	IP67	View
Mean Well HLG-150H-48 Power Supply 150W 48V 3.2A	150W	48V	3.2A	IP67	View
Mean Well HLG-150H-24 Power Supply 150W 24V 6.3A	150W	24V	6.3A	IP67	View
Mean Well HLG-150H-15A Power Supply 150W 15V - Adjustable 10A	150W	15V	10A	IP65	View
Mean Well HLG-150H-12 Power Supply 150W 12V 12.5A	150W	12V	12.5A	IP67	View
Mean Well HLG-150H-48A Power Supply 150W 48V - Adjustable 3.2A	150W	48V	3.2A	IP65	View
Mean Well HLG-150H-12A Power Supply 150W 12V - Adjustable 12.5A	150W	12V	12.5A	IP65	View
Mean Well S-HLG-150H-24 Power Supply 150W 24V with AU/NZ plug 6.3A	150W	24V	6.3A	IP67	View
