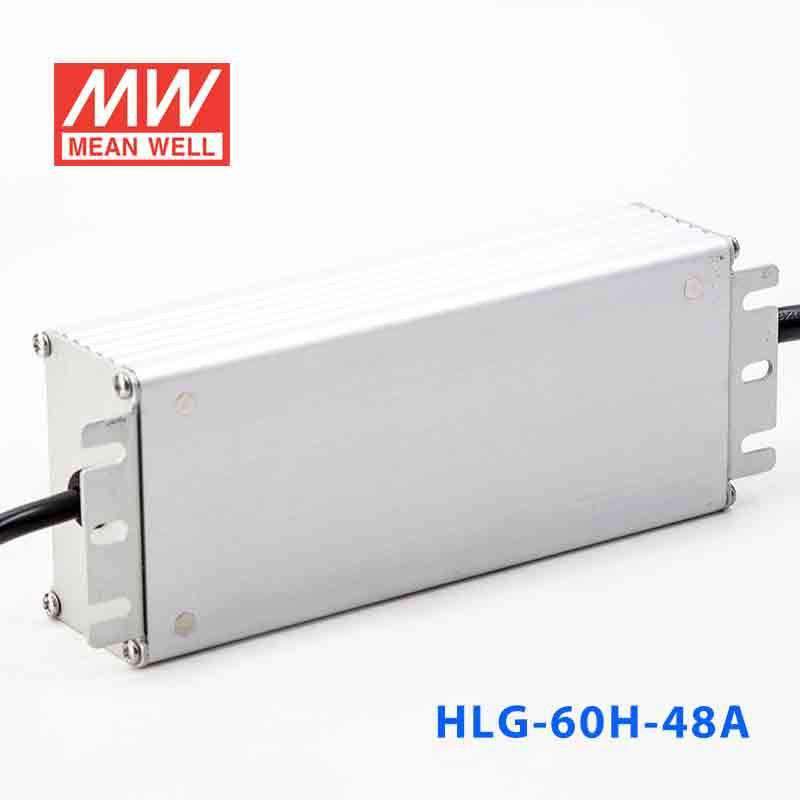

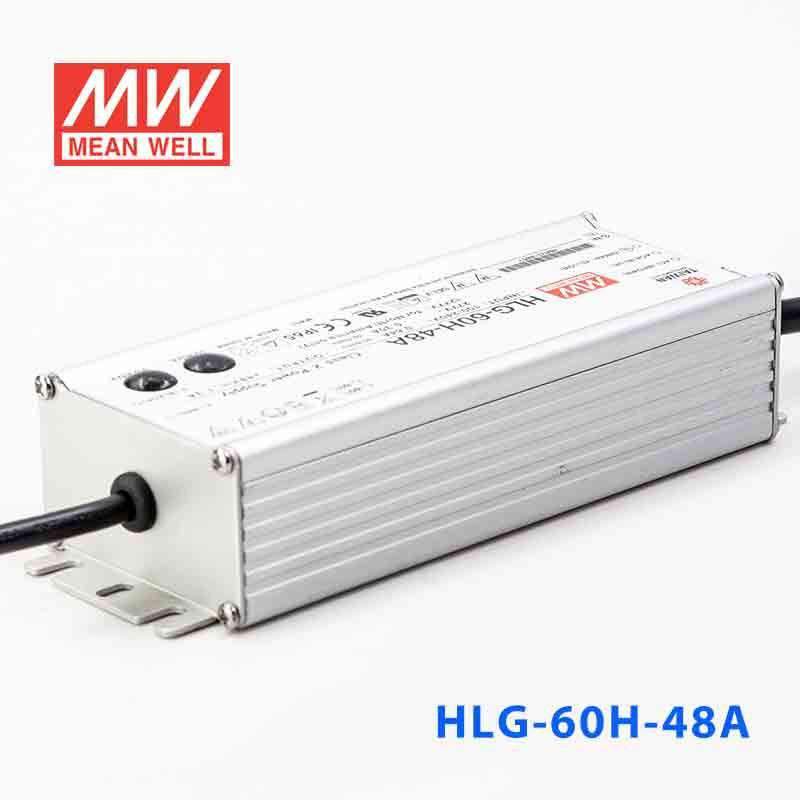

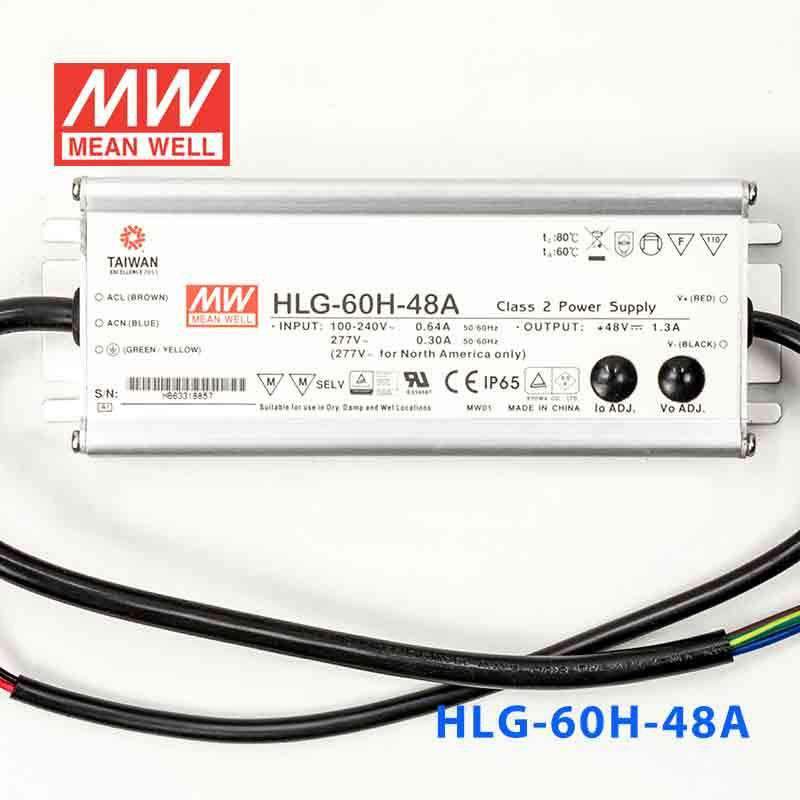

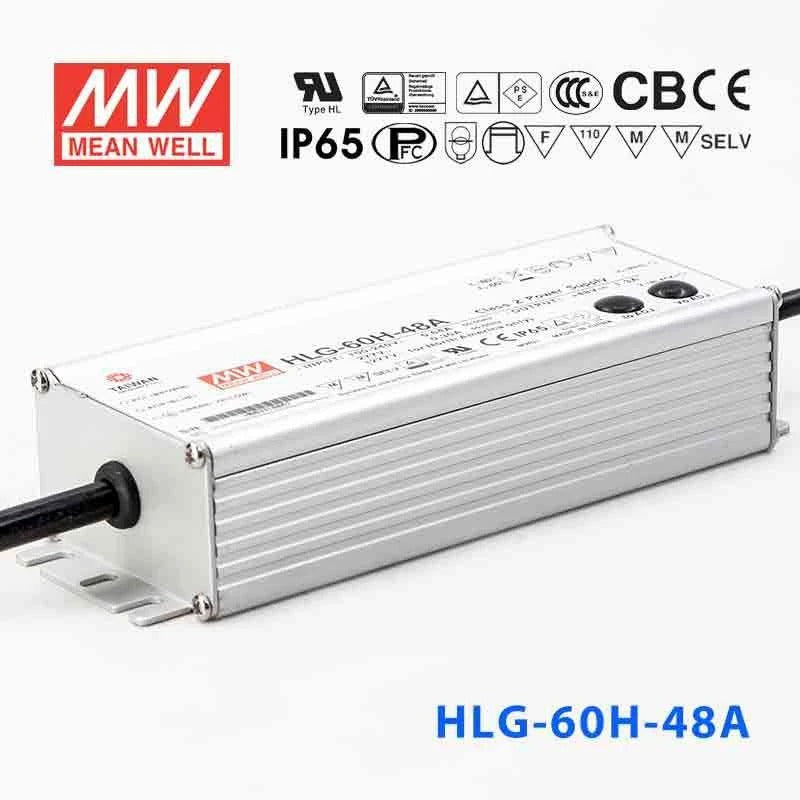

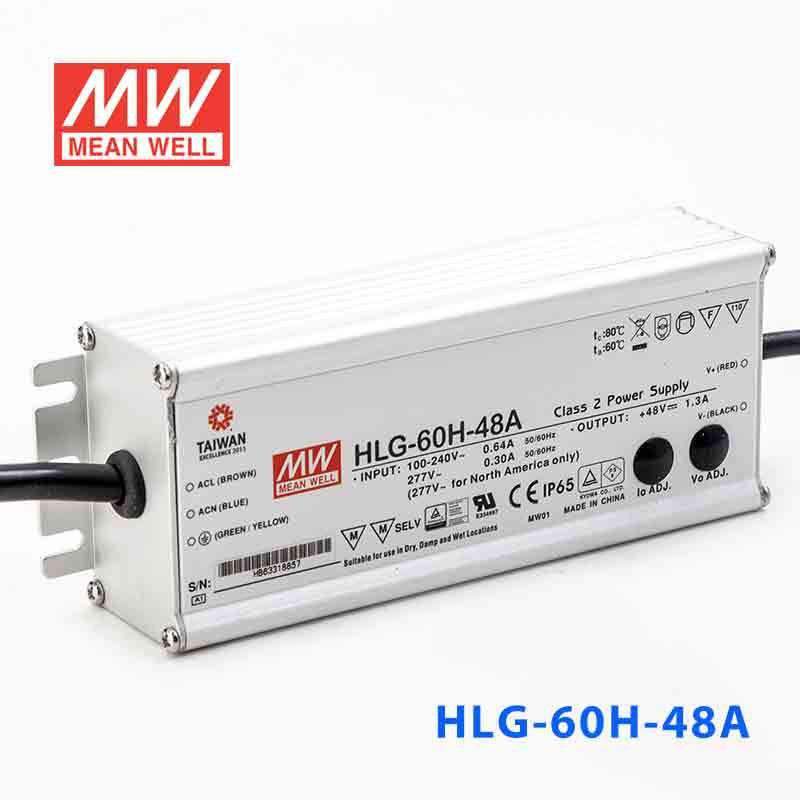

Mean Well HLG-60H-48A Power Supply 60W 48V - Adjustable 1.3A

premium quality7 years warrantyaluminium casinghigh efficiency

SKU HLG-60H-48A

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

HLG-60H-48A is the 48V output model of this series: rated current 1.3A, rated power 62.4W, typical efficiency 90.5%.

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-60H-48ASpecifications from the official datasheet (2025-02-04 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.4: 28.8 ~ 48V
RATED CURRENT: 1.3A
RATED POWER: 62.4W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 44 ~ 53V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 0.78 ~ 1.3A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 54 ~ 65V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.8: UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB-type), IP65 or IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF: 3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*61.5*36.8mm (L*W*H)
PACKING: 0.73Kg; 20pcs/15.6Kg/0.9CUFT

Test conditions and notes14

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build in using to comply with Type HL application.
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-60H-48A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-60H-48A DIMMING OPERATION — DIMMING OPERATION

HLG-60H-48A Illustration (page 5) — Illustration (page 5)

HLG-60H-48A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HLG-60H-48A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-60H-48A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-60H-48A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-60H-48A Dimensions (mm) — Dimensions (mm)

HLG-60H-48A H L G - 6 0 H series — H L G - 6 0 H series

HLG-60H-48A H L G - 6 0 H series (2) — H L G - 6 0 H series (2)

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (HLG-60H)(EN) PDF Download

TUV Certificate (HLG-60H)(EN) PDF Download

EMC Certificate (HLG-60H)(EN) PDF Download

PSE Certificate(HLG-60H)(EN) PDF Download

Test reports1

Test Report(HLG-60H-48)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-60H-48A to power 48V LED strip lighting with adjustable output?

Yes. The HLG-60H-48A outputs 48V at up to 1.3A (62.4W) and includes a built-in potentiometer for voltage and current adjustment. This lets you fine-tune the output to match your specific 48V LED strip or module requirements without an external controller.

Is the HLG-60H-48A suitable for a 48V LED backlight display in a retail setting?

Yes. The adjustable output allows you to dial in exact voltage and current levels for the backlight modules, ensuring optimal brightness and longevity. At 62.4W, it can handle typical small-to-medium backlight panels. Its compact 171 x 61.5 x 36.8 mm size fits easily behind display enclosures.

Can the HLG-60H-48A drive 48V LED grow light modules in a controlled environment?

Yes. The 62.4W output at 48V suits small-scale grow light setups, and the adjustable output lets you tune current delivery to match your LED module specifications. The wide input range of 90-305VAC works with virtually any mains supply globally.

How many meters of 48V LED strip can the HLG-60H-48A support?

Divide the 62.4W rating by your strip's rated power per meter. For example, a 48V strip rated at 8W/m gives you about 7.8 meters (62.4W / 8W per meter). A higher-power strip at 15W/m allows about 4.1 meters. Always check your strip's datasheet and keep total draw at or below 62.4W.

Can the HLG-60H-48A be mounted in a covered outdoor location like a carport?

Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, making it appropriate for covered outdoor areas such as carports, eaves, or equipment enclosures. For locations with direct rain exposure, the IP67-rated HLG-60H-48 or HLG-60H-48B would be more appropriate.
