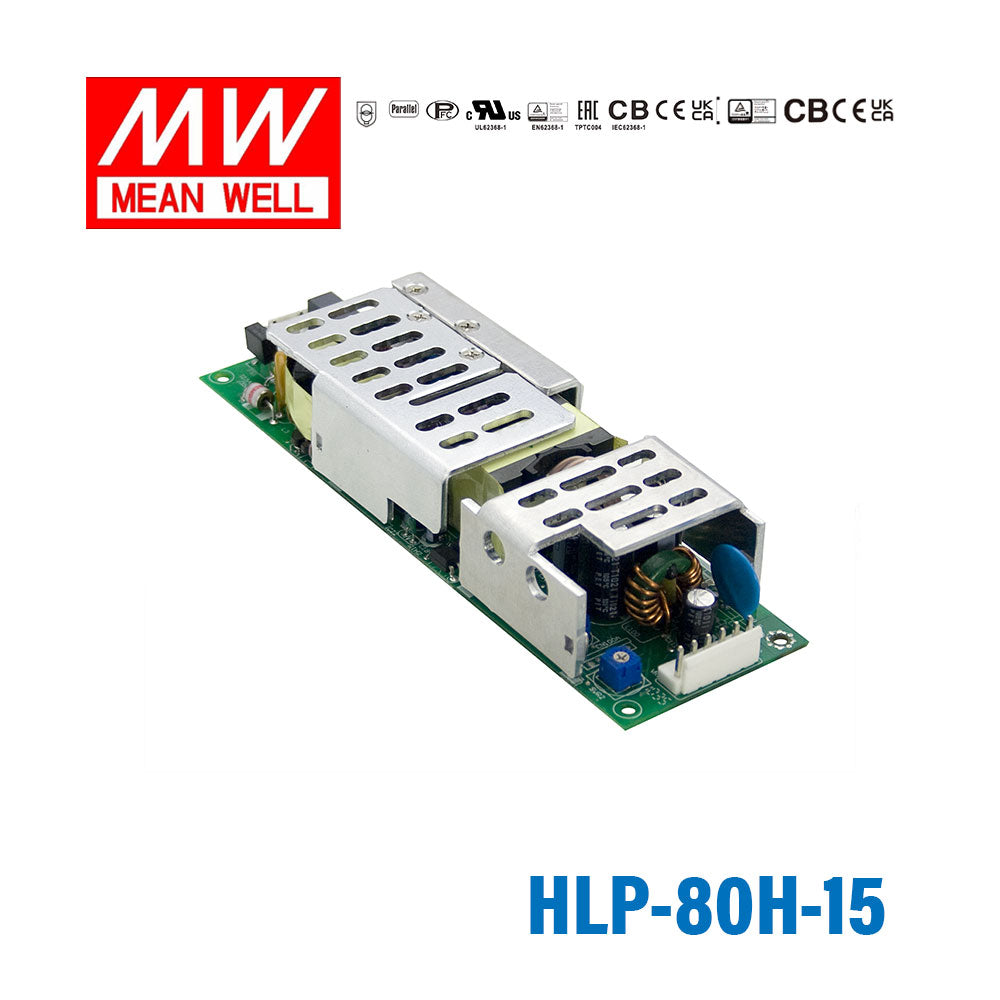

Mean Well HLP-80H-15 PCB Power Supply 75W 15V 5A

The HLP-80H-15 is an open frame AC/DC power supply intended for built-in LED lighting systems and other OEM applications that need a regulated 15V DC output. Its Class 2 design and compact PCB-style form factor make it better suited to embedded commercial or industrial equipment than general consumer use.

This model is rated for 75W total output power and provides a 15V DC output. Its rated output current is 5A, which makes it appropriate for applications that need a moderate-power 15V supply from an AC input source.

The HLP-80H-15 accepts a universal AC input range of 90 to 305VAC, and it also supports 127 to 431VDC input. That wide range helps buyers standardize on one model across regions or projects with varying mains conditions.

Yes. This model is specified for operation from -40C to +70C, subject to the manufacturer's derating guidance at higher temperatures. It is also described as suitable for dry and damp locations, which supports use in a broad range of indoor commercial environments.

The HLP-80H-15 includes short circuit, over current, over voltage, and over temperature protection. According to the product data, short circuit protection uses hiccup mode with automatic recovery, while over current protection uses constant current limiting and also recovers automatically after the fault is removed.

Compared with a simpler power supply, the HLP-80H-15 offers a wide 90-305VAC input range, built-in active PFC, Class 2 status, and protection coverage for multiple fault conditions. It is also purpose-positioned for built-in LED lighting applications rather than only general DC conversion.
