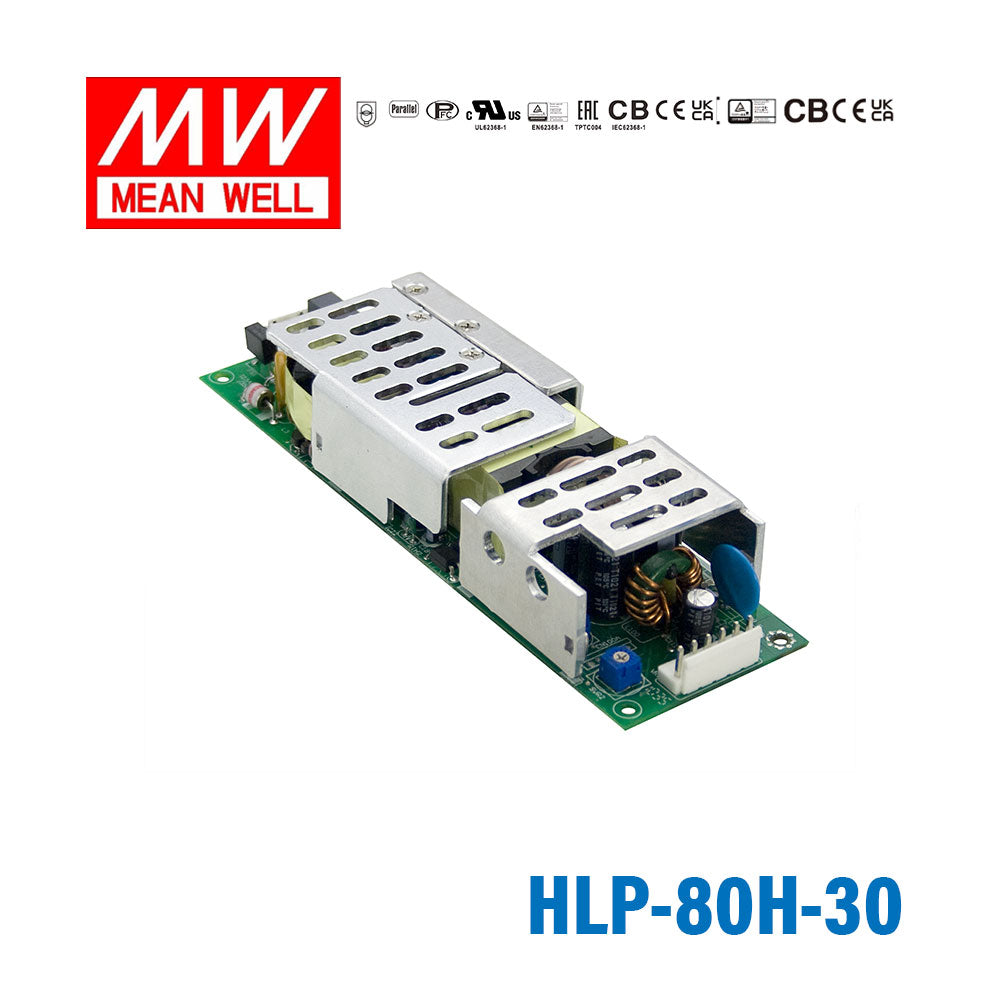

Mean Well HLP-80H-30 PCB Power Supply 80W 30V 2.7A

The HLP-80H-30 is an 80W open-frame AC/DC power supply with a 30V output and 2.7A rated current. Its input range is 90-305VAC or 127-431VDC, which supports universal AC input use.

This model is described as suitable for built-in LED lighting systems. Its 30V output, Class 2 rating, and open-frame PCB format make it relevant for OEM and commercial equipment designs that need a compact internal power supply rather than a finished external adapter.

Yes. Mean Well lists this model as suitable for dry and damp locations. It is also rated for operation from -40°C to +70°C, subject to the manufacturer's derating guidance.

This model includes short circuit, over current, over voltage, and over temperature protection. The description also notes automatic recovery after some fault conditions are removed, while over-voltage and over-temperature protection require re-powering to recover.

The HLP-80H-30 combines universal 90-305VAC input, active PFC, Class 2 classification, and a specification aimed at LED lighting use. The product description also notes adjustable constant current level capability, which makes it more application-specific than a basic general-purpose internal PSU.

The listed dimensions are 167 x 53 x 29.5 mm, and the weight is 0.27 kg. For OEMs and panel builders, that helps determine whether the unit will fit inside compact housings or lighting assemblies where internal clearance is limited.
