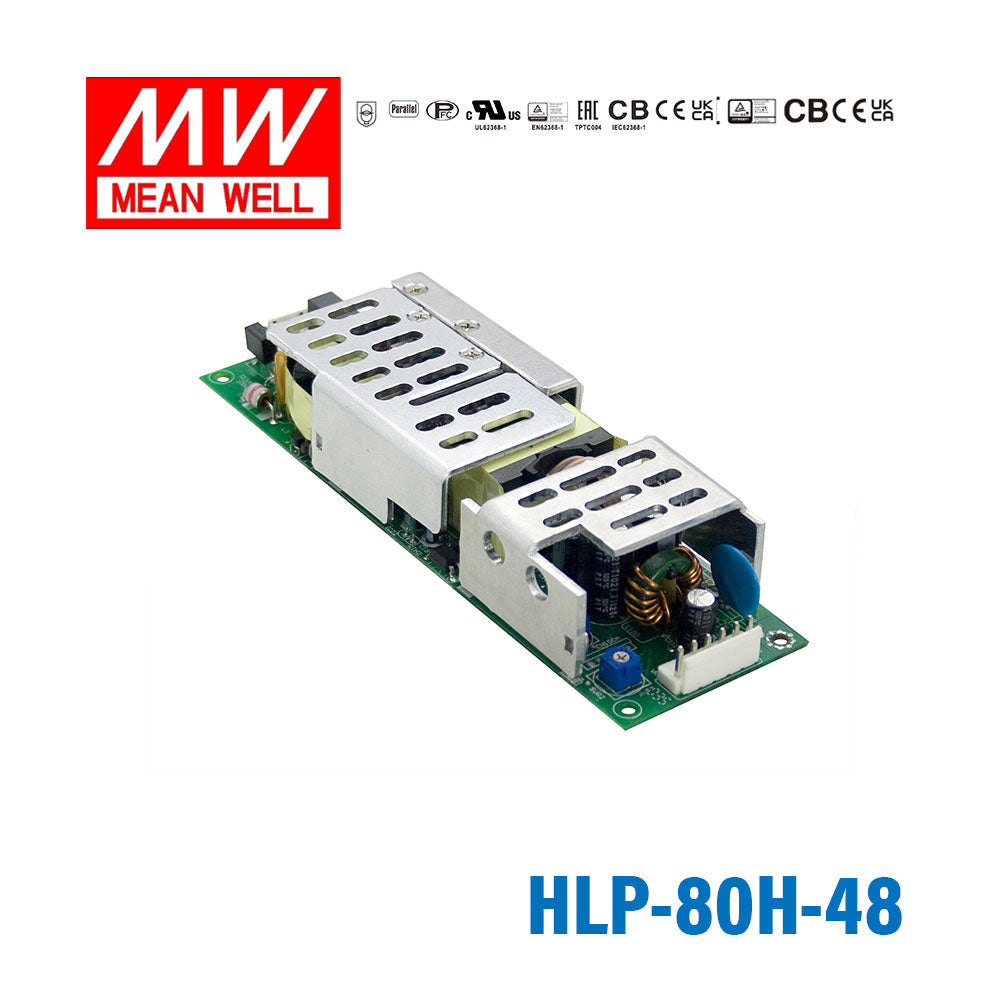

Mean Well HLP-80H-48 PCB Power Supply 80W 48V 1.7A
Please Login for Pricing
Description
Description
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
Specifications
Specifications
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating81.6 Watt
-
Output Voltage48 Volt
-
Rated Current1.7 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length16.7 cm
-
Width5.3 cm
-
Height2.95 cm
-
Weight0.27 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well HLP-80H-48?
The HLP-80H-48 is an 80W class open frame AC-DC power supply with a 48V DC output. Its rated output current is 1.7A, making it suitable for applications that require regulated 48V power within that power range.
What kinds of applications is the HLP-80H-48 designed for?
This model is intended for built-in LED lighting systems and other equipment that needs a compact 48V open frame power supply. Its Class 2 rating, free air convection cooling, and open frame form factor make it relevant for enclosed OEM and commercial lighting designs.
What input voltage range does the HLP-80H-48 support?
The HLP-80H-48 accepts a universal AC input range of 90-305VAC and also supports 127-431VDC input. That wide range helps it fit projects that need flexibility across different mains power environments.
Can the HLP-80H-48 be used in demanding temperature conditions?
Yes. This power supply is rated for operation from -40°C to +70°C, with derating at higher temperatures as noted in the product data. It is also described as suitable for dry and damp locations.
What protection features are included in the HLP-80H-48?
The HLP-80H-48 includes short circuit, over current, over voltage, and over temperature protection. Depending on the fault type, it uses automatic recovery or requires re-powering after the fault condition is removed.
What makes the HLP-80H-48 different from a basic fixed-output power supply?
Compared with simpler fixed-output units, this model includes active power factor correction, free air convection cooling, and a 100% full load burn-in test. The product listing also identifies it as a Class 2 power unit intended for LED lighting applications, which can matter for commercial product selection.
Other HLP-80H Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well HLP-80H-54 PCB Power Supply 80W 54V 1.5A | 81W | 54V | 1.5A | View |
| Mean Well HLP-80H-42 PCB Power Supply 80W 42V 1.95A | 81.9W | 48V | 1.95A | View |
| Mean Well HLP-80H-36 PCB Power Supply 80W 36V 2.3A | 82.8W | 36V | 2.3A | View |
| Mean Well HLP-80H-30 PCB Power Supply 80W 30V 2.7A | 81W | 30V | 2.7A | View |
| Mean Well HLP-80H-24 PCB Power Supply 80W 24V 3.4A | 81.6W | 24V | 3.4A | View |
| Mean Well HLP-80H-20 PCB Power Supply 80W 20V 4A | 80W | 20V | 4A | View |
| Mean Well HLP-80H-15 PCB Power Supply 75W 15V 5A | 75W | 15V | 5A | View |
| Mean Well HLP-80H-12 PCB Power Supply 60W 12V 5A | 60W | 12V | 5A | View |
