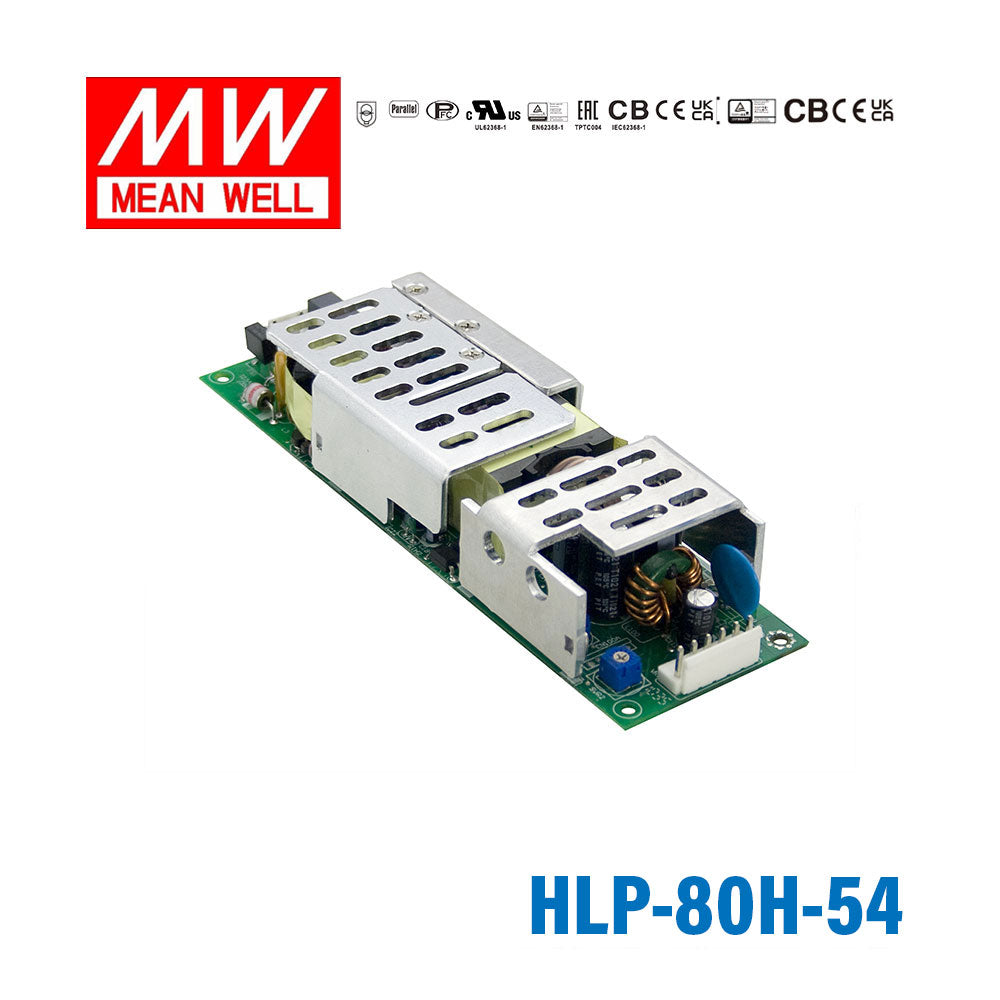

Mean Well HLP-80H-54 PCB Power Supply 80W 54V 1.5A

The HLP-80H-54 is an 80W open-frame AC/DC power supply intended for built-in LED lighting systems. It provides a 54V DC output and is suited to OEM and industrial applications where a compact PCB-style power solution is needed.

This model is rated for 54V DC output at 1.5A, with a power rating of about 80W. That makes it appropriate for applications that need a regulated 54V constant-voltage power source within that output range.

The HLP-80H-54 accepts a universal AC input range of 90-305VAC, and it also supports 127-431VDC input. This wide range helps it fit equipment intended for varied regional power conditions.

Yes. The specified operating temperature range is -40°C to +70°C, with derating referenced by the manufacturer at higher temperatures. It is also listed as suitable for dry and damp locations.

This model includes short circuit, over current, over voltage, and over temperature protection. The over-current function uses constant current limiting with automatic recovery after the fault is removed, while some other protection events require re-powering to recover.

The HLP-80H-54 is an open-frame PCB power supply rather than an enclosed unit. That format is often chosen for integration inside finished equipment where space, weight, and built-in system design are key considerations.

The manufacturer lists approvals including UL8750, CSA C22.2 No. 250.0-08 with noted exceptions, and EN61347-related standards. The unit also features active PFC, Class 2 designation, 100% full-load burn-in testing, and a 3-year warranty.
