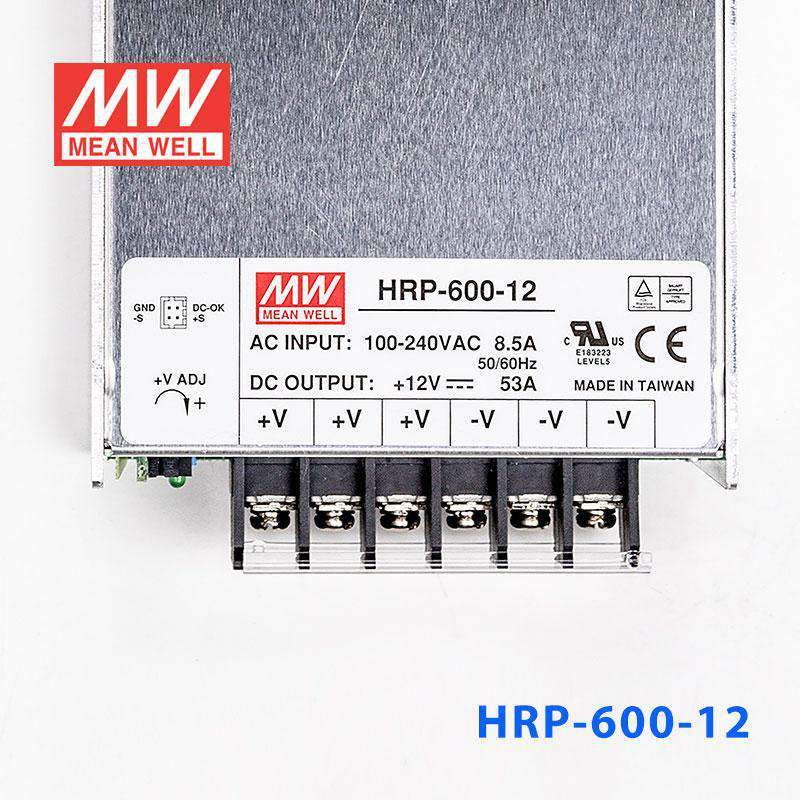

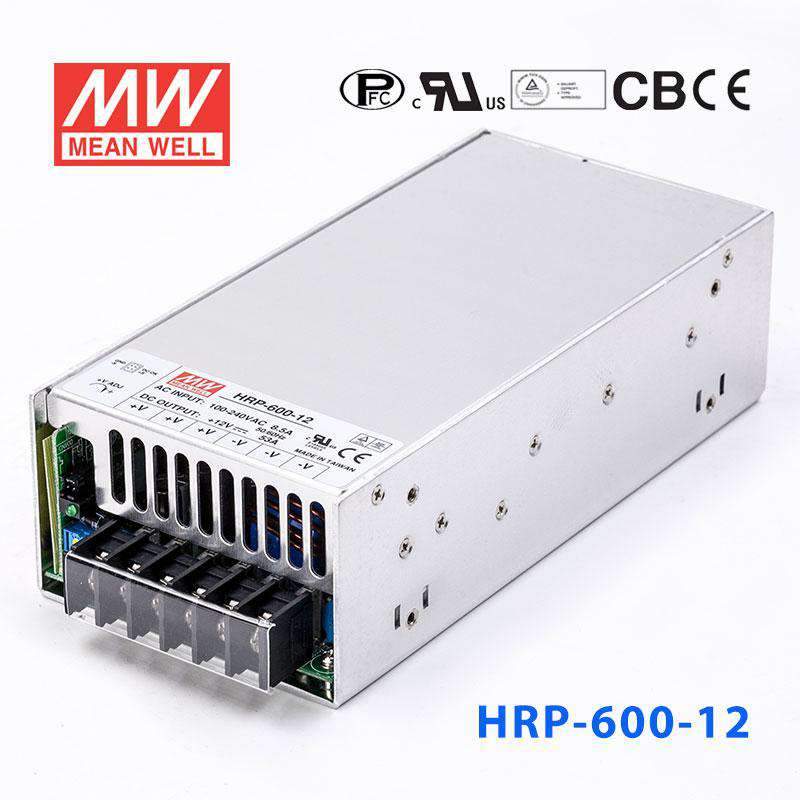

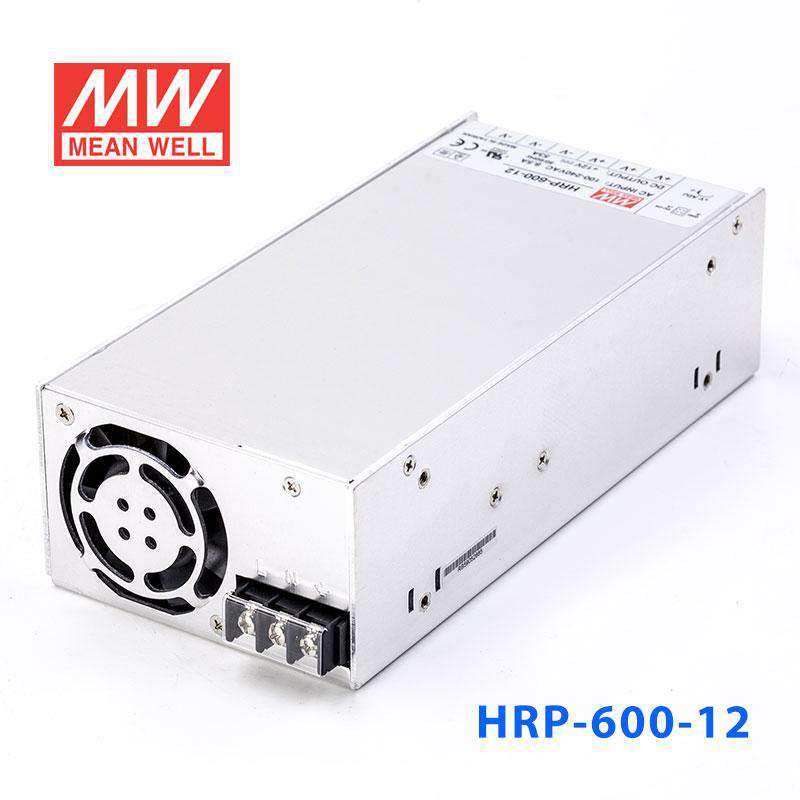

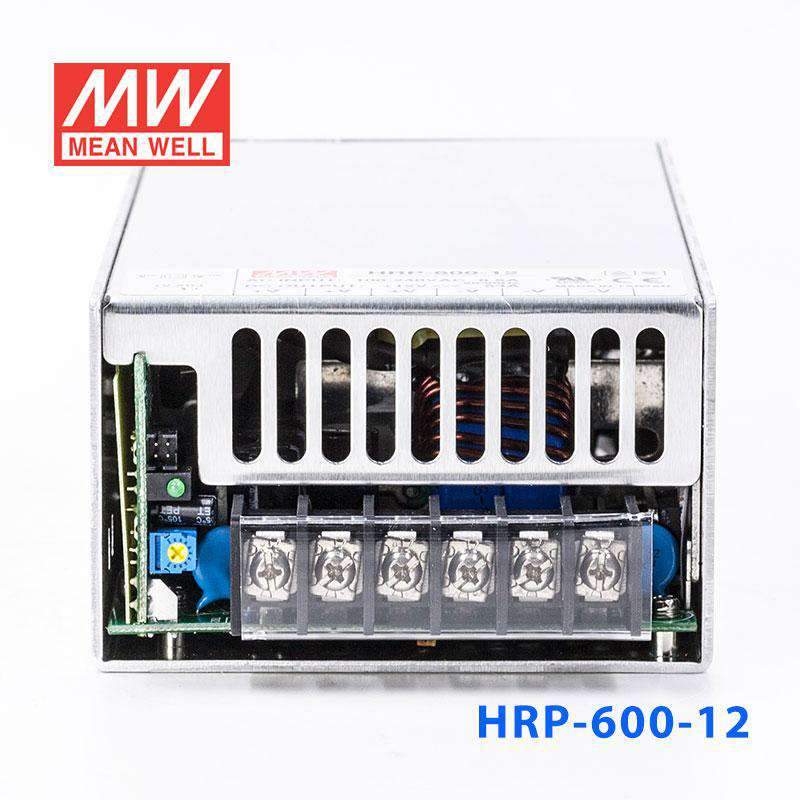

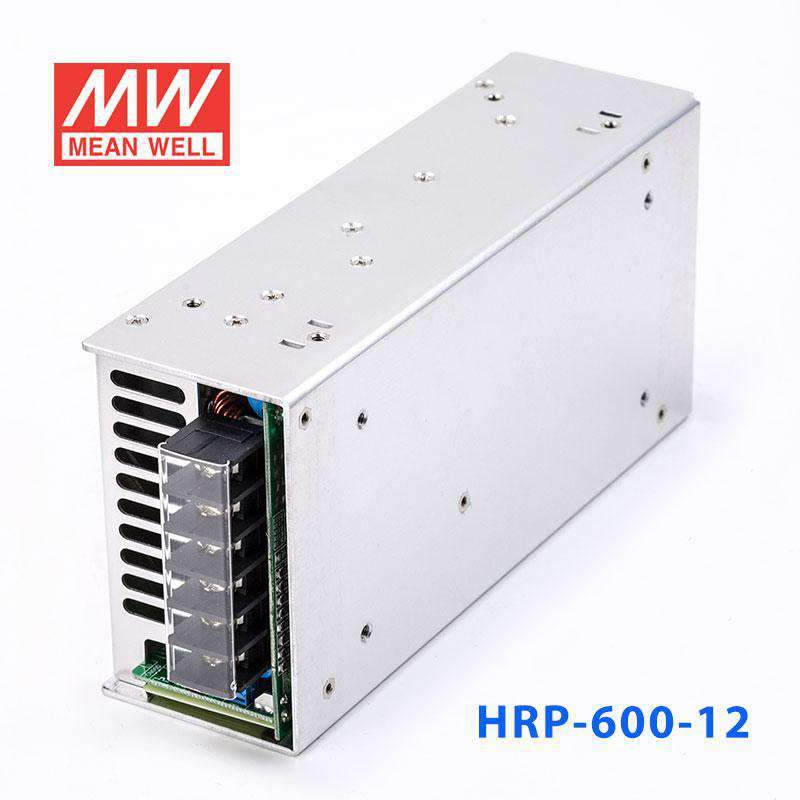

Mean Well HRP-600-12 Power Supply 636W 12V 53A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W

SKU HRP-600-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

HRP-600-12

HRP-75-12 75W 12V Low stock

HRP-100-12 100W 12V Low stock

HRP-150-12 150W 12V Low stock

HRP-200-12 200W 12V Backorder

HRP-300-12 300W 12V Backorder

HRP-450-12 450W 12V Backorder

HRP-600-12 600W 12V Backorder

Product variants

Available to order

Overview

HRP-600-12 is the 12V output model of this series: rated current 53A, rated power 636W, typical efficiency 88%.

Features

Universal AC input / Full range
Built-in active PFC function, PF>0.93
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in constant current limiting circuit
Built-in cooling fan ON-OFF control
Built-in DC OK signal
Built-in remote sense function
All using 105℃ long life electrolytic capacitors
5 years warranty

Specifications

HRP-600-12Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 53A
CURRENT RANGE: 0 ~ 53A
RATED POWER: 636W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10.2 ~ 13.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 50ms/230VAC 3600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ.): 35A/115VAC 70A/230VAC
LEAKAGE CURRENT: <1.2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.4 ~ 16.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL: PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.): Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/ EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 1333.6K hrs min. Telcordia SR-332 (Bellcore) ; 140.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 218*105*63.5mm (L*W*H)
PACKING: 1.5Kg;8pcs/13Kg/1.34CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-600-12 Mechanical Specification — Mechanical Specification

HRP-600-12 Block Diagram — Block Diagram

HRP-600-12 Derating Curve — Derating Curve

Downloads

Certificates4

EMC Certificate (HRP-600)(EN) PDF Download

UL Certificate(HRP-600)(EN) PDF Download

CB Certificate (HRP-600)(EN) PDF Download

TUV Certificate(HRP-600)(EN) PDF Download

Test reports1

Test Report(HRP-600-12)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HRP-600-12 for a large 12V industrial control or automation system?

Yes, this is a constant-voltage 12V supply rated for 636W and 53A. It is suited to large 12V systems whose total demand stays within the 53A maximum output.

Is the HRP-600-12 suitable for centralized 12V power distribution with many loads?

It can be used where multiple 12V DC loads are fed from one supply and the total demand remains within 636W. With 53A available at 12V, it can serve a sizeable centralized 12V bus.

Would the HRP-600-12 work in facilities with different AC mains voltages?

Yes, it accepts 85-264VAC input and outputs regulated 12V DC. That wide input range can be useful for industrial deployments across different AC supply conditions.

Is the HRP-600-12 appropriate for outdoor use or extreme temperatures?

The operating temperature range is -40°C to +70°C, so the unit is specified for a wide thermal range. No IP rating is included in the provided specs, so outdoor suitability depends on the cabinet or enclosure used with the power supply.
