Mean Well

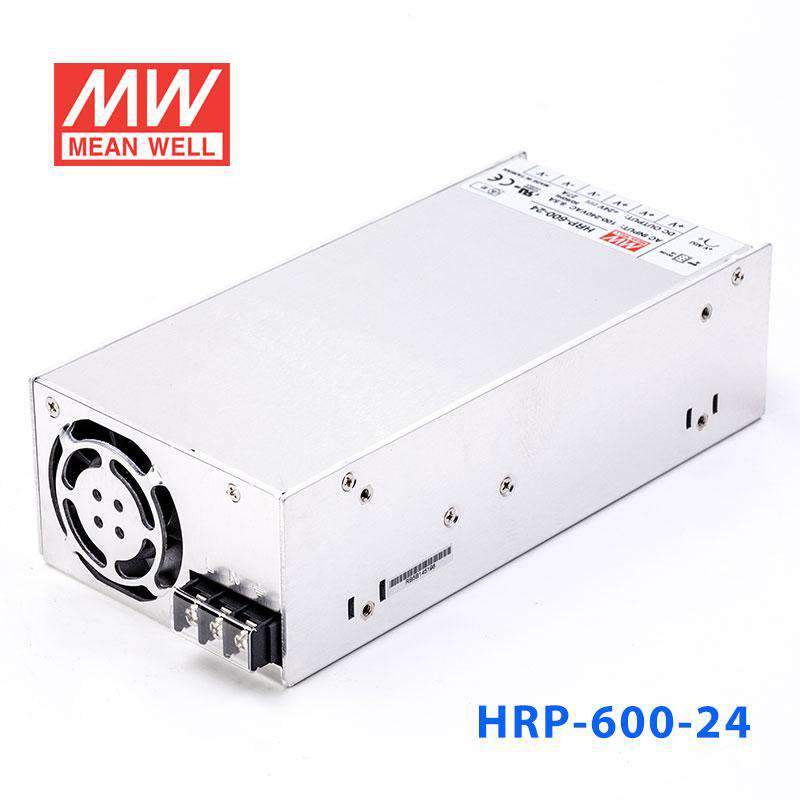

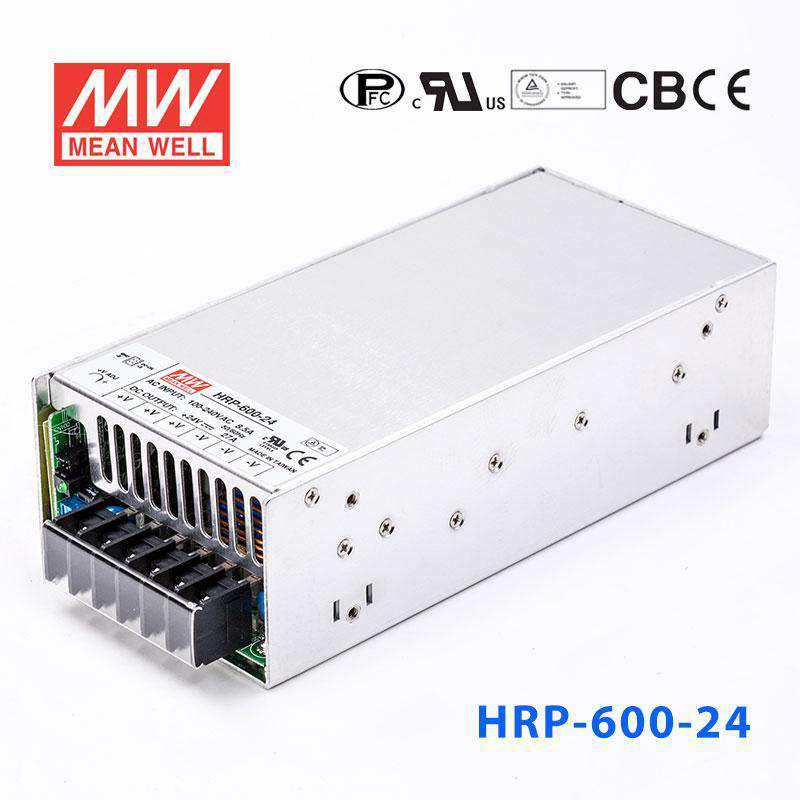

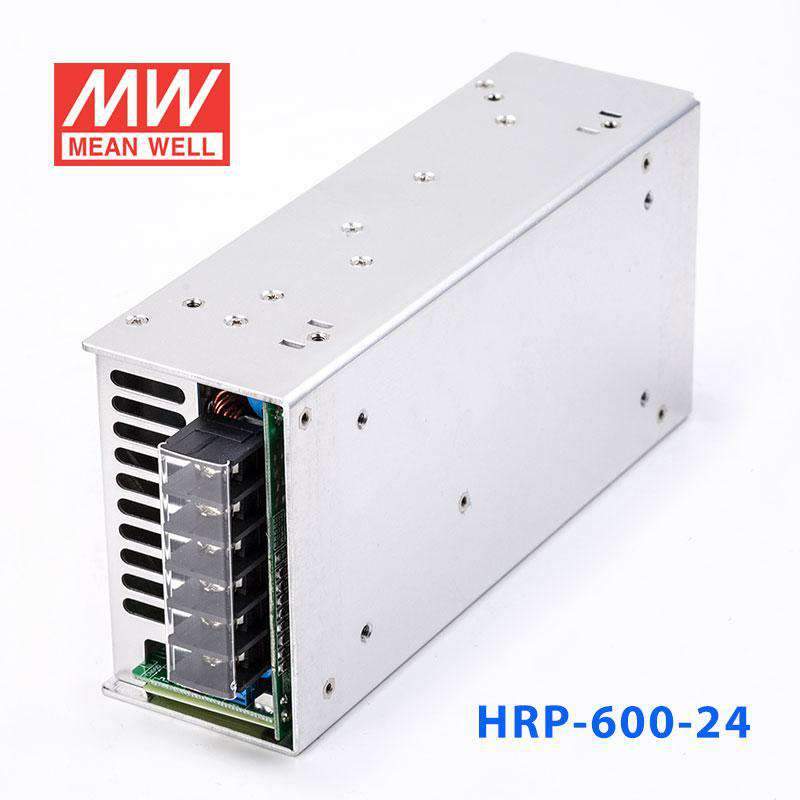

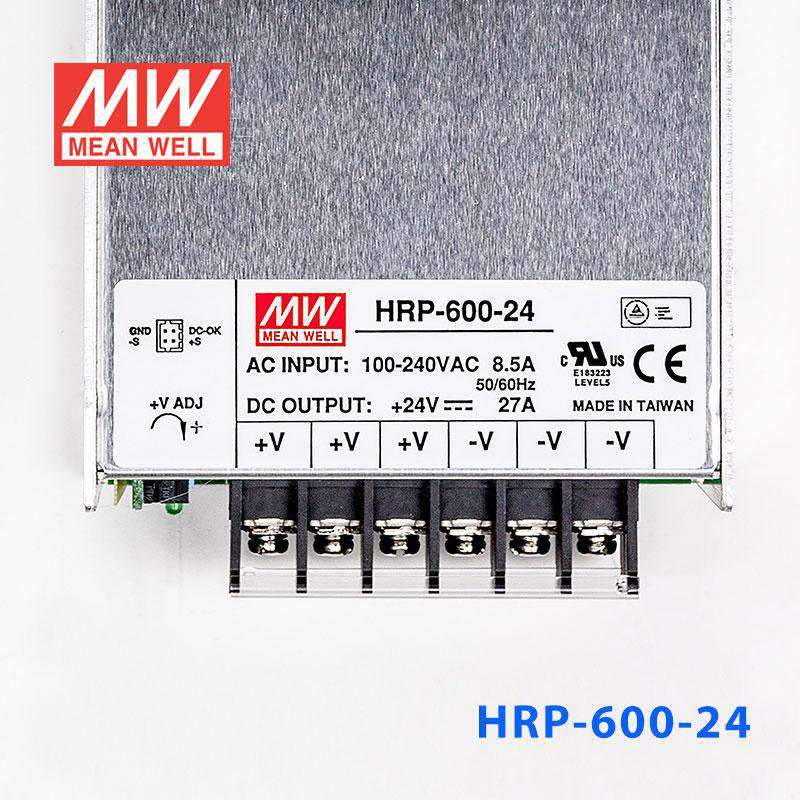

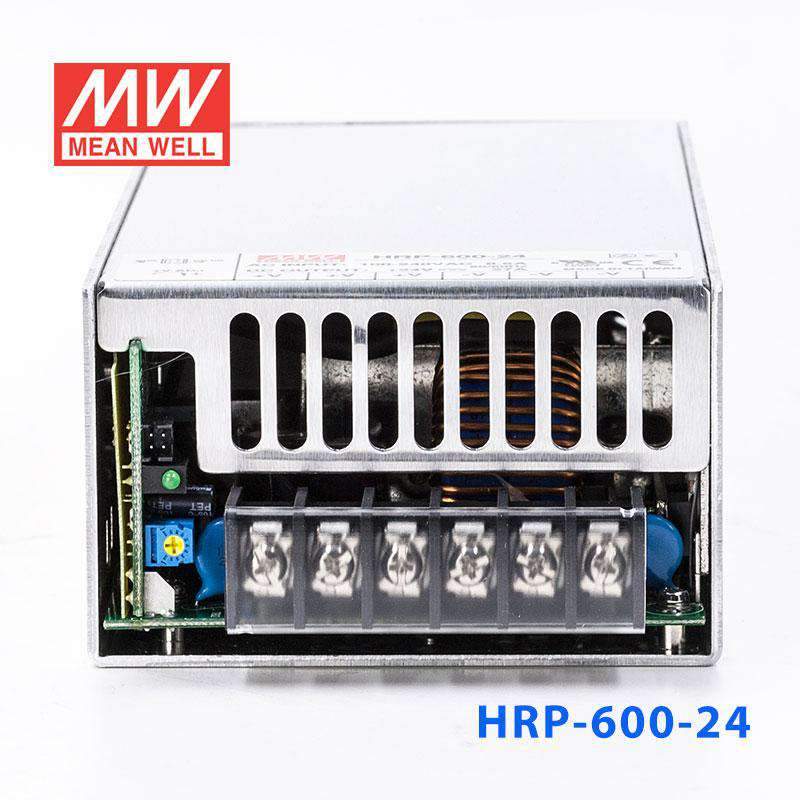

Mean Well HRP-600-24 Power Supply 648W 24V 27A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-600-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-600-24
In stock
|

Overview

HRP-600-24 is the 24V output model of this series: rated current 27A, rated power 648W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.93
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote sense function
  • All using 105℃ long life electrolytic capacitors
  • 5 years warranty

Specifications

HRP-600-24Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
27A
CURRENT RANGE
0 ~ 27A
RATED POWER
648W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
21.6 ~ 28.8V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1800ms, 50ms/230VAC 3600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
88%
AC CURRENT (Typ.)
7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
30 ~ 34.8V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.)
Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/ EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1333.6K hrs min. Telcordia SR-332 (Bellcore) ; 140.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*63.5mm (L*W*H)
PACKING
1.5Kg;8pcs/13Kg/1.34CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-600-24 Mechanical Specification
Mechanical Specification
HRP-600-24 Block Diagram
Block Diagram
HRP-600-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-600-24 for a 24V PLC or industrial automation panel?

Yes, this model is a constant voltage 24V supply rated for 27A and 648W, which aligns well with larger 24V automation loads. Its 85-264VAC input also supports use in facilities with different AC input standards.

Is the HRP-600-24 a good fit for centralized 24V control and I/O power?

It can be used where several 24V devices are powered from one supply, provided the combined load remains within 27A and 648W. That makes it relevant for control cabinets and industrial DC distribution built around a 24V bus.

Can this 24V model power larger embedded or industrial computing equipment that expects 24V DC input?

It is suited to equipment designed for a fixed 24V DC source because it operates in constant voltage mode. With 648W and 27A available, it can supply substantial 24V computing or industrial loads.

What are the main differences between the HRP-600-24 and the other HRP-600 versions?

The listed HRP-600 outputs are 3.3V 120A 396W, 5V 120A 600W, 7.5V 80A 600W, 12V 53A 636W, 15V 43A 645W, 24V 27A 648W, 36V 17.5A 630W, and 48V 13A 624W. The HRP-600-24 is the 24V version in that group and shares the same 218.0 × 105.0 × 63.5 mm size and 1.5 kg weight.

Can the HRP-600-24 be used in cold or hot industrial environments?

Its specified operating range is -40°C to +70°C, which covers demanding indoor industrial temperature conditions. No IP rating is provided in the specs, so it should not be treated as an exposed outdoor power supply without an enclosure.
