Mean Well

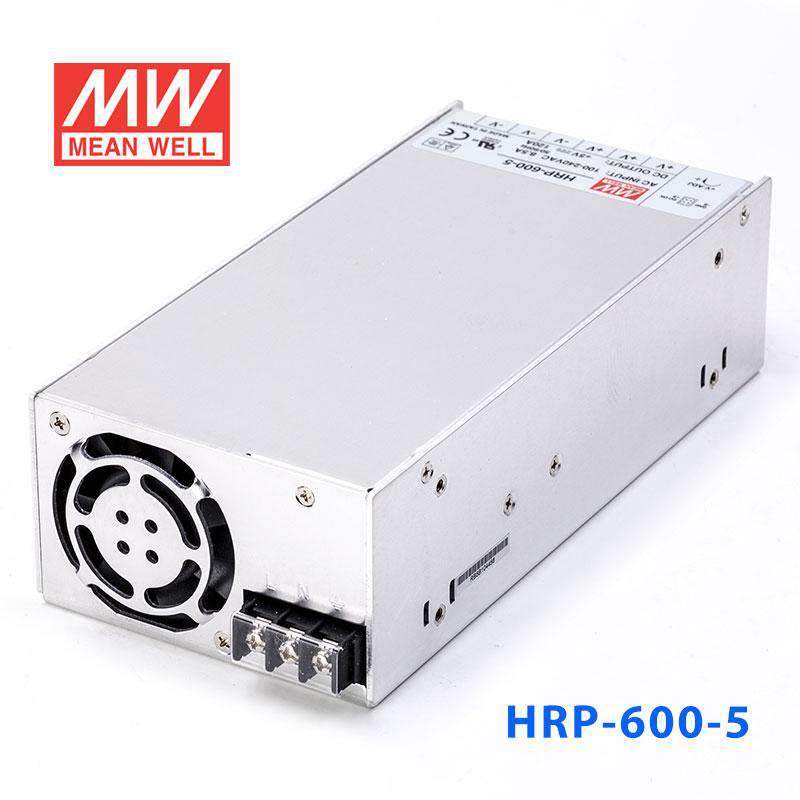

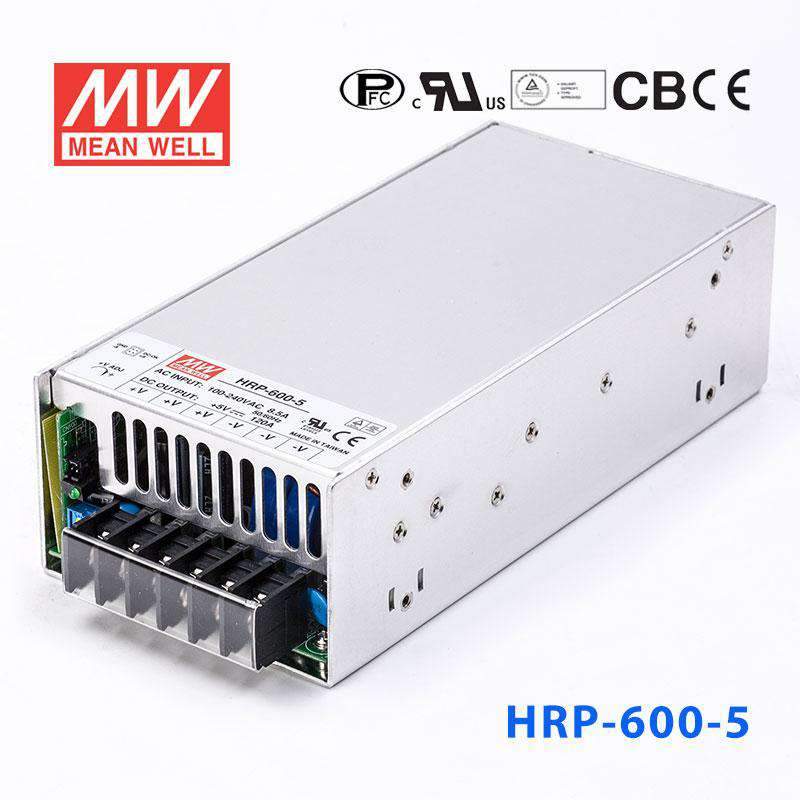

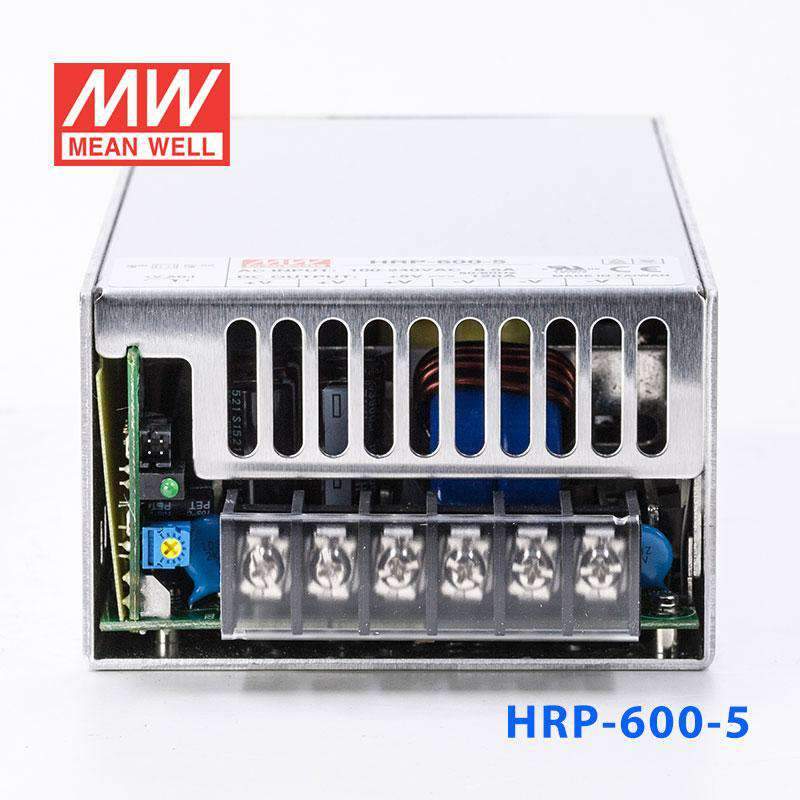

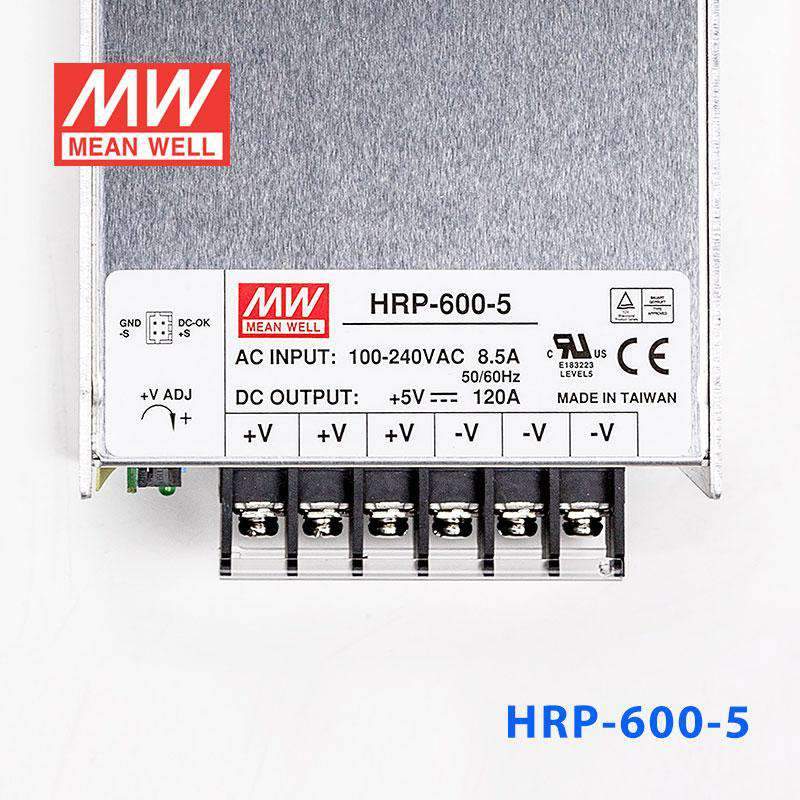

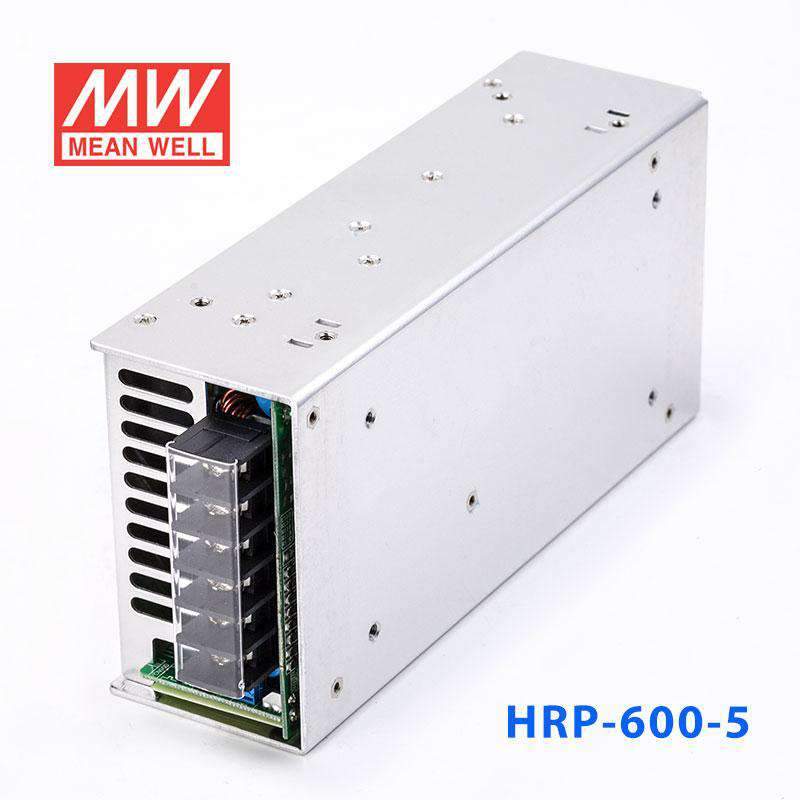

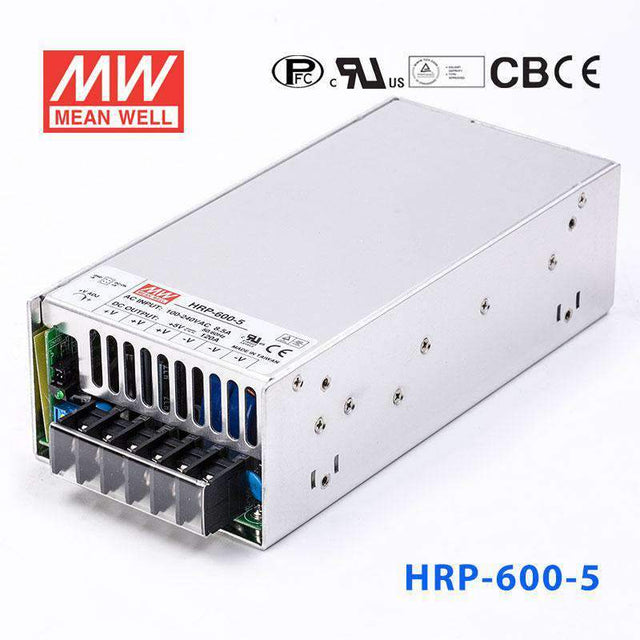

Mean Well HRP-600-5 Power Supply 600W 5V 120A

built-in active PFChigh efficiency up to 90%no load power consumption <0.5W~0.75W
SKU HRP-600-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 7 in this family

HRP-600-5
Available to order
|

Overview

HRP-600-5 is the 5V output model of this series: rated current 120A, rated power 600W, typical efficiency 82%.

Features

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.93
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote sense function
  • All using 105℃ long life electrolytic capacitors
  • 5 years warranty

Specifications

HRP-600-5Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
120A
CURRENT RANGE
0 ~ 120A
RATED POWER
600W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
4.3 ~ 5.8V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1800ms, 50ms/230VAC 3600ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGENote.5
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)
82%
AC CURRENT (Typ.)
7.6A/115VAC 3.6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1.2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
6 ~ 7V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK SIGNAL
PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V
FAN CONTROL (Typ.)
Load 35±15% or RTH2≧50℃ Fan on

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL62368-1, TUV BS EN/ EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55024, BS EN/ EN61000-6-2, heavy industry level, EAC TP TC 020

OTHERS

MTBF
1333.6K hrs min. Telcordia SR-332 (Bellcore) ; 140.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
218*105*63.5mm (L*W*H)
PACKING
1.5Kg;8pcs/13Kg/1.34CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Derating may be needed under low input voltages. Please check the derating curve for more details.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HRP-600-5 Mechanical Specification
Mechanical Specification
HRP-600-5 Block Diagram
Block Diagram
HRP-600-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the HRP-600-5 for a high-current 5V industrial control or embedded system?

Yes, this model is a constant voltage 5V supply rated for 600W and up to 120A. That makes it suitable for large 5V control electronics, embedded computing racks, or other industrial systems that specifically require a regulated 5V DC bus.

Is the HRP-600-5 a good fit for powering multiple 5V single-board computers or edge devices from one supply?

It can be a strong fit when the overall load stays within 5V, 600W, and 120A. The wide 85-264VAC input also helps in IT or embedded deployments where the AC source may vary across sites.

Can this 5V 600W power supply be used for a 5V production test bench or burn-in rack?

Yes, a 5V output with 120A capacity is well suited to centralized DC power for 5V test fixtures, validation stations, or burn-in environments. Its operating temperature range of -40°C to +70°C also supports use in harsher industrial settings than office-only equipment.

Would the HRP-600-5 work for 5V industrial LED or display electronics with heavy current demand?

It can, as long as the connected equipment is designed for constant voltage 5V input and the total demand remains within 600W and 120A. This model is better suited to high-current 5V electronics than lower-power members of the same family.

Is the HRP-600-5 suitable for outdoor or washdown environments?

The provided specs list an operating temperature range of -40°C to +70°C, but they do not include an IP rating. Without an IP rating in the specs, this model should not be assumed to be weatherproof or suitable for washdown exposure.

How does the HRP-600-5 compare with other 600W HRP models?

Within the 600W HRP group, the listed variants are HRP-600-3.3 at 396W and 3.3V 120A, HRP-600-5 at 600W and 5V 120A, HRP-600-7.5 at 600W and 7.5V 80A, HRP-600-12 at 636W and 12V 53A, HRP-600-15 at 645W and 15V 43A, HRP-600-24 at 648W and 24V 27A, HRP-600-36 at 630W and 36V 17.5A, and HRP-600-48 at 624W and 48V 13A. The main difference across these siblings is the output voltage and corresponding output current.
