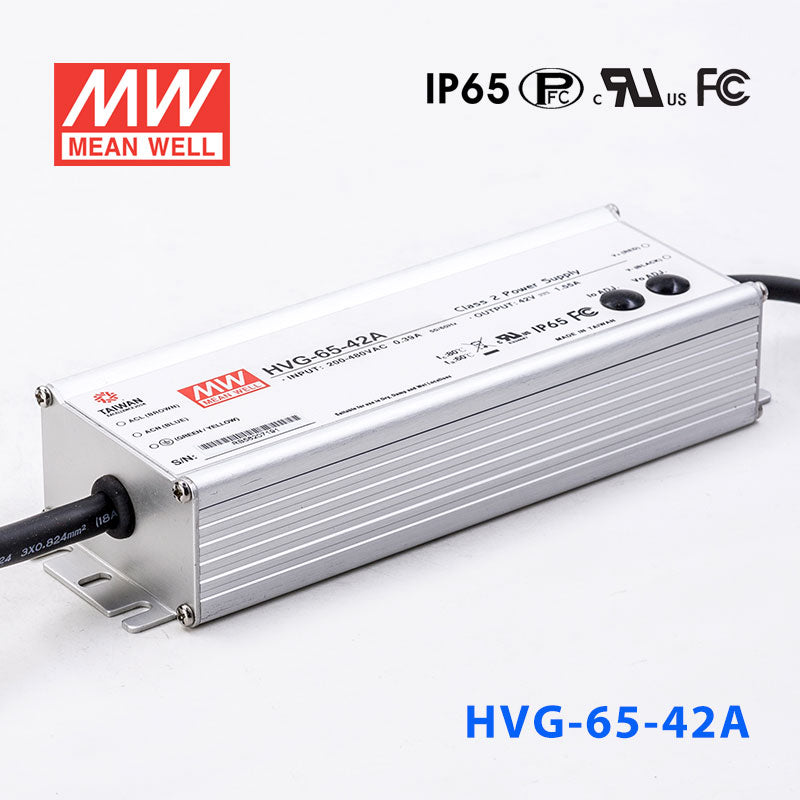

Mean Well HVG-65-42A Power Supply 65W 42V - Adjustable

wide input range 180~528VAC, aluminium casing

|

Description

Features

180~528VAC wide input range
Constant Voltage + Constant Current mode output
Metal housing with Class I design
Built-in active PFC
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC; 254~747VDC
AC inrush current (max.) COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410
DC adjustment range ±10% rated output voltage
Current adjustment range 55%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over-voltage protection 110%~140% rated output voltage
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+80°C (refer to output derating curve)
Safety standards UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B
Connection Input UL rated, STW 18AWGx3C (30cm)
Connection Output A&D-Type SJTW 14AWGx2C (30cm)
Connection Output B-Type SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm) 189 x 61.5 x 36.8

Specifications

  • Brand
    Mean Well
  • Series
    HVG Series
  • Power Rating
    65.1 Watt
  • Output Voltage
    42 Volt
  • Rated Current
    1.55 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    EAC,FCC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    18.9 cm
  • Width
    6.15 cm
  • Height
    3.68 cm
  • Weight
    0.77 kg
