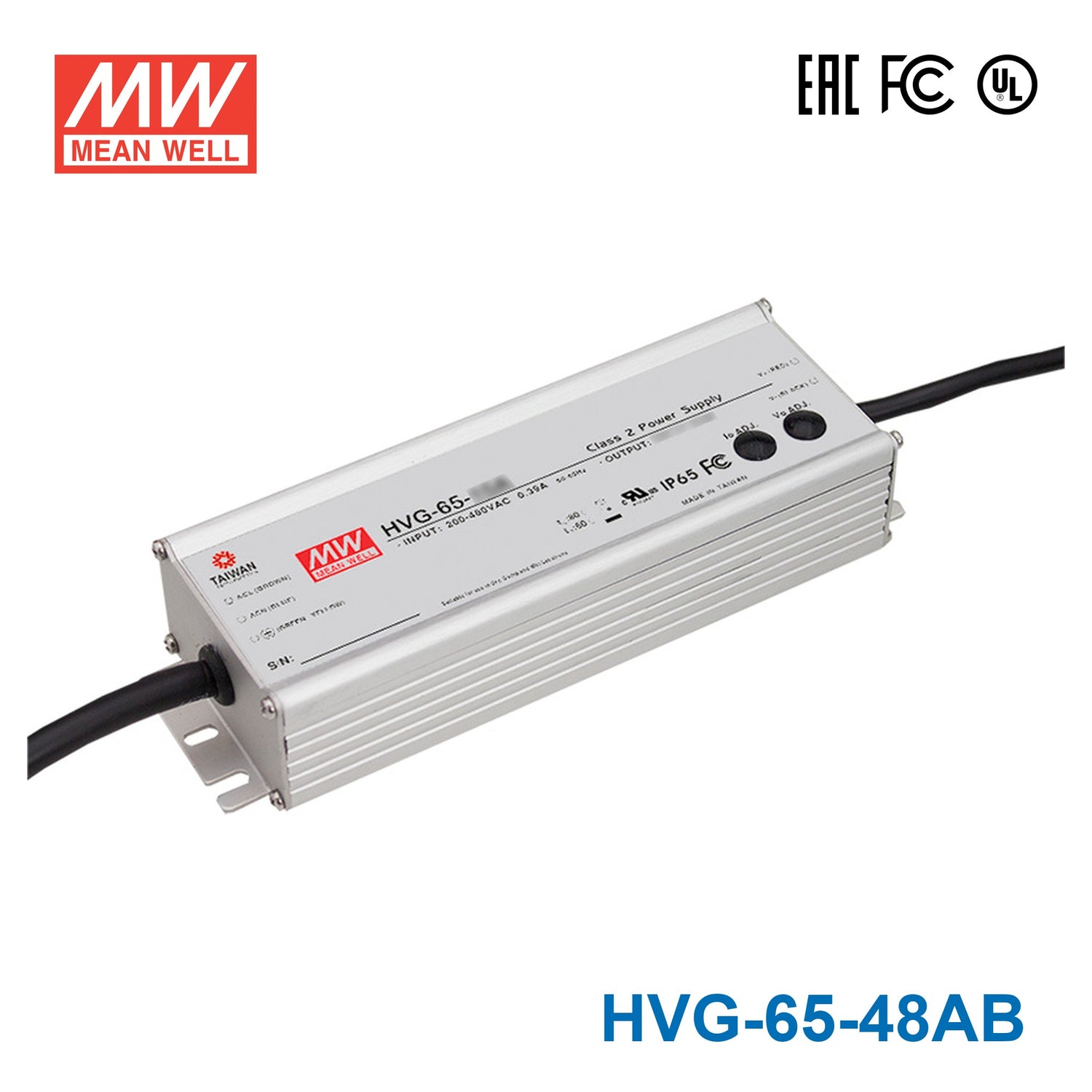

Mean Well HVG-65-48AB Power Supply 65W 48V - Adjustable and Dimmable
Please Login for Pricing
Description
Description
Features
| 180~528VAC wide input range |
| Constant Voltage + Constant Current mode output |
| Metal housing with Class I design |
| Built-in active PFC |
| IP67 / IP65 rating for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC; 254~747VDC |
| AC inrush current (max.) | COLD START 25A(twidth=420 s measured at 50% I μ peak) at 480VAC; Per NEMA 410 |
| DC adjustment range | ±10% rated output voltage |
| Current adjustment range | 55%~100% |
| Over current protection | 95%~108% constant current limiting, auto-recovery |
| Over-voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC part 15 class B |
| Connection Input | UL rated, STW 18AWGx3C (30cm) |
| Connection Output A&D-Type | SJTW 14AWGx2C (30cm) |
| Connection Output B-Type | SJTW 14AWGx2C (30cm) + UL2517 18AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 189 x 61.5 x 36.8 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVG Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage180V~528V
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length18.9 cm
-
Width6.15 cm
-
Height3.68 cm
-
Weight0.77 kg
