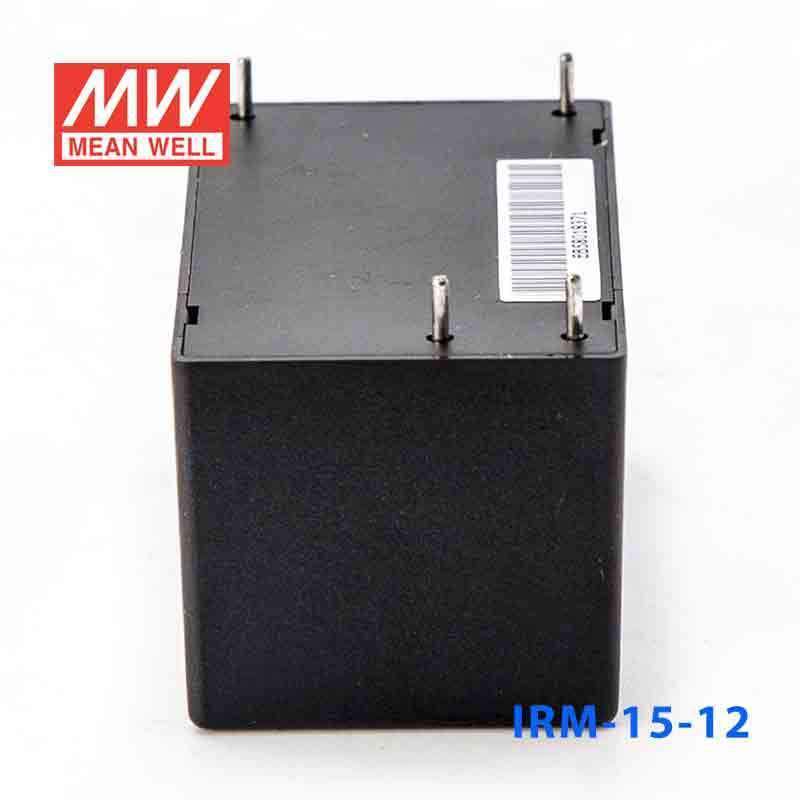

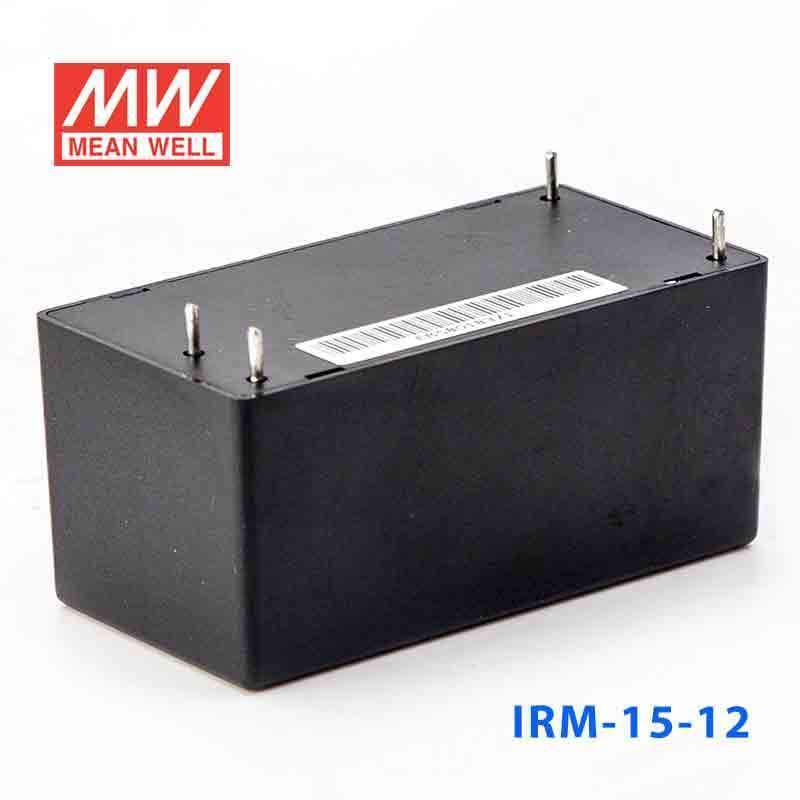

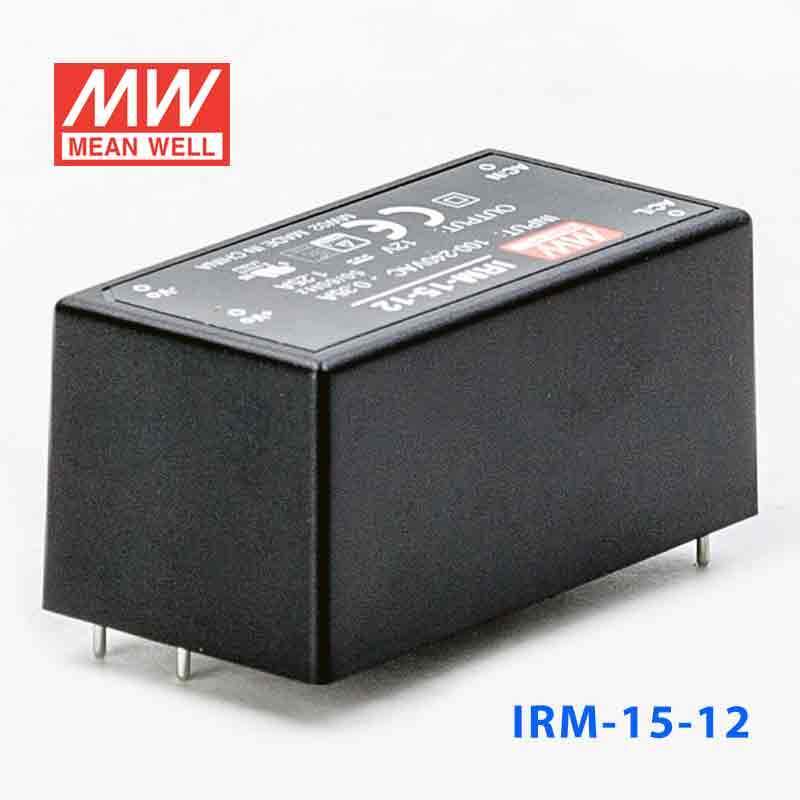

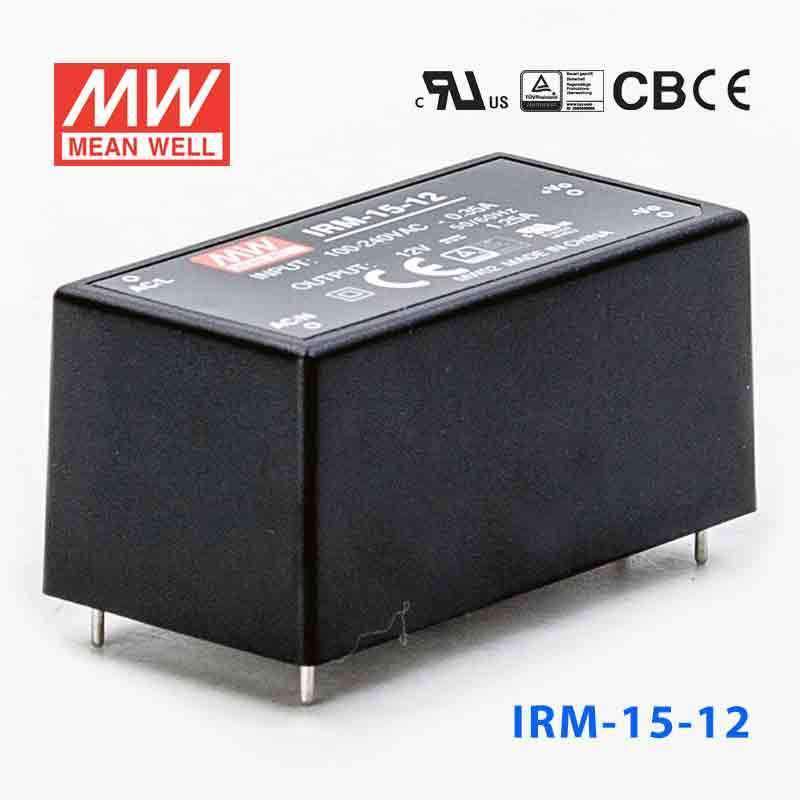

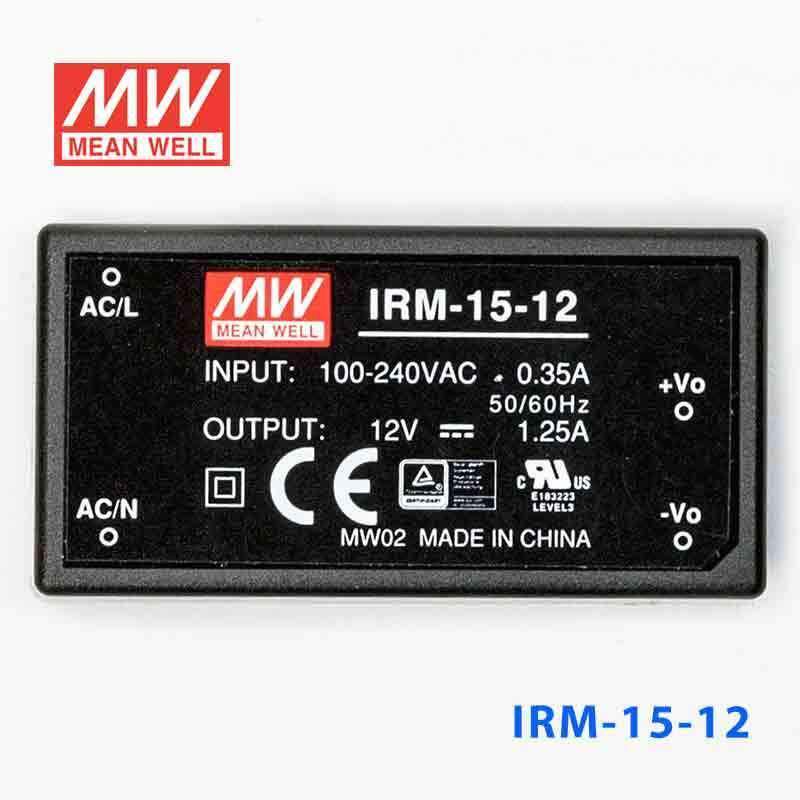

Mean Well IRM-15-12 Switching Power Supply 15W 12V 1.25A - Encapsul...
Please Login for Pricing
Description
Description
The IRM-15 is a 15W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.24 cm
-
Width2.72 cm
-
Height2.4 cm
-
Weight0.05 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the output ratings of the Mean Well IRM-15-12?
The IRM-15-12 is a 15W encapsulated AC-DC power supply with a 12V DC output rated at 1.25A. It is designed for applications that need a compact open-frame style module with fixed 12V output.
What input voltage range does the IRM-15-12 support?
This model accepts a universal input range of 85 to 264VAC or 120 to 370VDC. That wide range makes it suitable for equipment intended for different regional mains standards without changing the power supply model.
Is the IRM-15-12 suitable for compact embedded equipment?
Yes. The IRM-15-12 is built for space-constrained designs with a compact 52.4 x 27.2 x 24 mm body, high power density, and a fully isolated plastic case. Its 15W output and encapsulated format make it a practical choice for low-power industrial and embedded electronics.
What protection features are included in the Mean Well IRM-15-12?
The IRM-15-12 includes short circuit, overload, and over-voltage protection. Its overload protection is specified at 115% to 190%, and over-voltage protection is specified at 115% to 135% of rated output voltage.
Can the IRM-15-12 be used in demanding temperature conditions?
This model is rated for operation from -30C to +70C, subject to the output derating curve. It is also convection cooled, so it is intended for designs where passive cooling and reliable operation over a broad temperature range are important.
How does the IRM-15-12 differ from a standard enclosed power supply?
The IRM-15-12 is an encapsulated compact module intended for integration into equipment rather than a larger enclosed chassis-style supply. Compared with bulkier enclosed units, it focuses on miniature size, low no-load power consumption below 0.1W, and easy fit into compact product designs.
