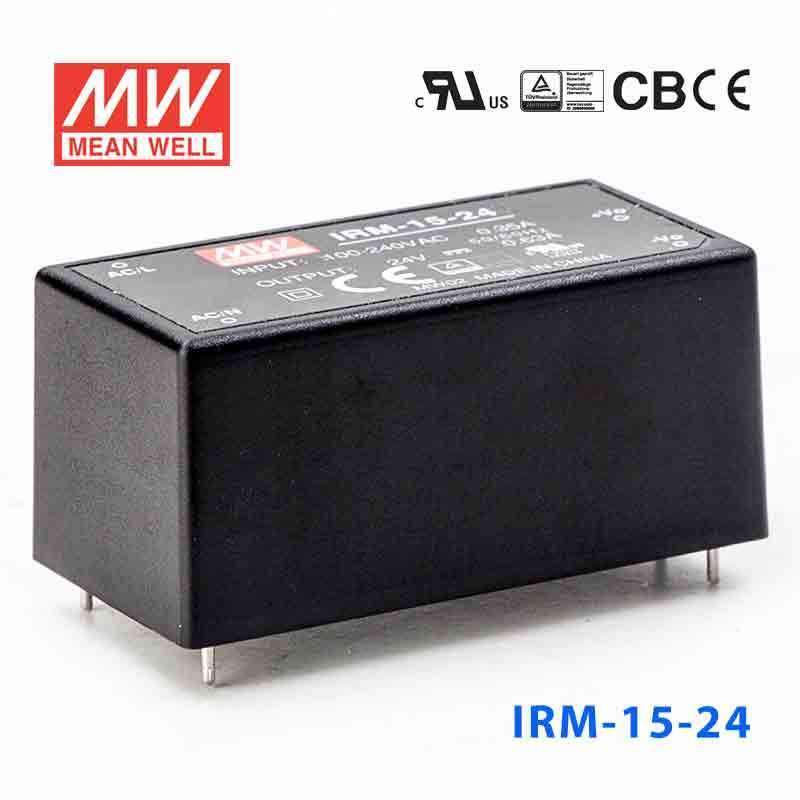

Mean Well IRM-15-24 Switching Power Supply 15.12W 24V 0.63A - Encapsulated

The IRM-15-24 is a 15.12W encapsulated AC-DC switching power supply with a 24V DC output. Its rated output current is 0.63A, making it suitable for low-power industrial and embedded applications that require a regulated 24V supply.

This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide range makes it useful for equipment intended for different regional mains standards without requiring a different power supply model.

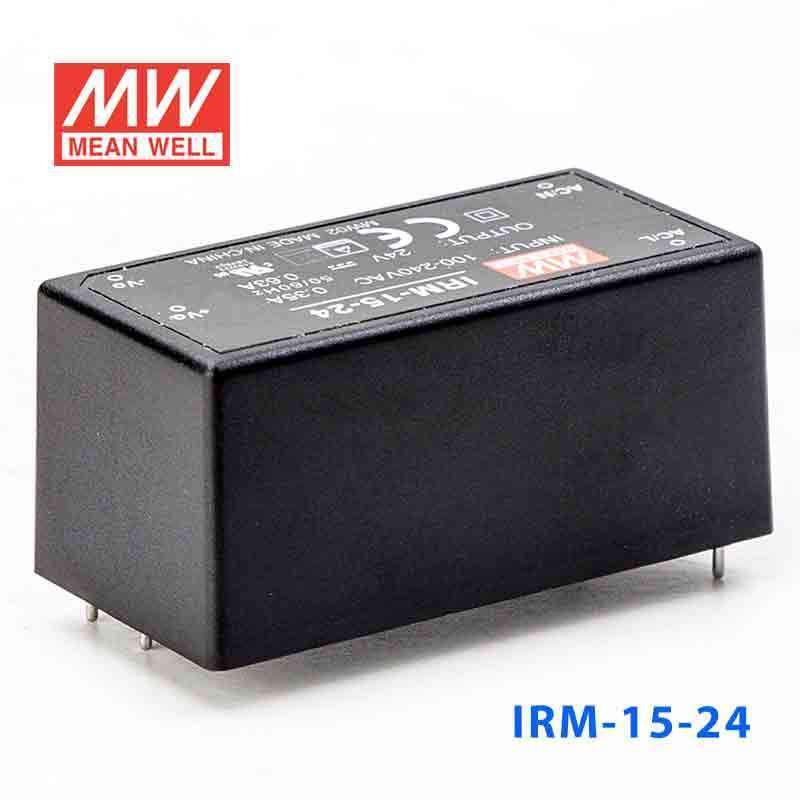

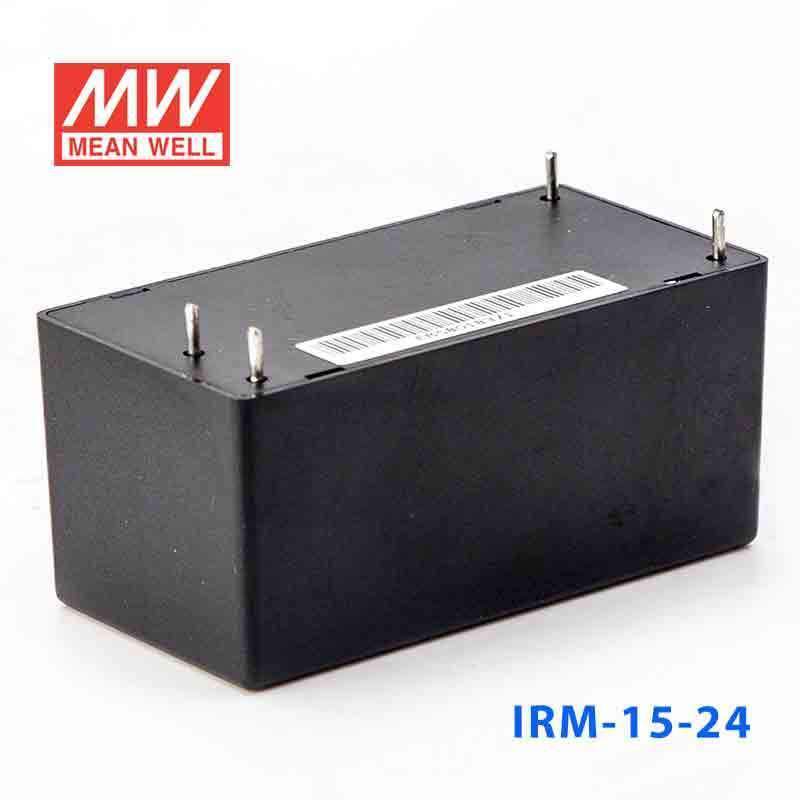

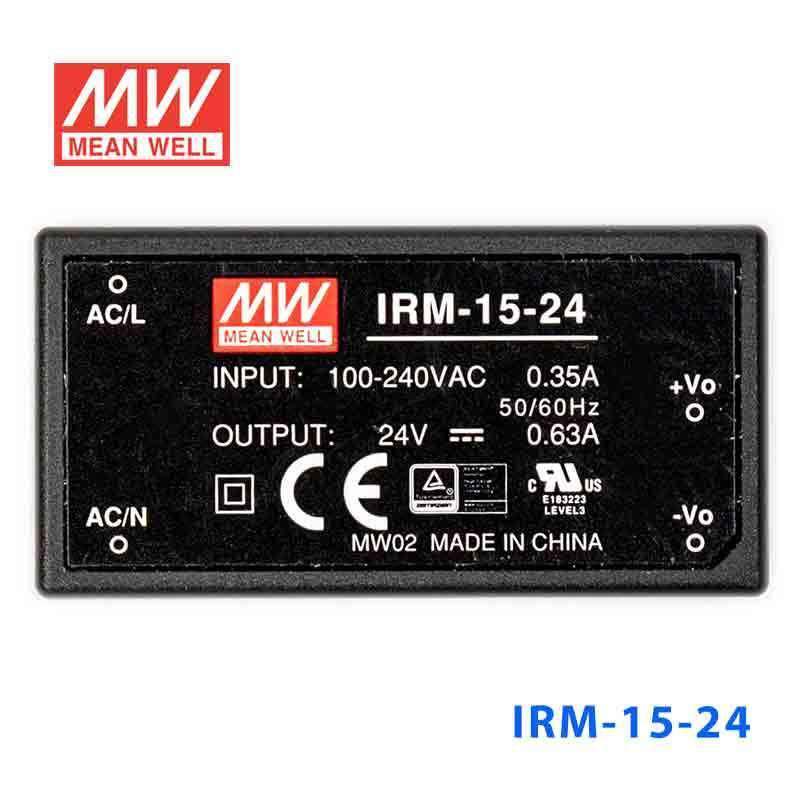

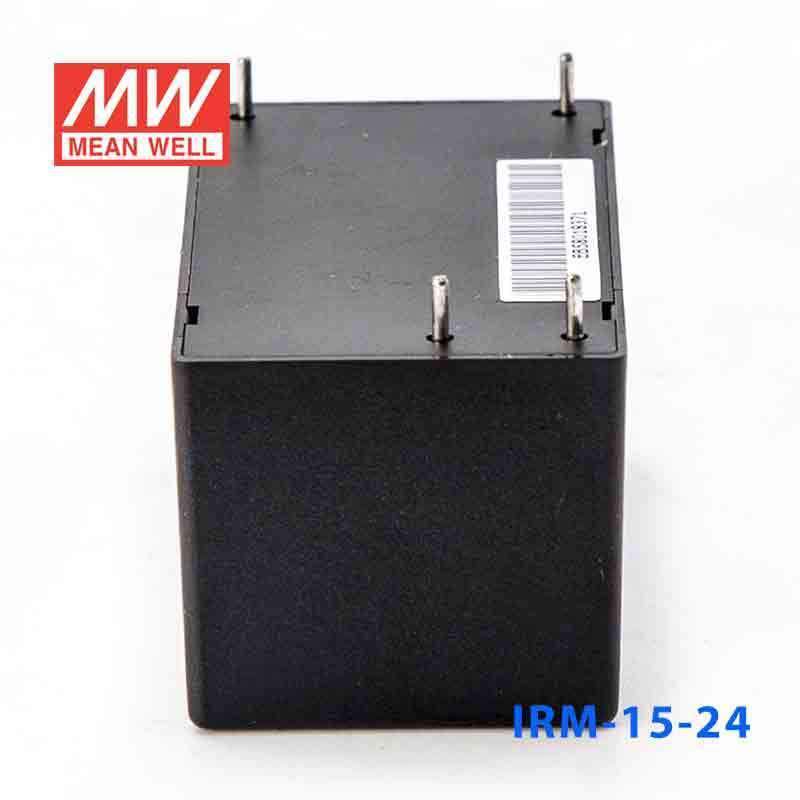

Yes, the IRM-15-24 is designed as a compact encapsulated open frame style power module with 4 industrial pins and a small 52.4 x 27.2 x 24 mm body. Its miniature size and high power density make it a practical choice for space-constrained PCB power designs.

The IRM-15-24 includes short circuit, overload, and over voltage protection. Its overload protection is specified at 115% to 190%, and over voltage protection is rated at 115% to 135% of the rated output voltage.

This model has a working temperature range of -30°C to +70°C, subject to the output derating curve. That gives it flexibility for use in a wide range of industrial and enclosed equipment environments where temperature tolerance matters.

The IRM-15-24 is approved to UL60950-1 and TUV EN60950-1 safety standards and meets EMC standards including EN55022 Class B. It also features a fully isolated plastic case, isolation class II construction, 5G vibration resistance, 100% full load burn-in testing, and a 3-year warranty.
