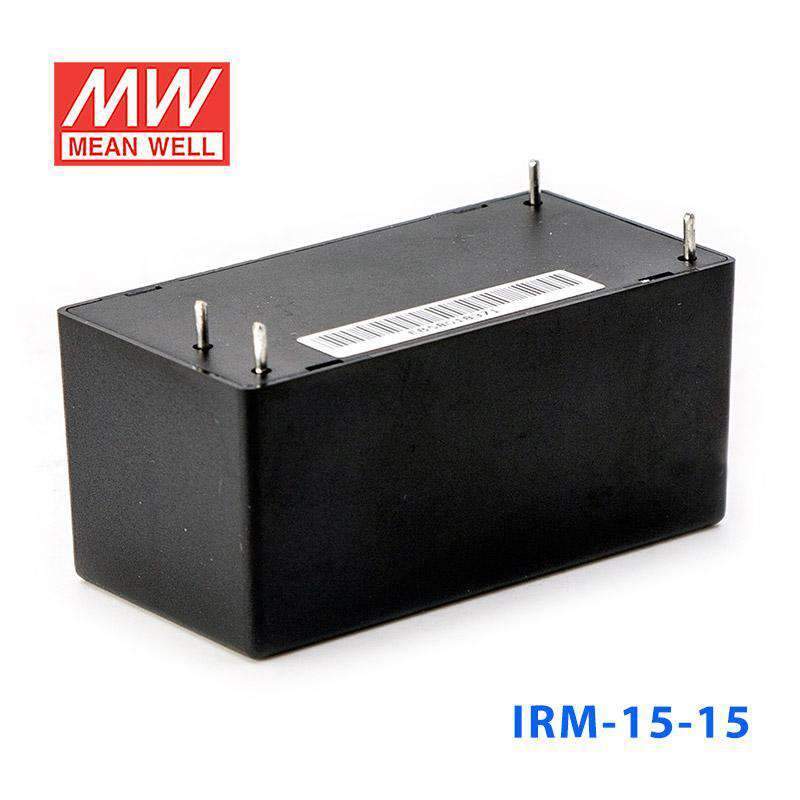

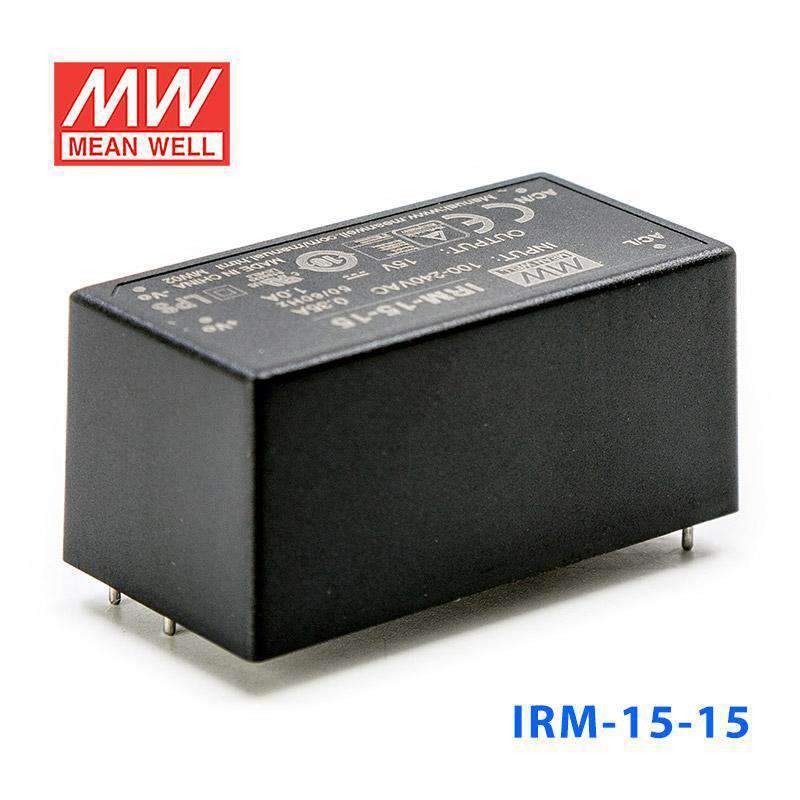

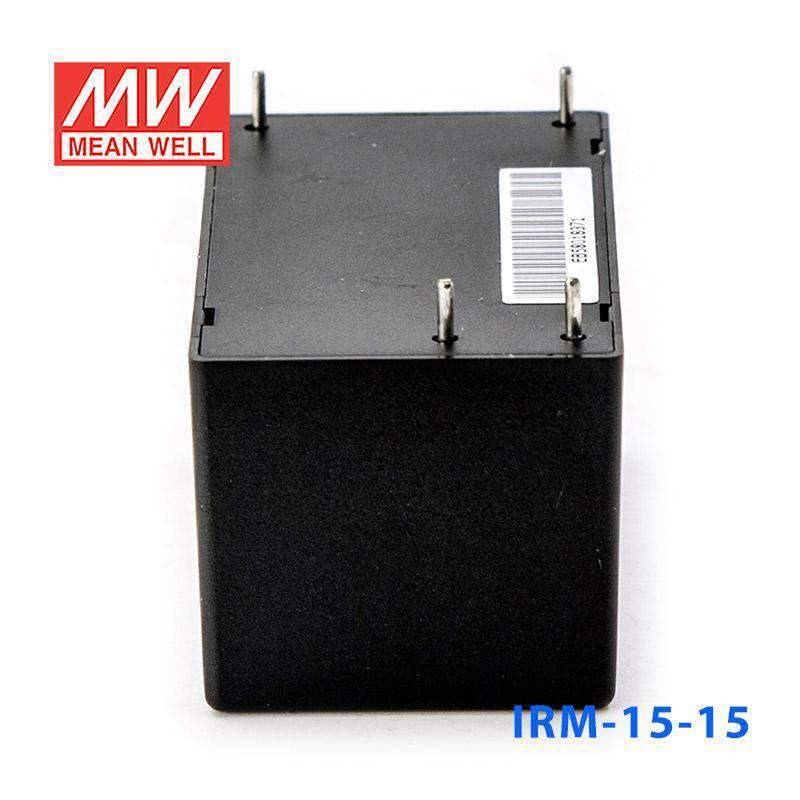

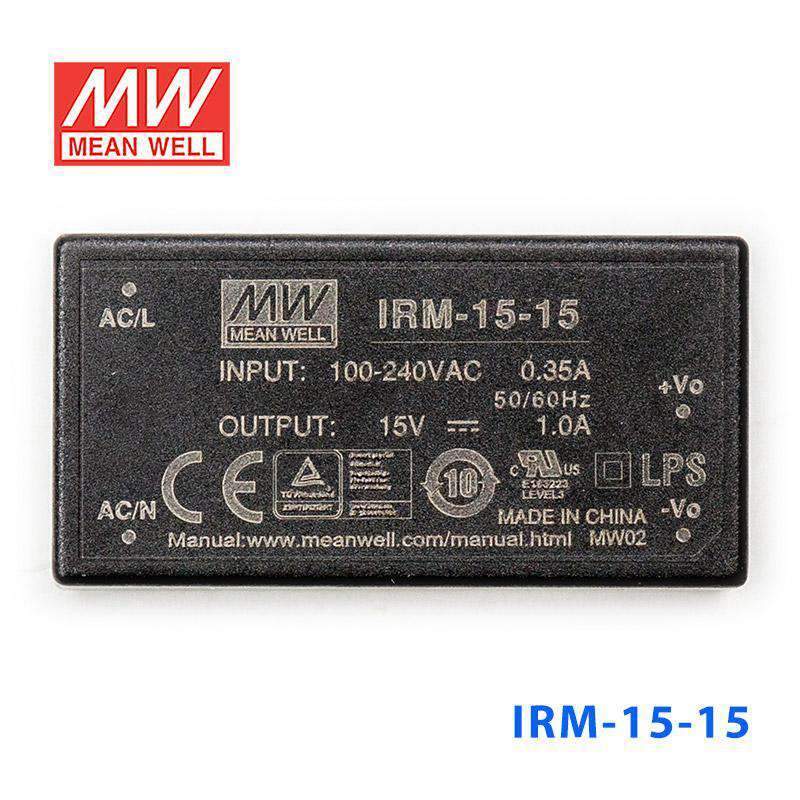

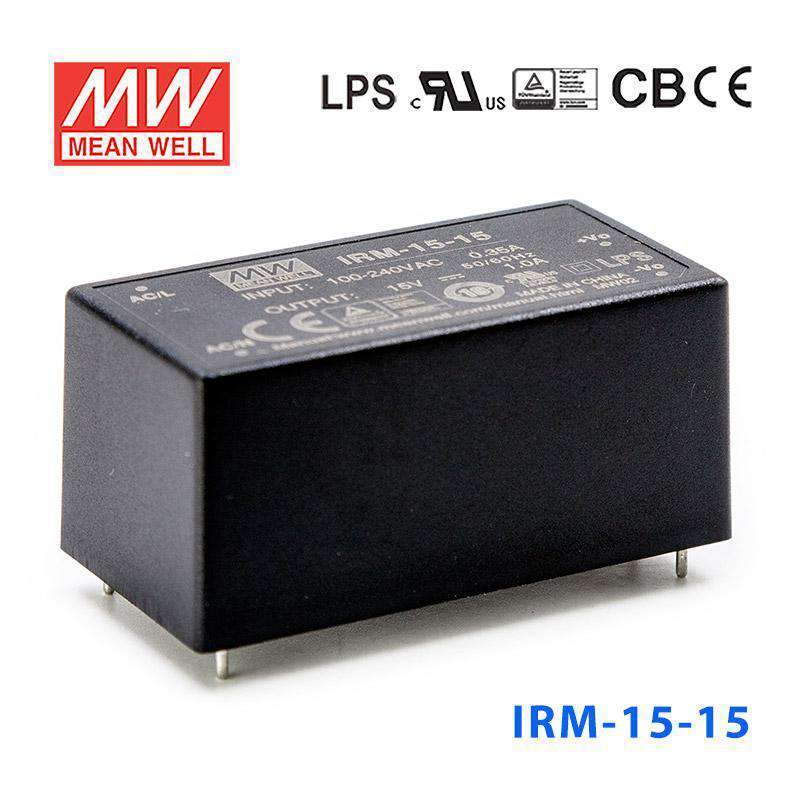

Mean Well IRM-15-15 Switching Power Supply 15W 15V 1A - Encapsulated

Yes, if the equipment needs a constant 15V supply and the load does not exceed 1A and 15W. That makes it suitable for many analog control sections, instrumentation circuits, and compact industrial electronics built around a 15V rail. The PCB-mount encapsulated format also supports use inside finished equipment rather than as a stand-alone field supply.

It can be a fit where the board expects regulated 15V DC and stays within the 1A output limit. With dimensions of 52.4 × 27.2 × 24.0 mm, it is still compact enough for many internal PCB-based assemblies. The 85-305VAC input helps when the same equipment may be used across different AC mains systems.

Yes, for low-to-moderate 15V automation loads up to 15W. It is best suited to internal control electronics, interface circuits, and compact automation modules that need a stable 15V constant-voltage source. Loads that need more than 1A would require moving up within the 15V IRM range.

Its rated operating temperature is -30°C to +70°C, so it supports a useful industrial indoor temperature range. No IP rating is listed in the provided specs, so these specs do not establish outdoor exposure suitability. From the stated data, it is better classified as an enclosed internal module for protected equipment.

The provided 15V siblings are IRM-01-15 and IRM-01-15S at 1W and 0.07A, IRM-02-15 and IRM-02-15S at 2W and 133A, IRM-03-15 and IRM-03-15S at 3W and 200A, IRM-05-15 at 4.95W and 0.33A, IRM-10-15 at 10.05W and 0.67A, IRM-15-15 at 15W and 1A, IRM-20-15 at 21W and 1.4A, IRM-30-15 and IRM-30-15ST at 30W and 2A, IRM-45-15 and IRM-45-15ST at 45W and 3A, IRM-60-15 and IRM-60-15ST at 60W and 4A, and IRM-90-15 and IRM-90-15ST at 85.05W and 5.67A. IRM-15-15 is the 15V, 1A option positioned between the lower-power 10.05W model and the higher-power 21W model.
