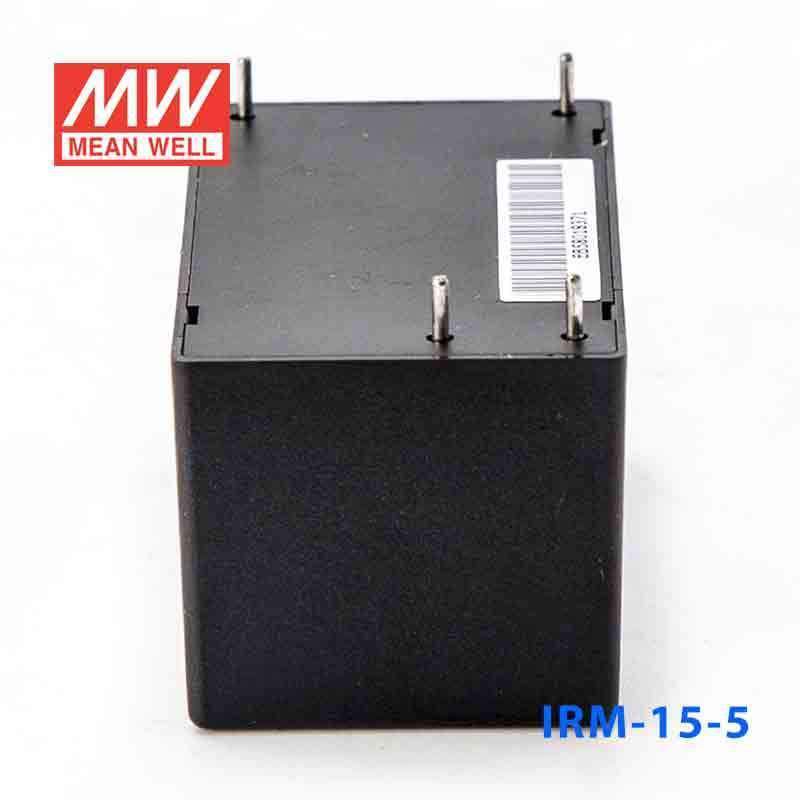

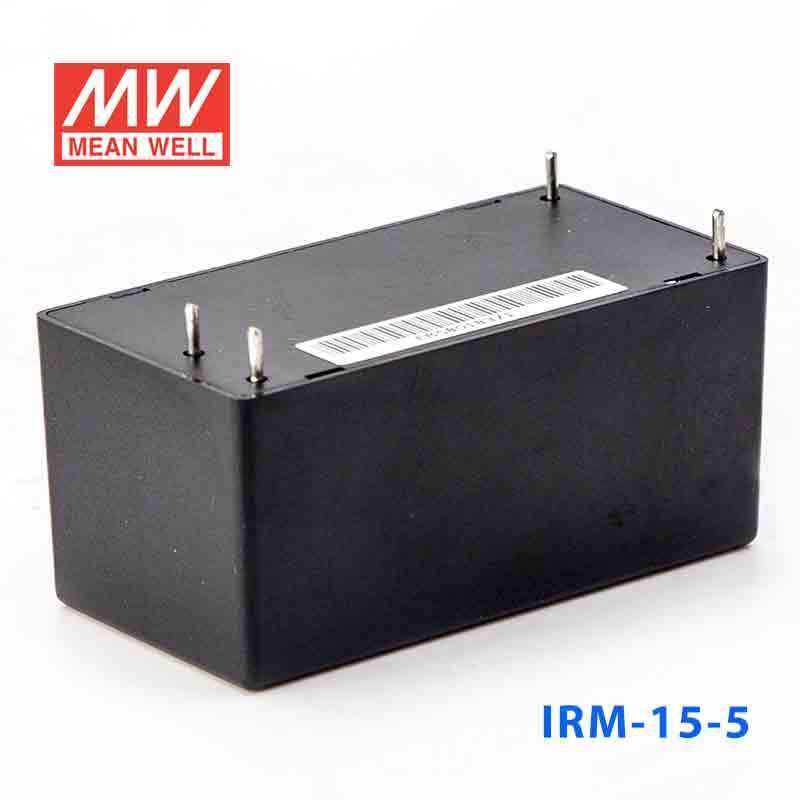

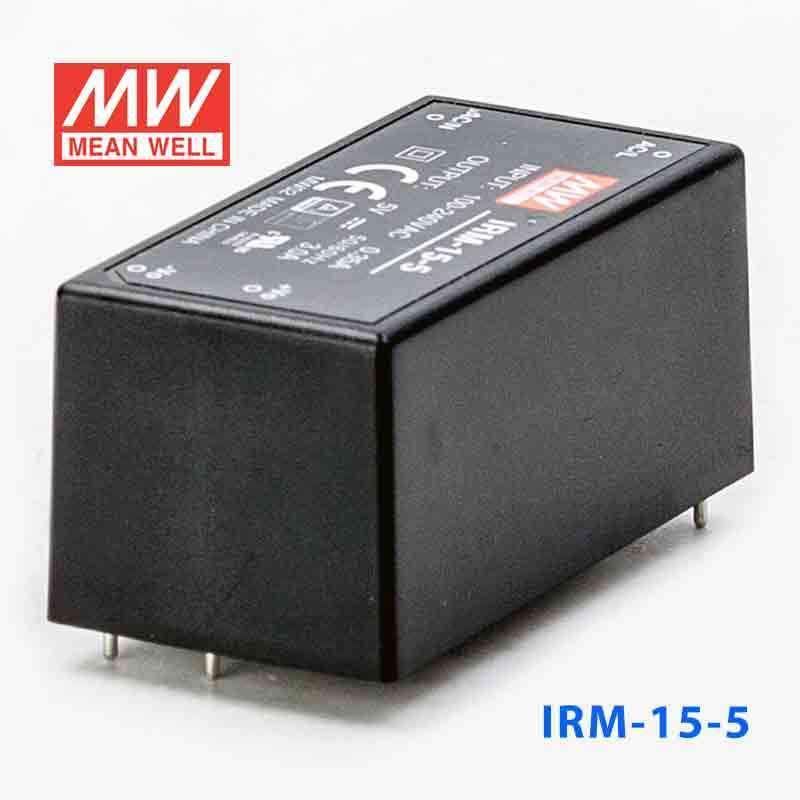

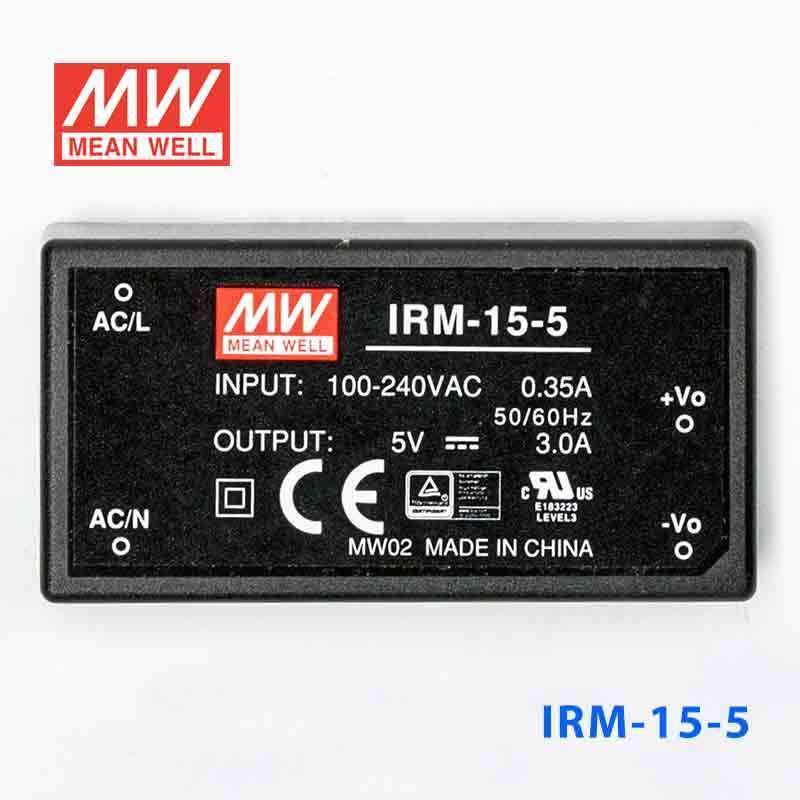

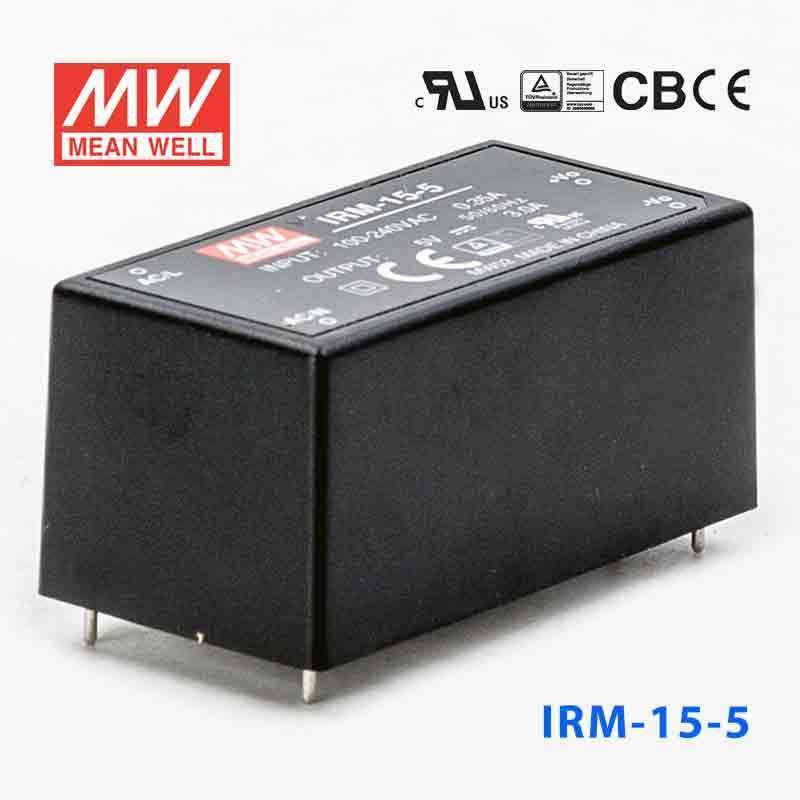

Mean Well IRM-15-5 Switching Power Supply 15W 5V 3A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-15 is a 15W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL62368-1, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336 -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.24 cm
-
Width2.72 cm
-
Height2.4 cm
-
Weight0.05 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well IRM-15-5 provide?
The IRM-15-5 is a 15W encapsulated AC/DC switching power supply with a regulated 5V DC output. It is rated for up to 3A output current, making it suitable for low-voltage industrial and embedded power applications.
What input voltage range does the IRM-15-5 support?
This model supports a universal input range of 85 to 264VAC and also accepts 120 to 370VDC. That wide range makes it practical for OEM and industrial designs intended for multiple regions or varying mains conditions.
What protection features are included in the IRM-15-5?
The IRM-15-5 includes short circuit, overload, and over voltage protection. Its overload protection is specified at 115% to 190%, and over voltage protection is rated at 115% to 135% of the rated output voltage.
Is the Mean Well IRM-15-5 suitable for compact embedded applications?
Yes. This model is designed with a miniature encapsulated form factor and high power density, with dimensions of 52.4 x 27.2 x 24 mm. Its fully isolated plastic case and free air convection cooling also support use in compact internal power designs.
What operating environment can the IRM-15-5 handle?
The specified working temperature range is -30°C to +70°C, subject to the output derating curve. It also passes a 5G vibration test, which helps support use in demanding industrial environments.
What safety and EMC standards are listed for the IRM-15-5?
The IRM-15-5 is listed with UL60950-1 and TUV EN60950-1 safety approvals. Its EMC specifications include EN55022 Class B and EN61000-3-2, EN61000-3-3, and EN61000-4 series standards noted in the product data.
Other IRM-15 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well IRM-15-3.3 Switching Power Supply 3W 3.3V 3.5A - Encapsulated | 11.55W | 3.3V | 3.5A | View |
| Mean Well IRM-15-24 Switching Power Supply 15.12W 24V 0.63A - Encapsulated | 15.12W | 24V | 0.63A | View |
| Mean Well IRM-15-15 Switching Power Supply 15W 15V 1A - Encapsulated | 15W | 15V | 1A | View |
| Mean Well IRM-15-12 Switching Power Supply 15W 12V 1.25A - Encapsulated | 15W | 12V | 1.25A | View |
