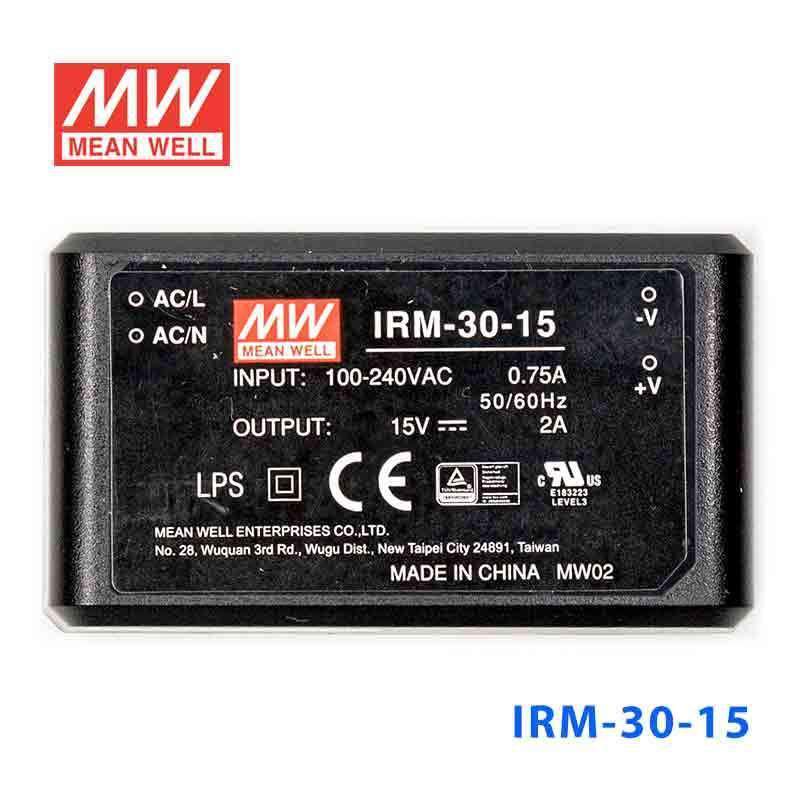

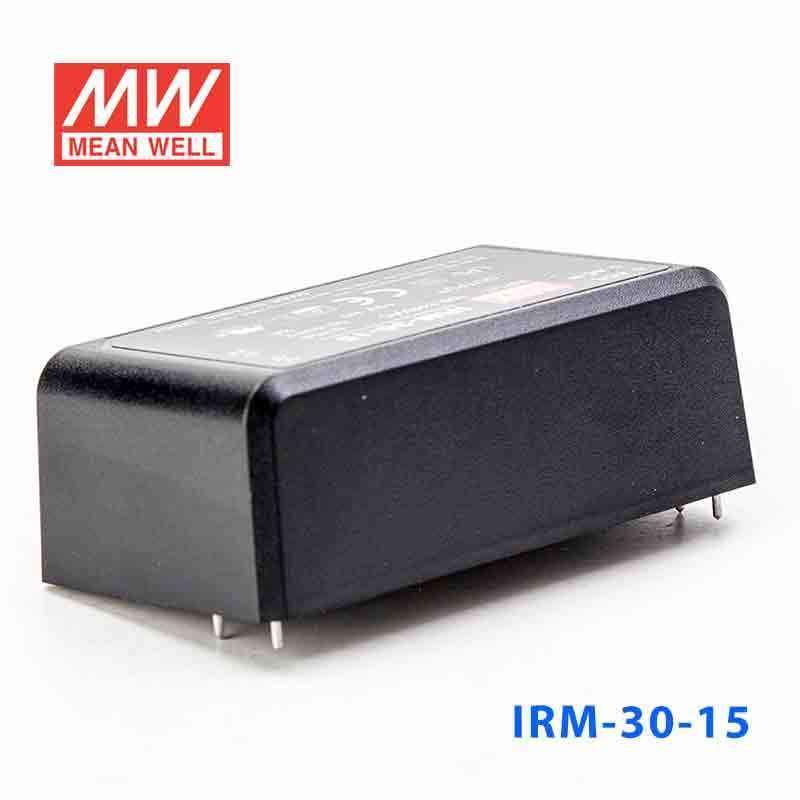

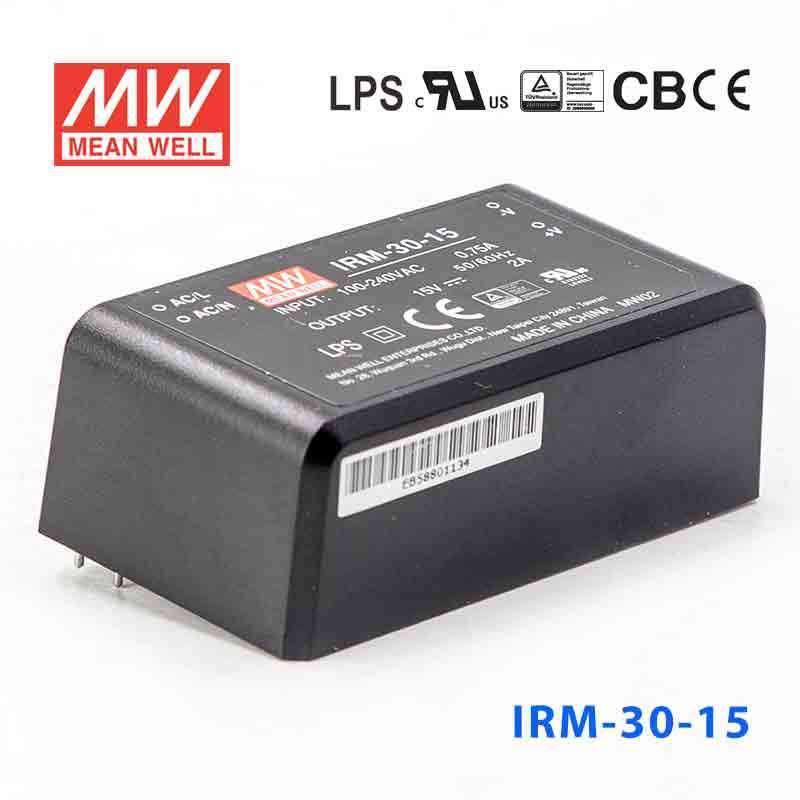

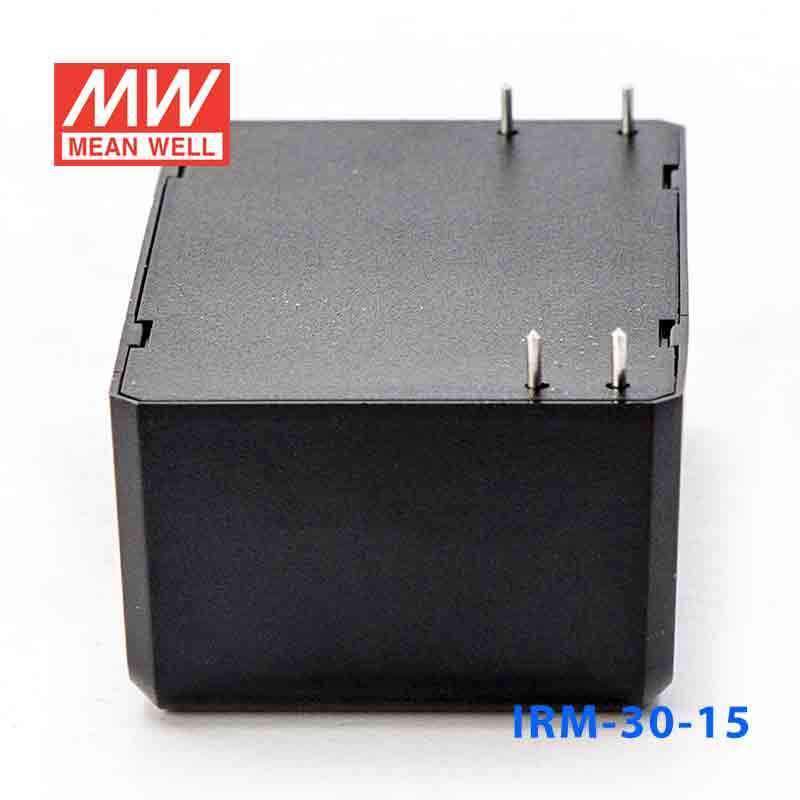

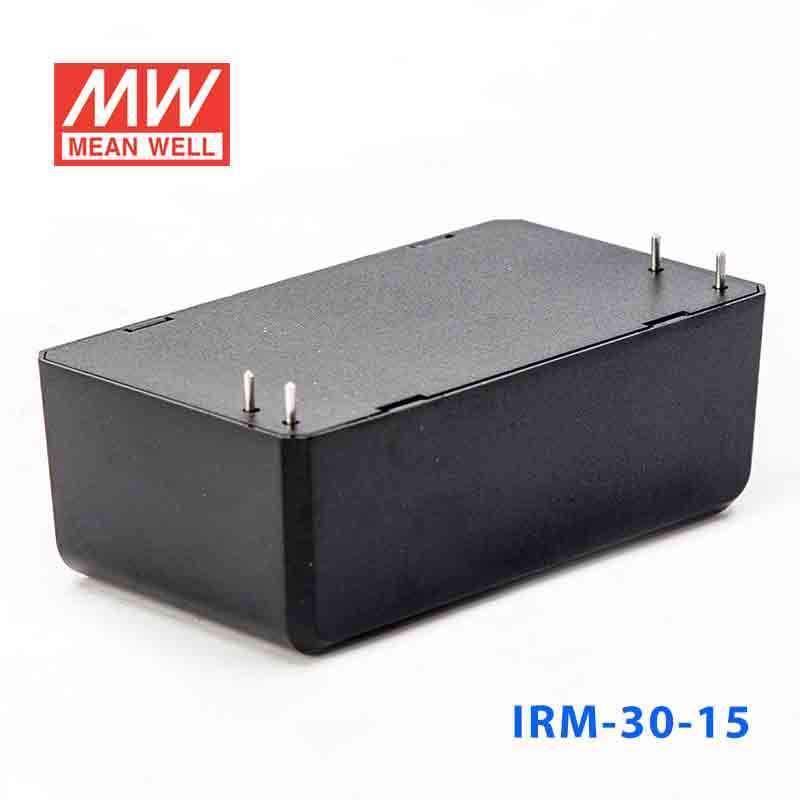

Mean Well IRM-30-15 Switching Power Supply 3W 15V 2A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-30 is a 30W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL6 2368 -1, TUV EN6 I/P-O/P:4KVAC 2368 , -1 EN60335-1, EAC TP TC 004 BSMI CNS14336 , -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.95 cm
-
Width3.9 cm
-
Height2.4 cm
-
Weight0.09 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-30-15 for a 15V industrial control circuit or embedded electronics board?
Yes, it is a constant-voltage 15V supply rated for up to 2A and 30W. That makes it suitable for 15V control circuits, embedded electronics, and similar industrial boards that stay within those limits.
Is the IRM-30-15 appropriate for 15V instrumentation or analog control hardware?
It can be a fit for 15V instrumentation, analog control hardware, and related electronics when the total load does not exceed 2A or 30W. The 85-305VAC input range also supports designs that need broad AC input tolerance.
Can this model power multiple 15V automation devices inside one machine enclosure?
It can supply multiple 15V automation devices if their combined demand stays within the 15V, 2A, and 30W output rating. Its miniature encapsulated design and 69.5 × 39.0 × 24.0 mm size make it practical for compact internal assemblies.
Is the IRM-30-15 suitable for PCB-based industrial equipment that needs a compact AC-DC supply?
Yes, this version is the PCB mouting style model and provides 15V constant voltage at up to 2A. It is intended for compact industrial or embedded equipment that needs a small encapsulated AC-DC supply with 30W output.
How does the IRM-30-15 compare with other IRM-30 voltage options?
Within the IRM-30 family, the comparable options are IRM-30-5 and IRM-30-5ST at 30W, 5V, 6A; IRM-30-12 and IRM-30-12ST at 30W, 12V, 2.5A; IRM-30-15 and IRM-30-15ST at 30W, 15V, 2A; IRM-30-24 and IRM-30-24ST at 31.2W, 24V, 1.3A; and IRM-30-48 and IRM-30-48ST at 30.2W, 48V, 0.63A. The IRM-30-15 and IRM-30-15ST share the same 15V, 2A, and 30W rating, with the distinction here being PCB mouting style versus screw terminal style.
Can the IRM-30-15 be used outdoors or in cold and hot operating conditions?
The specified operating temperature range is -30°C to +70°C, which supports use in equipment that sees low and high internal temperatures. No IP rating is listed, so it is better suited to protected indoor enclosures or sheltered housings rather than exposed outdoor environments.
