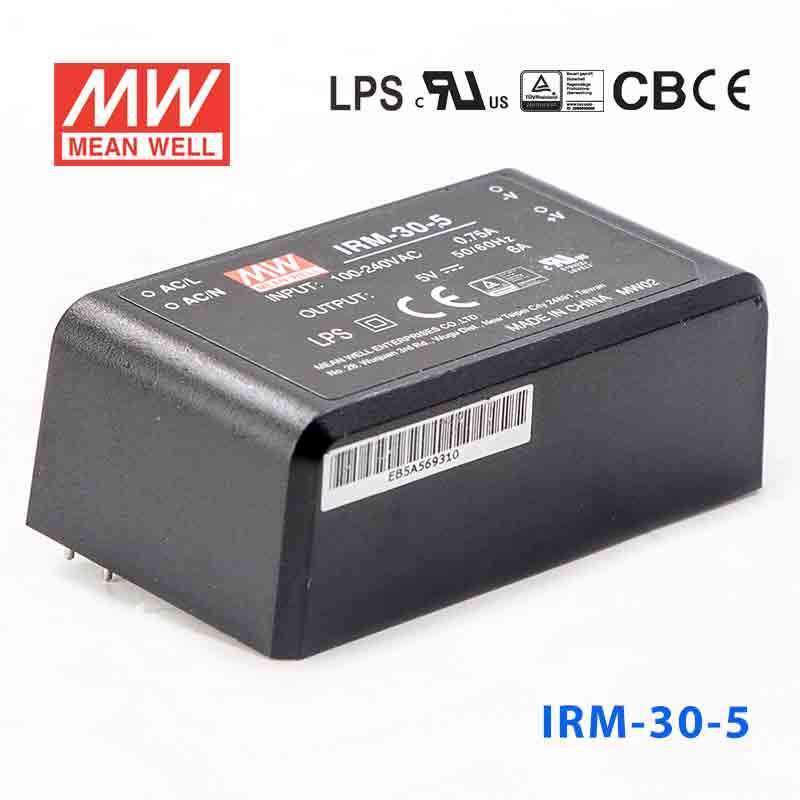

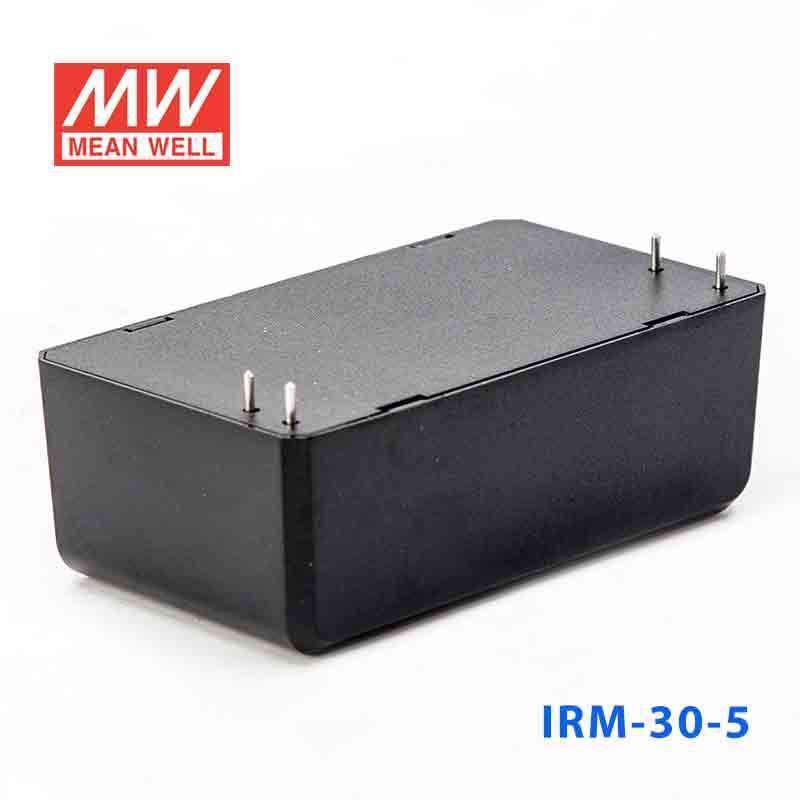

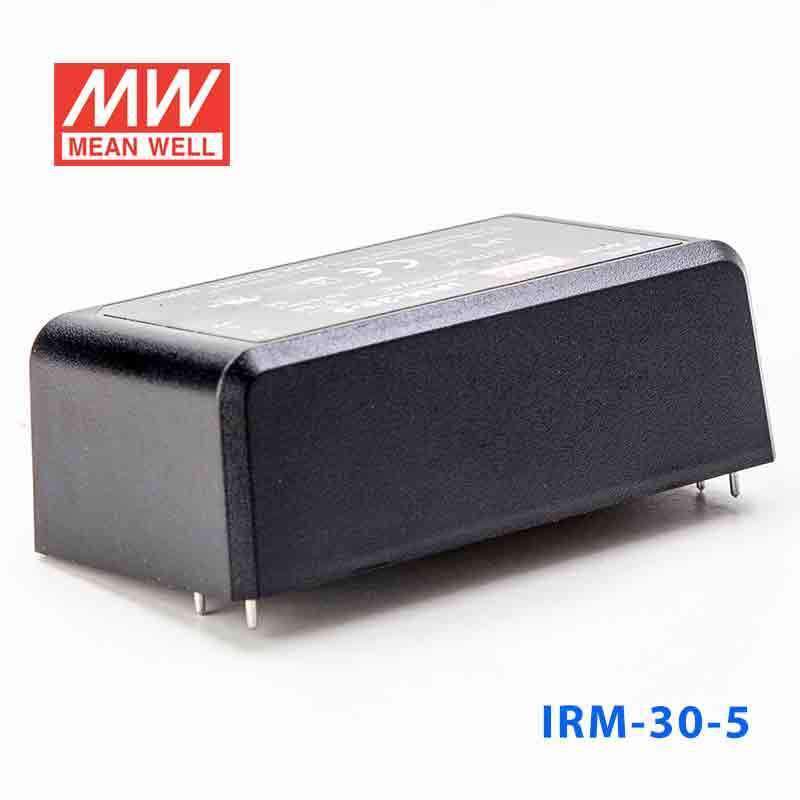

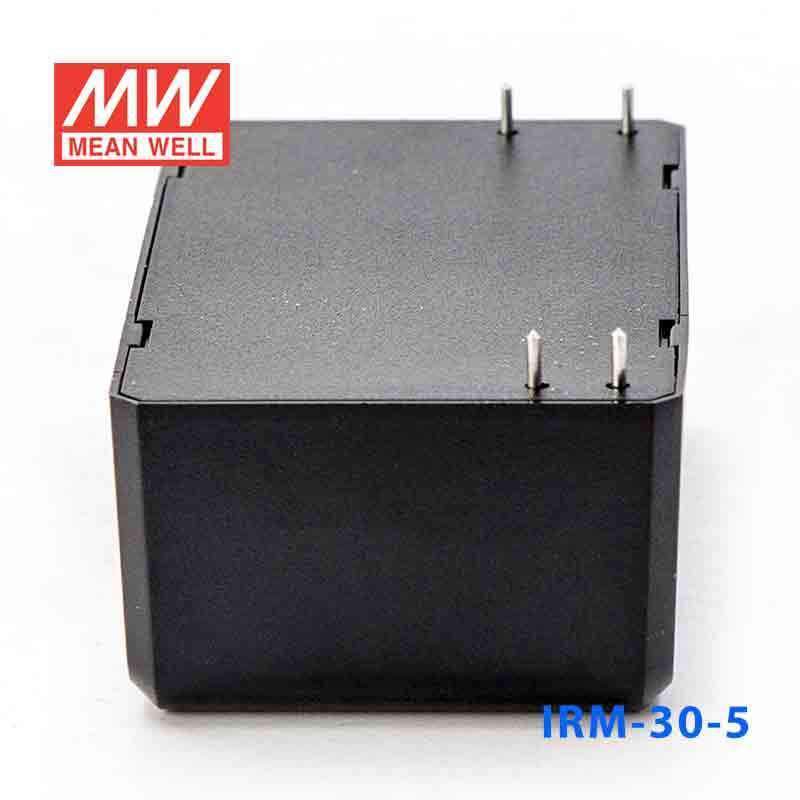

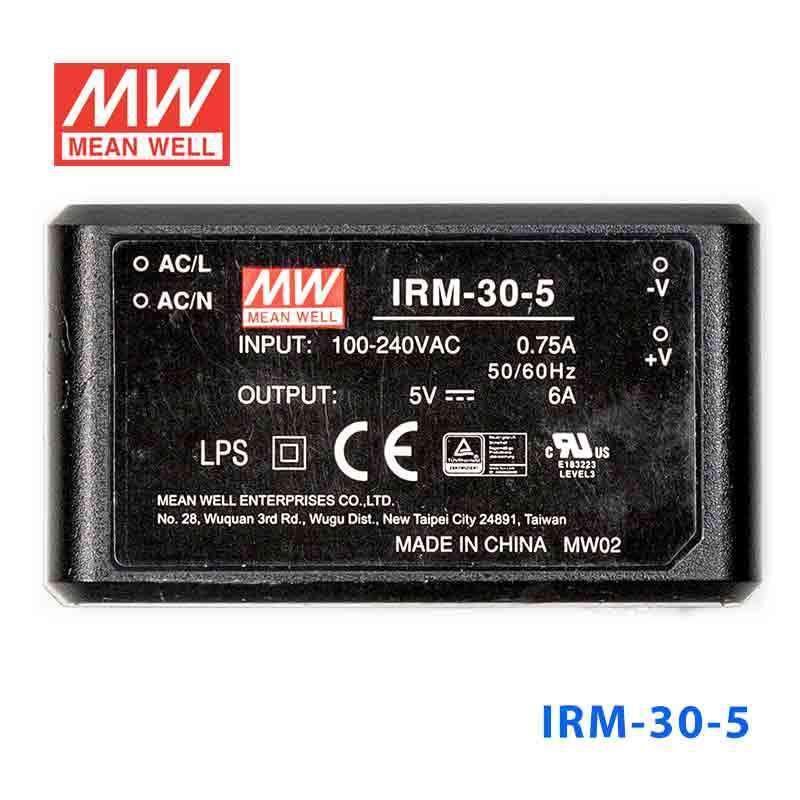

Mean Well IRM-30-5 Switching Power Supply 3W 5V 6A - Encapsulated

miniature encapsulated type, PCB mouting style

|

Description

Features

Universal AC input / Full range
No load power consumption < 0.1W
Protections: Short circuit / Overload / Over voltage
Miniature size, high power density
Cooling by free air convection
Isolation class II
Fully isolated plastic case
Withstand 5G vibration test
Low cost, high reliability
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC; 120~370VDC
AC inrush current (max.) Cold start, 25A at 115VAC, 45A at 230VAC
Setup, rise, hold up time 1000ms, 30ms, 40ms
Overload protection 105%~160%
Over voltage protection 105%~135%
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70°C (refer to output derating curve)
Leakage current Less than 0.75mA at 240VAC
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 4 industrial pins
Dimension (LxWxH) 52.4x 27.2x 24
Vibration PCB mounting: 69.5x 39x 24; Screw I/O: 91x 39.5x 28.5

Specifications

  • Brand
    Mean Well
  • Series
    IRM Series
  • Power Rating
    30 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    85V~305V
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    6.95 cm
  • Width
    3.9 cm
  • Height
    2.4 cm
  • Weight
    0.09 kg
