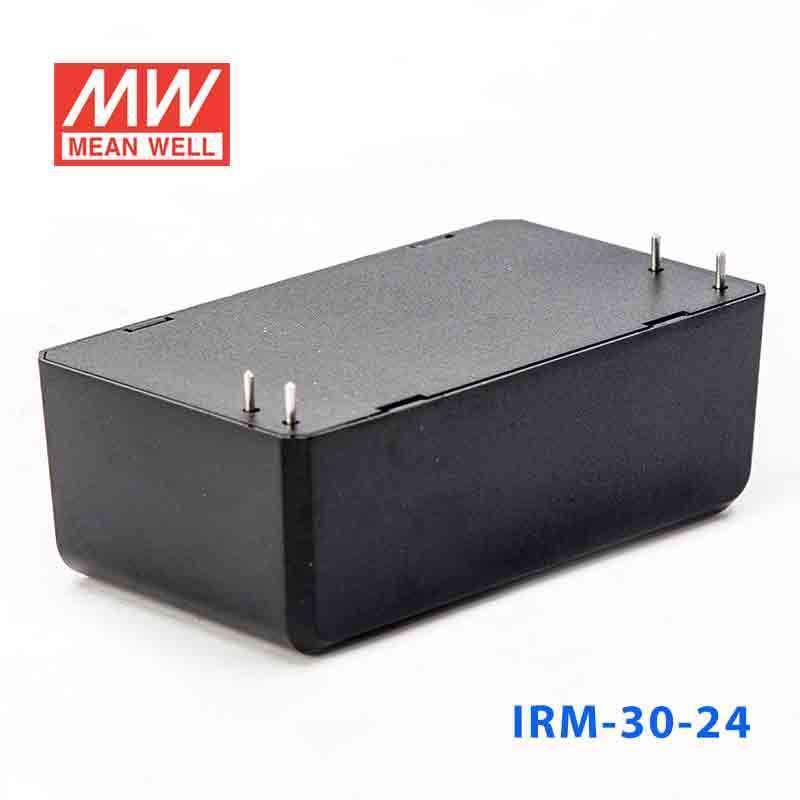

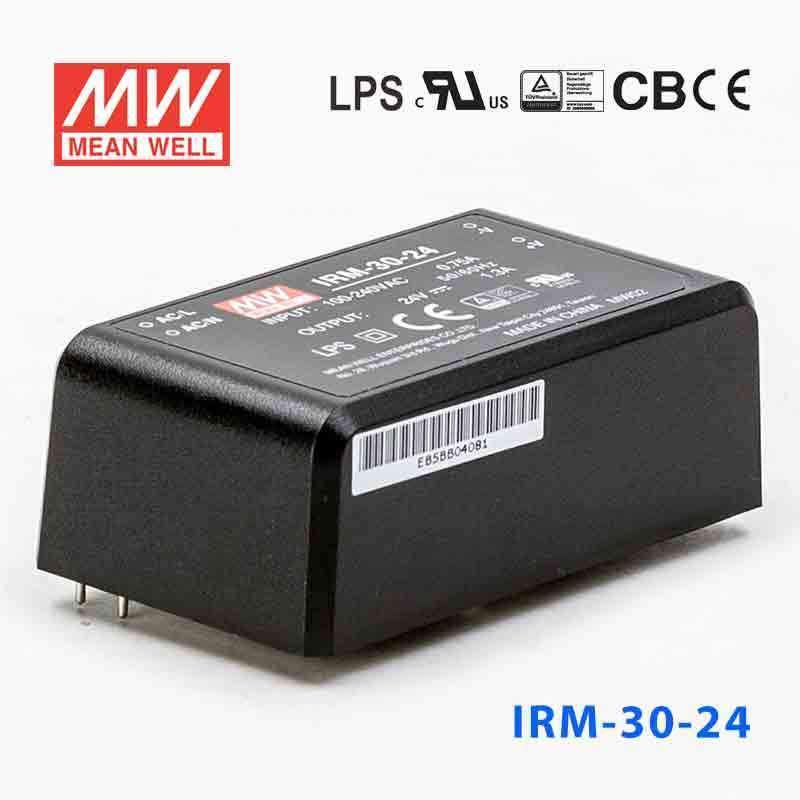

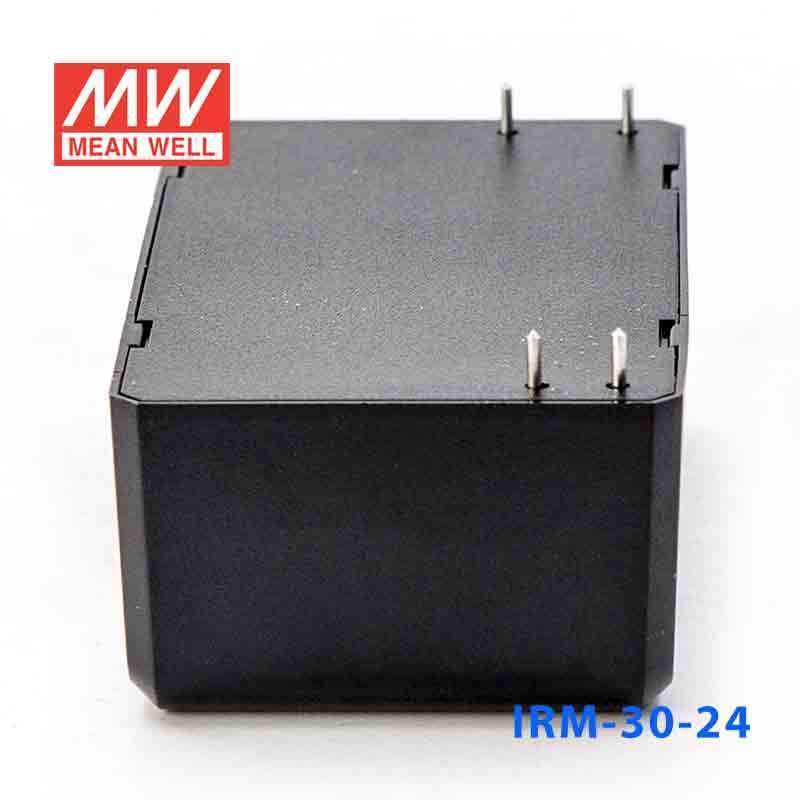

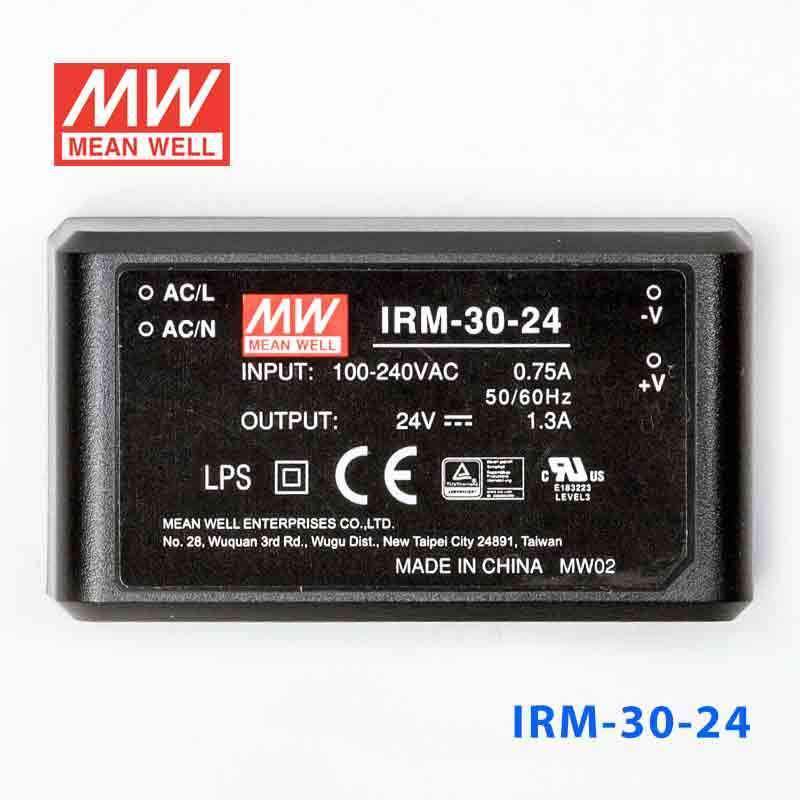

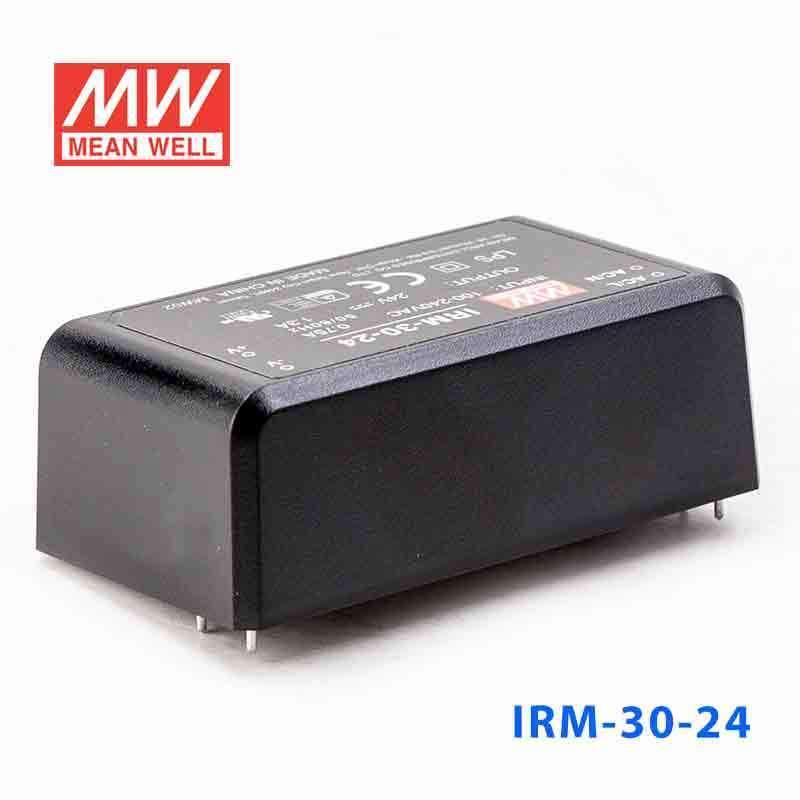

Mean Well IRM-30-24 Switching Power Supply 3W 24V 1.3A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-30 is a 30W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL6 2368 -1, TUV EN6 I/P-O/P:4KVAC 2368 , -1 EN60335-1, EAC TP TC 004 BSMI CNS14336 , -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating31.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.95 cm
-
Width3.9 cm
-
Height2.4 cm
-
Weight0.09 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-30-24 for a 24V PLC, I/O module, or industrial controller?
Yes, this model provides constant 24V output with up to 1.3A and 31.2W. That makes it suitable for small 24V PLCs, I/O modules, and compact industrial controllers that stay within those limits.
Is the IRM-30-24 suitable for 24V sensors, relays, and compact automation devices in one system?
It can be used for multiple 24V sensors, relays, and other compact automation devices if the combined load does not exceed 1.3A or 31.2W. The 85-305VAC input range is useful when equipment may be installed in different AC supply environments.
Can this model power a 24V HMI or panel control circuit in a small enclosure?
It can power a 24V HMI or panel control circuit when the load fits within the 24V, 1.3A, and 31.2W rating. Its 69.5 × 39.0 × 24.0 mm footprint supports use in compact PCB-based equipment.
Is the IRM-30-24 meant for PCB-mounted 24V embedded or industrial electronics?
Yes, this is the PCB mouting style version of the 24V IRM-30 model. It combines a constant 24V output, 1.3A current rating, and 31.2W power level in a miniature encapsulated package.
How does the IRM-30-24 compare with the other IRM-30 output versions?
In the IRM-30 range, the comparable choices are IRM-30-5 and IRM-30-5ST at 30W, 5V, 6A; IRM-30-12 and IRM-30-12ST at 30W, 12V, 2.5A; IRM-30-15 and IRM-30-15ST at 30W, 15V, 2A; IRM-30-24 and IRM-30-24ST at 31.2W, 24V, 1.3A; and IRM-30-48 and IRM-30-48ST at 30.2W, 48V, 0.63A. This model is the PCB mouting style 24V option, while IRM-30-24ST carries the same 24V, 1.3A, and 31.2W output in screw terminal style.
Can the IRM-30-24 be used in outdoor or temperature-variable industrial equipment?
The operating temperature range is -30°C to +70°C, so it can suit equipment that sees cold starts and elevated internal temperatures. No IP rating is listed, so it should be used in a protected enclosure instead of an exposed outdoor location.
