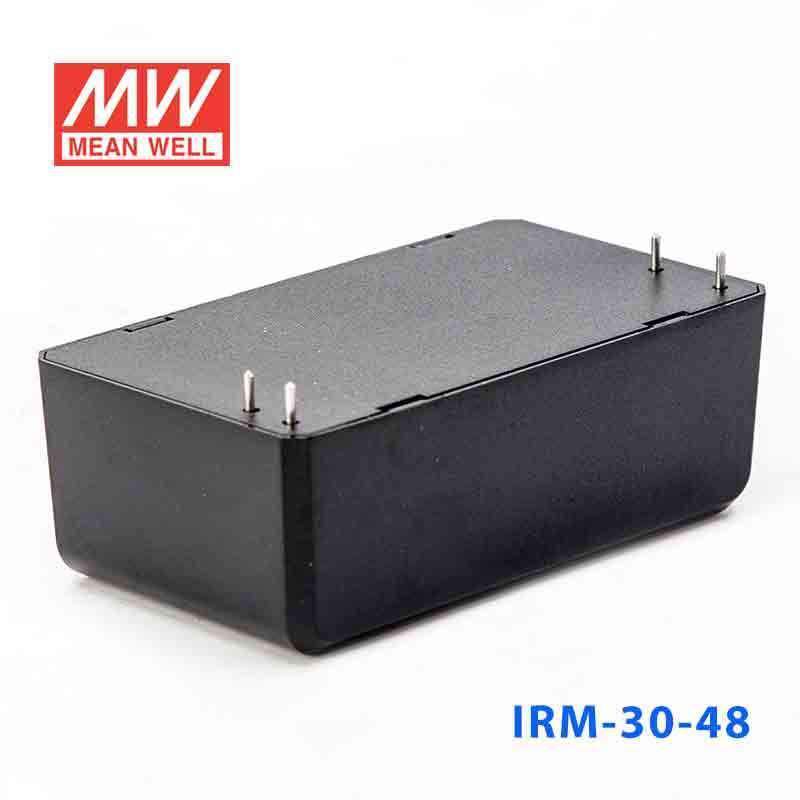

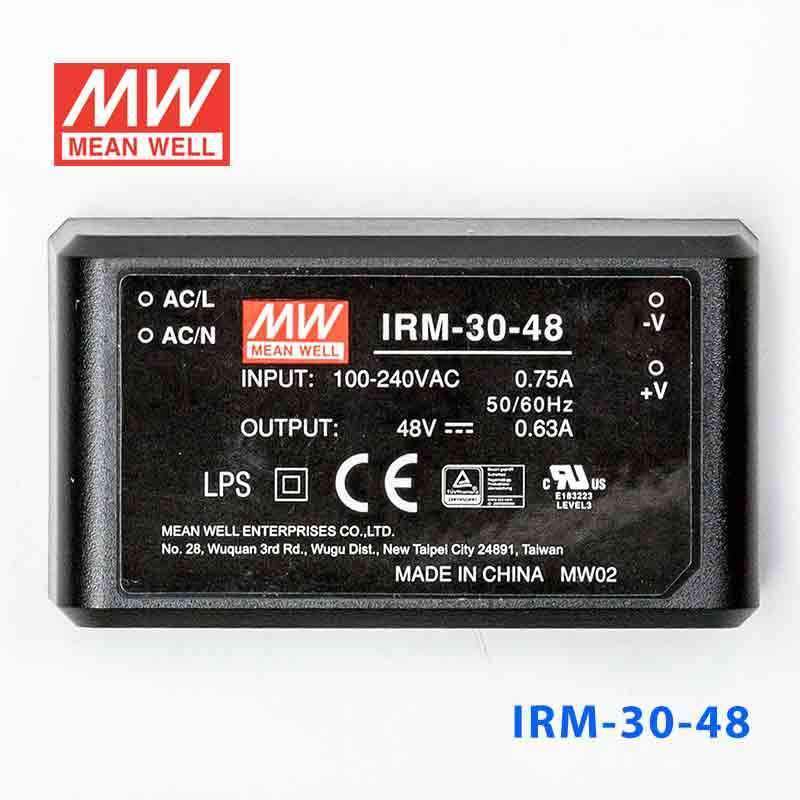

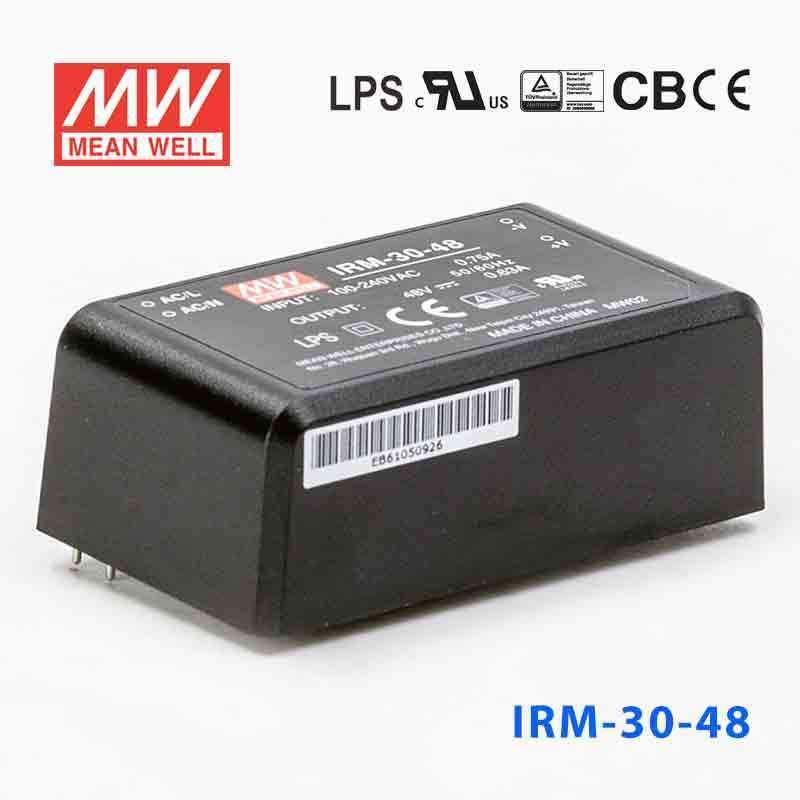

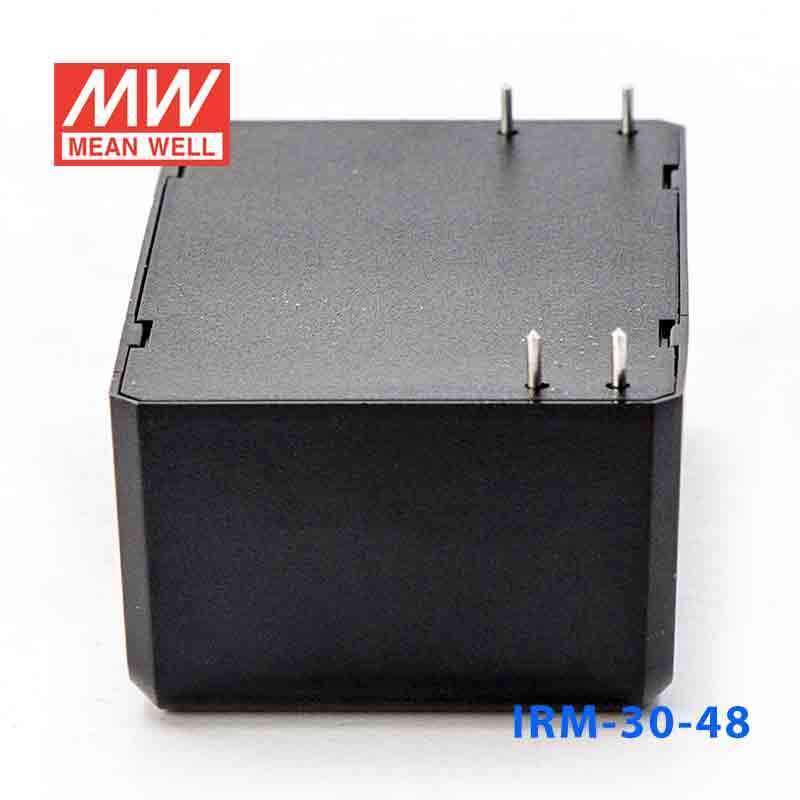

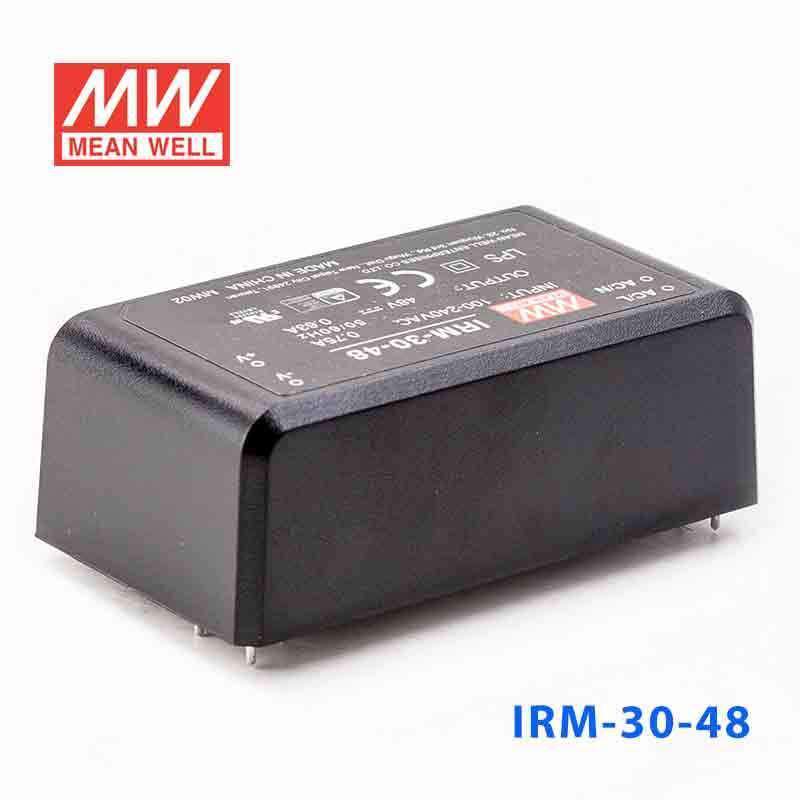

Mean Well IRM-30-48 Switching Power Supply 3W 48V 0.63A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-30 is a 30W Mean Well power converter (input range: 85~305VAC).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE IEC62368-1, UL6 2368 -1, TUV EN6 I/P-O/P:4KVAC 2368 , -1 EN60335-1, EAC TP TC 004 BSMI CNS14336 , -1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating30.2 Watt
-
Output Voltage48 Volt
-
Rated Current0.63 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.95 cm
-
Width3.9 cm
-
Height2.4 cm
-
Weight0.09 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-30-48 for a 48V industrial control circuit or relay board?
Yes, it is a constant voltage 48V supply rated for 30.2W and 0.63A, which fits low-current 48V control and interface loads. The wide 85-305VAC input also suits equipment that may be deployed across different AC supply ranges.
Is the IRM-30-48 suitable for embedded 48V electronics inside compact equipment?
It can be a fit for compact embedded designs because it uses a miniature encapsulated package measuring 69.5 × 39.0 × 24.0 mm. Its PCB mounting style also aligns with internal board-level power designs that need 48V constant voltage output up to 0.63A.
Can this 48V power supply run low-power automation or sensing equipment?
It is appropriate for 48V automation or sensing loads that stay within 30.2W and 0.63A. For higher-current 48V devices, this model would be undersized and a higher-output sibling would be the better match.
Is the IRM-30-48 appropriate for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -30°C to +70°C, but they do not list an IP rating. That makes it better suited to protected indoor equipment or enclosed assemblies rather than exposed outdoor use by itself.
How does the IRM-30-48 compare with other 48V models in the IRM series?
Within the 48V IRM family, the nearby options are IRM-30-48ST at 30.2W and 0.63A, IRM-45-48 at 45.12W and 0.94A, IRM-45-48ST at 45.12W and 0.94A, IRM-60-48 at 60W and 1.25A, IRM-60-48ST at 60W and 1.25A, IRM-90-48 at 90.2W and 1.88A, and IRM-90-48ST at 90.2W and 1.88A. The IRM-30-48 is the 30.2W, 0.63A PCB-mount option in that 48V group.
