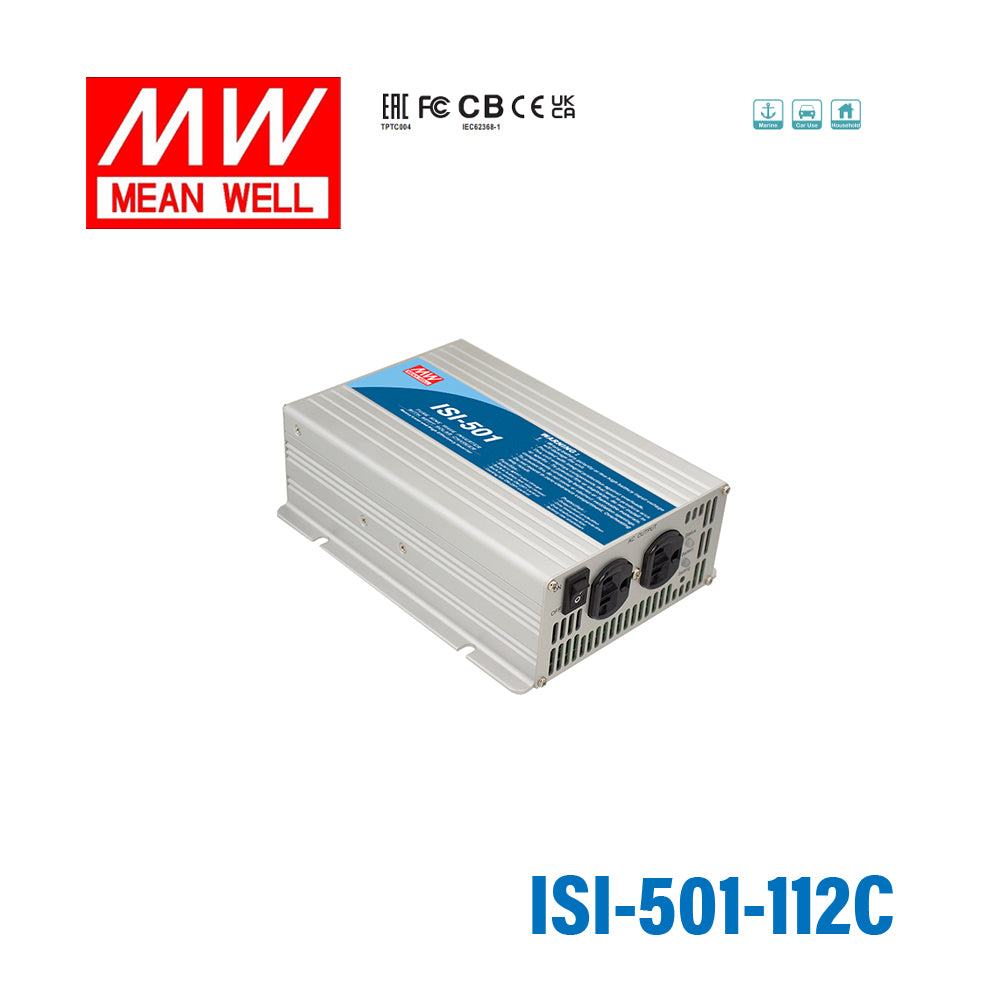

Mean Well ISI-501-112C True Sine Wave DC-AC Inverter 450W 110V out ...
Log in to see priceOverview
ISI-501-112C is the model of this series: rated power 450W, typical efficiency 85%.
ISI-501 series integrates a DC/AC True Sine Wave Inverter and a MPPT charger. This series is a high performance true sine wave DC/AC inverter which converts the DC electricity from a system consisting of batteries and solar panels. ISI-501 is not only a high frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, ISI-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC-cycles. This series incorporates a MPPT solar charger, including the constant current and constant voltage charging characteristics.
Features
- True sine wave output (THD<3%)
- High surge power up to 1000W
- High efficiency up to 88%
- High frequency design
- Thermosstatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
- Built-in 500W MPPT solar charger, MPPT efficiency:98%(Typ.)
- Built-in remote ON-OFF control
- Built-in battery low relay contact
- LED indicator for operation status and battery capacity
- 3 years warranty
Specifications
INVERTER SECTION
- RATED POWER
- 450W
- MAXIMUM OUTPUT POWER (Typ.)
- 550W for 60 sec. / surge power 1000W for 30 cycles (112, 212 models : 495W for 60 sec. / surge power 900W for 30 cycles)
- AC VOLTAGE
- Factory setting set at 110VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W
- FREQUENCYNote.9
- Factory setting set at 110VAC 60±0.1Hz 50/60Hz selectable by setting button S.W
- WAVEFORMNote.1
- True sine wave (THD<3%)
- AC REGULATION (Typ.)
- ±3%
- FRONT PANEL INDICATOR
- Fault and operation status, Charger status, Battery capacity
- BAT. VOLTAGE
- 12V
- VOLTAGE RANGENote.3,5
- 10.5 ~ 15VDC
- DC CURRENT (Typ.)Note.7
- 50A
- NO LOAD CURRENT DRAW (Typ.)
- 1.25A
- OFF MODE CURRENT DRAW (Typ.)
- ≦1mA
- EFFICIENCY (Typ.)Note.2
- 85%
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
- OUTPUT SHORT
- Shut down o/p voltage, re-power on to recover
- OVER LOAD (Typ.)
- 110% load for 60 sec. Protection type : Shut down o/p voltage, re-power on to recover
BATTERY SECTION
- CHARGER CURRENT (Typ.)
- 30A
- BATTERY TYPE
- Open & sealed Lead Acid
- FUSE
- 40A*2
- BAT. LOW ALARMNote.3
- 11.3V
- BAT. LOW SHUTDOWNNote.3
- 10.5V
- REVERSE POLARITY
- By internal fuse open
MPPT / SOLAR SECTION
- MPPT CHARGER EFFICIENCY (Typ.)
- 98%
- OPEN CIRCUIT VOLTAGE RANGE
- 35 ~ 50V
- MPPT RANGE
- 25 ~ 50V
- SOLAR INPUT CURRENT (Typ.)
- 11A
- SOLAR INPUT POWER (Typ.)
- 500W
GENERAL SECTION
- WORKING TEMP.Note.4
- -20 ~ +40℃ @ 100% load ; 60℃ @ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
- SAFETY STANDARDS
- IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
- WITHSTAND VOLTAGE
- Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
- ISOLATION RESISTANCE
- Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC part 15 class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EAC TP TC 020
- MTBF
- 565.4K hrs min. Telcordia SR-332 (Bellcore) ; 57.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 205*158*67mm (L*W*H)
- PACKING
- 2.35Kg; 6pcs/15.1Kg/1.55CUFT
Test conditions and notes9
- 1.THD is tested by rated power, linear load at 13V,26V,52V input voltage.
- 2.Efficiency is tested by 350W, linear load at 13V,26V,52V input voltage.
- 3.The tolerance of each voltage value by models is : 112/212→±0.5V ; 124/224→±1V ; 148/248→±2V.
- 4.Output derating capacity referenced by curve 1.
- 5.Input derating capacity referenced by curve 2.
- 6.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
- 7.DC current is tested by 500W, linear load at 12V,24V,48V input voltage.
- 8.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9.Type F for 60Hz only.
Technical drawings
Typical applications
- Home appliance
- Power tools
- Portable equipment
- Yacht
- Vehicle
Downloads
Catalogues1
FAQ
What are the main output and input ratings of the Mean Well ISI-501-112C?
This model is a 450W true sine wave DC-AC inverter with 110V AC output and 12V DC input. Its input voltage range is 10.5 to 15VDC, making it suitable for 12V battery-based systems. It also supports surge power up to 900W.
Does the ISI-501-112C include a solar charger?
Yes. The ISI-501-112C includes a built-in 500W MPPT solar charger. Mean Well rates the MPPT efficiency at 98% typical, which helps improve solar charging performance in systems using this inverter.
What kind of AC output does this inverter provide, and why does that matter?
The ISI-501-112C provides true sine wave output with total harmonic distortion below 3%. That makes it a better fit for applications that benefit from cleaner AC power than a rougher waveform. For buyers comparing inverter types, this is one of the key differentiators of this model.
What battery types is the ISI-501-112C designed to work with?
This model is specified for open and sealed lead acid batteries. It also includes battery-focused protections such as low battery alarm, low battery shutdown, and over-voltage protection. Those features help protect the connected battery system during operation.
What protection features are built into the ISI-501-112C?
The ISI-501-112C includes protection for low battery alarm, low battery shutdown, over voltage, over temperature, output short, input polarity reverse, and overload. For overload, it can handle 110% load for 60 seconds before shutting down output. Recovery is done by re-powering the unit after a protection event.
Is the ISI-501-112C suitable for demanding environments?
It is rated for operation from -20°C to +40°C at 100% load, and up to 60°C at 50% load. The unit uses a built-in cooling fan to help manage heat. For buyers evaluating environmental fit, those published operating limits are the key reference points for this model.
What physical size and warranty does the ISI-501-112C come with?
The ISI-501-112C measures 205 x 158 x 67 mm and weighs 2.35 kg. The datasheet does not state a warranty period, so confirm warranty terms at purchase. Those details are useful when comparing enclosure space across inverter options.
