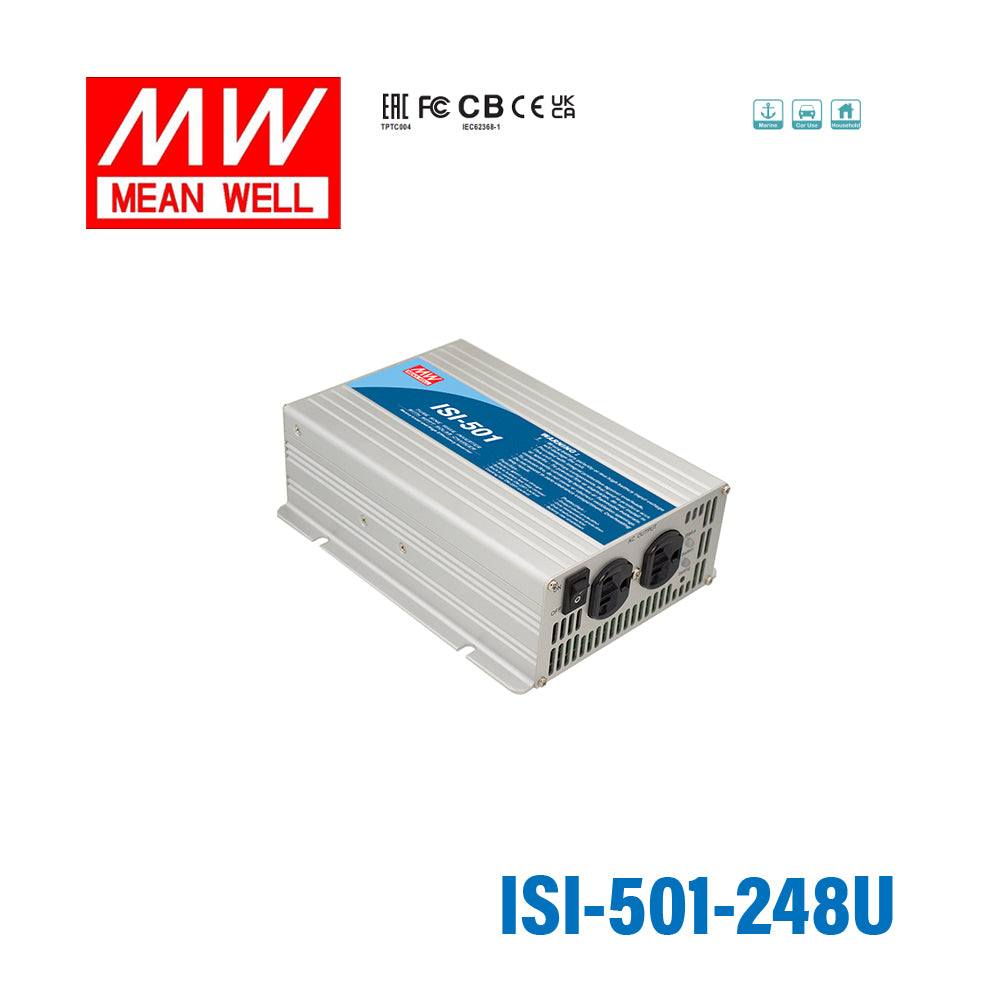

Mean Well ISI-501-248U True Sine Wave DC-AC Inverter 500W 110V out ...
Log in to see priceOverview
ISI-501-248U is the model of this series: rated power 500W, typical efficiency 88%.
ISI-501 series integrates a DC/AC True Sine Wave Inverter and a MPPT charger. This series is a high performance true sine wave DC/AC inverter which converts the DC electricity from a system consisting of batteries and solar panels. ISI-501 is not only a high frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, ISI-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC-cycles. This series incorporates a MPPT solar charger, including the constant current and constant voltage charging characteristics.
Features
- True sine wave output (THD<3%)
- High surge power up to 1000W
- High efficiency up to 88%
- High frequency design
- Thermosstatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
- Built-in 500W MPPT solar charger, MPPT efficiency:98%(Typ.)
- Built-in remote ON-OFF control
- Built-in battery low relay contact
- LED indicator for operation status and battery capacity
- 3 years warranty
Specifications
INVERTER SECTION
- RATED POWER
- 500W
- MAXIMUM OUTPUT POWER (Typ.)
- 550W for 60 sec. / surge power 1000W for 30 cycles (112, 212 models : 495W for 60 sec. / surge power 900W for 30 cycles)
- AC VOLTAGE
- Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
- FREQUENCYNote.9
- Factory setting set at 230VAC 50±0.1Hz 50/60Hz selectable by setting button S.W
- WAVEFORMNote.1
- True sine wave (THD<3%)
- AC REGULATION (Typ.)
- ±3%
- FRONT PANEL INDICATOR
- Fault and operation status, Charger status, Battery capacity
- BAT. VOLTAGE
- 48V
- VOLTAGE RANGENote.3,5
- 42 ~ 60VDC
- DC CURRENT (Typ.)Note.7
- 15A
- NO LOAD CURRENT DRAW (Typ.)
- 0.32A
- OFF MODE CURRENT DRAW (Typ.)
- ≦1mA
- EFFICIENCY (Typ.)Note.2
- 88%
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
- OUTPUT SHORT
- Shut down o/p voltage, re-power on to recover
- OVER LOAD (Typ.)
- 110% load for 60 sec. Protection type : Shut down o/p voltage, re-power on to recover
BATTERY SECTION
- CHARGER CURRENT (Typ.)
- 8.5A
- BATTERY TYPE
- Open & sealed Lead Acid
- FUSE
- 20A*2
- BAT. LOW ALARMNote.3
- 45V
- BAT. LOW SHUTDOWNNote.3
- 42V
- REVERSE POLARITY
- By internal fuse open
MPPT / SOLAR SECTION
- MPPT CHARGER EFFICIENCY (Typ.)
- 98%
- OPEN CIRCUIT VOLTAGE RANGE
- 90 ~ 160V
- MPPT RANGE
- 70 ~ 160V
- SOLAR INPUT CURRENT (Typ.)
- 4.5A
- SOLAR INPUT POWER (Typ.)
- 500W
GENERAL SECTION
- WORKING TEMP.Note.4
- -20 ~ +40℃ @ 100% load ; 60℃ @ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
- SAFETY STANDARDS
- IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
- WITHSTAND VOLTAGE
- Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
- ISOLATION RESISTANCE
- Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020
- MTBF
- 565.4K hrs min. Telcordia SR-332 (Bellcore) ; 57.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 205*158*67mm (L*W*H)
- PACKING
- 2.35Kg; 6pcs/15.1Kg/1.55CUFT
Test conditions and notes9
- 1.THD is tested by rated power, linear load at 13V,26V,52V input voltage.
- 2.Efficiency is tested by 350W, linear load at 13V,26V,52V input voltage.
- 3.The tolerance of each voltage value by models is : 112/212→±0.5V ; 124/224→±1V ; 148/248→±2V.
- 4.Output derating capacity referenced by curve 1.
- 5.Input derating capacity referenced by curve 2.
- 6.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
- 7.DC current is tested by 500W, linear load at 12V,24V,48V input voltage.
- 8.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9.Type F for 60Hz only.
Technical drawings
Typical applications
- Home appliance
- Power tools
- Portable equipment
- Yacht
- Vehicle
Downloads
Catalogues1
FAQ
What is the Mean Well ISI-501-248U designed for?
This model is a 500W true sine wave DC-AC inverter for applications that need clean AC power from a DC battery-based system. It also includes a built-in MPPT solar charger, which makes it suitable for mobile, off-grid, backup, and industrial power setups that use lead-acid batteries.
Does this inverter produce true sine wave output?
Yes. The ISI-501-248U is specified with true sine wave output and total harmonic distortion below 3%. That makes it a better fit than modified sine wave designs for loads that are sensitive to output waveform quality.
Can this unit handle startup surges above its 500W rating?
Yes. This inverter is rated for 500W continuous output and supports surge power up to 1000W. It is also specified to tolerate 110% load for 60 seconds before protection shuts the output down.
What kind of battery system is this model compatible with?
The provided specifications list the supported battery type as open and sealed lead-acid. The stated DC input range is 42 to 60VDC, so it should be matched to a battery system that falls within that operating window.
Does the ISI-501-248U include a solar charger?
Yes. This model has a built-in 500W MPPT solar charger, and the provided specifications list typical MPPT efficiency at 98%. That can help simplify system design when solar charging and inverter functions are needed in one unit.
What protection features are built into this inverter?
The ISI-501-248U includes battery low alarm, battery low shutdown, over-voltage, over-temperature, output short, input reverse polarity, and overload protection. For overload, over-temperature, and output short conditions, the unit is specified to shut down output and recover after re-powering.
Is this inverter suitable for demanding environments?
It is rated for operation from -20°C to +40°C at 100% load, with operation up to 60°C at 50% load. The unit also uses a built-in cooling fan, which helps support thermal management in tougher operating conditions.
What are the physical size and warranty for this model?
The provided dimensions are 205 x 158 x 67 mm, and the listed weight is 2.35 kg. The datasheet does not state a warranty period, so confirm warranty terms at purchase.
