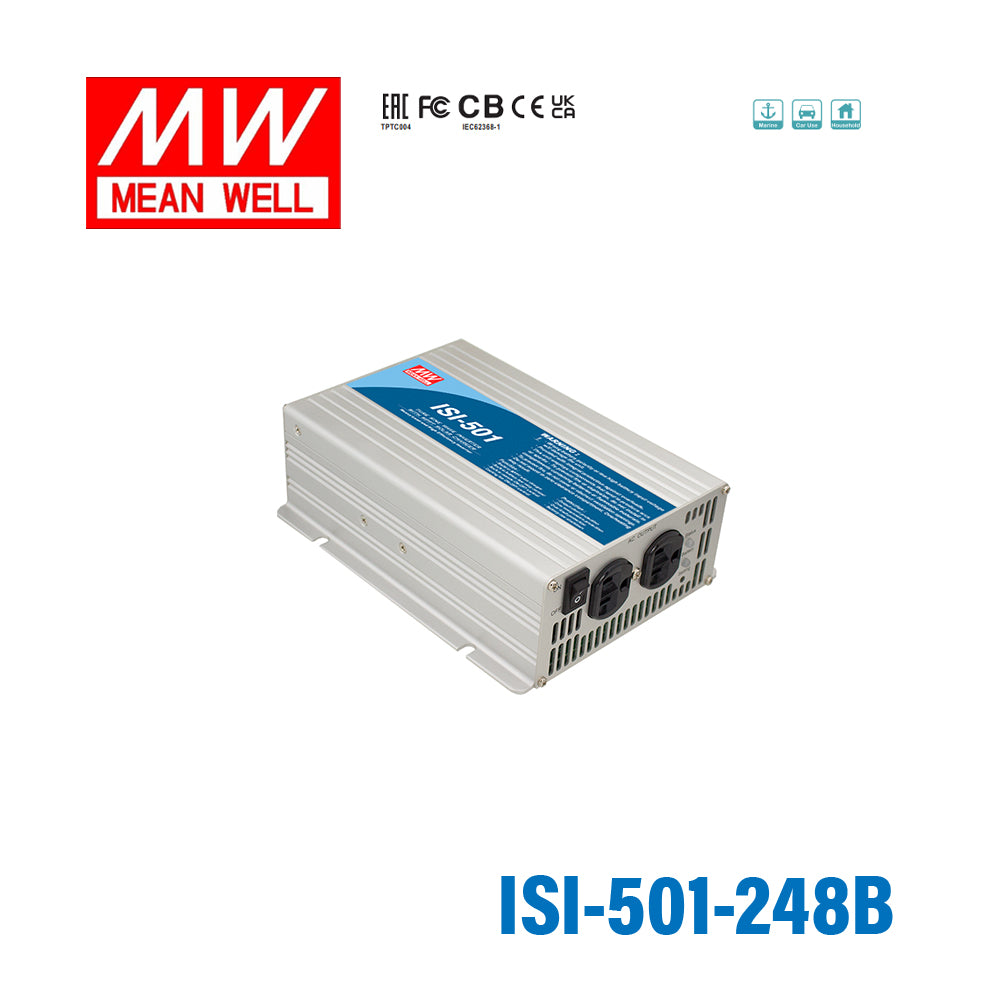

Mean Well ISI-501-248B True Sine Wave DC-AC Inverter 500W 110V out ...
Please Login for Pricing
Description
Description
The ISI-501 is a 500W Mean Well power converter (input range: 35~50V).
Key Features
- ✓ Input voltage range: 35~50V
- ✓ Protections: Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: IEC62368-1 CB, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesISI Series
-
Power Rating500 Watt
-
Output Voltage230 Volt
-
Input Voltage42V~60V
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~40°C
-
Warranty3 Year
-
Length20.5 cm
-
Width15.8 cm
-
Height6.7 cm
-
Weight2.35 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the main use case for the Mean Well ISI-501-248B inverter?
The ISI-501-248B is designed for converting DC battery power into true sine wave AC power in mobile, off-grid, and solar-supported systems. Its built-in 500W MPPT solar charger also makes it suitable for applications where battery charging and AC output are needed in one unit.
What are the key electrical specifications of the ISI-501-248B?
This model is rated for 500W continuous output and supports surge power up to 1000W. It accepts a 42 to 60VDC input range, delivers true sine wave AC output with THD below 3%, and reaches efficiency up to 88%.
How does the built-in solar charger benefit this model?
The ISI-501-248B includes an integrated 500W MPPT solar charger, so it can support battery charging in solar-based power systems without requiring a separate charger. The MPPT section is rated at 98% typical efficiency, which helps improve solar energy harvesting performance.
What battery types is the ISI-501-248B compatible with?
This inverter is specified for open and sealed lead-acid batteries. That makes it a fit for systems already built around those battery chemistries rather than models intended for unspecified battery types.
What protection features are included in the ISI-501-248B?
This model includes battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, and overload protection. It also has a thermostatically controlled cooling fan, built-in remote ON-OFF control, and a battery low relay contact for system monitoring.
Is the ISI-501-248B suitable for demanding operating environments?
It is built for operation from -20°C to +40°C at full load, with derating up to 60°C at 50% load. The unit also carries IEC62368-1 CB and EAC TP TC 004 approvals and includes a 3-year warranty, which supports use in professional and industrial environments.
