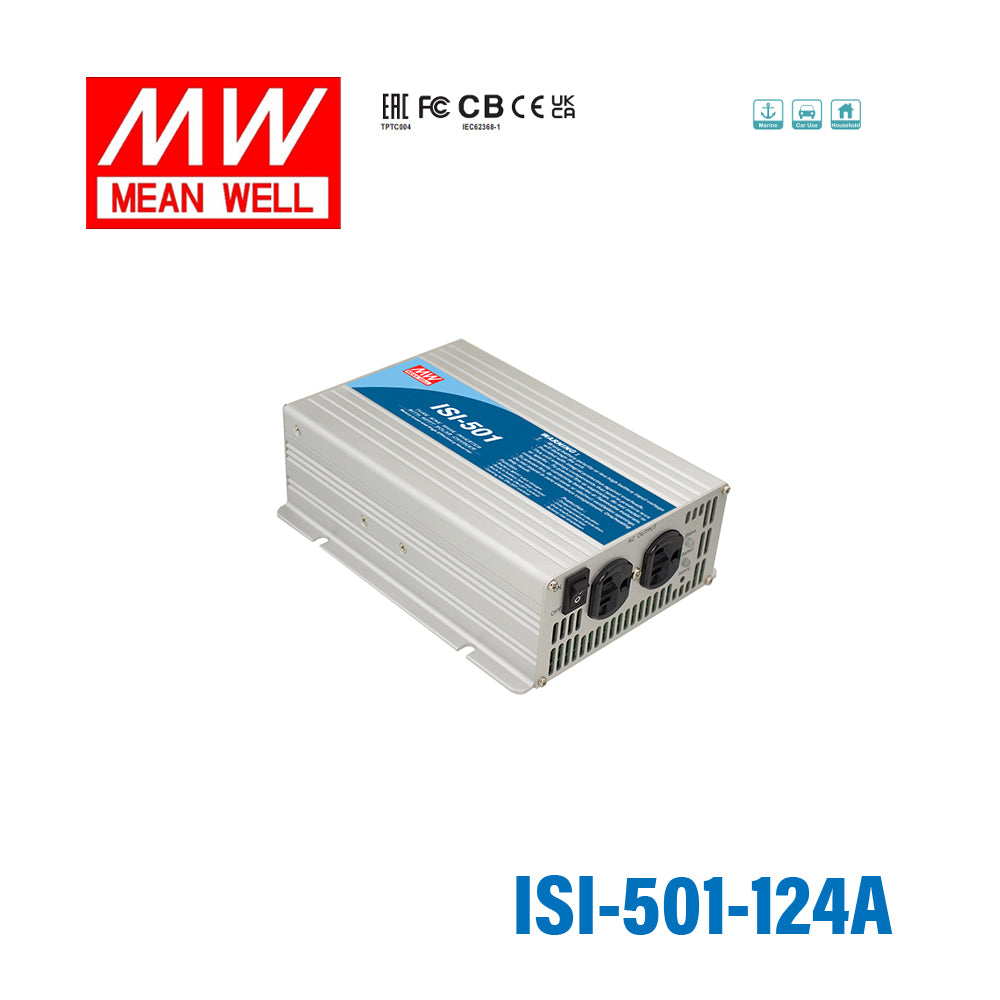

Mean Well ISI-501-124A True Sine Wave DC-AC Inverter 500W 110V out ...
Log in to see priceOverview
ISI-501-124A is the model of this series: rated power 500W, typical efficiency 87%.
ISI-501 series integrates a DC/AC True Sine Wave Inverter and a MPPT charger. This series is a high performance true sine wave DC/AC inverter which converts the DC electricity from a system consisting of batteries and solar panels. ISI-501 is not only a high frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, ISI-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC-cycles. This series incorporates a MPPT solar charger, including the constant current and constant voltage charging characteristics.
Features
- True sine wave output (THD<3%)
- High surge power up to 1000W
- High efficiency up to 88%
- High frequency design
- Thermosstatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
- Built-in 500W MPPT solar charger, MPPT efficiency:98%(Typ.)
- Built-in remote ON-OFF control
- Built-in battery low relay contact
- LED indicator for operation status and battery capacity
- 3 years warranty
Specifications
INVERTER SECTION
- RATED POWER
- 500W
- MAXIMUM OUTPUT POWER (Typ.)
- 550W for 60 sec. / surge power 1000W for 30 cycles (112, 212 models : 495W for 60 sec. / surge power 900W for 30 cycles)
- AC VOLTAGE
- Factory setting set at 110VAC 100 / 110 / 115 / 120VAC selectable by setting button S.W
- FREQUENCYNote.9
- Factory setting set at 110VAC 60±0.1Hz 50/60Hz selectable by setting button S.W
- WAVEFORMNote.1
- True sine wave (THD<3%)
- AC REGULATION (Typ.)
- ±3%
- FRONT PANEL INDICATOR
- Fault and operation status, Charger status, Battery capacity
- BAT. VOLTAGE
- 24V
- VOLTAGE RANGENote.3,5
- 21 ~ 30VDC
- DC CURRENT (Typ.)Note.7
- 30A
- NO LOAD CURRENT DRAW (Typ.)
- 0.63A
- OFF MODE CURRENT DRAW (Typ.)
- ≦1mA
- EFFICIENCY (Typ.)Note.2
- 87%
- OVER TEMPERATURE
- Shut down o/p voltage, re-power on to recover
- OUTPUT SHORT
- Shut down o/p voltage, re-power on to recover
- OVER LOAD (Typ.)
- 110% load for 60 sec. Protection type : Shut down o/p voltage, re-power on to recover
BATTERY SECTION
- CHARGER CURRENT (Typ.)
- 17A
- BATTERY TYPE
- Open & sealed Lead Acid
- FUSE
- 40A*1
- BAT. LOW ALARMNote.3
- 22.5V
- BAT. LOW SHUTDOWNNote.3
- 21V
- REVERSE POLARITY
- By internal fuse open
MPPT / SOLAR SECTION
- MPPT CHARGER EFFICIENCY (Typ.)
- 98%
- OPEN CIRCUIT VOLTAGE RANGE
- 45 ~ 90V
- MPPT RANGE
- 35 ~ 90V
- SOLAR INPUT CURRENT (Typ.)
- 7A
- SOLAR INPUT POWER (Typ.)
- 500W
GENERAL SECTION
- WORKING TEMP.Note.4
- -20 ~ +40℃ @ 100% load ; 60℃ @ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
- SAFETY STANDARDS
- IEC62368-1 CB, EAC TP TC 004 approved; Meet BS EN/EN62368-1
- WITHSTAND VOLTAGE
- Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
- ISOLATION RESISTANCE
- Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to FCC part 15 class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EAC TP TC 020
- MTBF
- 565.4K hrs min. Telcordia SR-332 (Bellcore) ; 57.8K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 205*158*67mm (L*W*H)
- PACKING
- 2.35Kg; 6pcs/15.1Kg/1.55CUFT
Test conditions and notes9
- 1.THD is tested by rated power, linear load at 13V,26V,52V input voltage.
- 2.Efficiency is tested by 350W, linear load at 13V,26V,52V input voltage.
- 3.The tolerance of each voltage value by models is : 112/212→±0.5V ; 124/224→±1V ; 148/248→±2V.
- 4.Output derating capacity referenced by curve 1.
- 5.Input derating capacity referenced by curve 2.
- 6.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
- 7.DC current is tested by 500W, linear load at 12V,24V,48V input voltage.
- 8.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9.Type F for 60Hz only.
Technical drawings
Typical applications
- Home appliance
- Power tools
- Portable equipment
- Yacht
- Vehicle
Downloads
Catalogues1
FAQ
What is the Mean Well ISI-501-124A designed for?
The ISI-501-124A is a 500W true sine wave DC-AC inverter for applications that need 110V AC output from a 24V battery-based power system. It also includes a built-in 500W MPPT solar charger, which makes it suited for mobile, off-grid, and backup power use cases where solar charging is part of the system.
Does this inverter produce true sine wave output?
Yes. The ISI-501-124A provides true sine wave output with total harmonic distortion below 3%. That makes it a better fit for sensitive electronics and equipment that perform best on cleaner AC power.
What input and output voltage does this model support?
This model is a 24V-class inverter with an input voltage range of 21 to 30VDC and a 110V AC output. Buyers should confirm that their power system matches this voltage range before selecting this unit.
How much power can the ISI-501-124A deliver?
The rated output power is 500W. It also supports surge power up to 1000W, which helps with short startup demands from compatible loads, but the continuous load should remain within the 500W rating.
What battery types is this inverter compatible with?
The ISI-501-124A is specified for open and sealed lead-acid batteries. If your system uses a different battery chemistry, you should verify compatibility before purchase because the listed battery support is limited to those lead-acid types.
What protections are built into this inverter?
This model includes battery low alarm, battery low shutdown, over voltage, over temperature, output short, input polarity reverse, and overload protection. For overload, it can handle 110% load for 60 seconds, and protection recovery requires re-powering the unit.
Is this model suitable for demanding temperature conditions?
It is rated for operation from -20°C to +40°C at 100% load, and up to 60°C at 50% load. That gives it flexibility for many industrial, mobile, and enclosed equipment environments, provided the load level stays within the stated limits.
What makes this model different from a basic 500W inverter?
The ISI-501-124A combines a 500W true sine wave inverter with a built-in 500W MPPT solar charger, rather than serving as only a standalone inverter. It also includes features such as remote ON-OFF control, battery low relay contact, LED status indication, and 87% typical efficiency.
