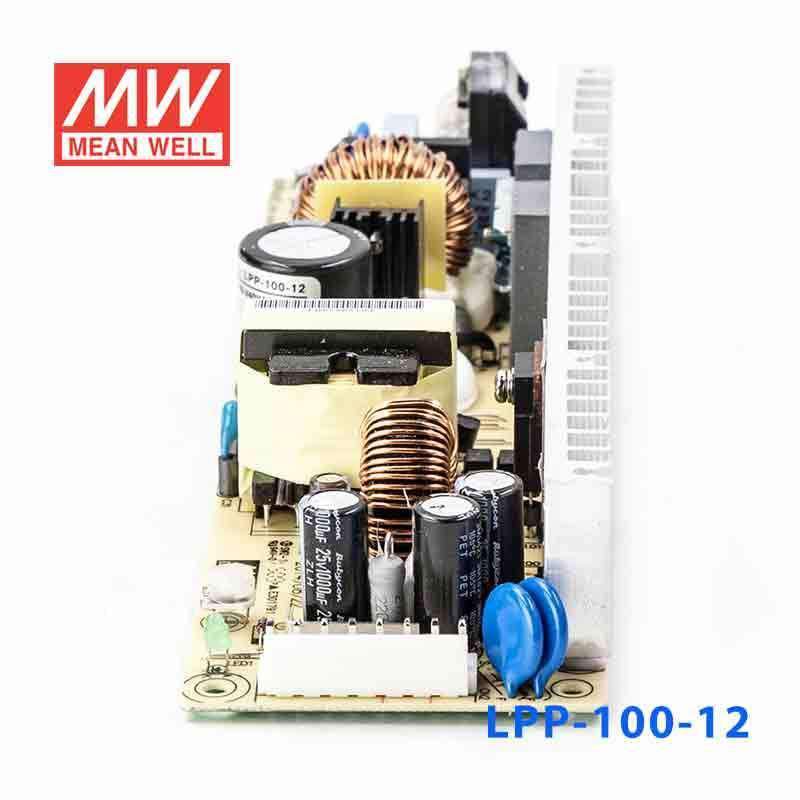

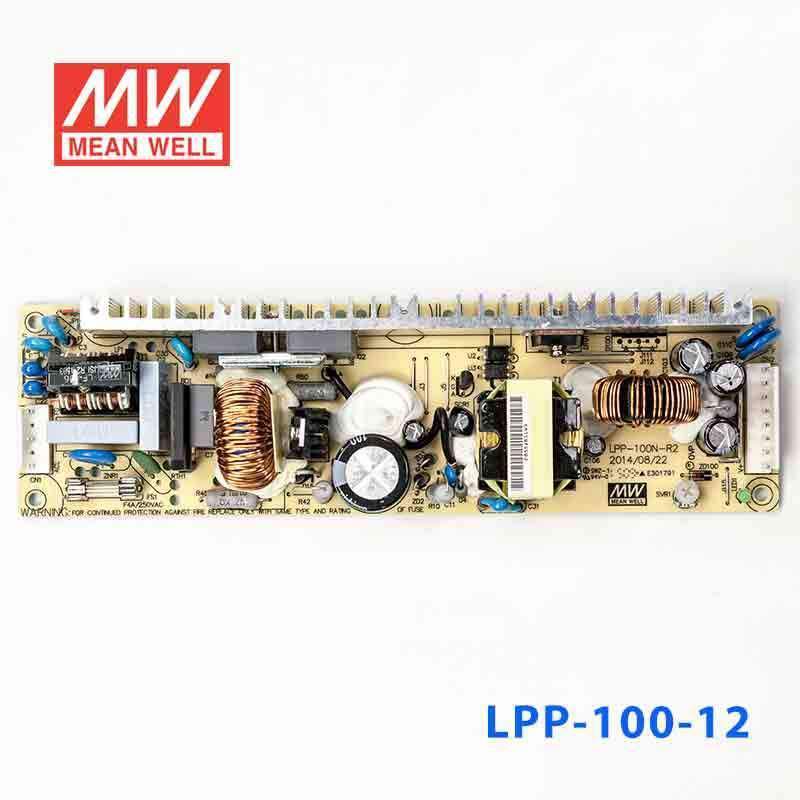

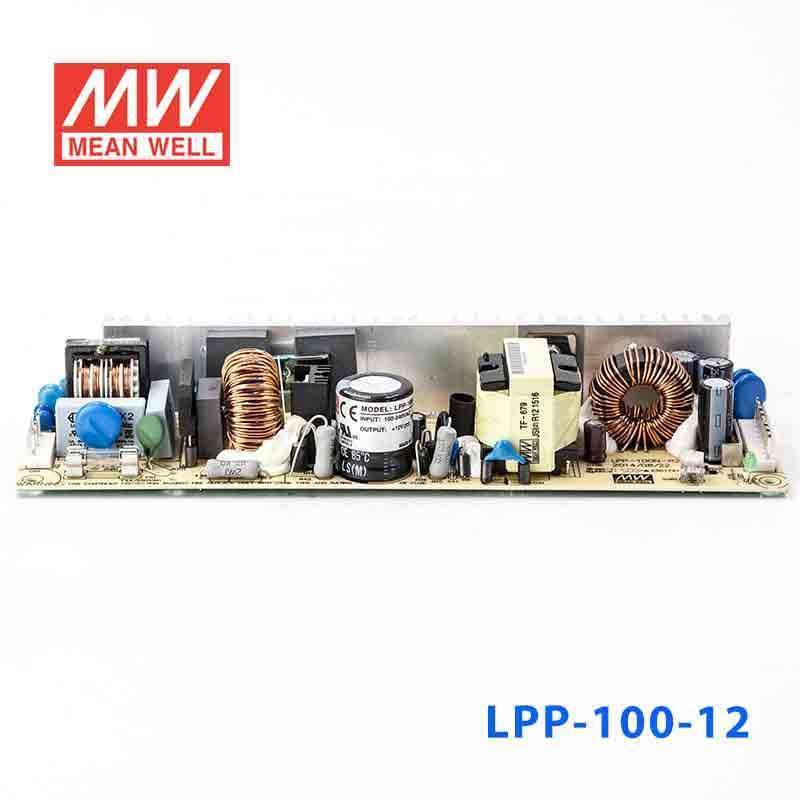

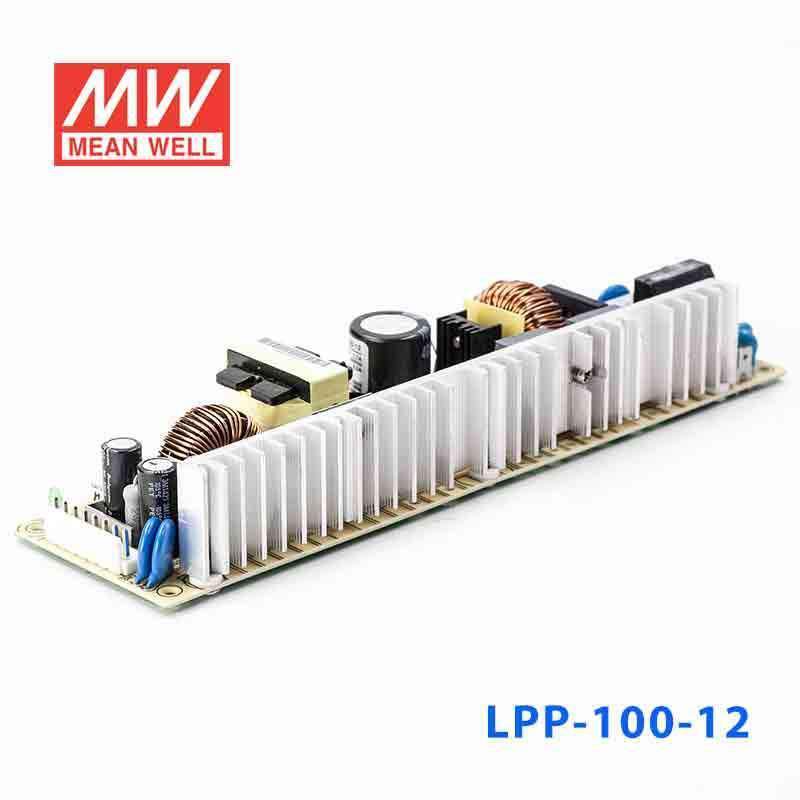

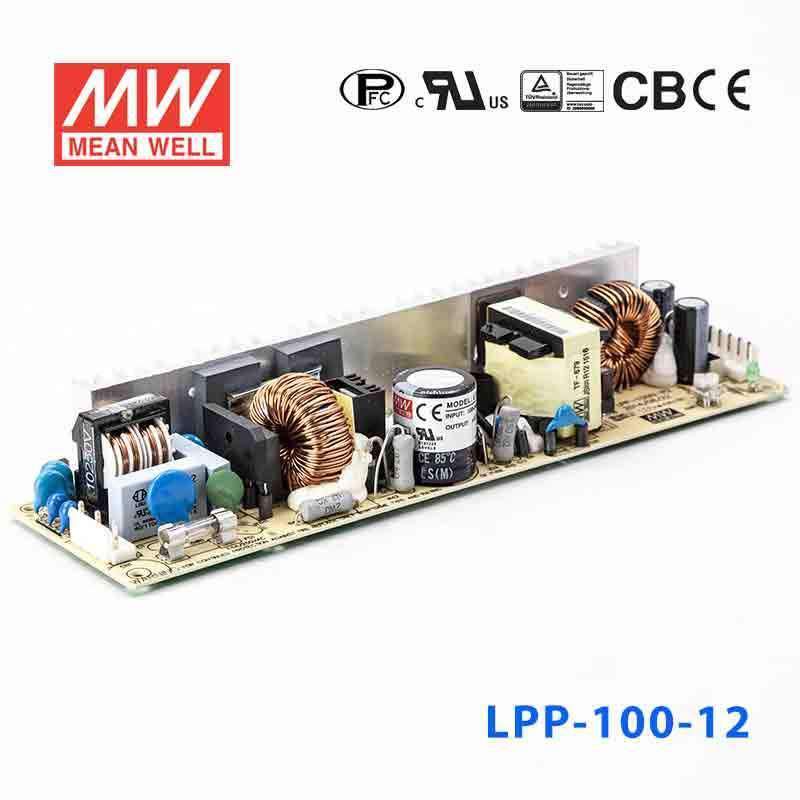

Mean Well LPP-100-12 Power Supply 102W 12V

small and compact, built-in active PFC function

SKU:

LPP-100-12

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	30A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	5P+8P/3.96mm pitch, JST B5P / B8P-VH
Dimension (LxWxH)	222x62x33.6
Packing	24pcs / 13.9kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

102 Watt
Output Voltage

12 Volt
Rated Current

8.5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

22.2 cm
Width

6.2 cm
Height

3.36 cm
Weight

0.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-100-12 for a 12V industrial control panel or automation cabinet?

It can fit 12V control and automation loads that need constant voltage and stay within the unit's 102W and 8.5A output limits. The wide 85-264VAC input also helps in facilities that may be fed from different AC mains ranges. Its compact 222.0 x 62.0 x 33.6 mm housing is useful where panel space is limited.

Is the LPP-100-12 suitable for embedded 12V electronics or test fixtures?

This model is intended for constant-voltage 12V loads, so it suits embedded electronics, bench fixtures, and similar systems that require a regulated 12V supply. Output capacity is capped at 102W or 8.5A, so the total connected load needs to remain within those figures. The small form factor and 0.51 kg weight can also help in compact assemblies.

Can the LPP-100-12 power a 12V HMI, sensor, or small PLC-related load group?

It is a reasonable match for 12V industrial electronics where the combined demand does not exceed 102W and 8.5A. Because it is a constant-voltage supply, it is better suited to equipment designed for a fixed 12V DC source than to loads requiring constant-current drive. Buyers should size the connected 12V load against both the watt and amp limits.

How does the LPP-100-12 compare with other LPP-100 and LPP-150 models in this family?

Within the LPP-100 range, sibling outputs are 3.3V 20A 66W, 5V 20A 100W, 7.5V 13.5A 101.25W, 12V 8.5A 102W, 13.5V 7.5A 101.25W, 15V 6.7A 100.5W, 24V 4.2A 100.8W, 27V 3.8A 102.6W, and 48V 2.1A 100.8W. Higher-power LPP-150 siblings listed are 3.3V 30A 99W, 5V 30A 150W, 7.5V 20A 150W, 12V 12.5A 150W, 13.5V 11.2A 151.2W, 15V 10A 150W, 24V 6.3A 151.2W, 27V 5.6A 151.2W, and 48V 3.2A 153.6W. An LPP-150-24-OB sibling is also listed, but no watt, voltage, or current specs were provided for that variant here.

Is the LPP-100-12 suitable for outdoor or harsh-environment use?

The provided specs show an operating temperature range of -10C to +60C, so that is the stated thermal envelope. No IP rating is listed here, which means the specs provided do not establish dust or water protection for outdoor exposure. Based on this information alone, it is better treated as a supply that needs an appropriately protected enclosure if the environment is wet or dirty.

Model	Power	Voltage	Current
Mean Well LPP-100-7.5 Power Supply 101W 7.5V	101.25W	7.5V	13.5A	View
Mean Well LPP-100-5 Power Supply 100W 5V	100W	5V	20A	View
Mean Well LPP-100-48 Power Supply 100W 48V	100.8W	48V	2.1A	View
Mean Well LPP-100-3.3 Power Supply 66W 3.3V	66W	3.3V	20A	View
Mean Well LPP-100-27 Power Supply 102W 27V	102.6W	27V	3.8A	View
Mean Well LPP-100-24 Power Supply 100W 24V	100.8W	24V	4.2A	View
Mean Well LPP-100-15 Power Supply 100W 15V	100.5W	15V	6.7A	View
Mean Well LPP-100-13.5 Power Supply 101W 13.5V	101.25W	13.5V	7.5A	View
