Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

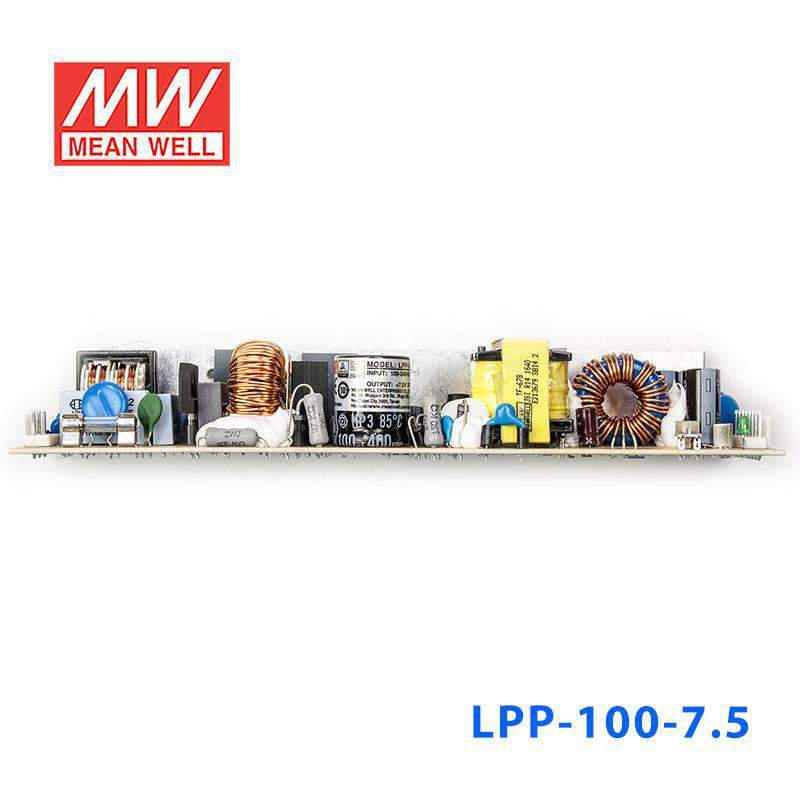

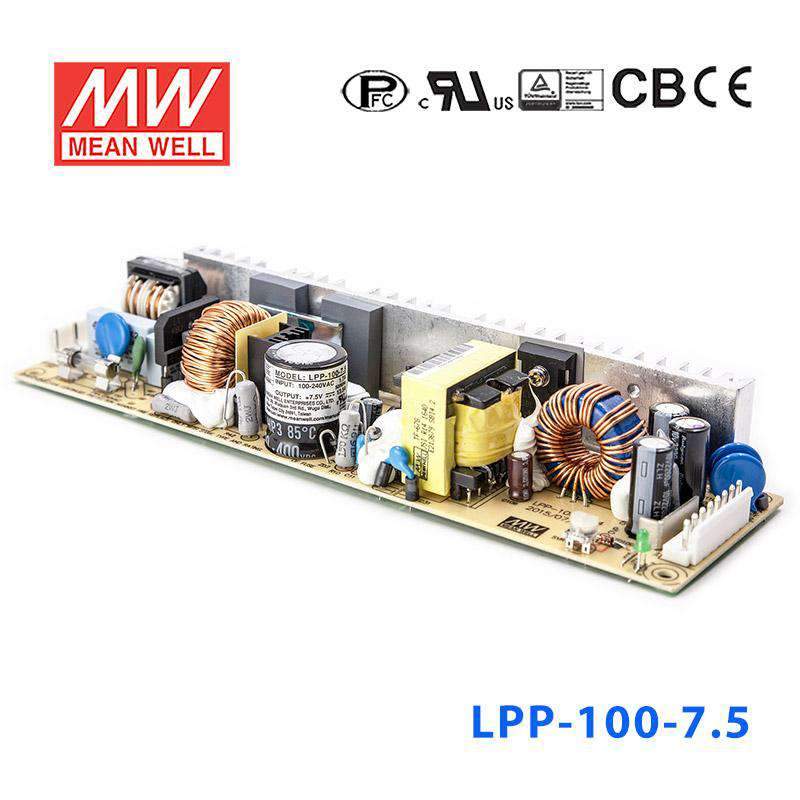

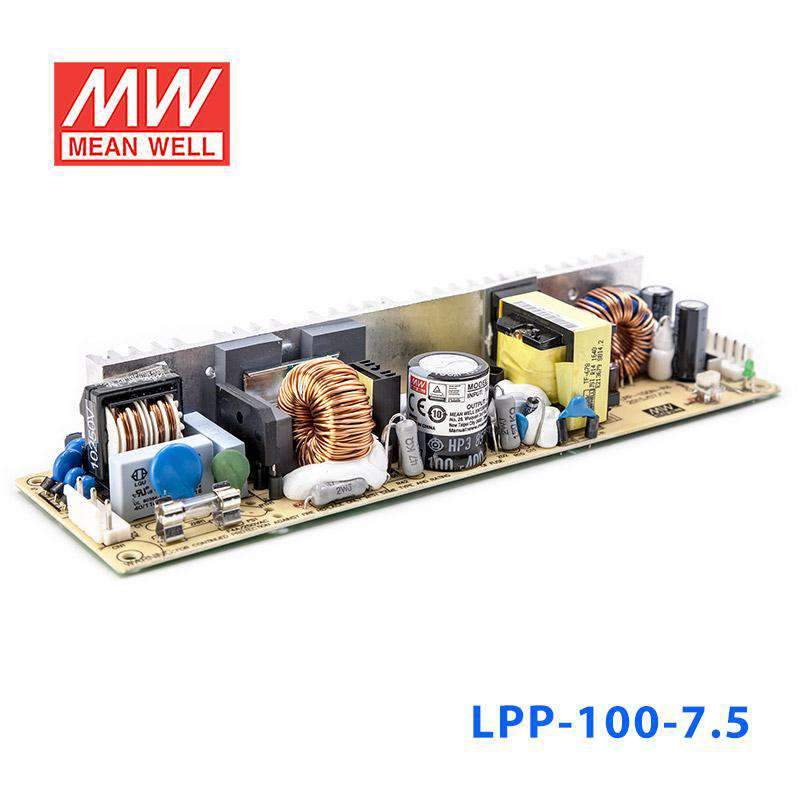

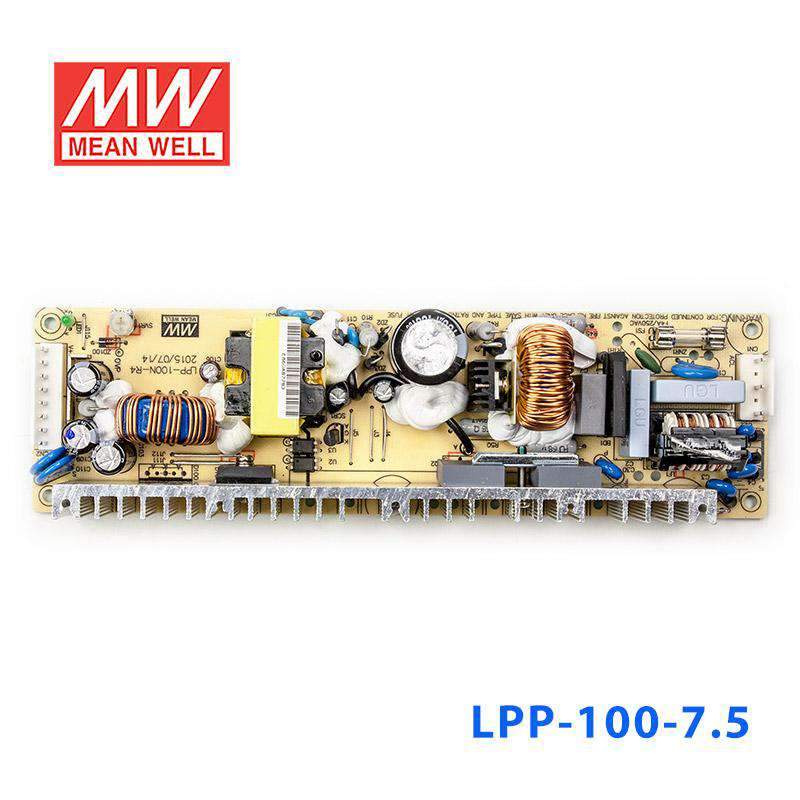

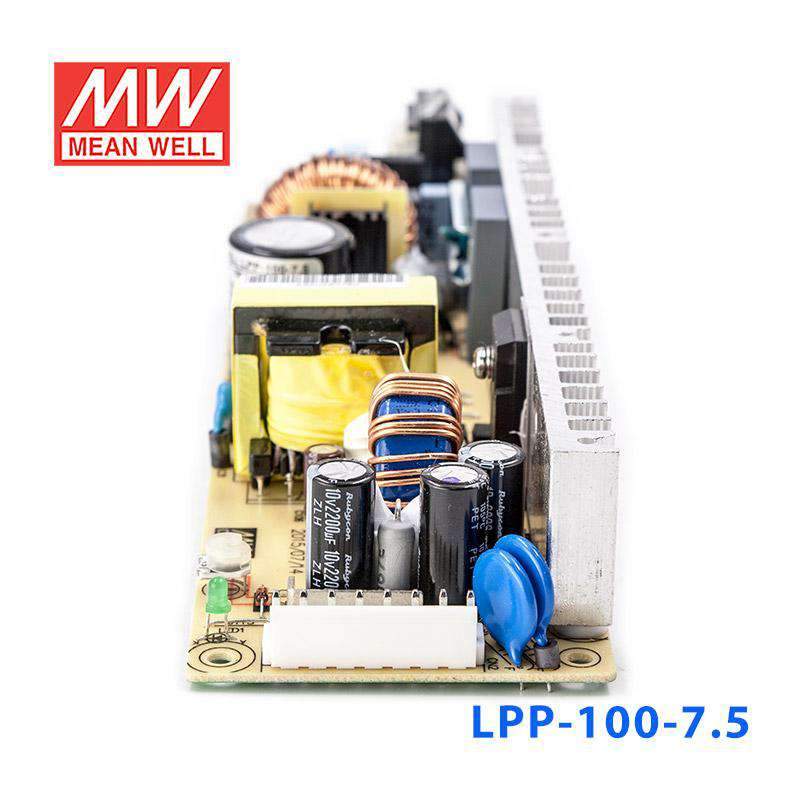

Mean Well LPP-100-7.5 Power Supply 101W 7.5V

slim plastic case, economical, IP67

SKU:

LPP-100-7.5

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	30A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	5P+8P/3.96mm pitch, JST B5P / B8P-VH
Dimension (LxWxH)	222x62x33.6
Packing	24pcs / 13.9kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

101.25 Watt
Output Voltage

7.5 Volt
Rated Current

13.5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

22.2 cm
Width

6.2 cm
Height

3.36 cm
Weight

0.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-100-7.5 for 7.5V embedded control hardware?

Yes, this model is a constant voltage power supply with a 7.5V output and up to 13.5A output current. It fits embedded or industrial electronics that specifically require a regulated 7.5V DC supply and stay within the unit's 101.25W power rating.

Is the LPP-100-7.5 suitable for 7.5V automation panels or low-voltage industrial devices?

It can be suitable for automation or industrial devices that are designed for 7.5V constant voltage input. The key match points are the 7.5V output, 13.5A maximum current, and 101.25W capacity.

Can this power supply run 7.5V IT or communications equipment?

It can power IT or communications equipment only if that equipment is rated for 7.5V constant voltage DC. This unit provides 7.5V at up to 13.5A, so the load has to stay within those output limits.

What is the difference between the LPP-100-7.5 and other LPP series models?

Within the sibling list, the LPP-100-7.5 is rated at 101.25W, 7.5V, and 13.5A. Other listed siblings are LPP-100-12 at 102W, 12V, 8.5A; LPP-100-13.5 at 101.25W, 13.5V, 7.5A; LPP-100-15 at 100.5W, 15V, 6.7A; LPP-100-24 at 100.8W, 24V, 4.2A; LPP-100-27 at 102.6W, 27V, 3.8A; LPP-100-3.3 at 66W, 3.3V, 20A; LPP-100-48 at 100.8W, 48V, 2.1A; LPP-100-5 at 100W, 5V, 20A; LPP-150-12 at 150W, 12V, 12.5A; LPP-150-13.5 at 151.2W, 13.5V, 11.2A; LPP-150-15 at 150W, 15V, 10A; LPP-150-24 at 151.2W, 24V, 6.3A; LPP-150-27 at 151.2W, 27V, 5.6A; LPP-150-3.3 at 99W, 3.3V, 30A; LPP-150-5 at 150W, 5V, 30A; LPP-150-7.5 at 150W, 7.5V, 20A; and lpp-150-48 at 153.6W, 48V, 3.2A.

Can the LPP-100-7.5 be used outdoors or in washdown areas?

This product is listed as IP67, so it is intended for environments where that enclosure rating is required. Its operating temperature range is -10°C to +60°C, so the application also needs to stay within that temperature window.

Model	Power	Voltage	Current
Mean Well LPP-100-5 Power Supply 100W 5V	100W	5V	20A	View
Mean Well LPP-100-48 Power Supply 100W 48V	100.8W	48V	2.1A	View
Mean Well LPP-100-3.3 Power Supply 66W 3.3V	66W	3.3V	20A	View
Mean Well LPP-100-27 Power Supply 102W 27V	102.6W	27V	3.8A	View
Mean Well LPP-100-24 Power Supply 100W 24V	100.8W	24V	4.2A	View
Mean Well LPP-100-15 Power Supply 100W 15V	100.5W	15V	6.7A	View
Mean Well LPP-100-13.5 Power Supply 101W 13.5V	101.25W	13.5V	7.5A	View
Mean Well LPP-100-12 Power Supply 102W 12V	102W	12V	8.5A	View
