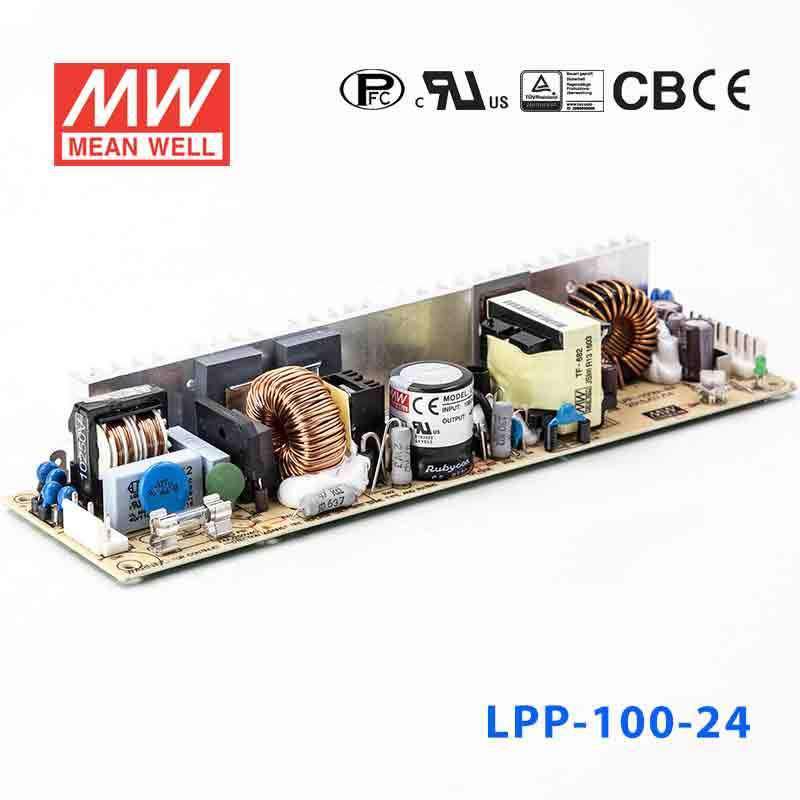

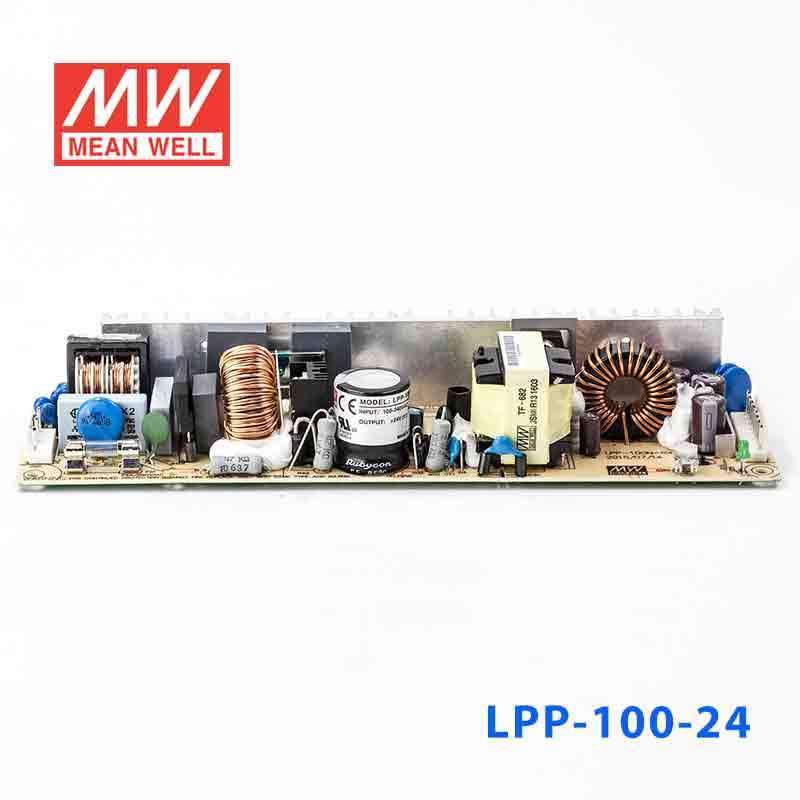

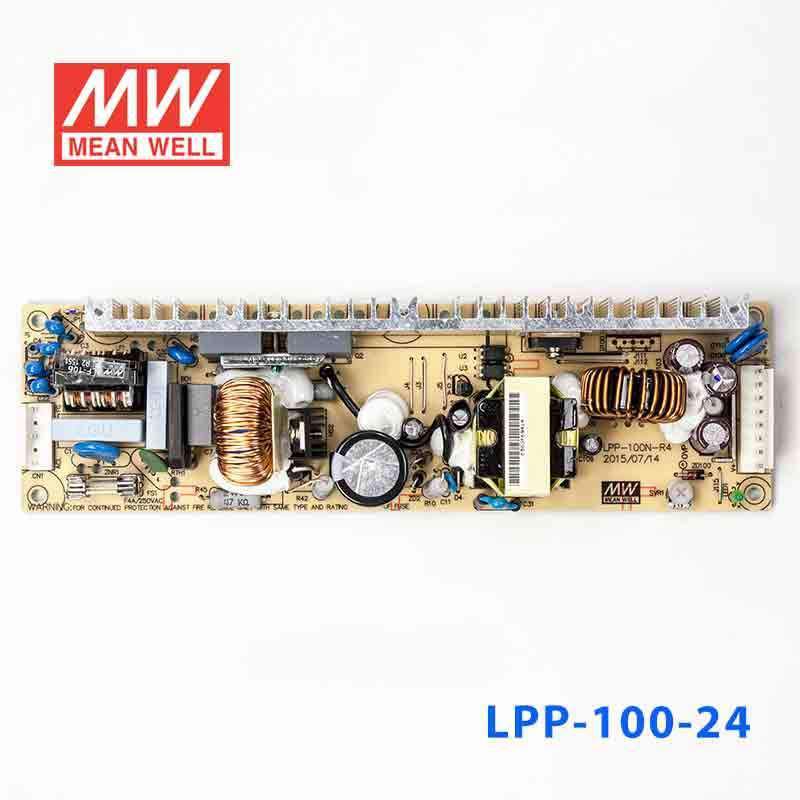

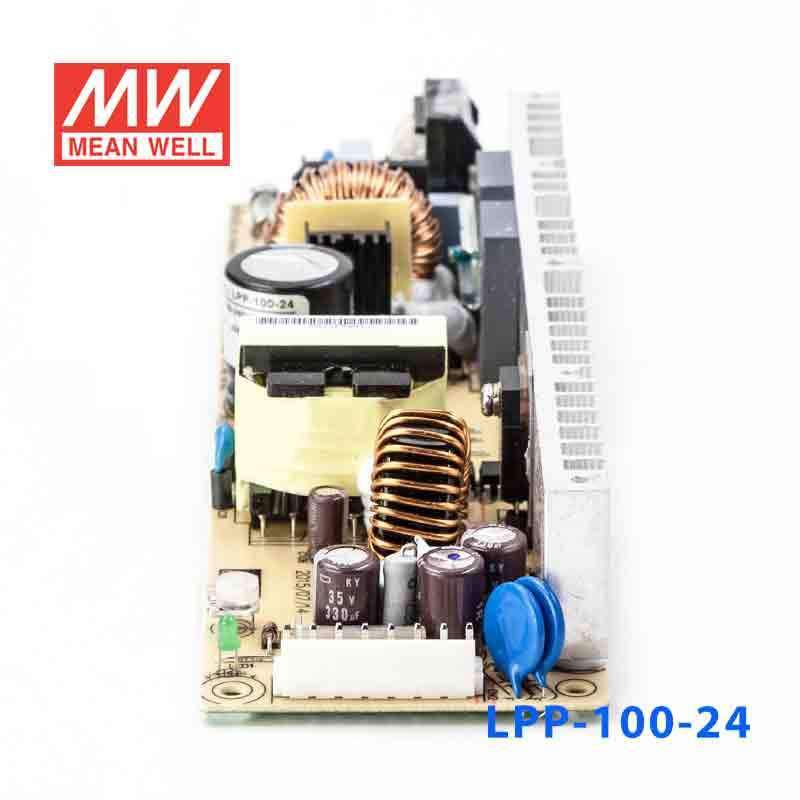

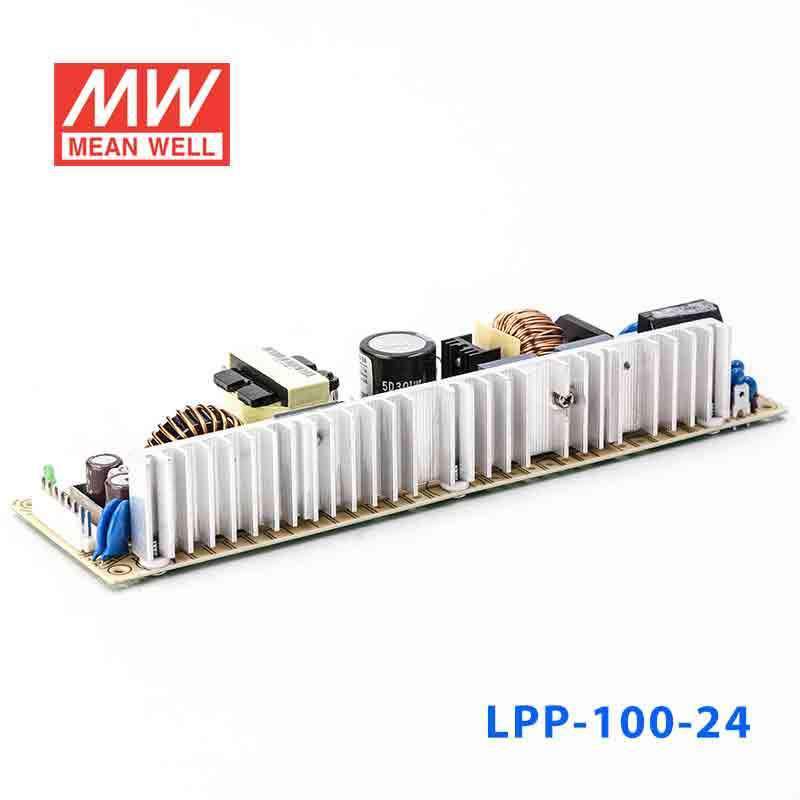

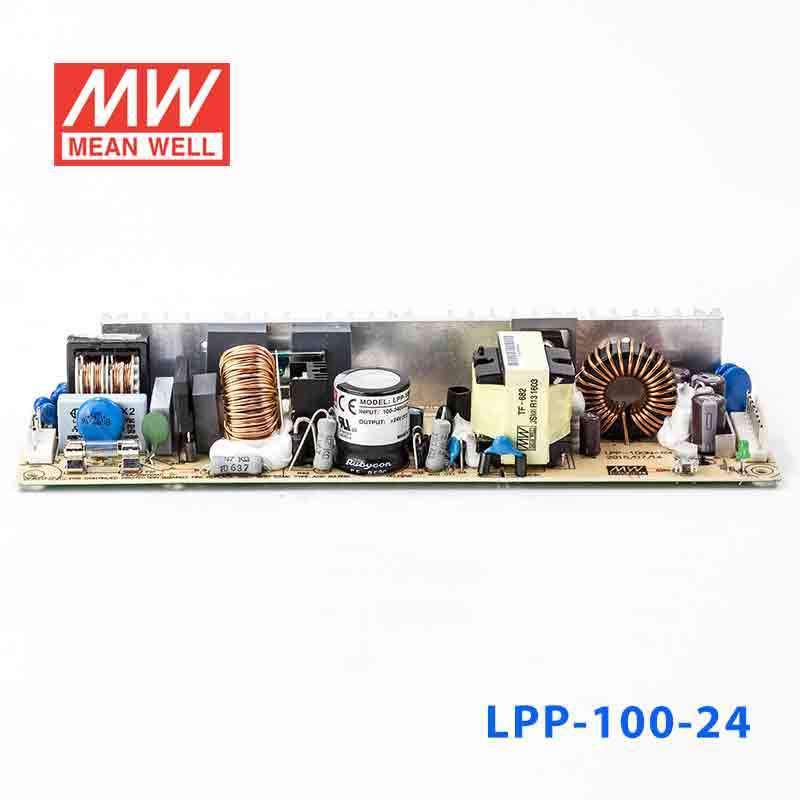

Mean Well LPP-100-24 Power Supply 100W 24V

small and compact, built-in active PFC function

SKU:

LPP-100-24

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Built-in active PFC function

3 years warranty for LPP series

General Specification

AC input voltage range	85~264VAC
AC inrush current(230VAC)	30A
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~150% rated output power
Overload protection Type	Constant current limiting, auto recovery
Over voltage protection Range	110%~135% of rated output voltage
Over voltage protection Type	Shut off, AC recycle to re-start
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-10~+60°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	5P+8P/3.96mm pitch, JST B5P / B8P-VH
Dimension (LxWxH)	222x62x33.6
Packing	24pcs / 13.9kg

Specifications

Brand

Mean Well
Series

LPP Series
Power Rating

100.8 Watt
Output Voltage

24 Volt
Rated Current

4.2 Ampere
Input Voltage

85V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

22.2 cm
Width

6.2 cm
Height

3.36 cm
Weight

0.51 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPP-100-24 for a 24V industrial control panel?

Yes, this model is a constant voltage power supply with a 24V output rated for 4.2A and 100.8W. Those specs fit 24V control equipment that needs a fixed 24V DC source within that power budget.

Is the LPP-100-24 suitable for 24V automation sensors and I/O devices?

It can be a fit for 24V automation loads when the combined demand stays within 4.2A and 100.8W. The unit provides constant voltage output, which is the normal requirement for 24V DC sensors, relays, and I/O hardware.

Can this power supply run a 24V embedded system or industrial PC setup?

It is appropriate for 24V embedded or industrial electronics that are designed for constant voltage input. The available output is 24V at up to 4.2A, with an AC input range of 85-264VAC for broad mains compatibility.

Would the LPP-100-24 work for a 24V HMI or small automation subsystem?

Yes, if the subsystem requires a steady 24V DC supply and stays within 100.8W total load. The compact housing at 222.0 × 62.0 × 33.6 mm can also help in space-constrained equipment layouts.

Is the LPP-100-24 appropriate for outdoor or washdown environments?

The provided specs list an operating temperature range of -10°C to +60°C, but they do not list an IP rating. That means temperature suitability is defined, while enclosure protection for water or dust is not established in the provided data.
